1-1/4 ARBOR X 3/4″ STRAIGHT SHANK STUB MILL ARBOR (3900-0164)

1-1/4 ARBOR X 3/4″ STRAIGHT SHANK STUB MILL ARBOR (3900-0164) (SKU: 3900-0164)

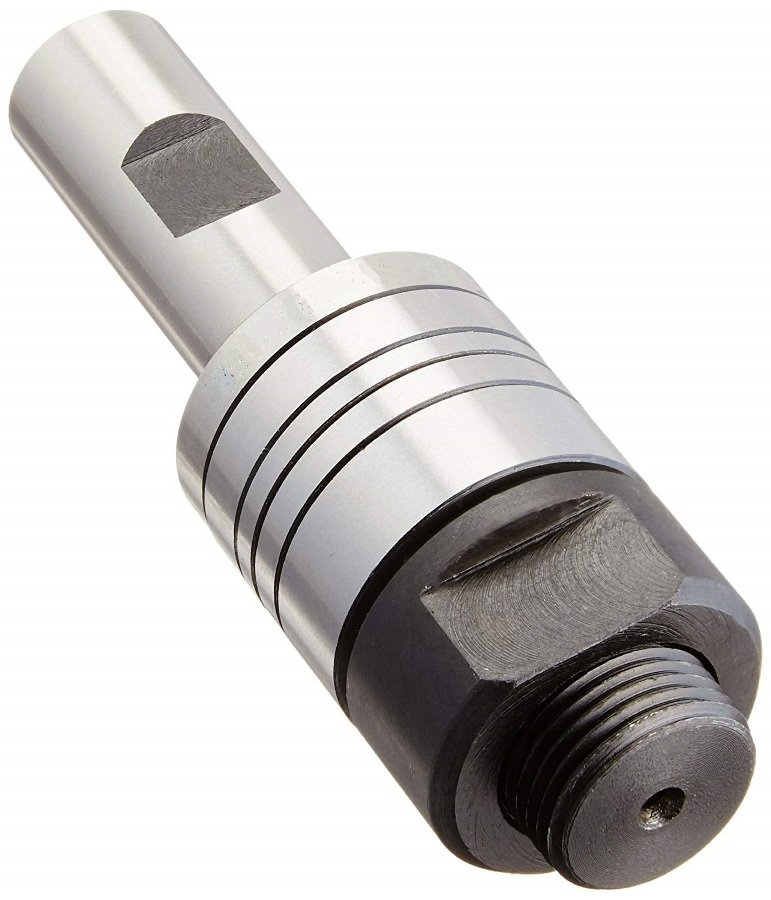

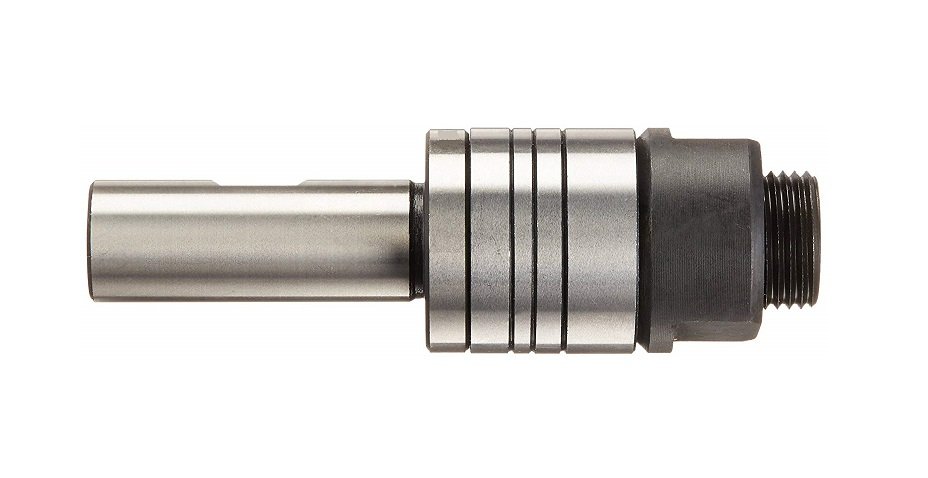

HHIP 1-1/4″ Arbor X 3/4″ Straight Shank Stub Mill Arbor Made of 40Cr steel known for its good hardenability, strength and toughness. Fits into standard end mill adapters. Furnished with standard keyways and left-hand arbor nut. Length of shoulder to nut is 1″. Diameter of arbor is 1-1/4″. Overall length is 118.3mm.

Specifications

• HHIP 1-1/4″ Arbor X 3/4″ Straight Shank Stub Mill Arbor
• Made of 40Cr steel known for its good hardenability, strength and toughness.
• Fits into standard end mill adapters.
• Furnished with standard keyways and left-hand arbor nut.

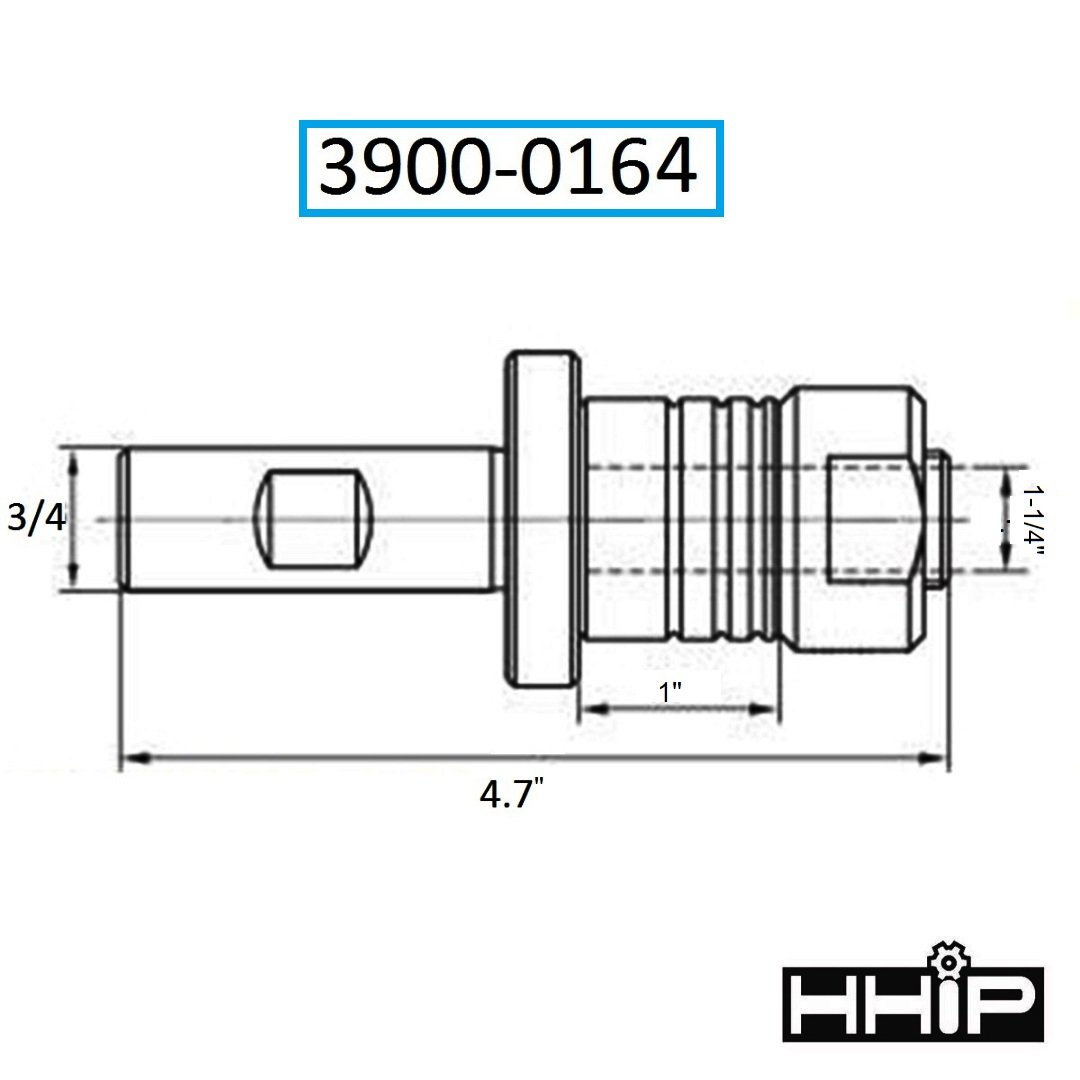

• Length of shoulder to nut is 1″.
• Diameter of arbor is 1-1/4″.
• Overall length is 118.3mm.
• Weight: 1.9
• Dimensions: L 3, W 6, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
