1-5/16″ CAPACITY TOOLMAKER’S V-BLOCK WITH CLAMP (3402-0981)

1-5/16″ CAPACITY TOOLMAKER’S V-BLOCK WITH CLAMP (3402-0981) (SKU: 3402-0981)

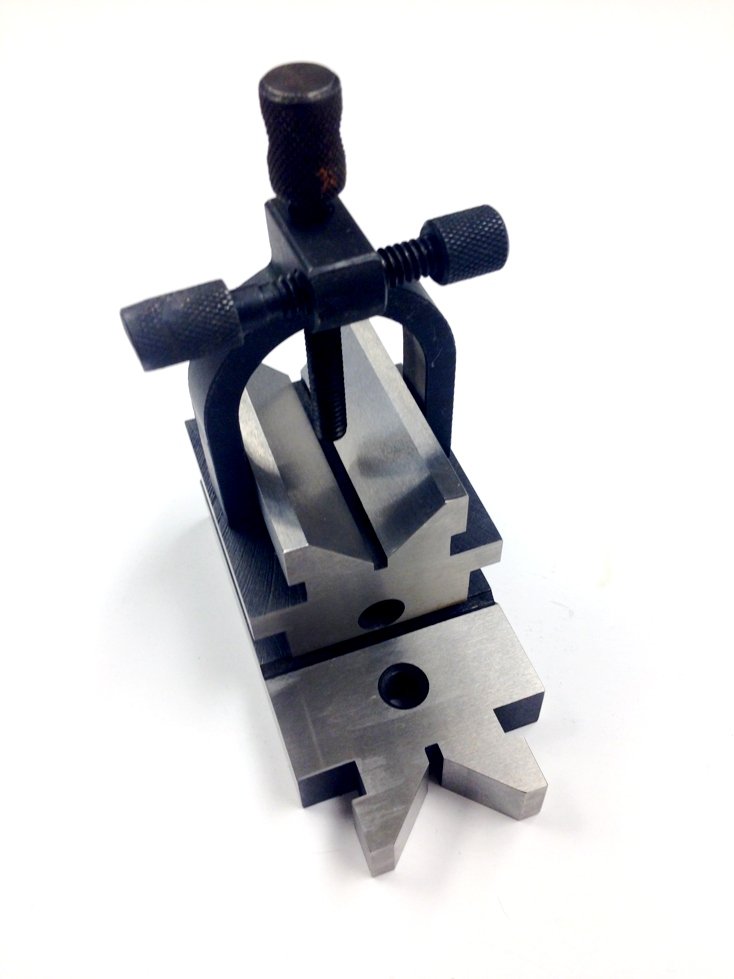

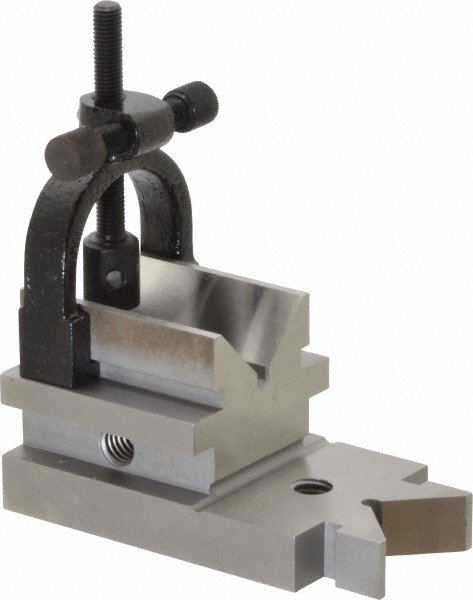

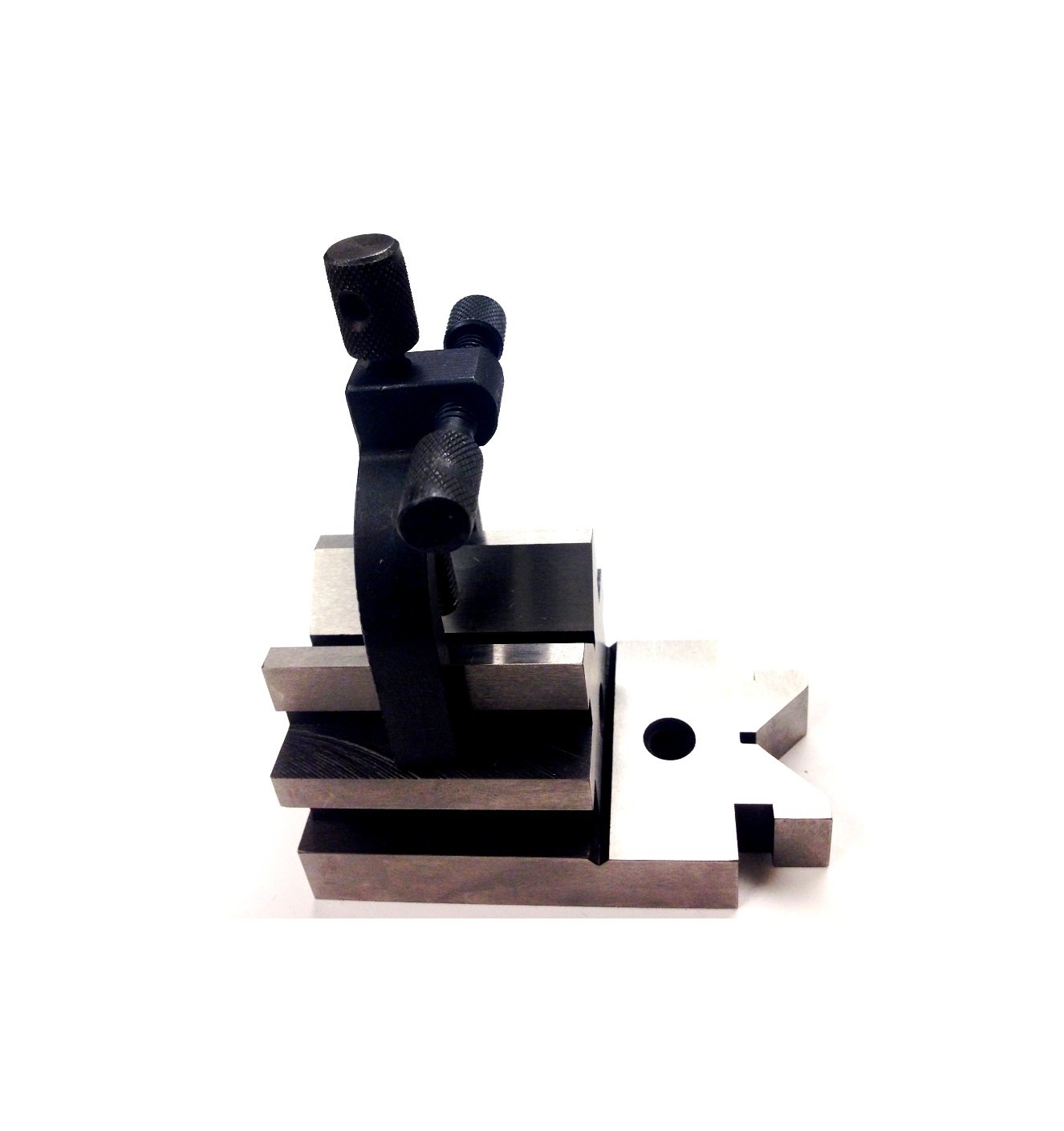

1-5/16″ Capacity Toomaker’s V-Block with Clamp

• Block is hardened and precision ground
• This block is a versatile tool for grinding, milling or drilling
• Side screw supports the block and prevents tilting
• Blocks have four 3/8″-26 tapped holes, two in the base and one on each side to attach to an angle iron
• The angle iron holding the block can then be attached to a lathe face plate or held by a magnetic chuck
• A clearance hole for drilling or removing dowel pins is provided in the block

Specifications

• 1-5/16″ Capacity Toomaker’s V-Block with Clamp
• Block is hardened and precision ground.
• This block is a versatile tool for grinding, milling or drilling.
• Side screw supports the block and prevents tilting.
• A clearance hole for drilling or removing dowel pins is provided in the block.
• Blocks have four 3/8″-26 tapped holes, two in the base and one on each side to attach to an angle iron.
• The angle iron holding the block can then be attached to a lathe face plate or held by a magnetic chuck.
• Weight: 2.1
• Dimensions: L 3, W 6, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
