1/8 X 3″ PRECISION PARALLEL SET & 1-2-3 MATCHED PAIR BLOCK SET (9999-0031)

1/8 X 3″ PRECISION PARALLEL SET & 1-2-3 MATCHED PAIR BLOCK SET (9999-0031) (SKU: 9999-0031)

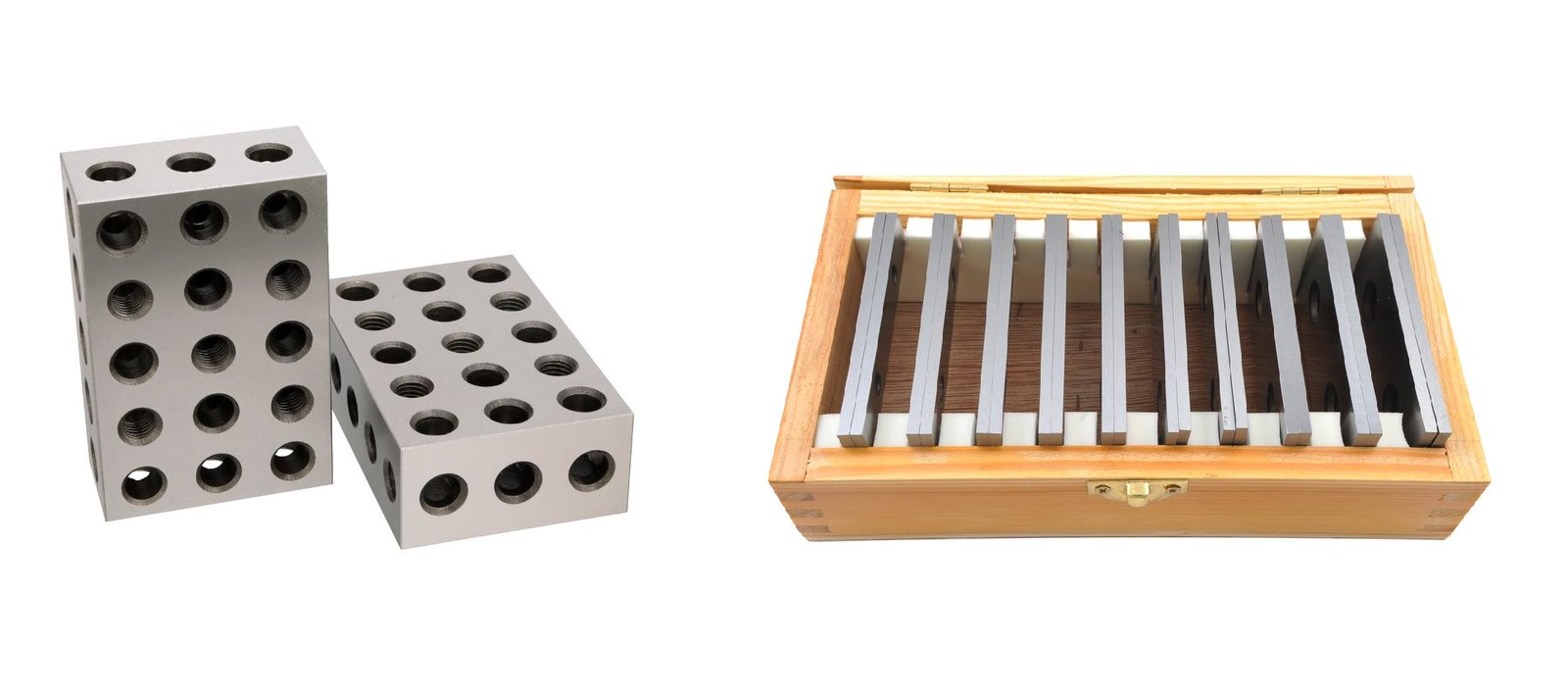

HHIP 1/8 X 3″ Precision Parallel Set & 1-2-3 Matched Pair Block Set The 2-hole parallels are made from fine quality tool steel that is stress relieved against distortion. These parallels are precision ground and hardened and are complete with a fitted wood case.
Sizes include 1/8 X 1/2 X 3″, 1/8 X 5/8 X 3″, 1/8 X 3/4 X 3″, 1/8 X 7/8 X 3″, 1/8 X 1 X 3″, 1/8 X 1-1/8 X 3″, 1/8 X 1-1/4 X 3″, 1/8 X 1-3/8 X 3″, 1/8 X 1-1/2 X 3″ and 1/8 X 1-5/8 X 3″. The tolerance for the parallels is parallel to 0.0003 on 2 sides, top & bottom and the dimensions are within 0.001″ allowance. The 23 hole 1-2-3 blocks are heat treated and case hardened to HRC 55 to 60 and are hardened and precision ground on all 6 sides of each block. These blocks are accurate with squareness on all sides within .0002″ per inch. The 23 holes consist of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes. The 1-2-3 blocks have a cross drilling design to give them minimum weight and maximum strength.

Specifications

• HHIP 1/8 X 3″ Precision Parallel Set & 1-2-3 Matched Pair Block Set

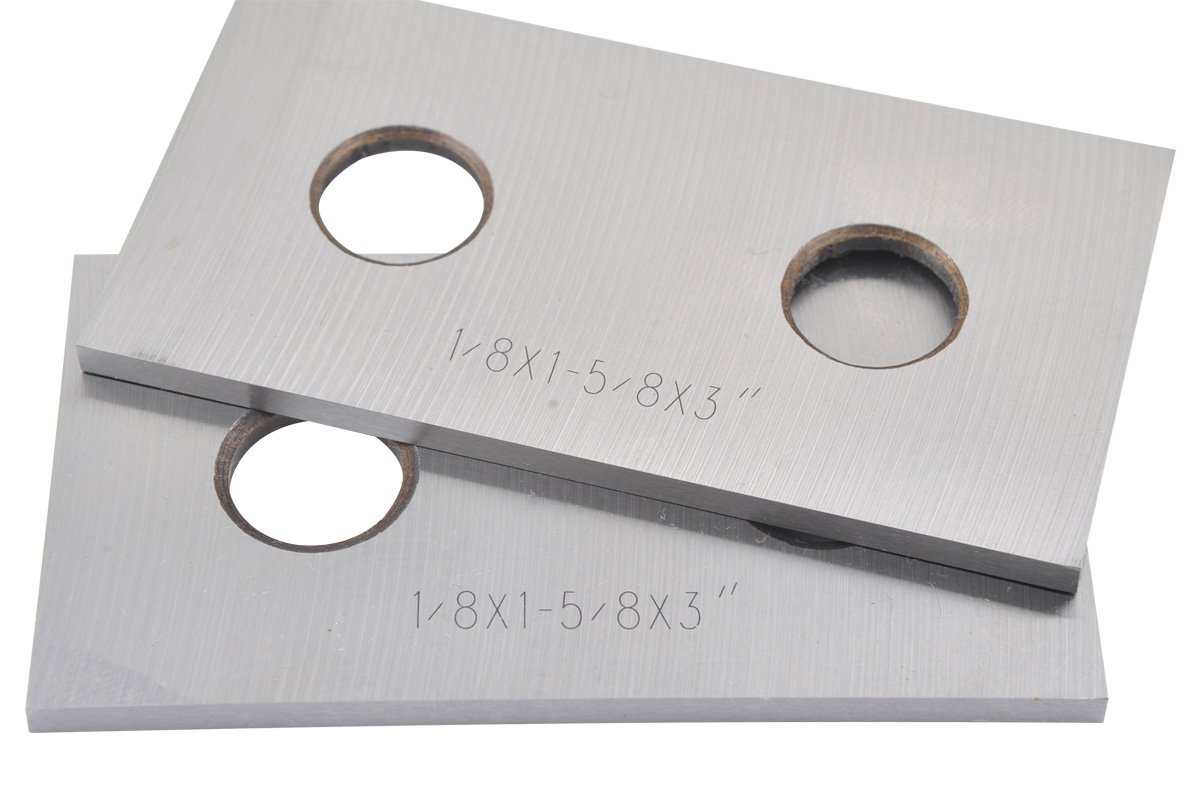

• The 2-hole parallels are made from fine quality tool steel that is stress relieved against distortion.
• These parallels are precision ground and hardened and are complete with a fitted wood case.
• Sizes include 1/8 X 1/2 X 3″, 1/8 X 5/8 X 3″, 1/8 X 3/4 X 3″, 1/8 X 7/8 X 3″, 1/8 X 1 X 3″, 1/8 X 1-1/8 X 3″, 1/8 X 1-1/4 X 3″, 1/8 X 1-3/8 X 3″, 1/8 X 1-1/2 X 3″ and 1/8 X 1-5/8 X 3″.
• The tolerance for the parallels is parallel to 0.0003 on 2 sides, top & bottom and the dimensions are within 0.001″ allowance.

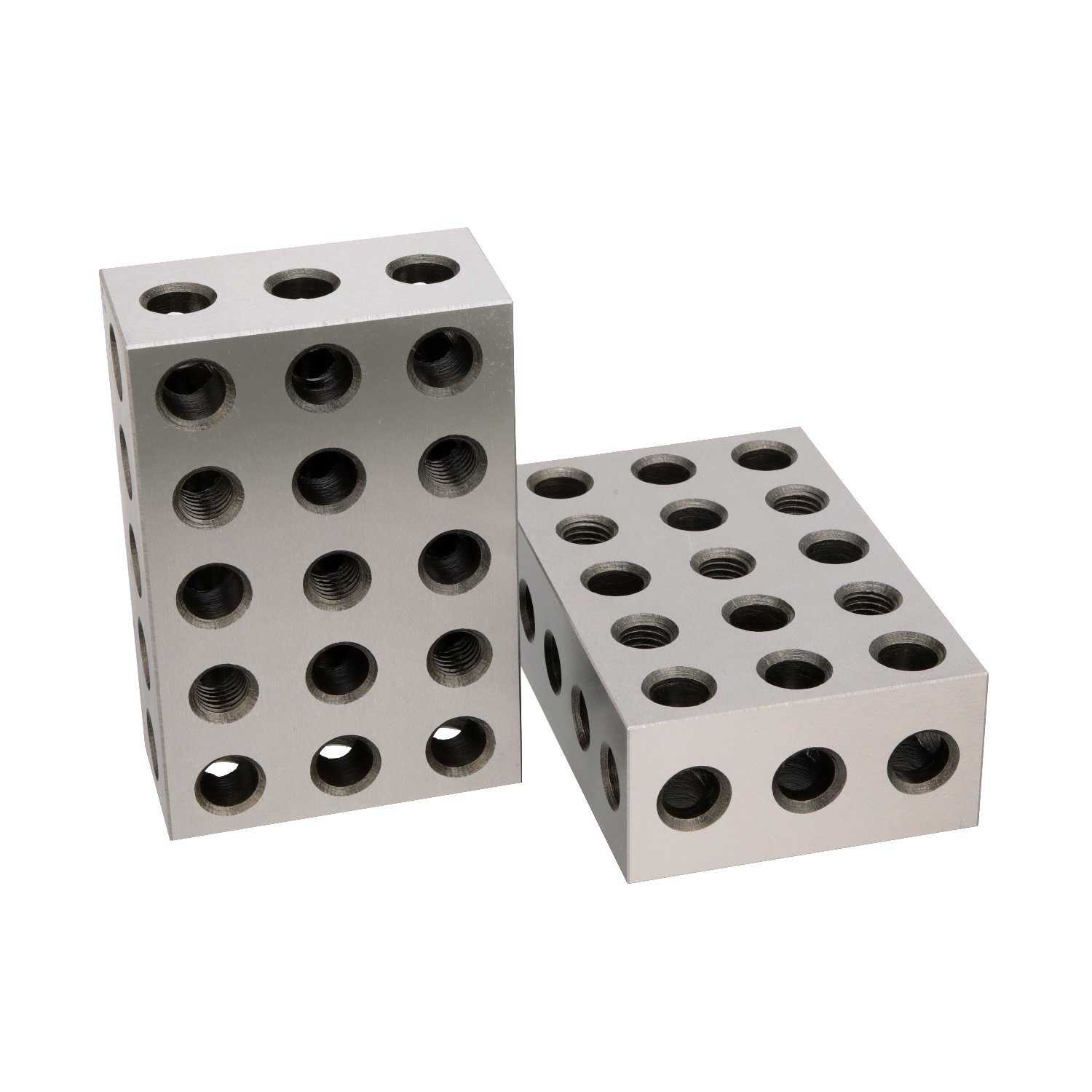

• The 23 hole 1-2-3 blocks are heat treated and case hardened to HRC 55 to 60 and are hardened and precision ground on all 6 sides of each block.
• These blocks are accurate with squareness on all sides within .0002″ per inch.
• The 23 holes consist of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes.
• The 1-2-3 blocks have a cross drilling design to give them minimum weight and maximum strength.
• Weight: 4.4
• Dimensions: L 8, W 5, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
