10pc MGMN-400-M GRADE BPS253-CVD CUT-OFF And GROOVING INSERT (6024-3004)

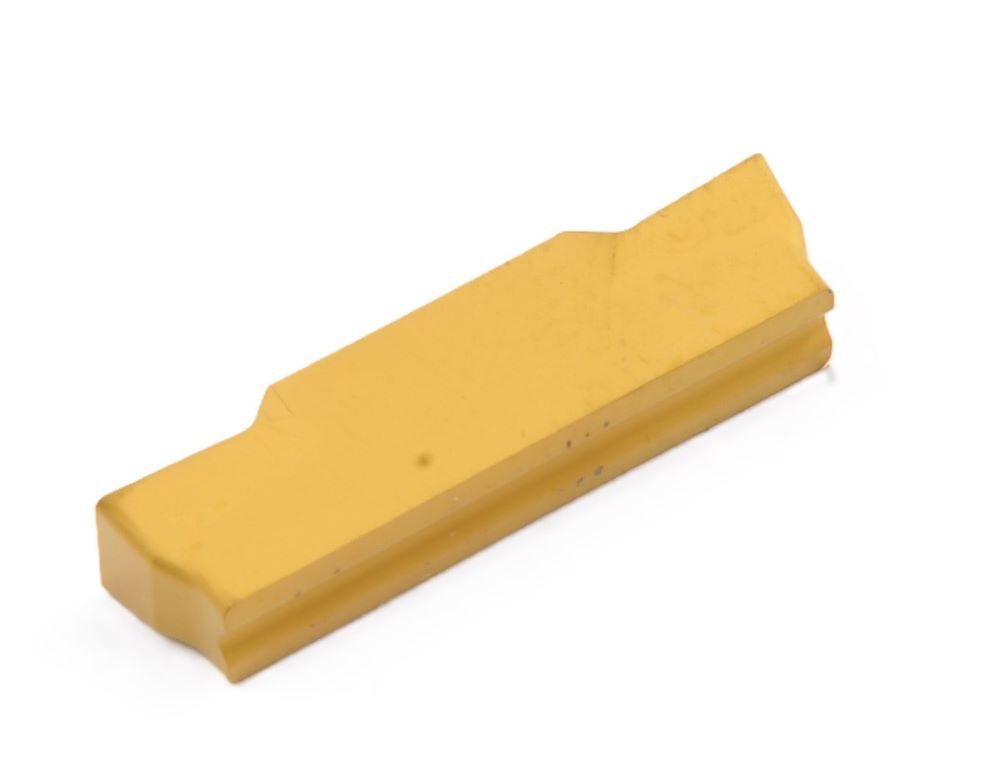

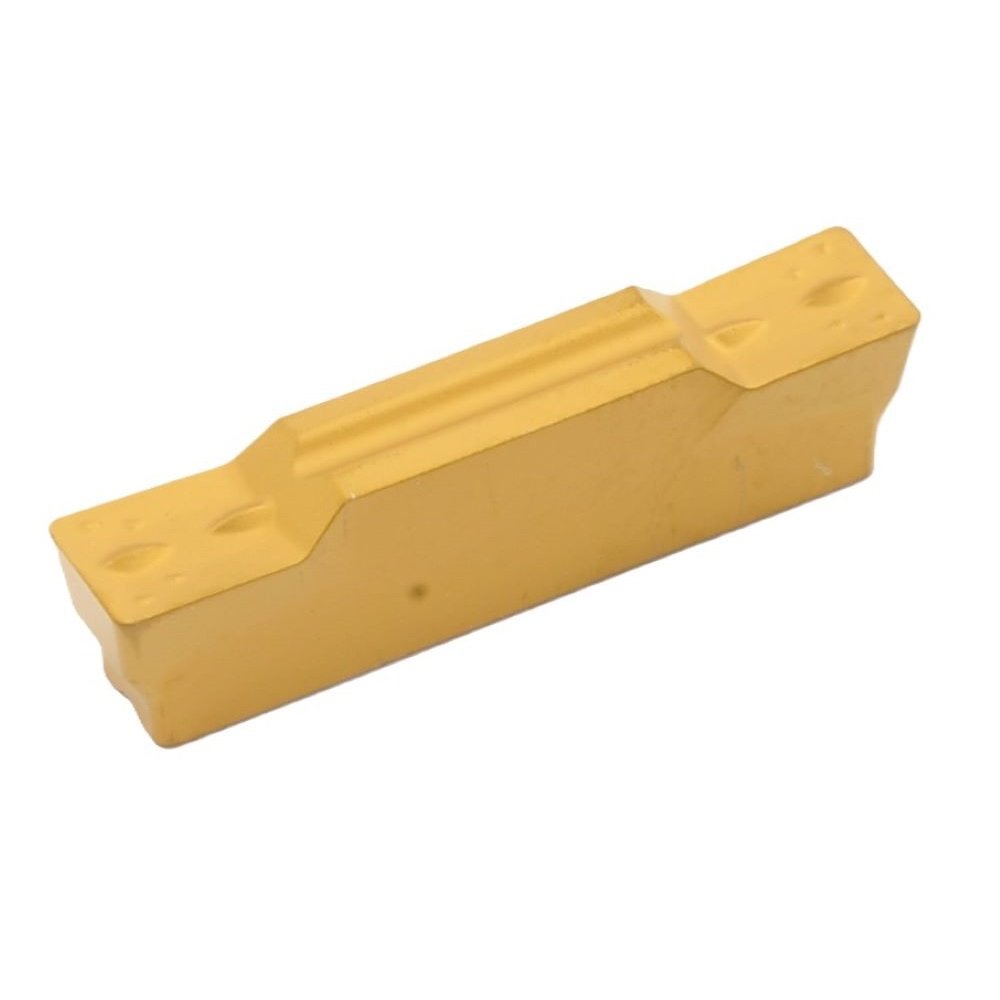

MGMN-400-M Grade BPS253-CVD Carbide Cut-Off & Grooving Insert
This insert is engineered for turning, grooving, and parting operations.
Its unique chip breaker design enhances chip flow compared to traditional flat-top geometries, thanks to a central chip breaker.
Strategically positioned convex dots aid in chip control during external machining, promoting smoother chip evacuation.
The CVD-coated universal carbide grade is well-suited for continuous and interrupted cutting, from finishing to roughing, in steel and cast steel applications.
The radius (r) measures 1/64.
Cutting width is 0.157 inches.
Overall length is 0.83 inches.
The diameter (d) is 0.130 inches.
With a cutting edge height of 0.189 inches, this insert excels in turning applications.
