12″ 4-JAW D1-6 DIRECT MOUNT CAMLOCK LATHE CHUCK (3900-4809)

12″ 4-JAW D1-6 DIRECT MOUNT CAMLOCK LATHE CHUCK (3900-4809) (SKU: 3900-4809)

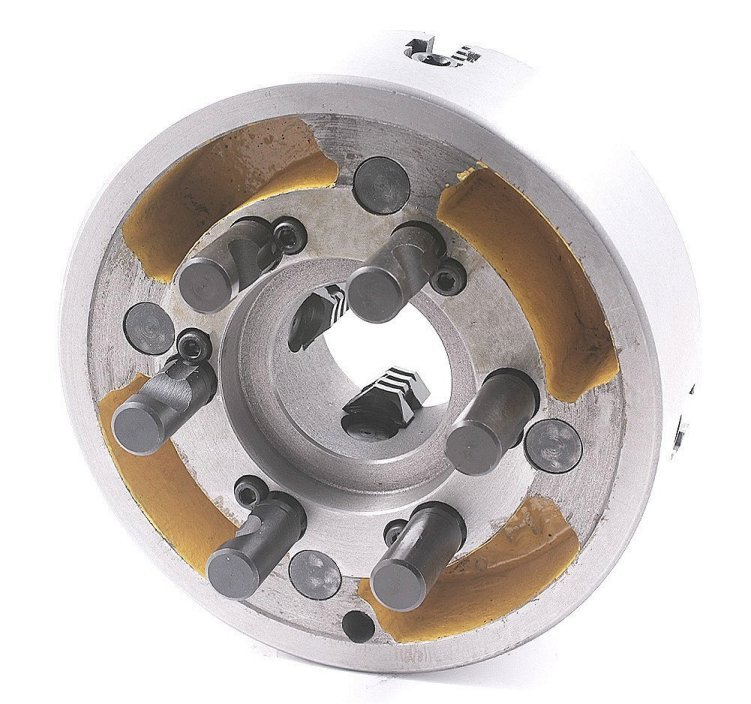

12″ 4-jaw D1-6 Camlock Lathe Chuck

• Direct mounting chuck with camlock nose
• Body is made of high grade semi-steel
• Jaws are individually adjustable, allowing firm gripping of odd shaped work
• Jaws are also reversible, hardened and precision ground

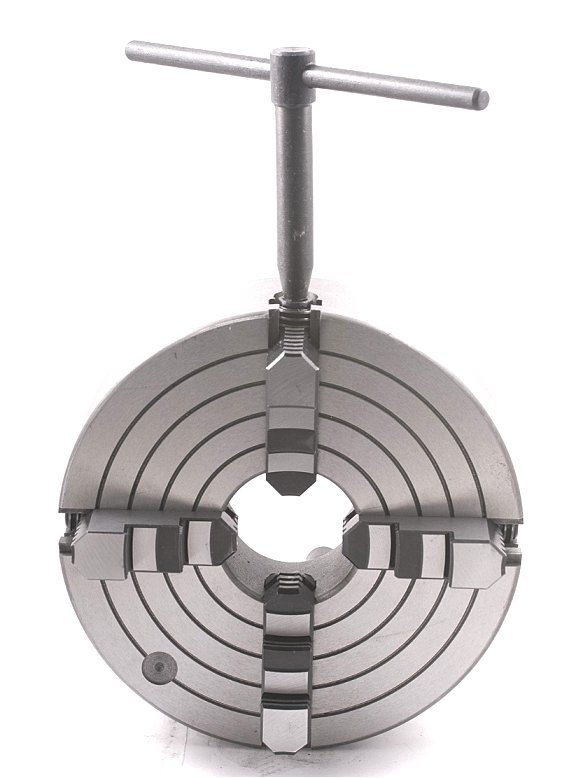

• Supplied with a T-wrench
• # of M16 studs included is 6
• Diameter of the studs is 7/8″
• Weight is 100 lbs
• Maximum RPM is 1,200

Specifications

• 12″ 4-jaw D1-6 Camlock Lathe Chuck
• Direct mounting chuck with camlock nose.
• Body is made of high grade semi-steel.
• Jaws are individually adjustable, allowing firm gripping of odd shaped work.
• Jaws are also reversible, hardened and precision ground.
• Supplied with a T-wrench.
• # of M16 studs included is 6. Diameter of the studs is 7/8″.
• 1,200 RPM.
• Weight is 100 lbs.
• Weight: 93
• Dimensions: L 14, W 24, H 14

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
