14 PIECE 3/4″ SHANK RIGHT HAND EXTERNAL & INTERNAL GROOVING TOOL KIT (2208-0006)

14 PIECE 3/4″ SHANK RIGHT HAND EXTERNAL & INTERNAL GROOVING TOOL KIT (2208-0006) (SKU: 2208-0006)

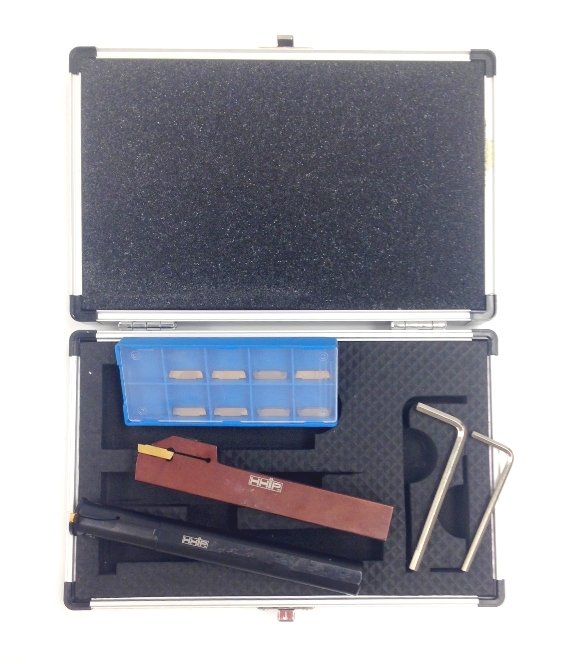

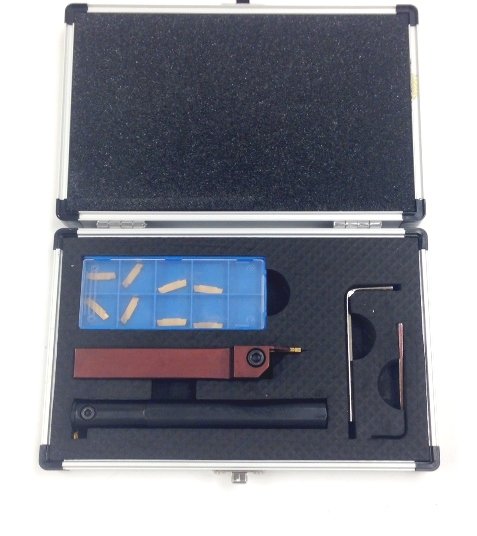

14 Piece 3/4″ Shank Right Hand External & Internal Grooving Tool Kit (2208-0006)

• Suitable for varied external & internal grooving
• Tool holder design provides precision clamping & insert indexing accuracy
• Carbide inserts are included for semi-finishing/roughing machining

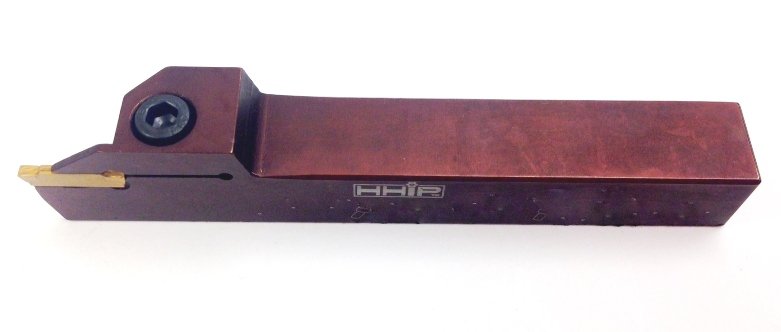

• Set includes an MGEHR12-3C external holder
• The external holder has a maximum cutting depth of 1/2″, a shank size of 3/4″, and is the overall length is 5″

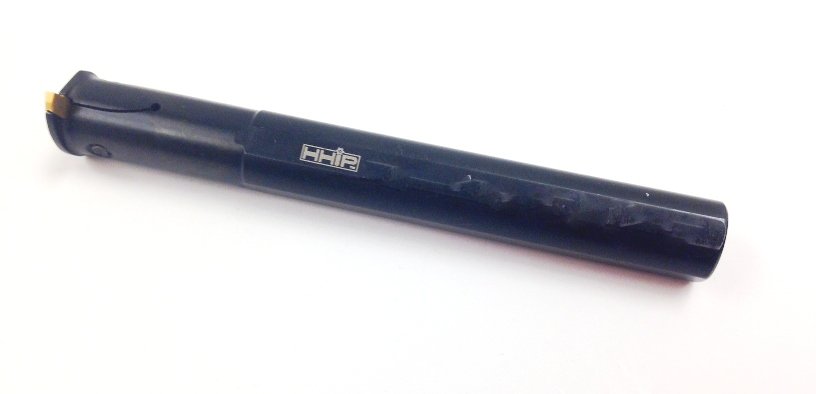

• Also included is a 3/4 X 5″ right hand S12M-MGIVR-3 internal grooving tool holder
• The internal holder has a maximum cutting depth of 0.197″

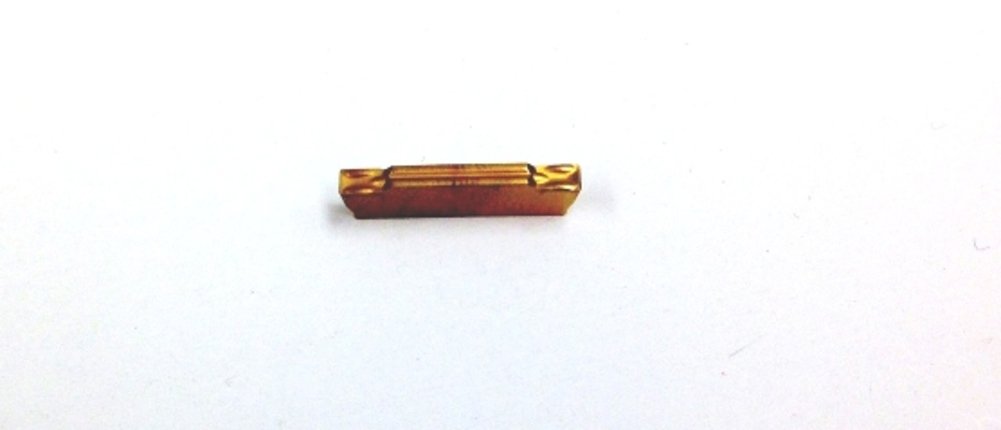

• These holders both take MGMN 300 inserts # 6024-3003 and 10 are included in this set
• The inserts screw is a GB70-85-M4 X 12
• AT3

Specifications

• 14 Piece 3/4″ Shank Right Hand External & Internal Grooving Tool Kit
• Suitable for varied external & internal grooving.
• Tool holder design provides precision clamping & insert indexing accuracy.
• Carbide inserts are included for semi-finishing/roughing machining.
• Set includes an MGEHR12-3C external holder.
• The external holder has a maximum cutting depth of 1/2″, a shank size of 3/4″, and is the overall length is 5″.
• Also included is a 3/4 X 5″ right hand S12M-MGIVR-3 internal grooving tool holder.
• The internal holder has a maximum cutting depth of 0.197″.
• These holders both take MGMN 300 inserts # 6024-3003 and 10 are included in this set.
• The inserts screw is a GB70-85-M4 X 12.
• The hex keys included are S3.
• Weight: 2.2
• Dimensions: L 8, W 8, H 8

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
