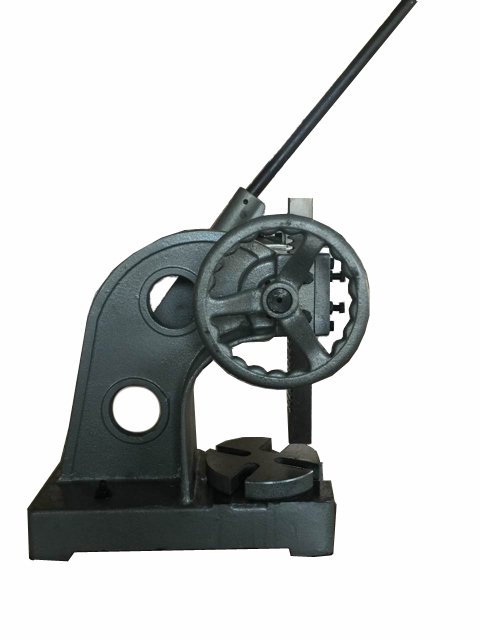

2 TON RATCHET TYPE ARBOR PRESS (8600-3301)

2 TON RATCHET TYPE ARBOR PRESS (8600-3301) (SKU: 8600-3301)

HHIP 2 Ton Ratchet Type Arbor Press Heavy-duty casting frame with a 4-position anvil for flexibility. Press height is 18-1/2″. Ram diameter is 1-1/4”. Capacity over table is 8-1/2” and over the anvil is 7.28”. Maximum work diameter is 9.44”. Weight is 100 lbs. Compact, manually operated tool for controlled pressing force. Versatile, precise, and durable; suitable for bending, riveting, broaching, punching, etc. Cost-effective, safe, and low-maintenance option for various industries. Convenient Lever Use: The Ratchet device allows lever usage in the most convenient position. Hand Wheel: Included hand wheel advances ram quickly. Controlled Force: Precise force application for accurate results. Ratcheting Mechanism: Incremental force application with ease. Adjustable Height: Accommodates different workpieces. Space-efficient: Compact design for limited workshop spaces. Manual Operation: No external power is needed; simple to operate. Used in metalworking, woodworking, jewelry-making, and more. Beneficial for teaching mechanical principles and techniques.

Specifications

• 2 Ton Ratchet Type Arbor Press

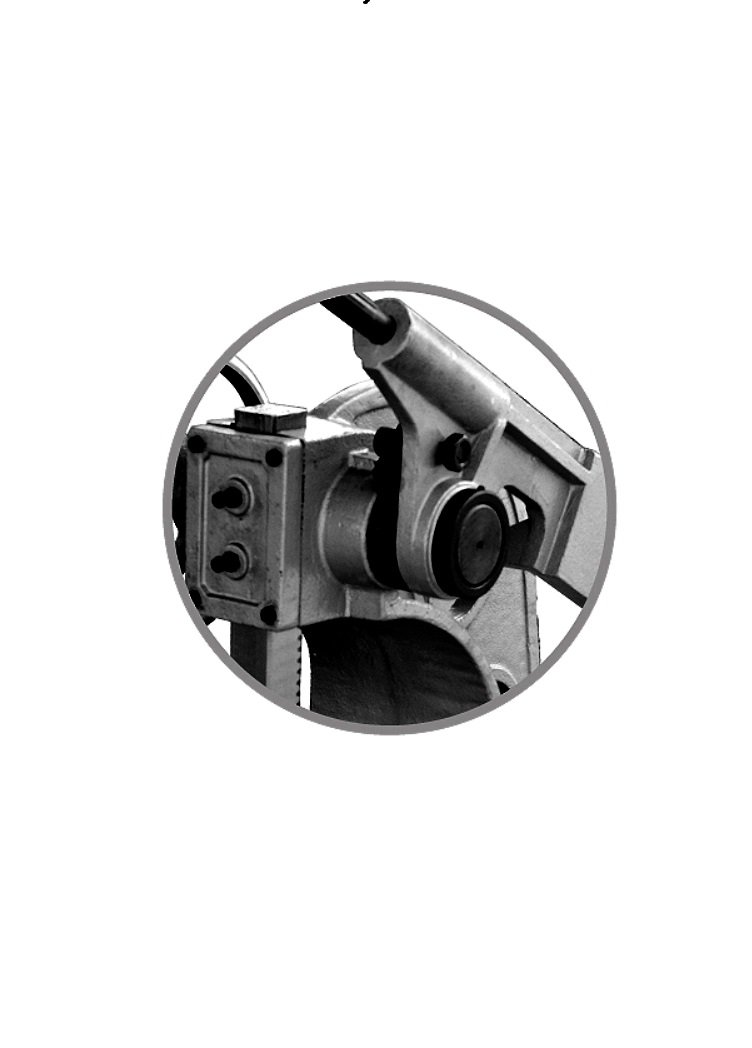

• Ratchet device permits lever to be used in most convenient position.
• Heavy-duty casting frame.
• 4-position anvil.
• Hand wheel advances ram to work quickly.
• Height of the press is 18-1/2″.
• Maximum work diameter is 11-7/8″.
• Arbor is 1-1/4″.
• Capacity over the table is 7.28″.
• Ram is 1-1/4″.
• Weight is 100 lbs.
• Weight: 100
• Dimensions: L 15, W 8, H 17

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
