3/4″ ARBOR X 1″ STRAIGHT SHANK STUB MILL ARBOR (3900-0115)

3/4″ ARBOR X 1″ STRAIGHT SHANK STUB MILL ARBOR (3900-0115) (SKU: 3900-0115)

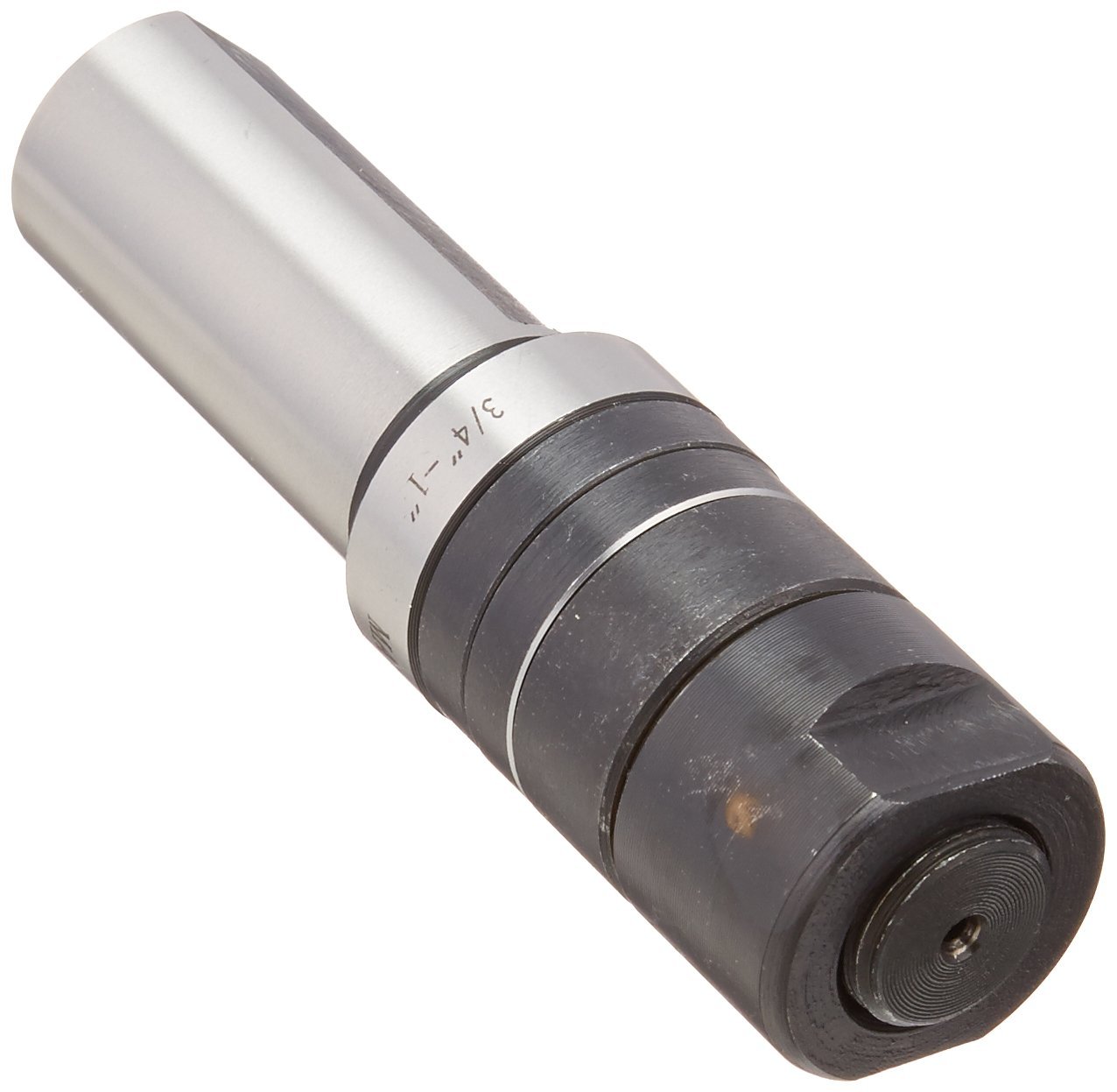

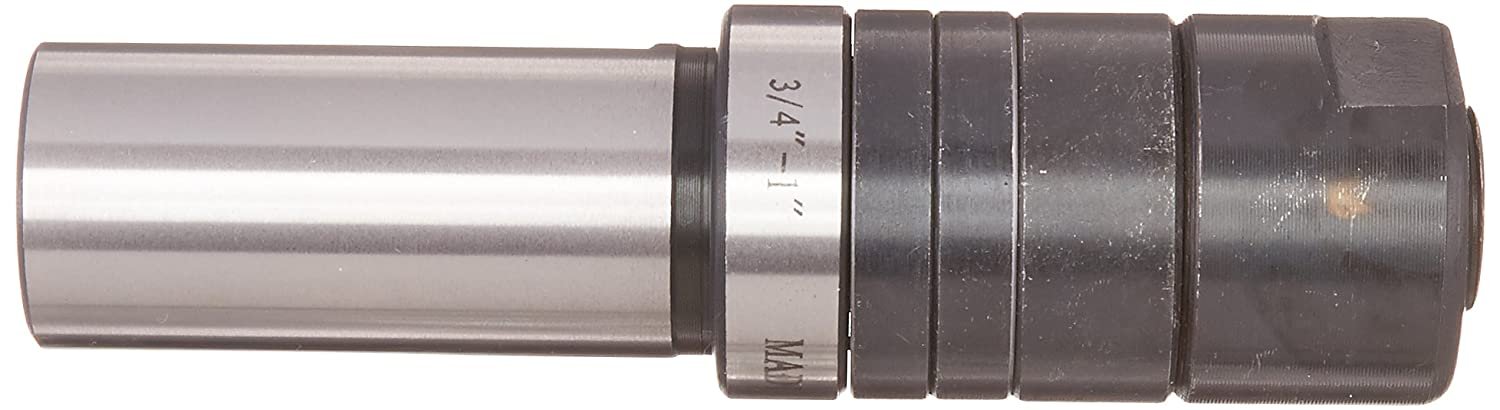

HHIP 3/4″ Arbor X 1″ Straight Shank Stub Mill Arbor Made of 40Cr steel known for its good hardenability, strength and toughness. Fits into standard end mill adapters. Furnished with standard keyways and left-hand arbor nut. Length of shoulder to nut is 1″. Diameter of arbor is 3/4″. Overall length is 146.8mm.

Specifications

• HHIP 3/4″ Arbor X 1″ Straight Shank Stub Mill Arbor
• Made of 40Cr steel known for its good hardenability, strength and toughness.
• Fits into standard end mill adapters.
• Furnished with standard keyways and left-hand arbor nut.

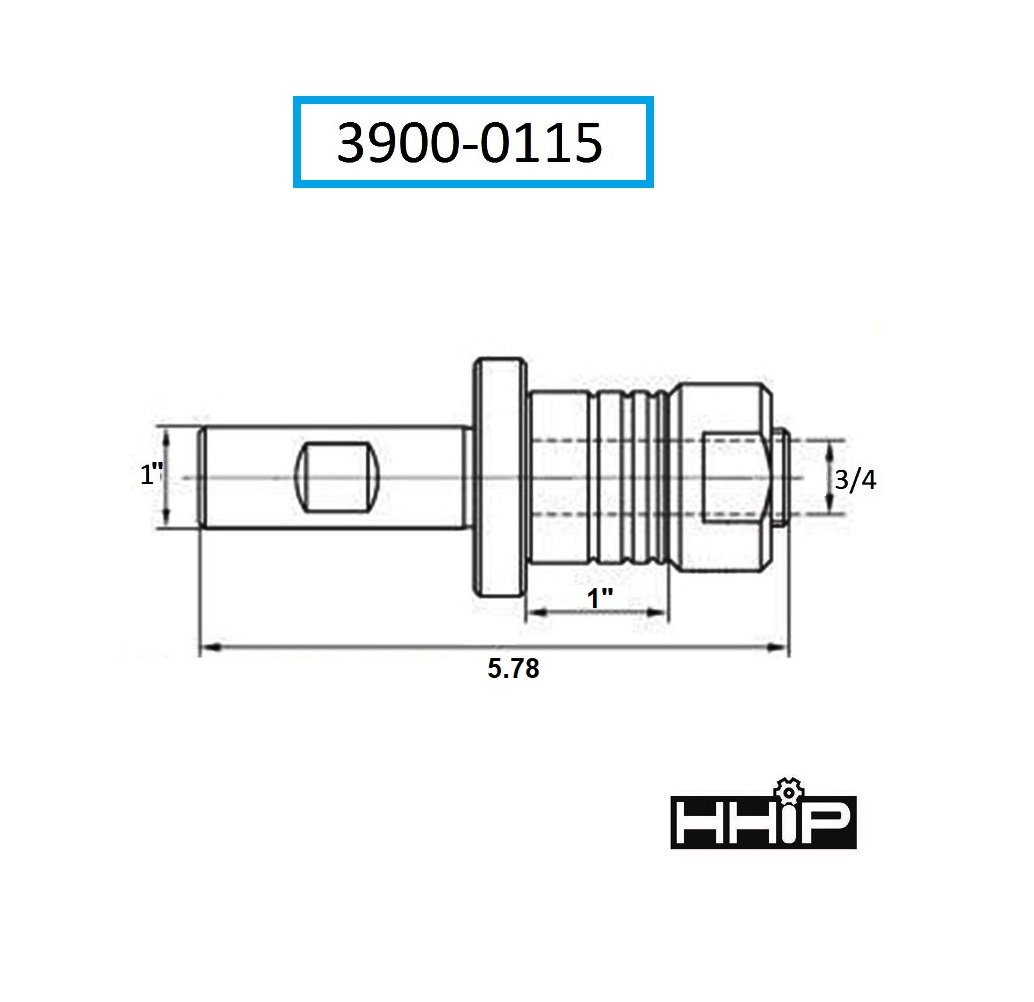

• Length of shoulder to nut is 1″.
• Diameter of arbor is 3/4″.
• Overall length is 146.8mm.
• Weight: 1.5
• Dimensions: L 2, W 4, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
