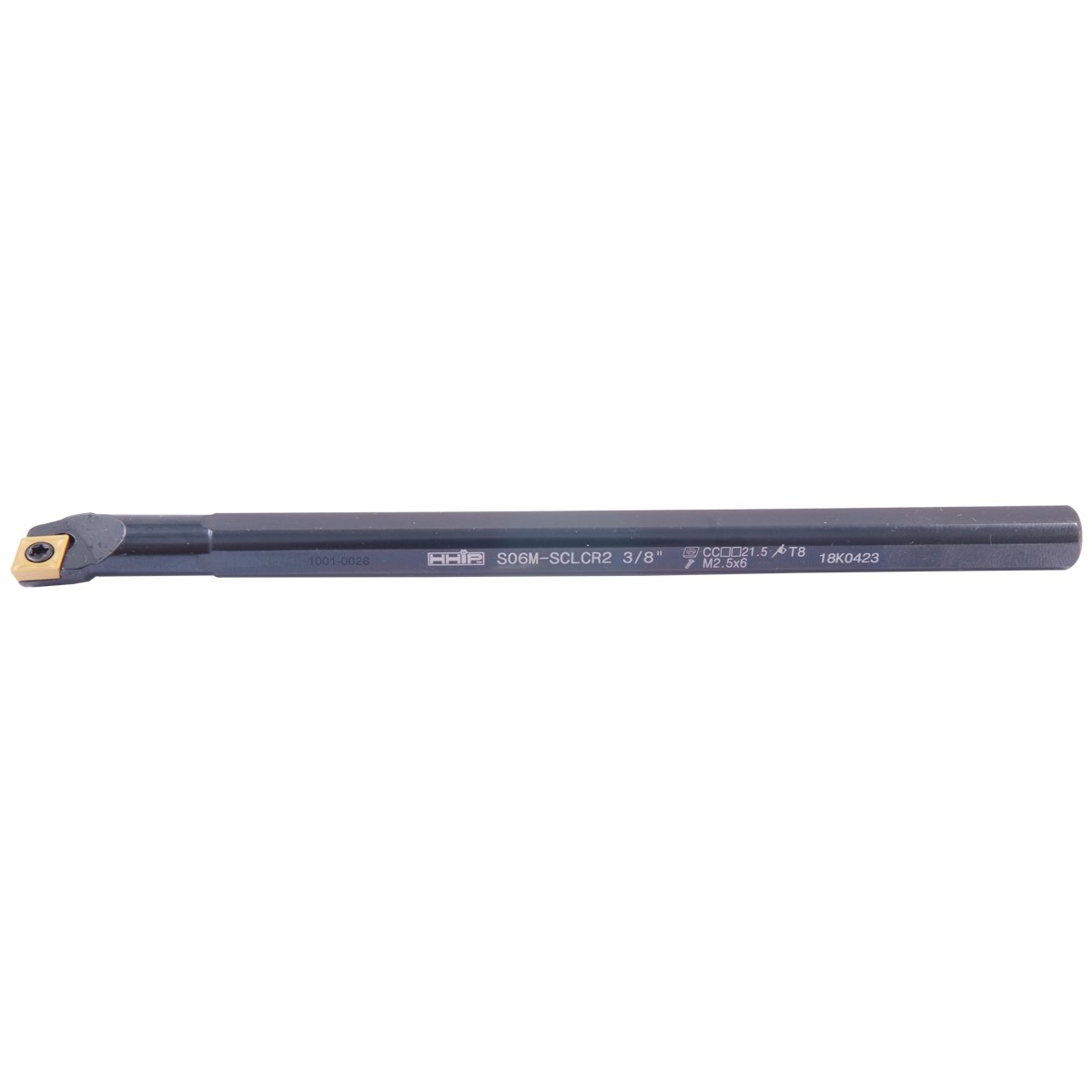

3/8 X 6 in Shank S-SCLCR6-2 Boring Bar Indexable Tool Holder with CCMT Insert
Lathe turning and cylinder Boring tool holder

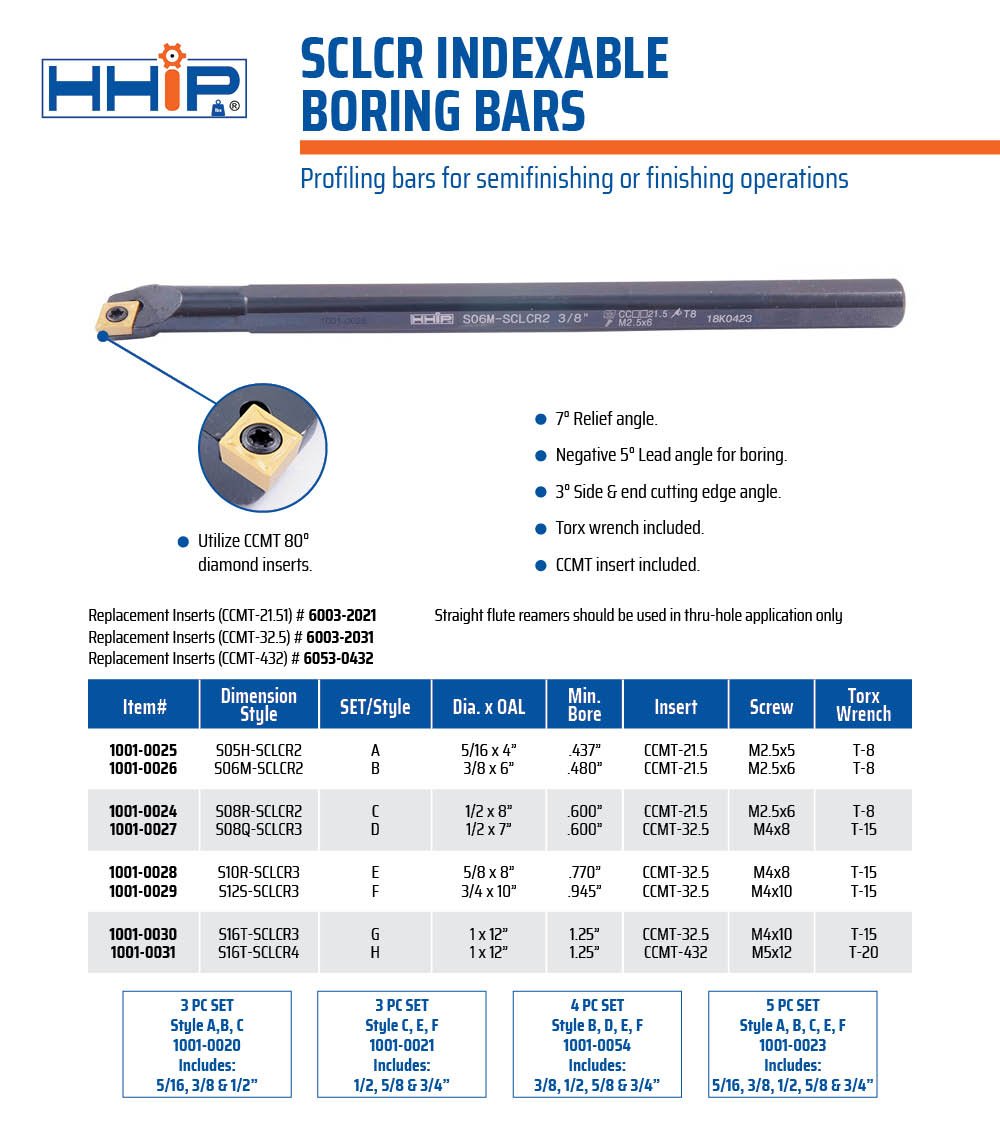

3/8″ Shank S-SCLCR6-2 Indexable Boring Bar With Insert
7° Relief angle.
Negative 5° Lead angle for boring.
3° Side & end cutting edge angle.
Torx wrench T-8 included.

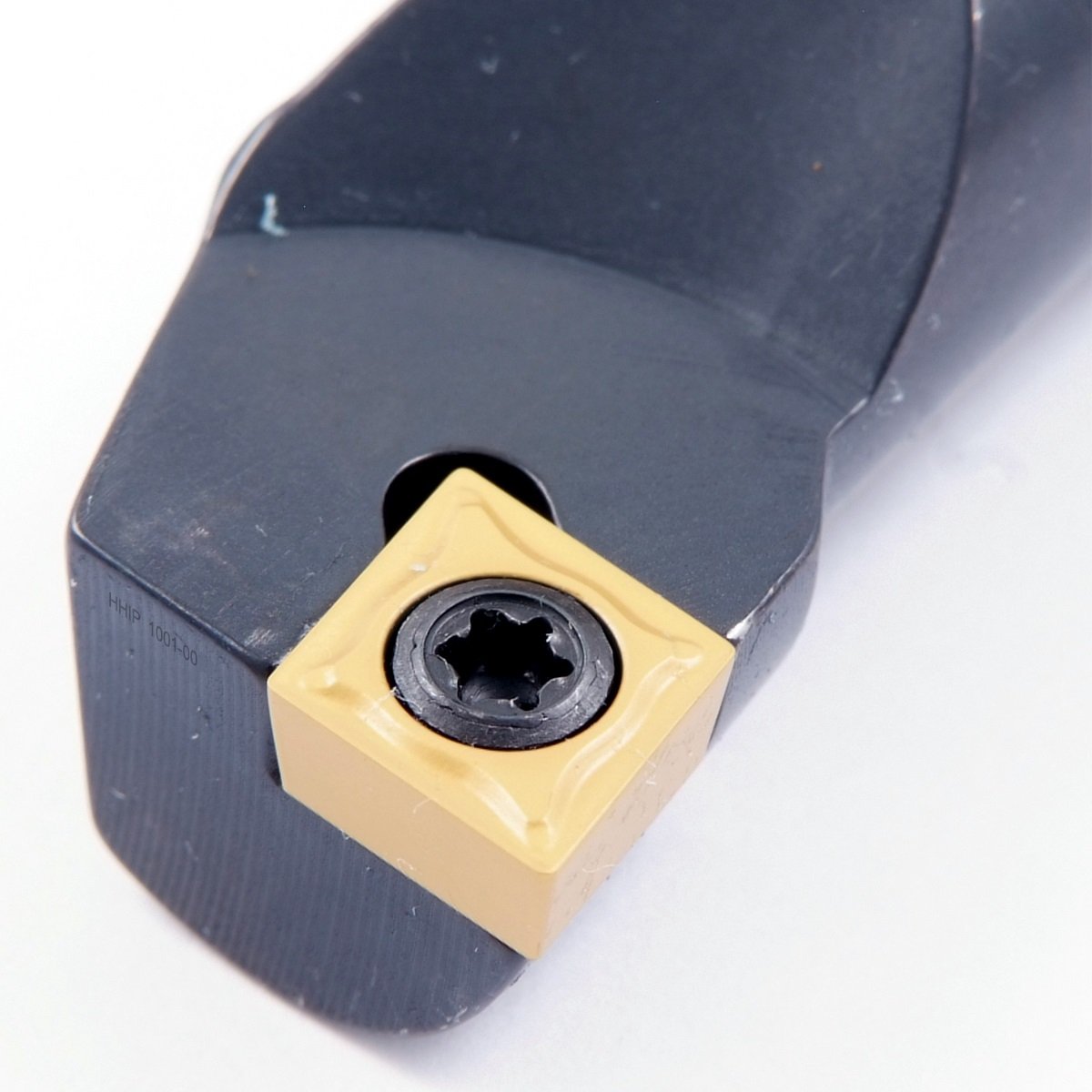

Utilizes CCMT-21.5 80° diamond inserts. CCMT insert included.
Replacement Inserts are the CCMT-21.51 (#6003-5021)
Dimension style S06M-SCLCR2
Set/Style B
Diameter x Overall Length 3/8 x 6″
Minimum Bore .500″
Screw size is M2.5 X 8
This is a profiling bar for semi-finishing and finishing operations.
