4″ HEAVY DUTY CROSS SLIDE VISE WITH METRIC DIAL (3900-2704)

4″ HEAVY DUTY CROSS SLIDE VISE WITH METRIC DIAL (3900-2704) (SKU: 3900-2704)

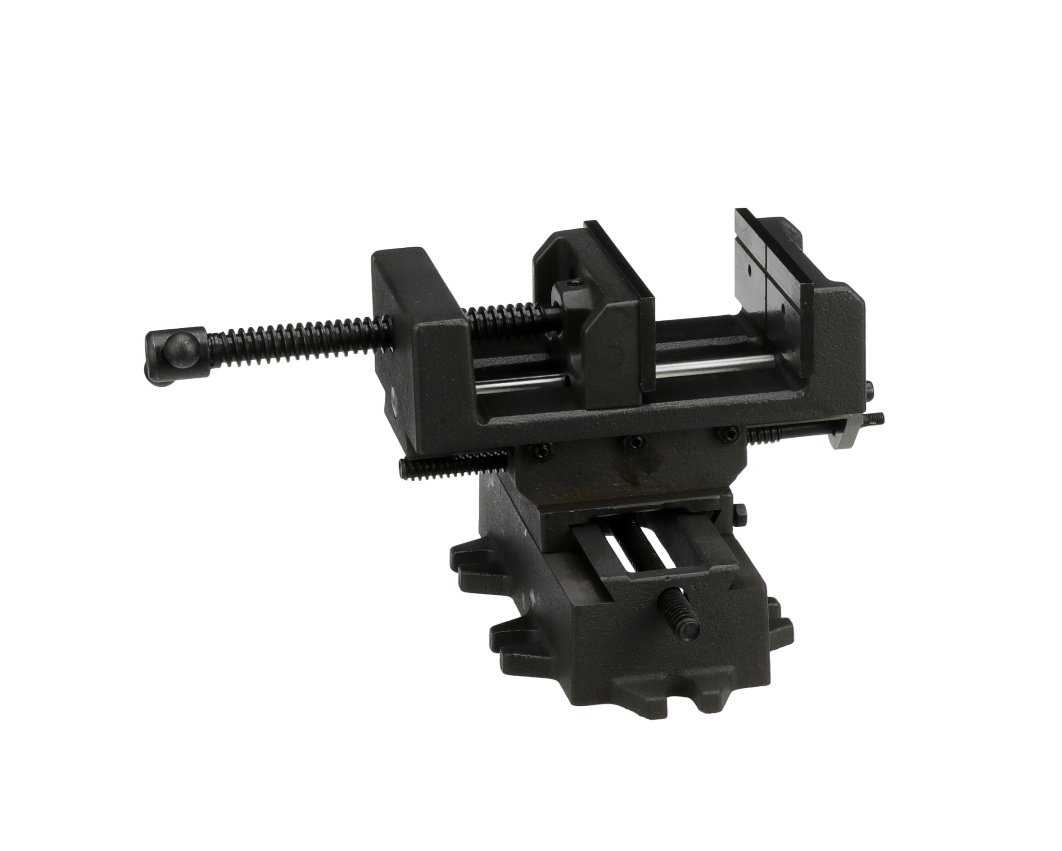

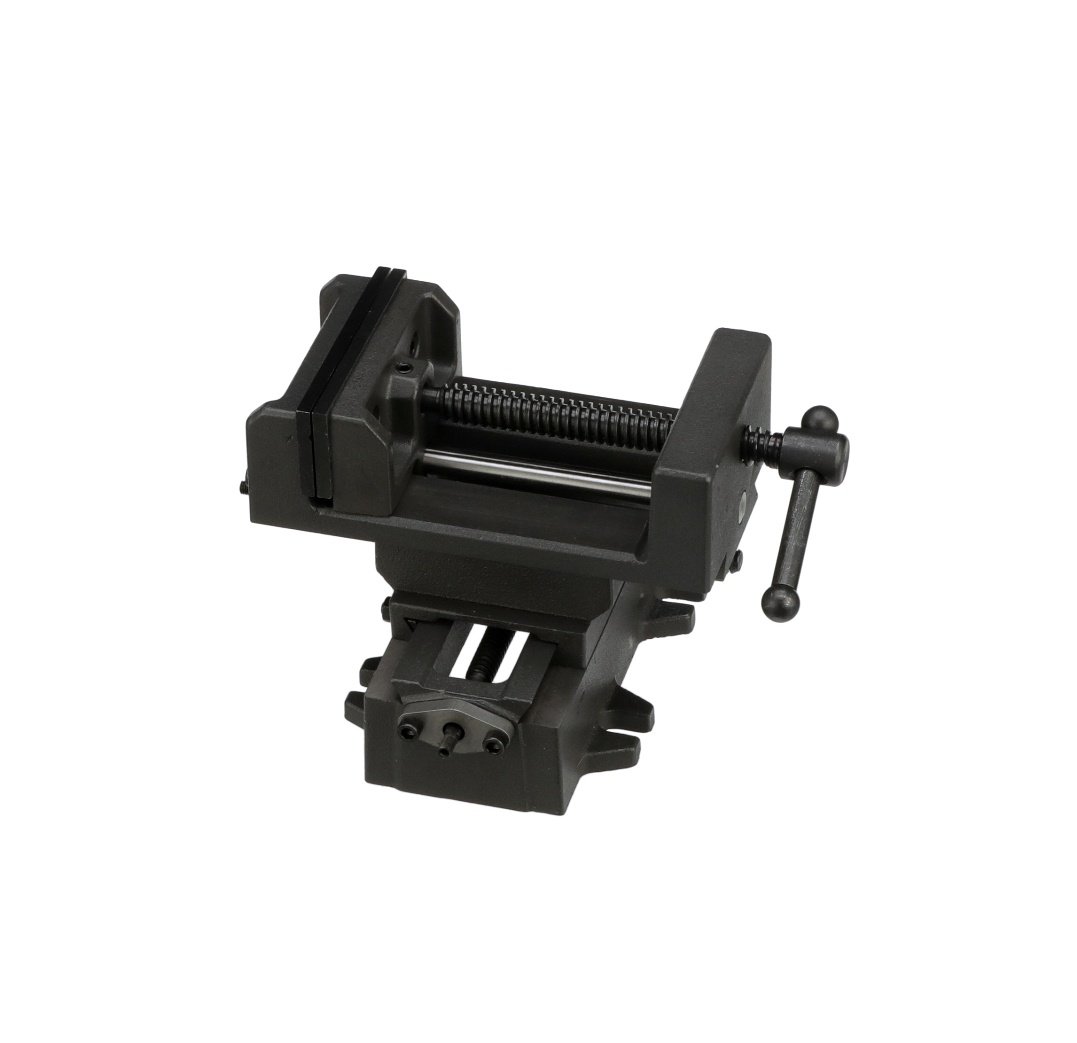

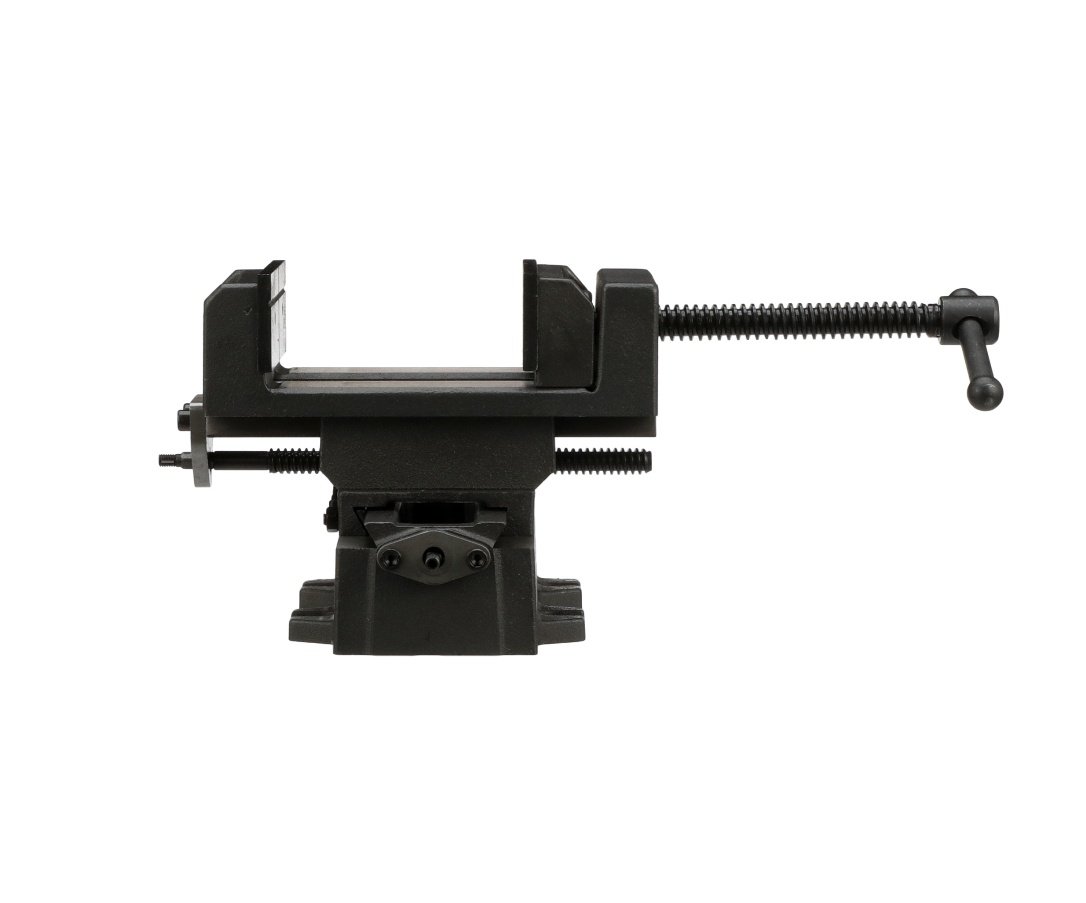

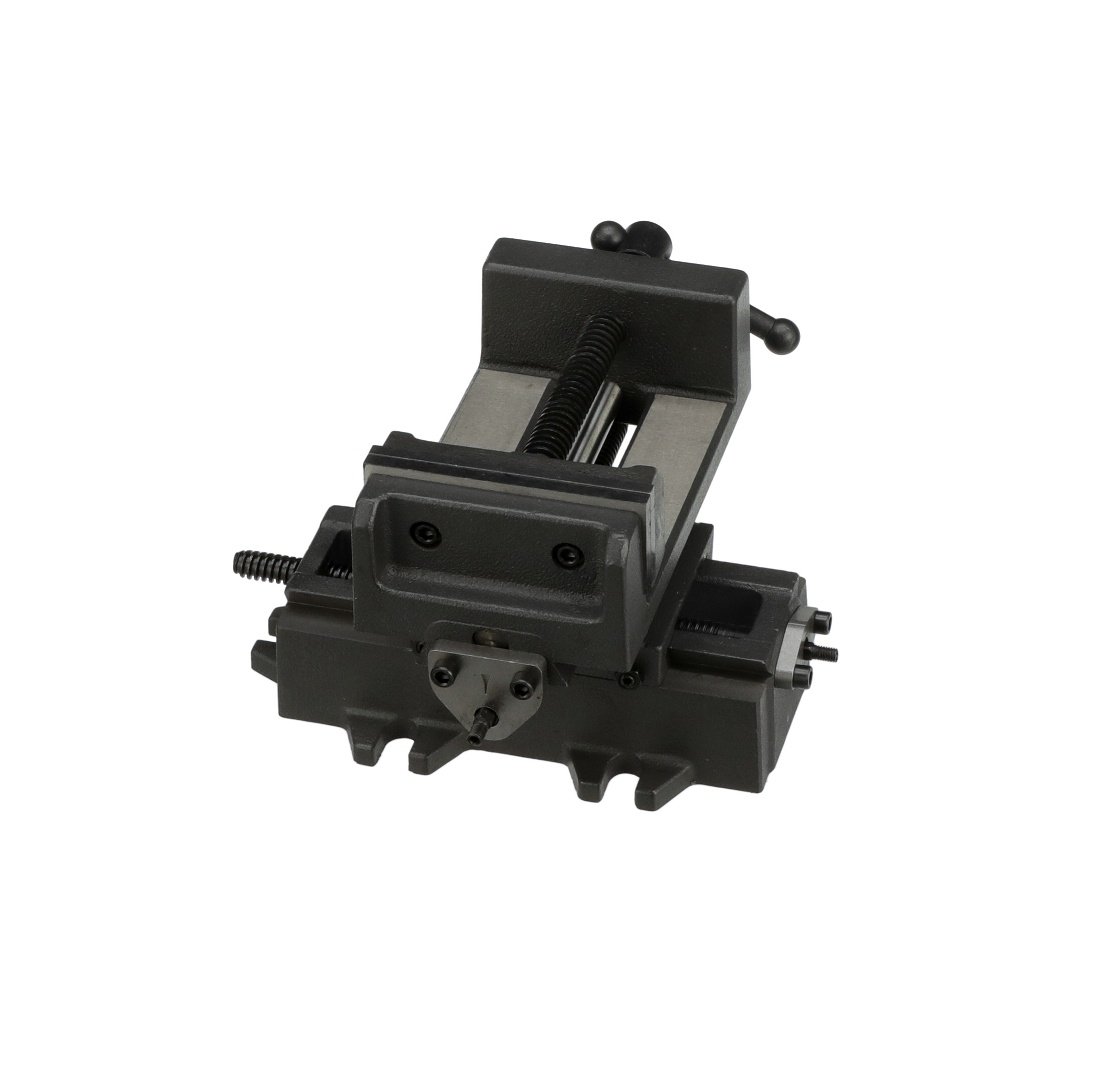

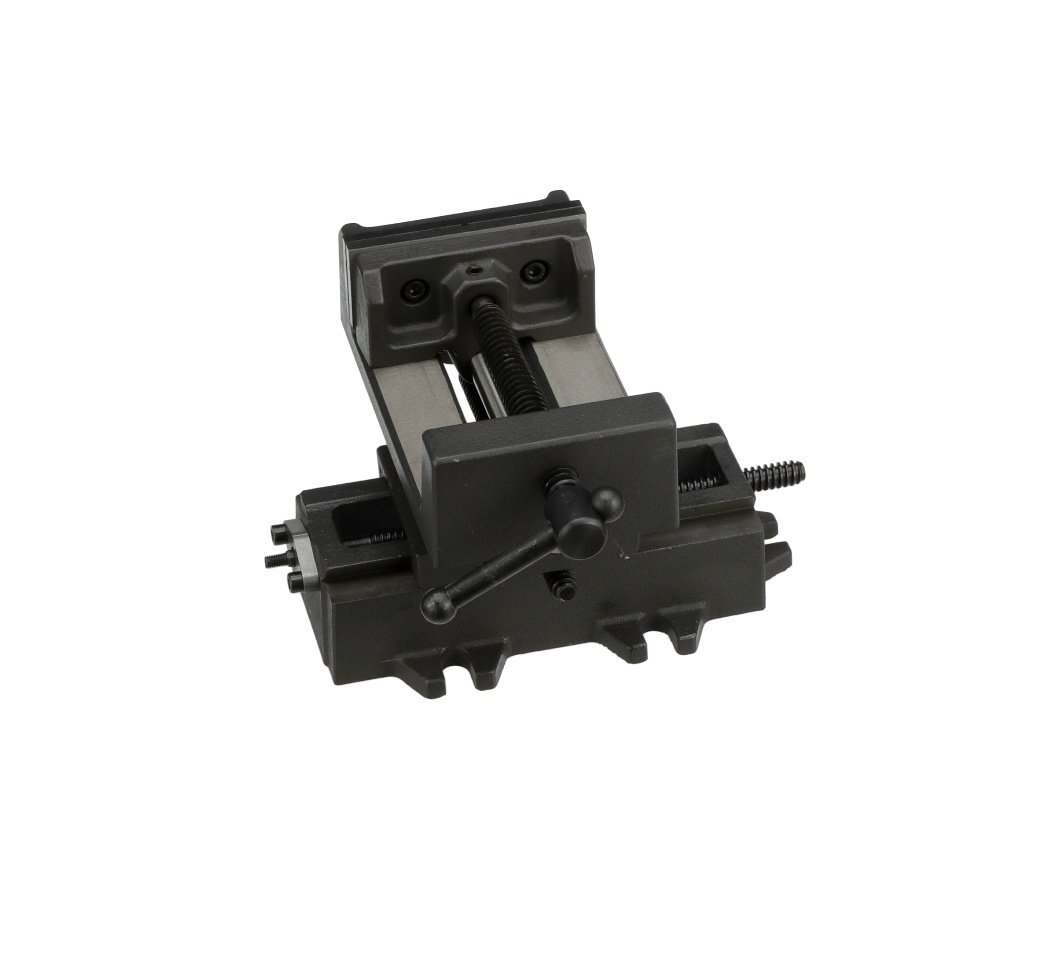

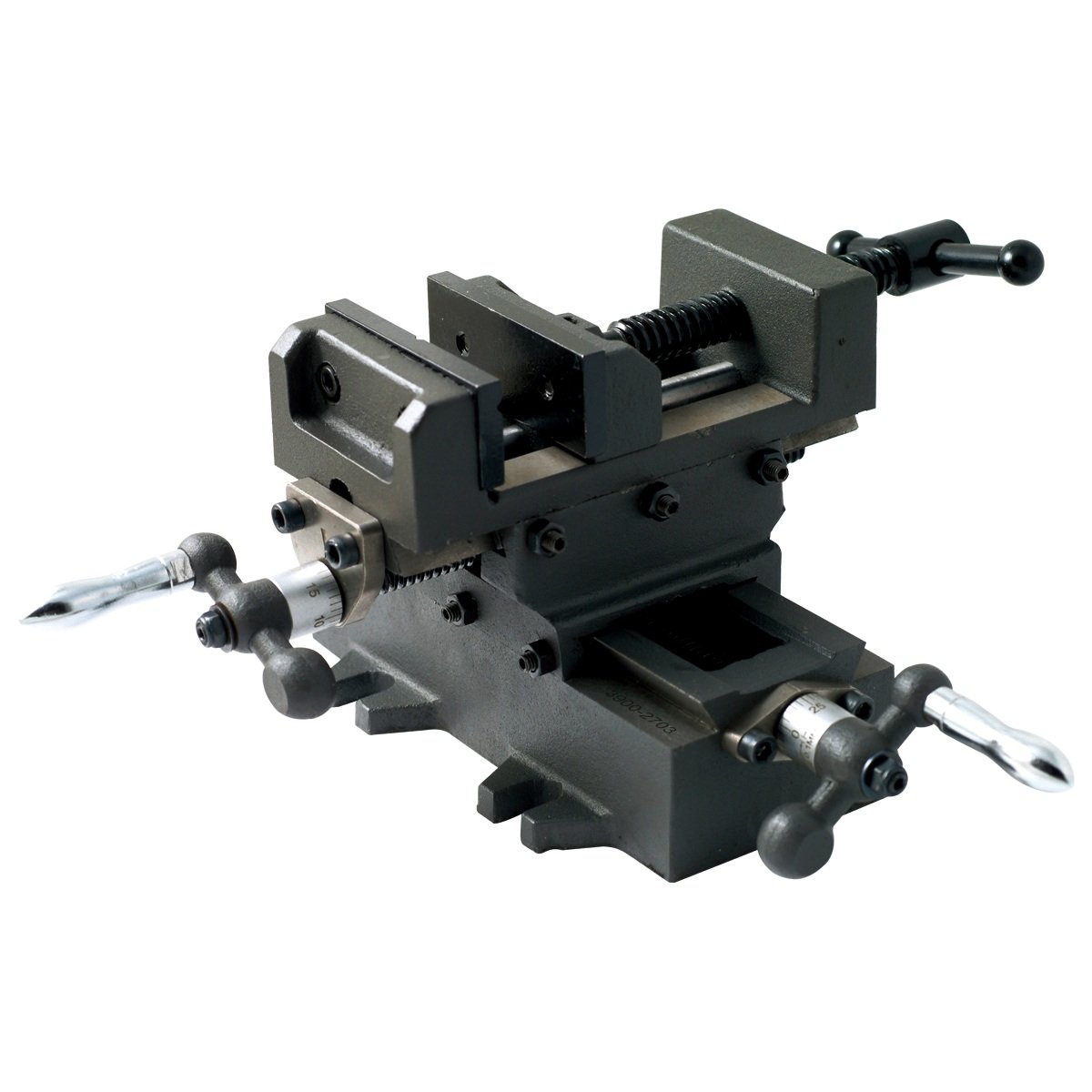

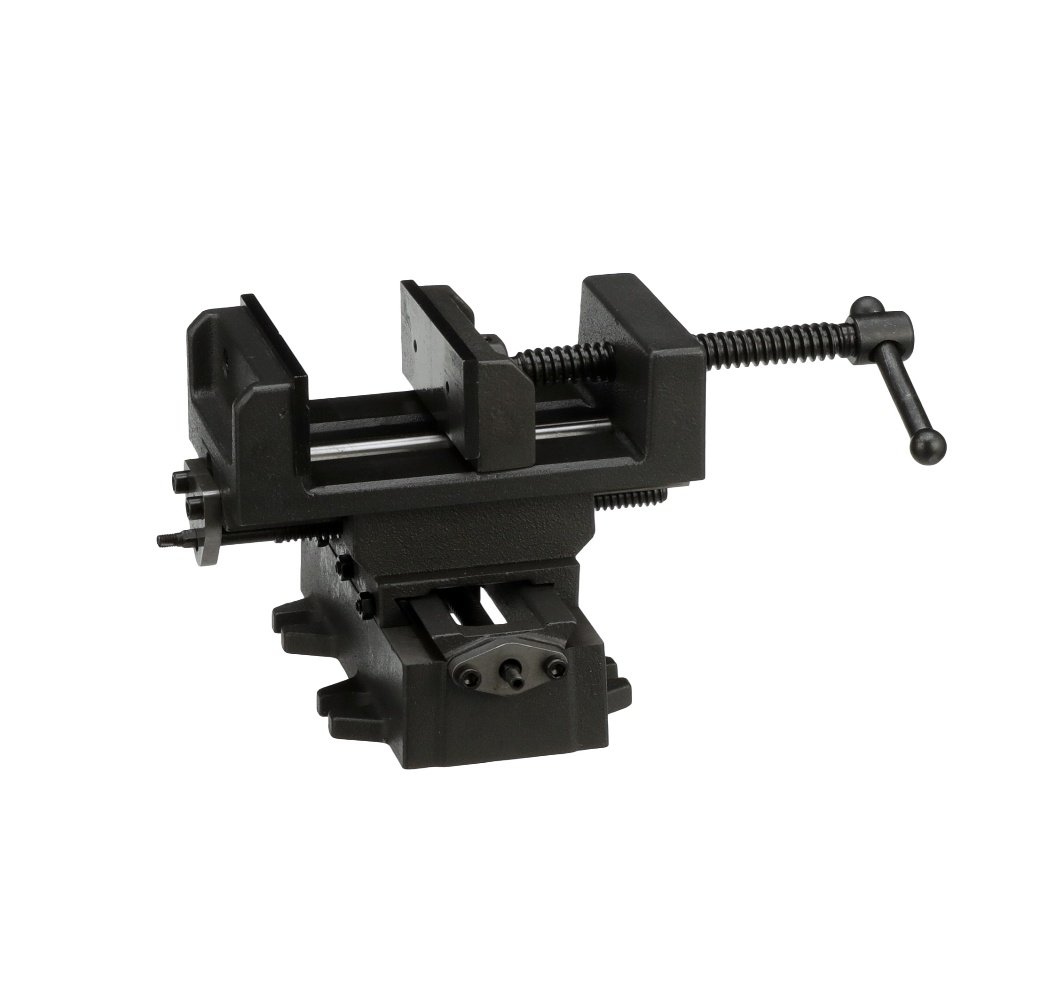

4″ Heavy Duty Cross Slide Vise with Metric Dial

• Suitable for clamping soft materials such as aluminum, copper, etc
• Secures firmly on drill press table and moves similar to a vertical mill
• Accurate positioning in two directions (crossed)
• Each dial is graduated in .1mm increments for precise adjustments and easily adjusts to 0
• Ball crank handles are solid and balanced
• Feed screws have precision cut acme threads
• High grade cast body
• Heat treated steel jaws
• Handles are clear from the mill table

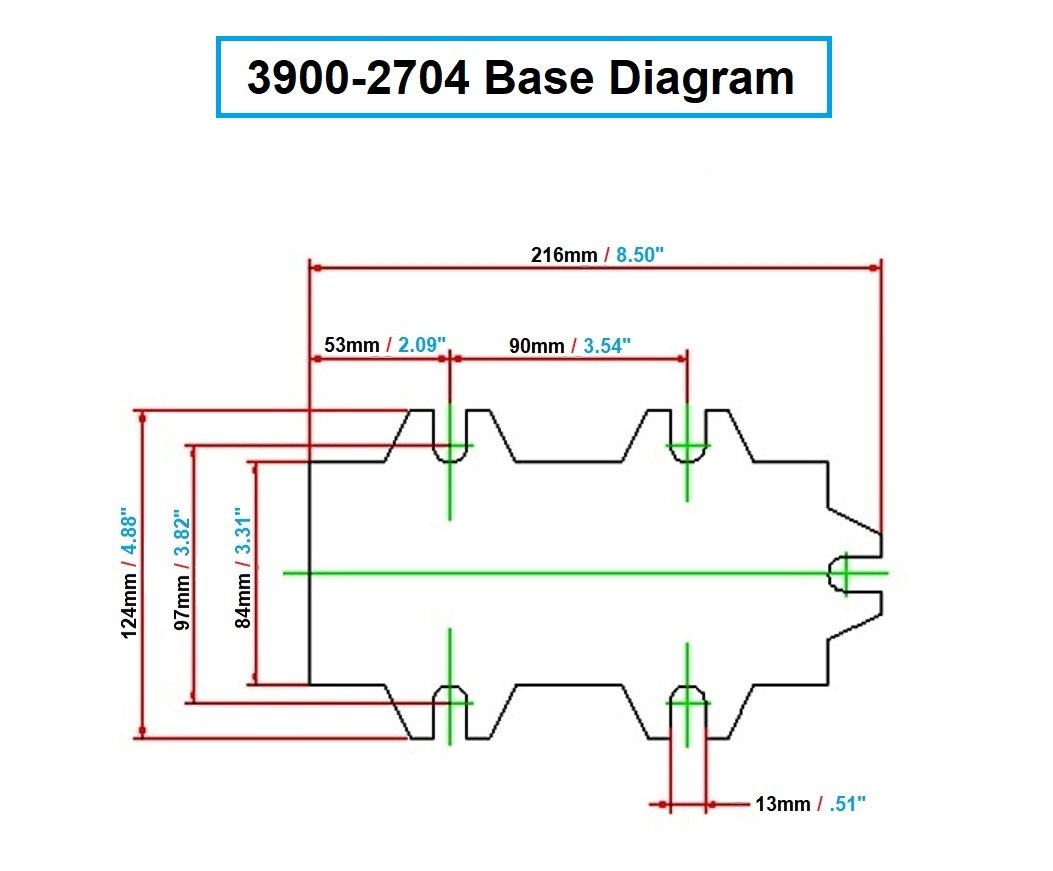

• Base has an 8″ X 5″ bolt pattern which is 3.5″ center to center and across
• Height is 6″
• Jaw depth is 1-7/16″
• Cross travel and jaw width are 4″
• Jaw opening is 3.8″
• Longitudinal travel is 6″
• Weight is 21 lbs

Specifications

• 4″ Heavy Duty Cross Slide Vise with Metric Dial
• Suitable for clamping soft materials such as aluminum, copper, etc.
• Secures firmly on drill press table and moves similar to a vertical mill.
• Accurate positioning in two directions (crossed).
• Each dial is graduated in .1mm increments for precise adjustments and easily adjusts to 0.
• Ball crank handles are solid and balanced. Feed screws have precision cut acme threads.
• High grade cast body. Heat treated steel jaws.
• Handles are clear from the mill table.
• Base has an 8″ X 5″ bolt pattern which is 3.5″ center to center and across.
• Height is 6″.
• Jaw depth is 1-7/16″.
• Cross travel and jaw width are 4″.
• Jaw opening is 3.8″. Longitudinal travel is 6″.
• Weight is 21 lbs.
• Weight: 21
• Dimensions: L 8, W 12, H 8

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
