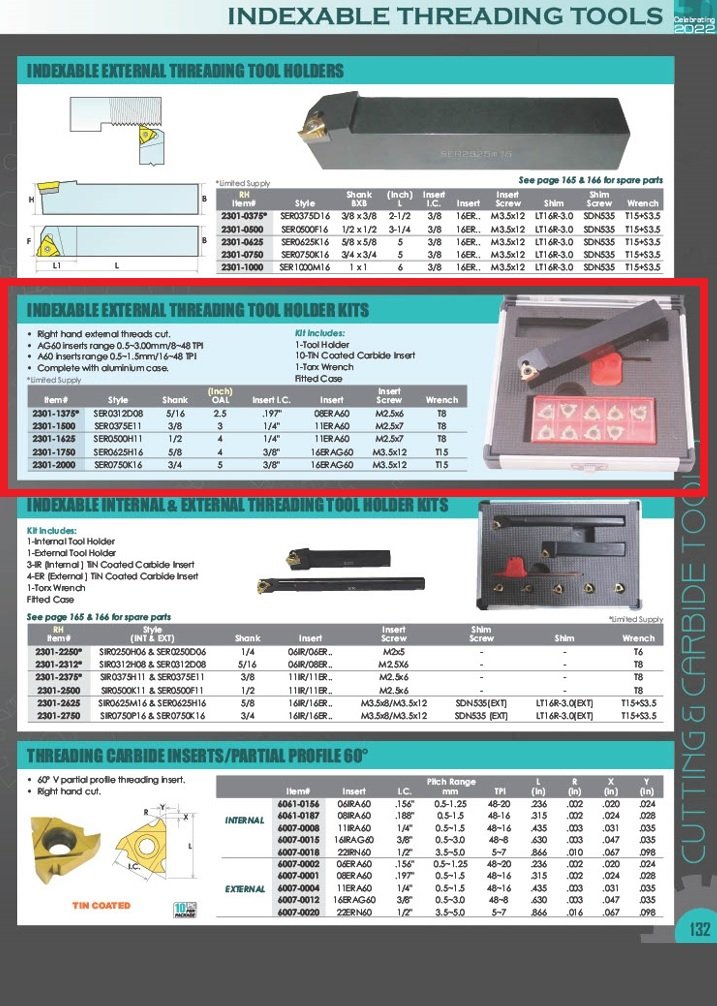

5/16″ EXTERNAL INDEXABLE THREADING TOOL HOLDER & INSERT KIT (2301-1375)

5/16″ EXTERNAL INDEXABLE THREADING TOOL HOLDER & INSERT KIT (2301-1375) (SKU: 2301-1375)

5/16″ External Indexable Threading Tool Holder & Insert Kit

• Overall length is 2.5″
• Style is SER0312D08
• Insert is 08ERA60
• Right hand external thread cut

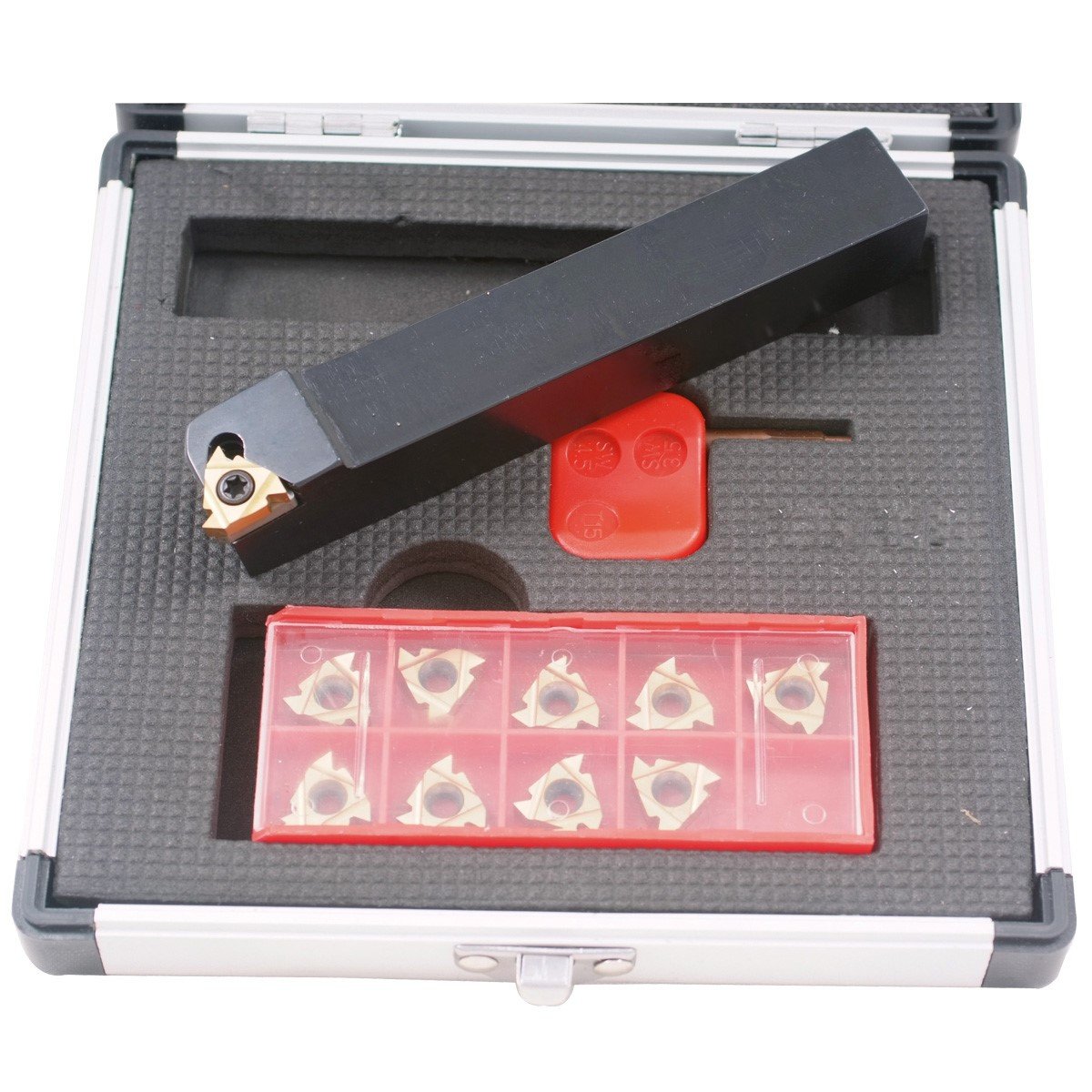

• Kit includes 1 tool holder, 10-TiN coated carbide inserts & 1 torx wrench
• AG60 inserts rangeis 0.5-3.00mm/8-48 TPI
• A60 inserts range is 0.5-1.5mm/16-48 TPI
• Complete with aluminium case

Specifications

• 5/16″ External Indexable Threading Tool Holder & Insert Kit
• Style is SER0312D08.
• Insert is 08ERA60.
• Right hand external thread cut.
• Kit includes 1 tool holder, 10-TiN coated carbide inserts & 1 torx wrench.
• AG60 inserts rangeis 0.5-3.00mm/8-48 TPI.
• A60 inserts range is 0.5-1.5mm/16-48 TPI.
• Complete with aluminium case.
• Overall length is 2.5″
• Weight: 0.6
• Dimensions: L 8, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
