5/8 X 1-1/4 X 31/64 X 1 INDEXABLE T-SLOT CUTTER (2077-0502)

5/8 X 1-1/4 X 31/64 X 1 INDEXABLE T-SLOT CUTTER (2077-0502) (SKU: 2077-0502)

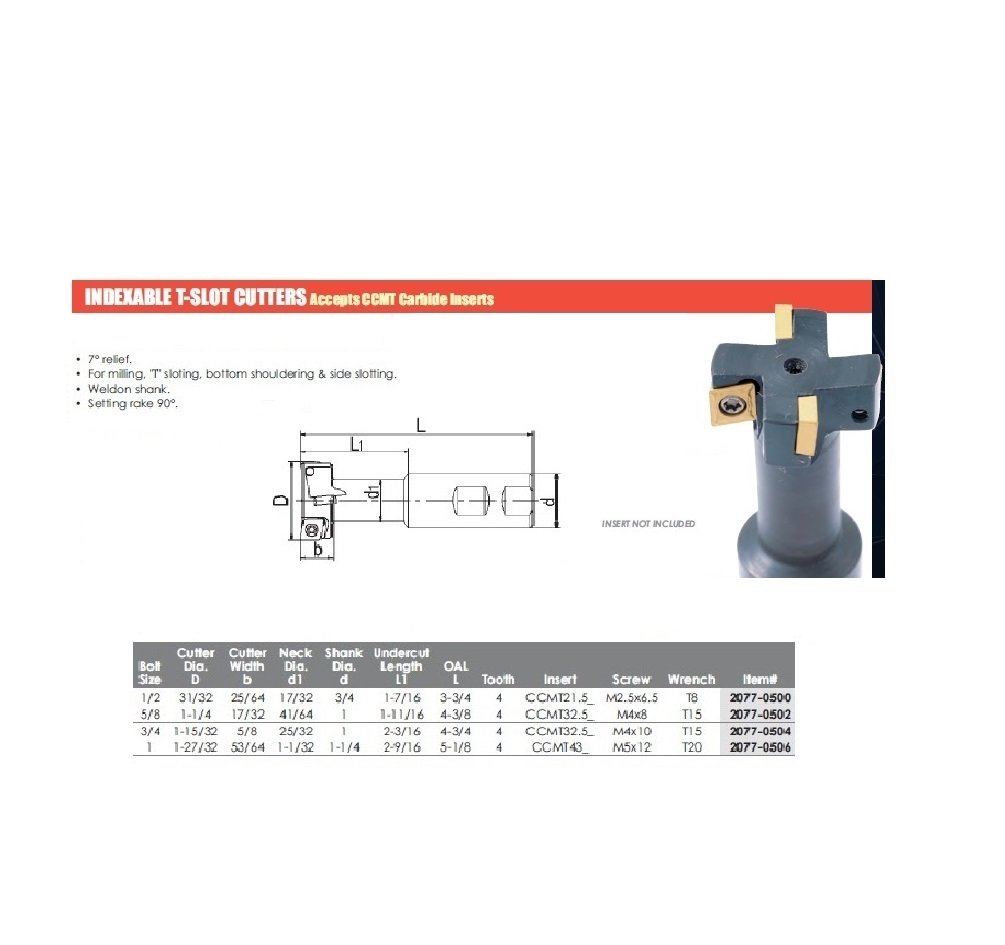

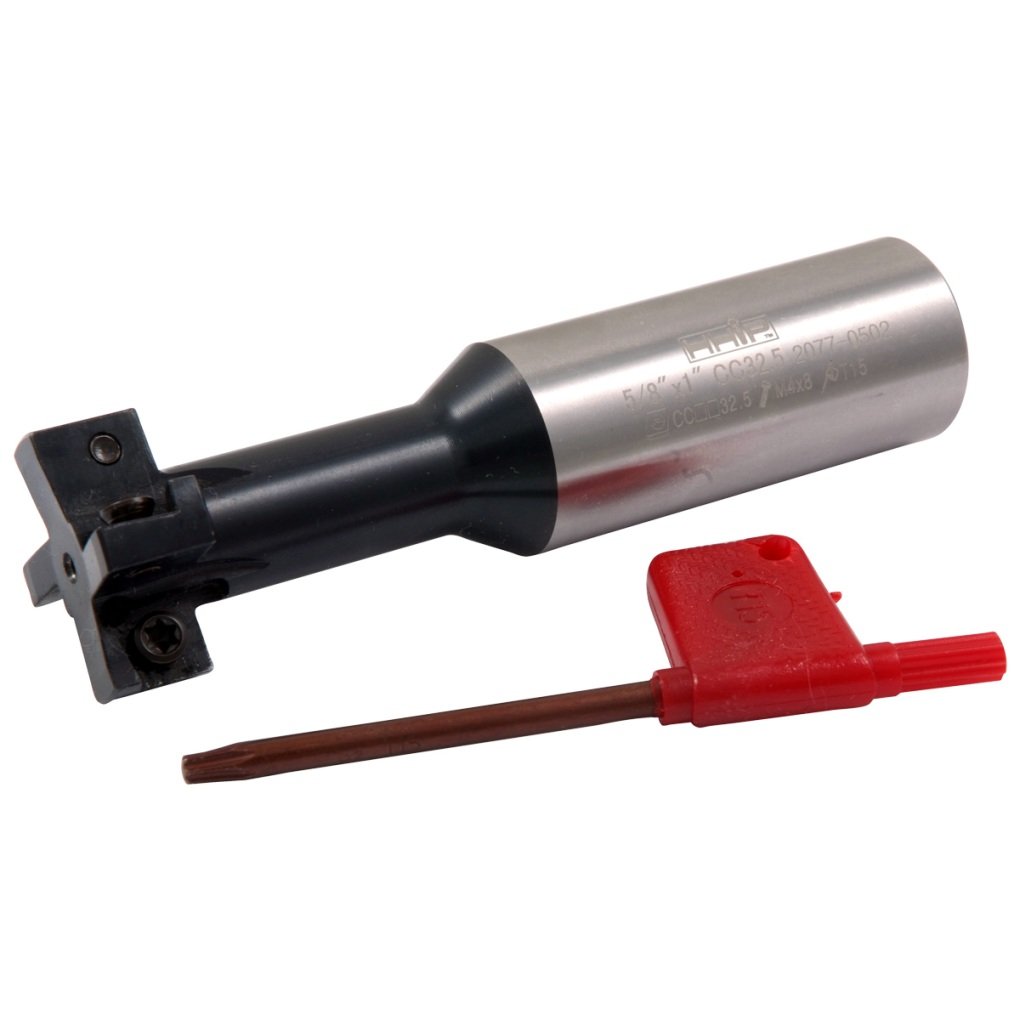

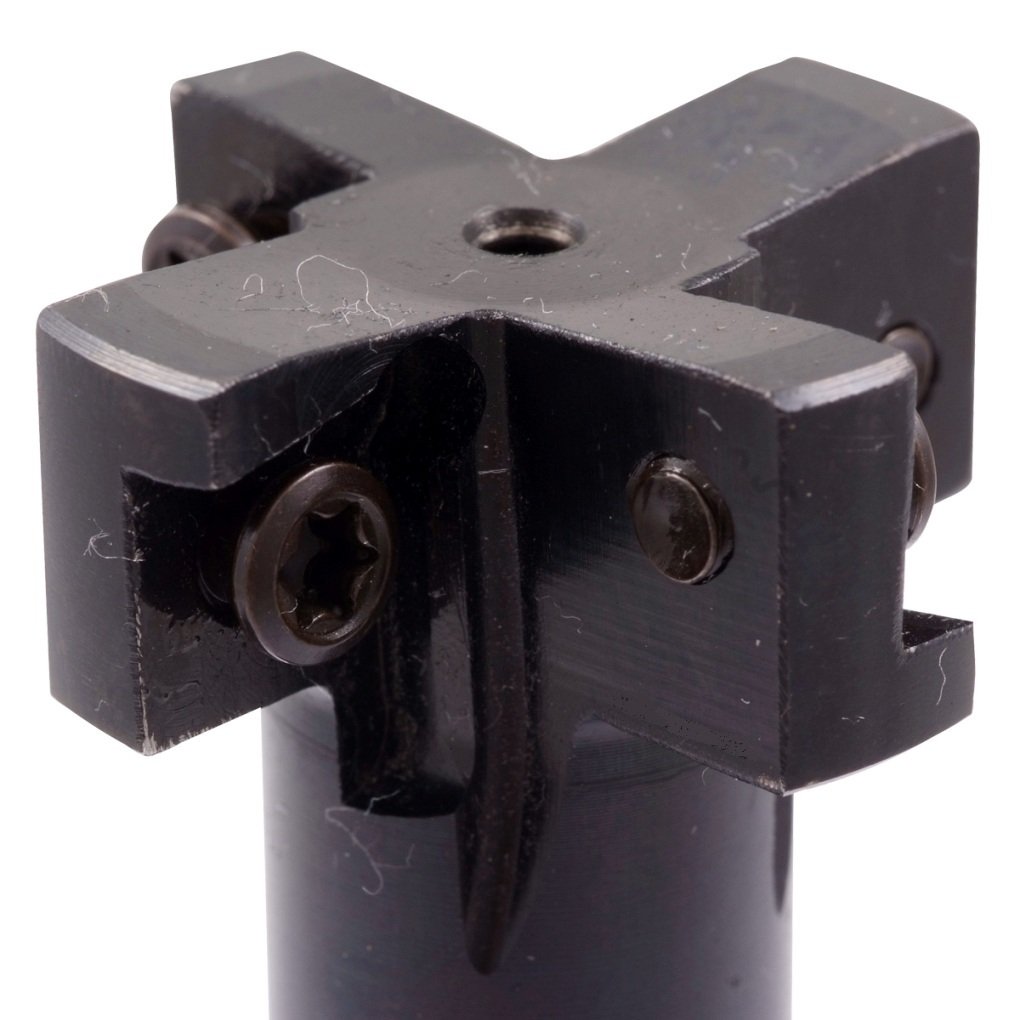

5/8 X 1-1/4 X 31/64 X 1 Indexable T-Slot Cutter (2077-0502)

• 7° relief
• Setting rake is 90°
• For milling, “T” sloting, bottom shouldering & side slotting
• Bolt size is 5/8″

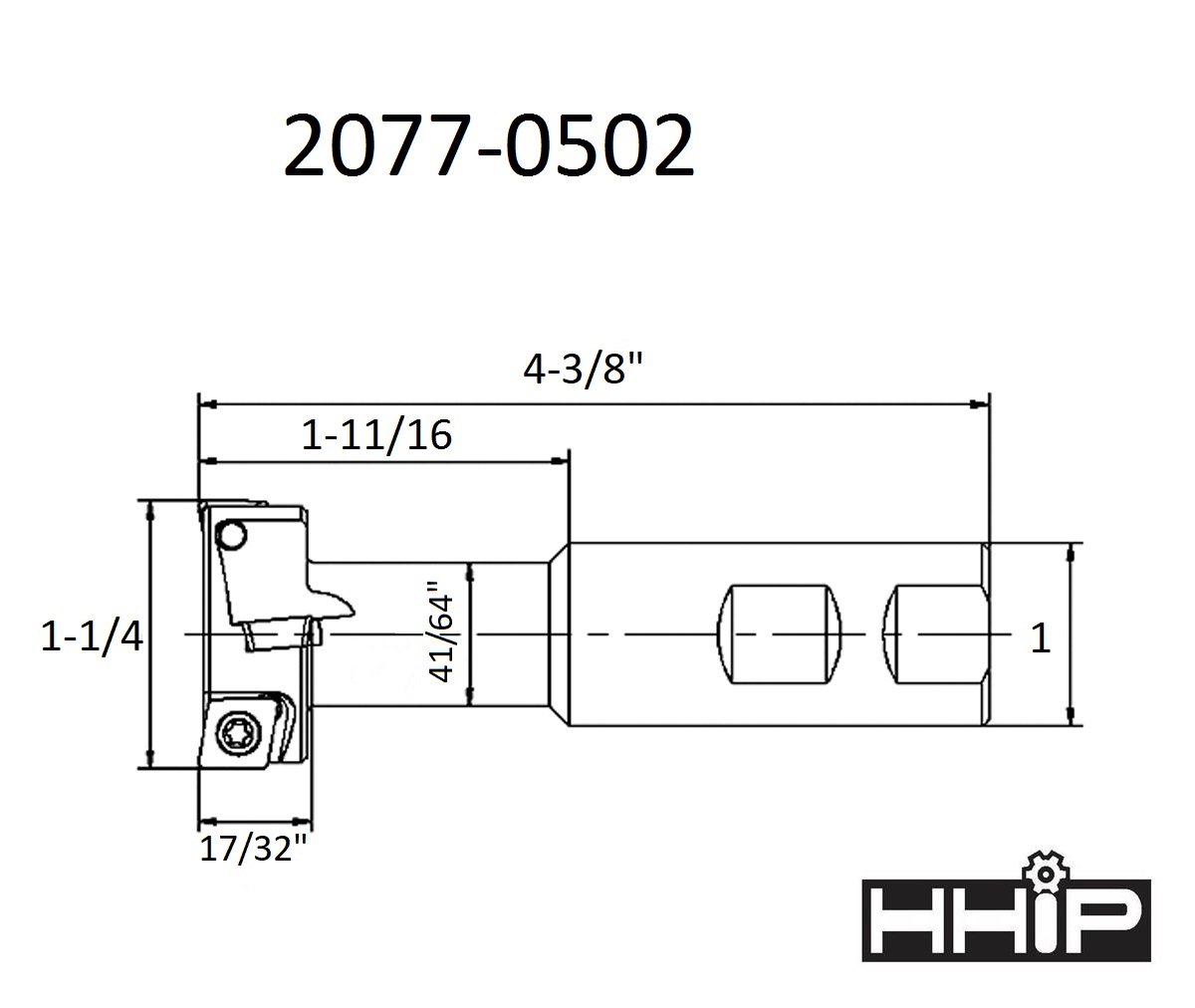

• Cutter diameter D is 1-1/4″
• Cutter width b is 17/32″
• Neck diameter d1 is 41/64″
• Shank diameter d is 1″
• Undercut length L1 is 1-11/16″
• Overall length is 4-3/8″

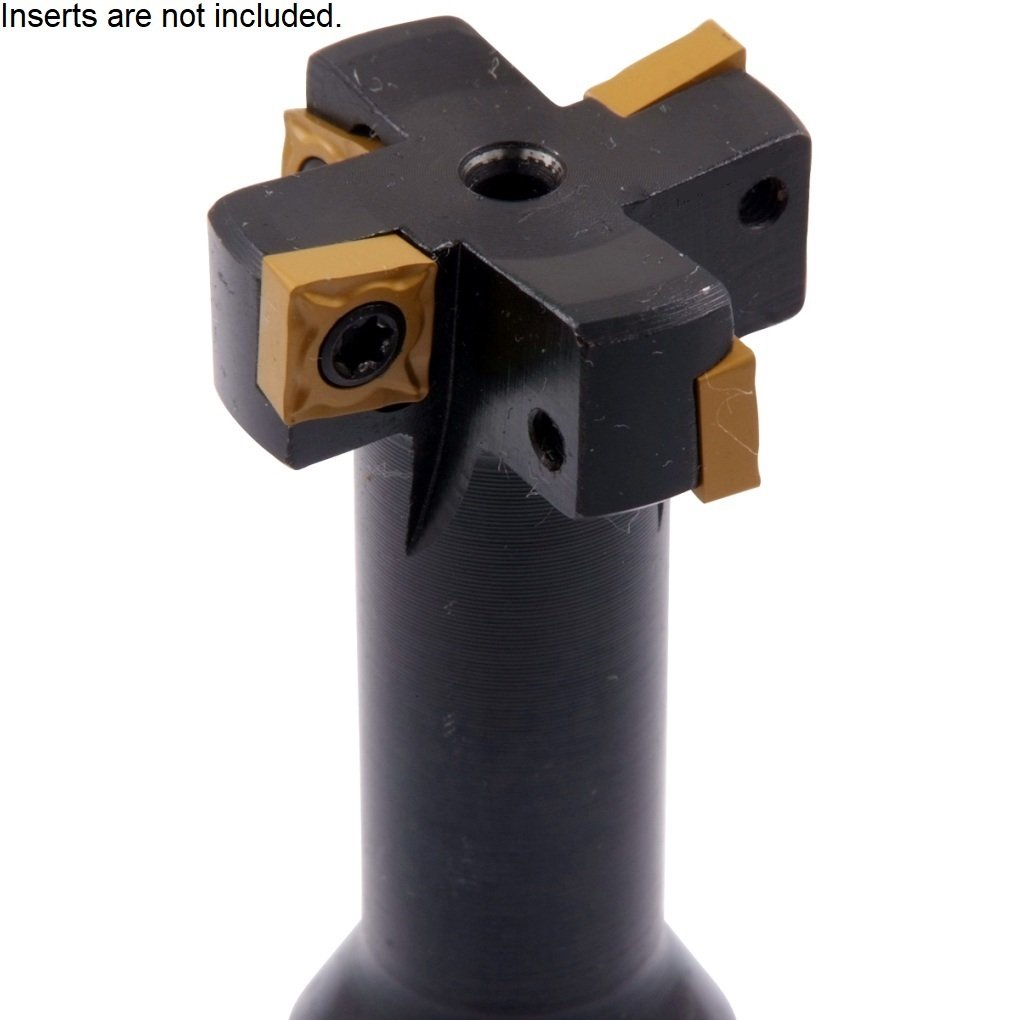

• Takes 4 CCMT 32.5 inserts

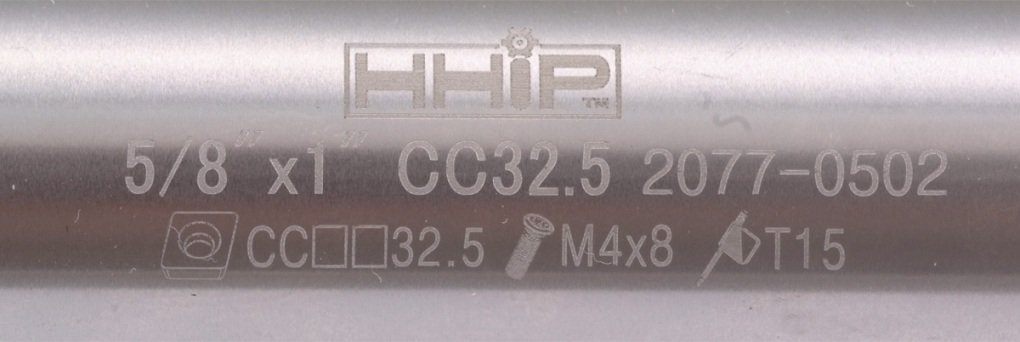

• Replacement screw size is M4 X 8 #2100-0069

Specifications

• 7° relief.
• Setting rake is 90°.
• For milling, “T” sloting, bottom shouldering & side slotting.
• Bolt size is 5/8″.
• Cutter diameter D is 1-1/4″.
• Cutter width b is 17/32″
• Neck diameter d1 is 41/64″.
• Shank diameter d is 1″.
• Undercut length L1 is 1-11/16″.
• Overall length is 4-3/8″.
• Takes 4 CCMT 32.5 inserts.
• Replacement screw size is M4 X 8 #2100-0069.
• Weight: 0.7
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
