5 ” DRILL PRESS VISE (3900-0175)

5 ” DRILL PRESS VISE (3900-0175) (SKU: 3900-0175)

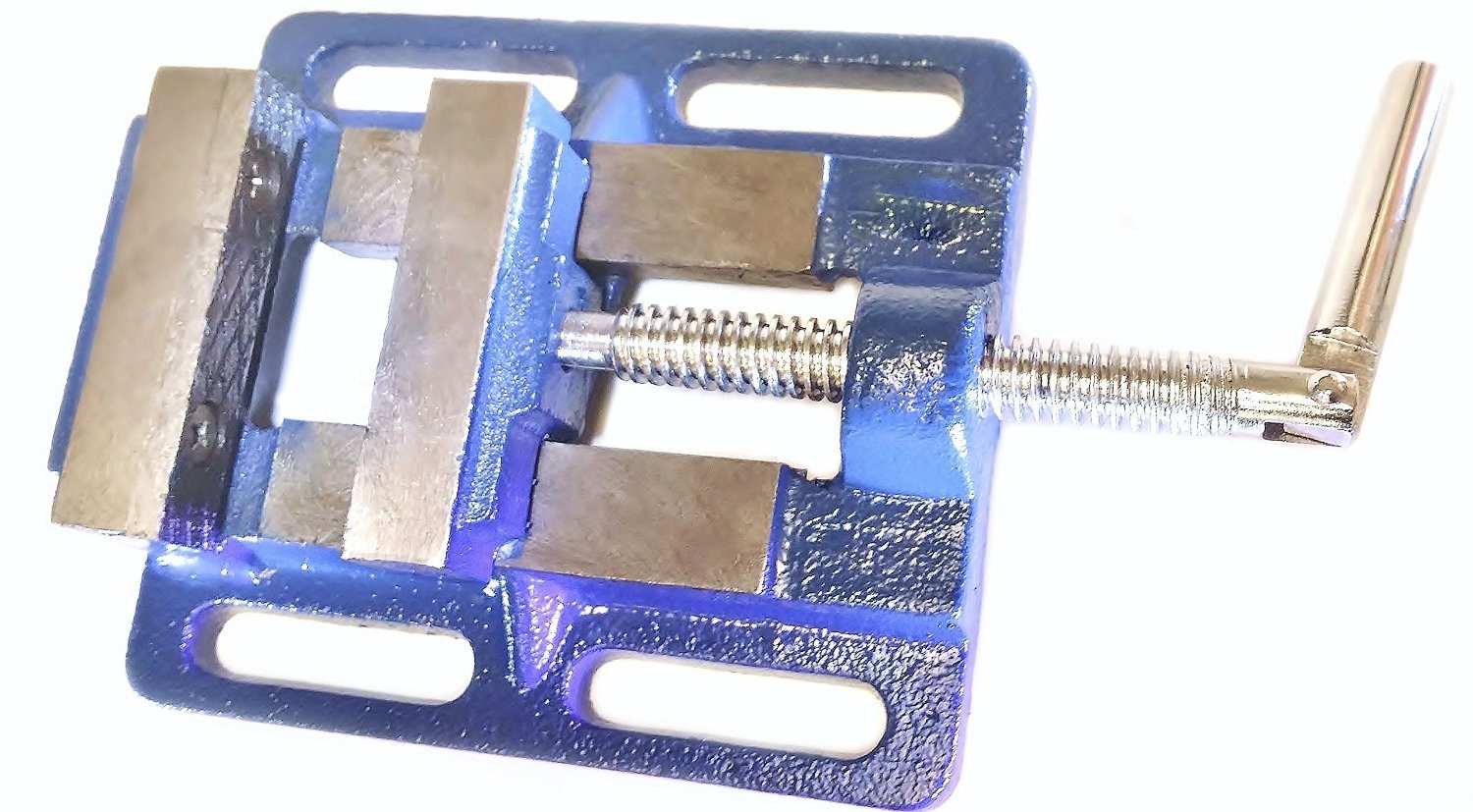

5″ Drill Press Vise

• Four slots for easy clamping to tables
• Body and side made of selected cast iron
• Guiding groove controls the parallel movement and rigidity of the moveable jaw
• Replaceable steel jaws
• Handle adjusts to any angle
• Jaw width is 6″
• Jaw opening is 6″
• Jaw depth is 1-5/8″

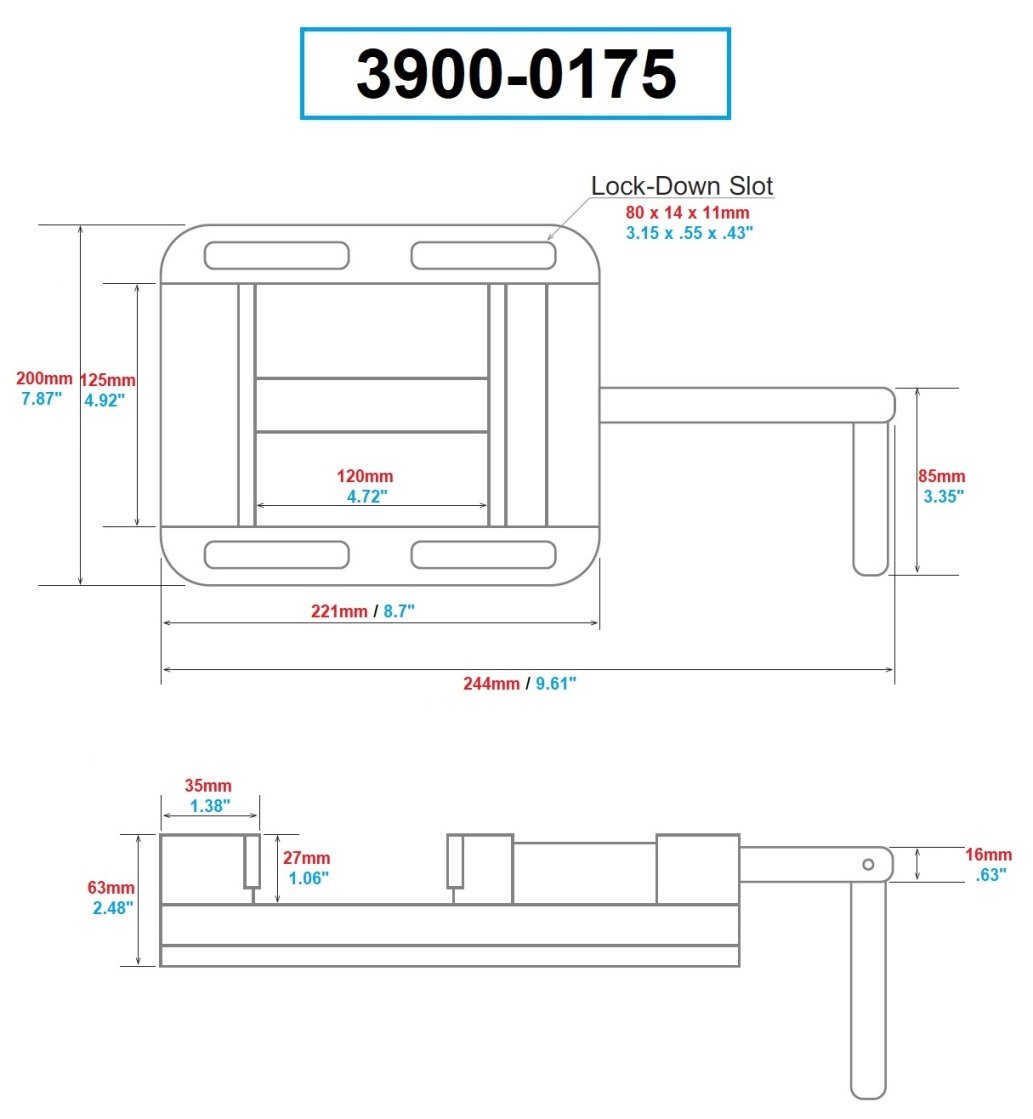

• Center to center spacing on the slots is 4.20″
• Center to center bolt hole parallel to the vise jaws is 7.40″

Specifications

• 5″ Drill Press Vise
• Four slots for easy clamping to tables.
• Body and side made of selected cast iron.
• Guiding groove controls the parallel movement and rigidity of the moveable jaw.
• Replaceable steel jaws.
• Handle adjusts to any angle.
• Jaw width is 5″.
• Jaw opening is 5″.
• Jaw depth is 1-1/2″.
• Center to center spacing on the slots is 4.20″.
• Center to center bolt hole parallel to the vise jaws is 7.40″.
• Weight: 12
• Dimensions: L 8, W 12, H 8

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
