5″ SINE BAR (3402-1205)

5″ SINE BAR (3402-1205) (SKU: 3402-1205)

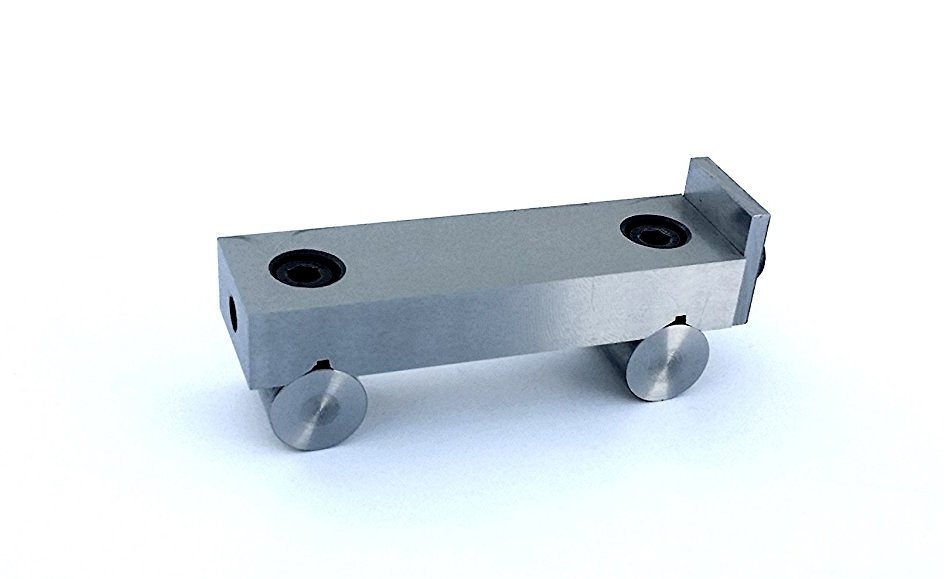

5″ Sine Bar

• Parallelism is 0.0004″
• Working face accuracy is 0.00003″/ per inch
• Rolls center distance accuracy 0.0002″
• Includes a flange on the end to rest a work piece on
• To set up angles by using the sine bar with 1-2-3 blocks or a gage block

Specifications

• 5″ Sine Bar
• Parallelism is 0.0004″.
• Working face accuracy is 0.00003″/ per inch.
• Rolls center distance accuracy 0.0002″.
• Includes a flange on the end to rest a work piece on.
• To set up angles by using the sine bar with 1-2-3 blocks or a gage block.
• Weight: 1
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
