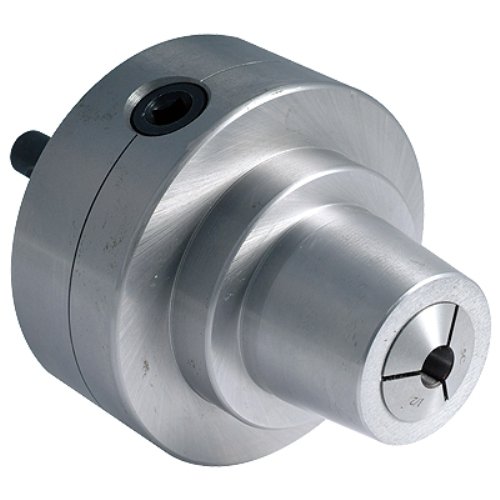

5C 5 D1-8 COLLET CHUCK (3900-4718)

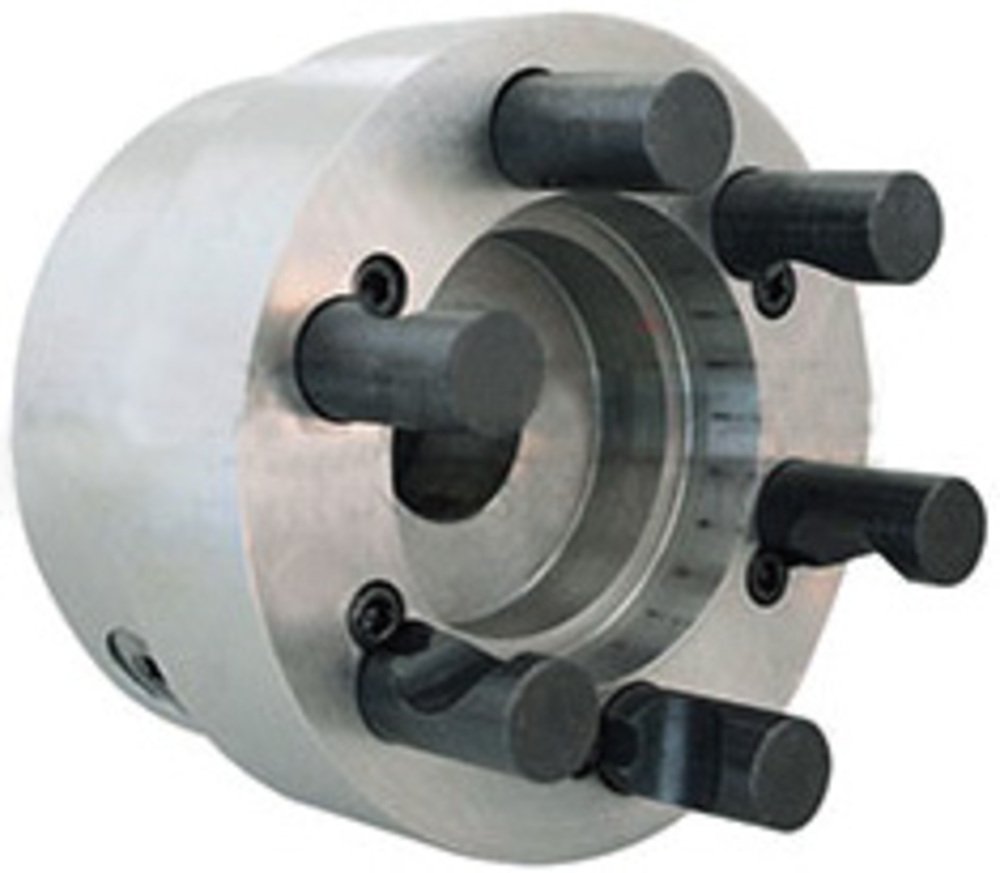

The 5C 5″ D1-8 Collet Chuck (3900-4718) is a precision tool used in machining applications. This collet chuck is designed to hold 5C collets and has a 5-inch diameter. It features a D1-8 spindle mount, which is a specific type of mounting system commonly used on lathes

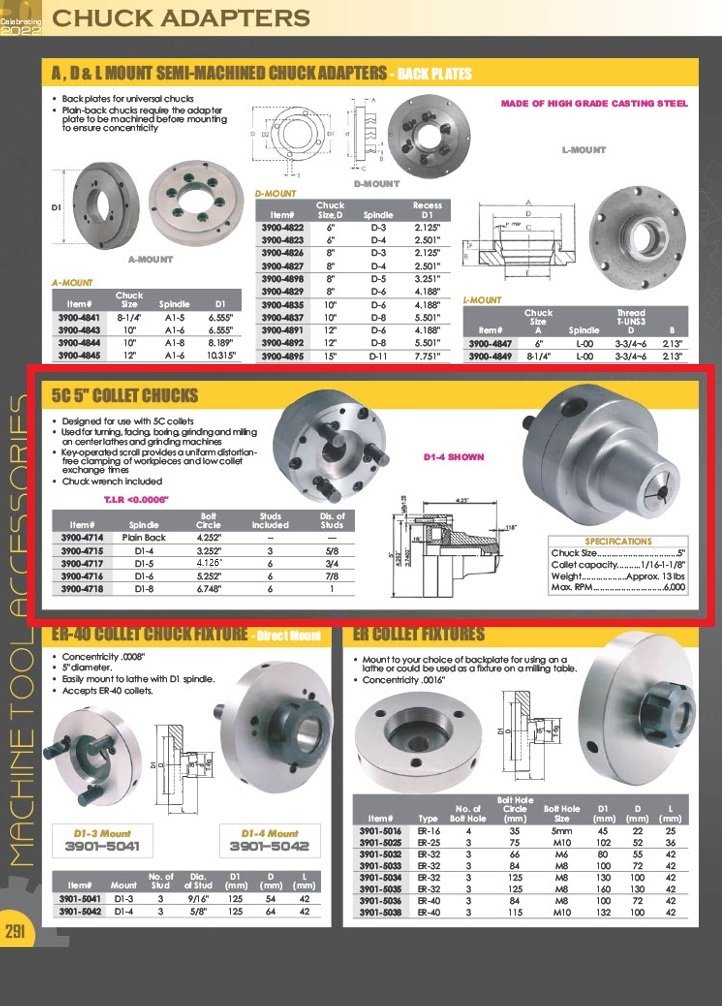

5C 5″ D1-8 Collet Chuck
Designed for use with 5C collets.
T.I.R. is 0.0006″.
Collet capacity is 1/16-1-1/8″.
Maximum RPM is 6,000.
Chuck wrench is included.
Used for turning, facing, boring, grinding and milling on center lathes and grinding machines.
Key-operated scroll provides uniform, distortion-free clamping of work pieces and low collet exchange times.
5C 5″ D1-8 Collet Chuck Overview
The 5C 5″ D1-8 Collet Chuck is a high-precision tool designed to work with 5C collets, providing versatile and efficient clamping solutions for various machining applications. Below is a summary of its main features and specifications:
Key Specifications:
- Collet Compatibility: Compatible with 5C collets, widely used in precision machining.
- Total Indicated Runout (T.I.R.): 0.0006″, ensuring high accuracy for precision operations.
- Collet Capacity: Ranges from 1/16″ to 1-1/8″, covering a broad spectrum of workpiece sizes.
- Maximum RPM: Rated up to 6,000 RPM, making it suitable for high-speed applications.
- Chuck Wrench: Included for easy adjustments and collet changes.
Applications
This collet chuck is ideal for:
- Turning
- Facing
- Boring
- Grinding
- Milling
Its compatibility with center lathes and grinding machines allows for extensive use in various machining environments.
Key Features
- Precision Clamping: The key-operated scroll mechanism ensures a secure and uniform clamping force, reducing distortion in workpieces.
- Efficient Collet Changes: The design allows for quick exchange of collets, minimizing downtime and increasing productivity.
Benefits
The 5C 5″ D1-8 Collet Chuck offers robust performance and reliability for professionals in machining, providing efficient and distortion-free clamping for high-precision tasks.
