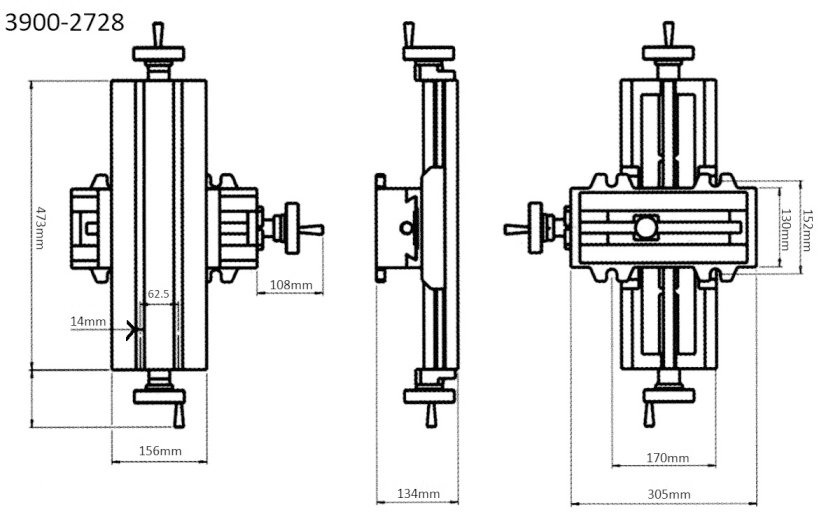

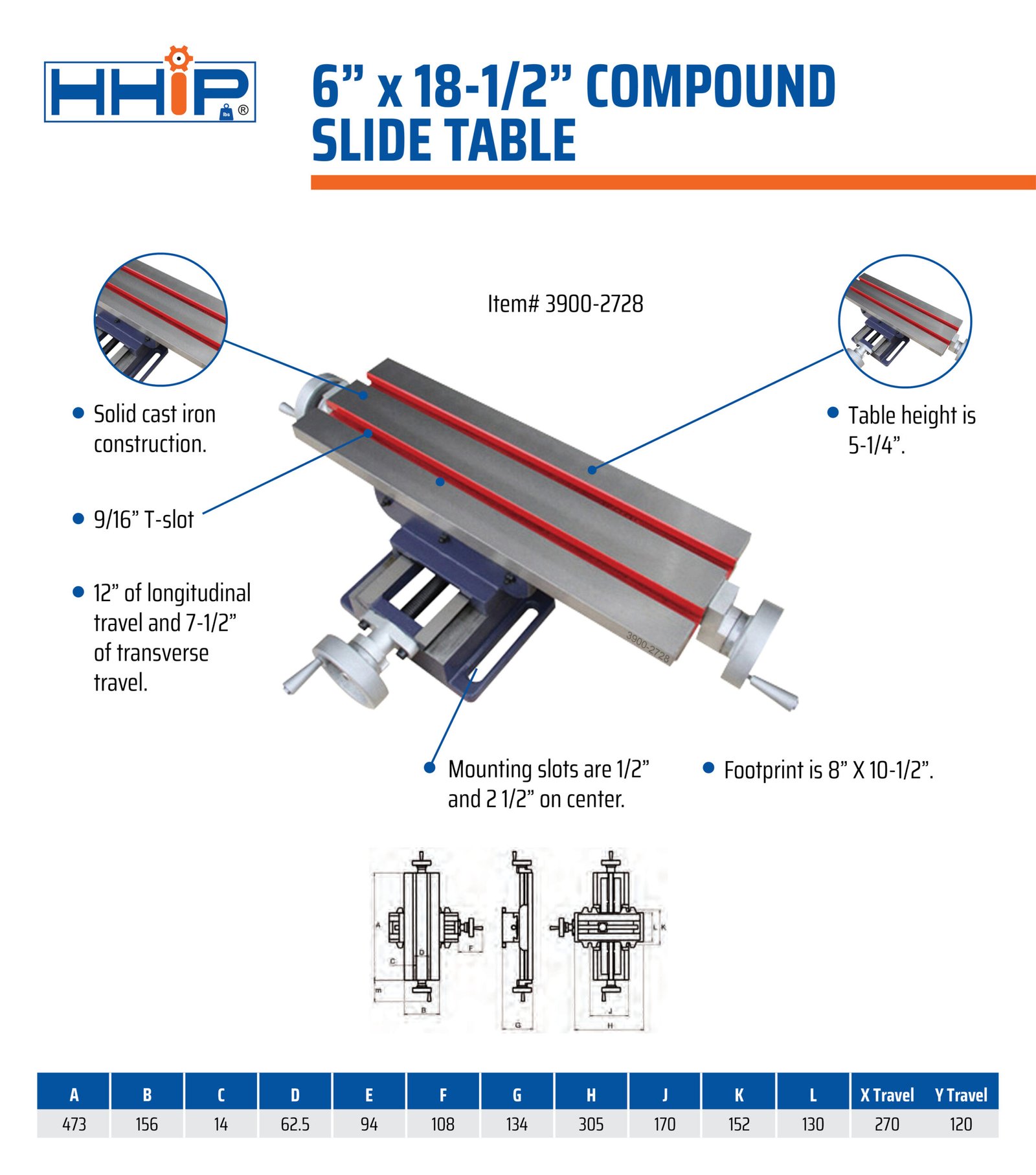

6 X 18-1/2″ COMPOUND SLIDE TABLE (3900-2728)

6 X 18-1/2″ COMPOUND SLIDE TABLE (3900-2728) (SKU: 3900-2728)

6 X 18-1/2″ Compound Slide Table (3900-2728)

• Solid cast iron construction
• Features 12″ of longitudinal travel and 7-1/2″ of transverse travel, adjustable gibs, dovetailed ways, dependable Acme screws, vernier scales and 9/16″ T-slots
• Table height is 5-1/4″
• Footprint is 8 X 10-1/2″
• Mounting slots are 1/2″ and 2-1/4″ on center
• Weighs 58 lbs
• X travel is 270mm
• Y travel is 120mm

Specifications

• Solid cast iron construction.
• Features 12″ of longitudinal travel and 7-1/2″ of transverse travel, adjustable gibs, dovetailed ways, dependable Acme screws, vernier scales and 9/16″ T-slots.
• Table height is 5-1/4″.
• Footprint is 8 X 10-1/2″.
• Mounting slots are 1/2″ and 2-1/4″ on center.
• Weighs 58 lbs.
• X travel is 270mm.
• Y travel is 120mm.
• Weight: 62
• Dimensions: L 17, W 9, H 27

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
