80MM DIAMETER ER-32 COLLET CHUCK (3901-5032)

80MM DIAMETER ER-32 COLLET CHUCK (3901-5032) (SKU: 3901-5032)

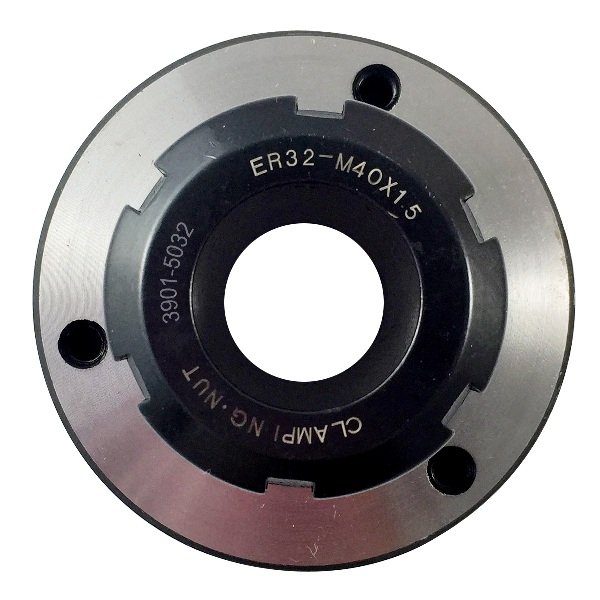

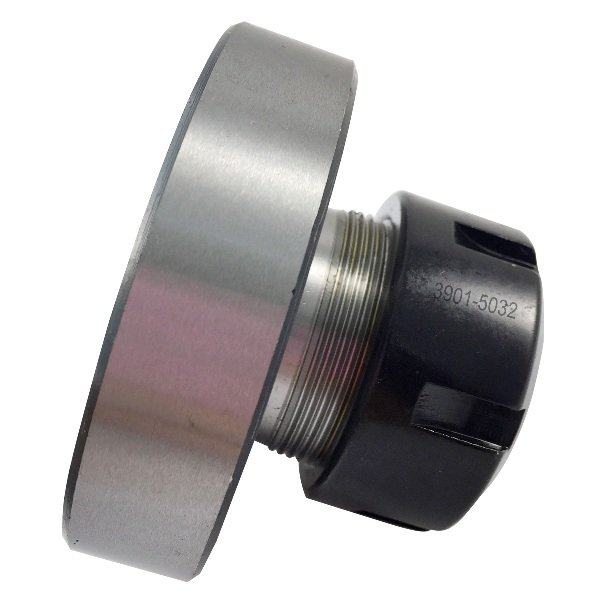

80MM Diameter ER-32 Collet Chuck

• Mount to your choice of backplate to use on a lathe
• Can also be used as a fixture on a milling table
• Concentricity is .0016″

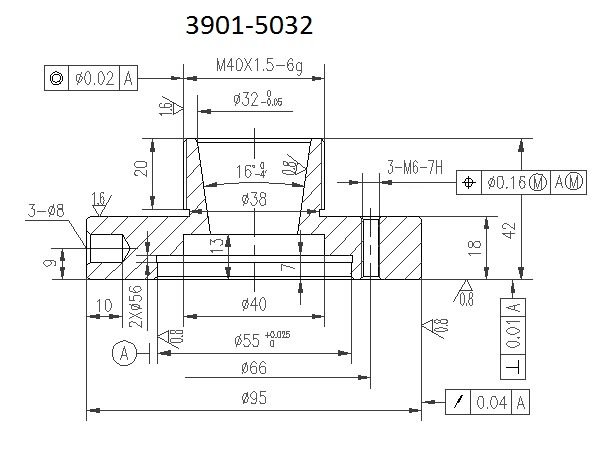

• D1 is 80mm
• D is 55mm
• L is 42mm
• The outside diameter of the collet chuck is 80 mm

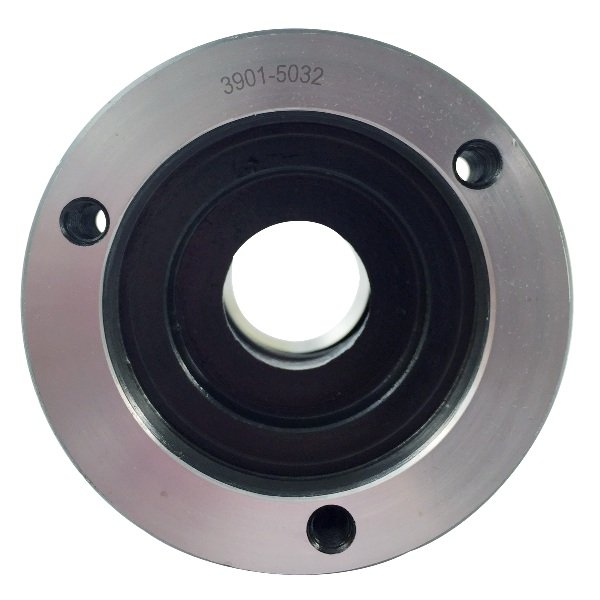

• It has a 55 mm registration diameter and mounts with three M6 bolts on a 66 mm bolt circle

Specifications

• 80MM Diameter ER-32 Collet Chuck
• Mount to your choice of backplate to use on a lathe.
• Can also be used as a fixture on a milling table.
• Concentricity is .0016″.
• D1 is 80mm.
• D is 55mm.
• L is 42mm.
• The outside diameter of the collet chuck is 80 mm.
• It has a 55 mm registration diameter and mounts with three M6 bolts on a 66 mm bolt circle.
• Supplied with a wrench.
• Weight: 2.25
• Dimensions: L 3, W 6, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
