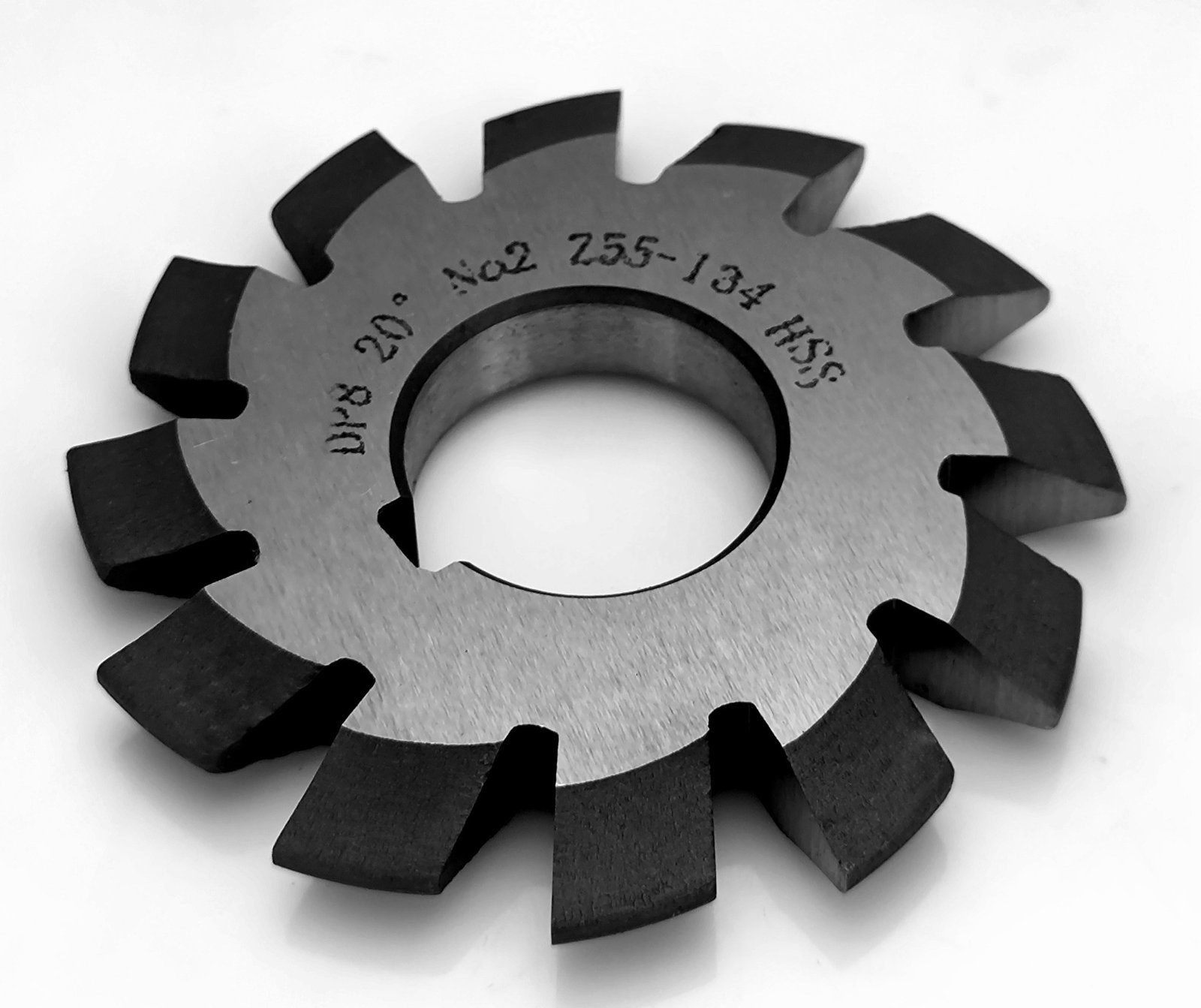

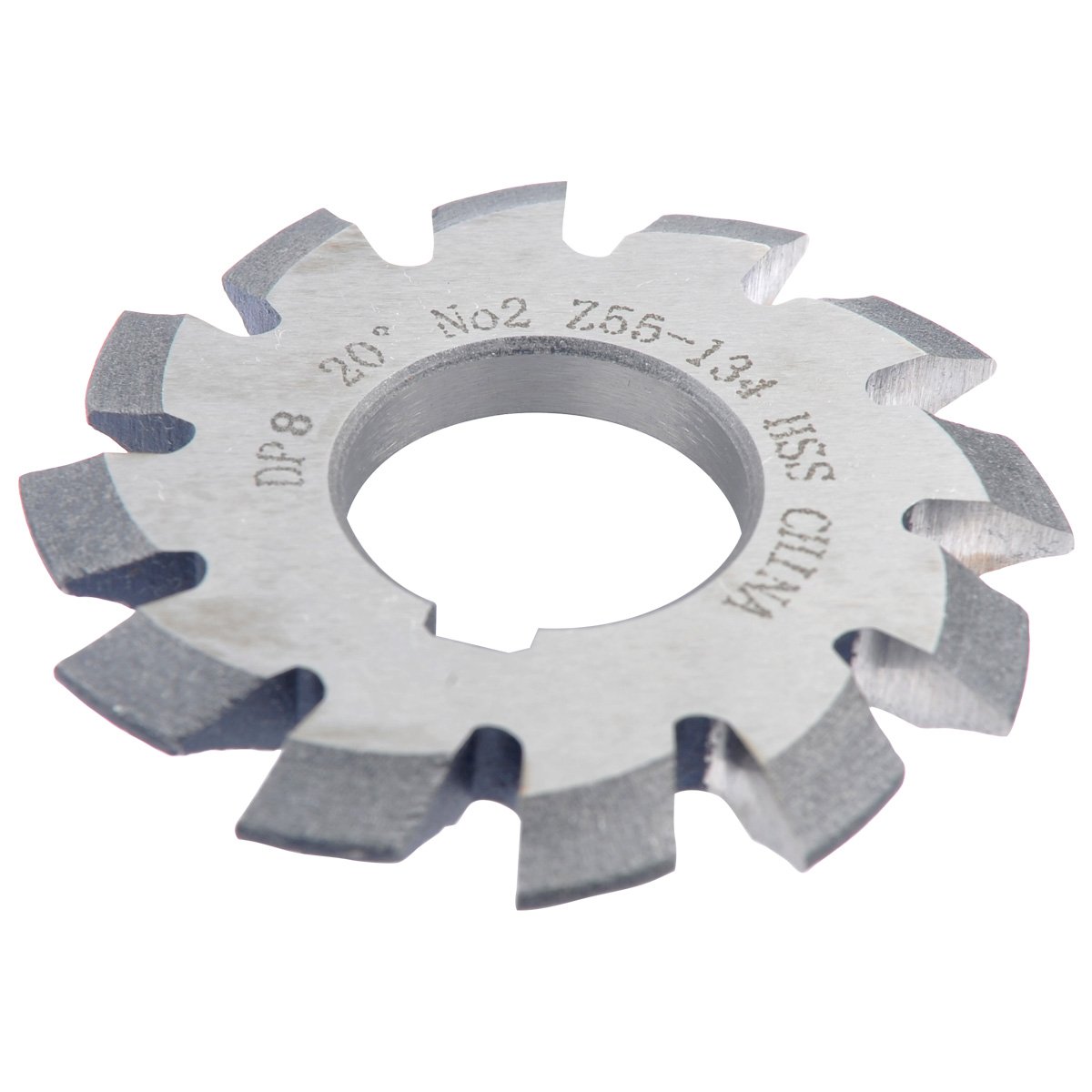

8P #2 20 DEGREE GEAR CUTTER (2040-0825)

8P #2 20 DEGREE GEAR CUTTER (2040-0825) (SKU: 2040-0825)

HHIP 8P #2 20 Degree Gear Cutter

• Cutter diameter is 2-7/8″
• Arbor hole is 1″
• Made from high speed steel
• Ground from solid
• Bright finish
• Straight teeth on periphery of cutters
• For spur gears with 14.5 degrees & 20 degrees
• Involute gear cutters make it possible to machine gears on your CNC or manual mill. The gear cutter is made into the involute profile which transfers it’s shape to your gear blank allowing it to run with other gears. The gear cutter needs to be matched to your gear specifications including diametral pitch or module, pressure angle and the number of teeth it will cut
• The profile of all involute spur gears changes slightly as the tooth count changes and so the profile of the gear cutter changes as well
• Cutters are numbered from #1-#8 depending on how many teeth it will cut

Specifications

• 8P #2 20 Degree Gear Cutter
• Made from high speed steel.
• Ground from solid.
• Bright finish.
• Cutter diameter is 2-7/8″.
• Arbor hole is 1″.
• For spur gears with 14.5 degrees & 20 degrees.

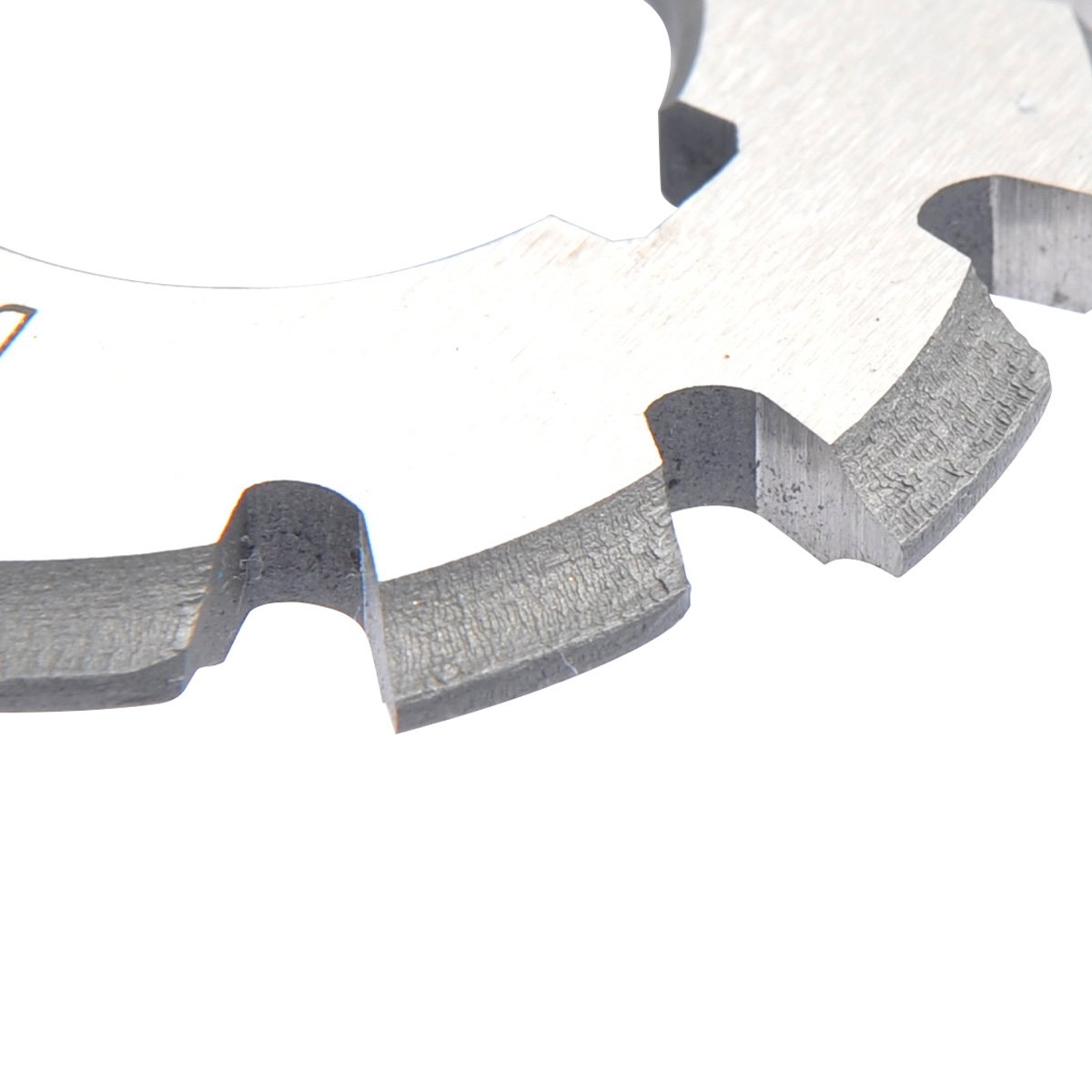

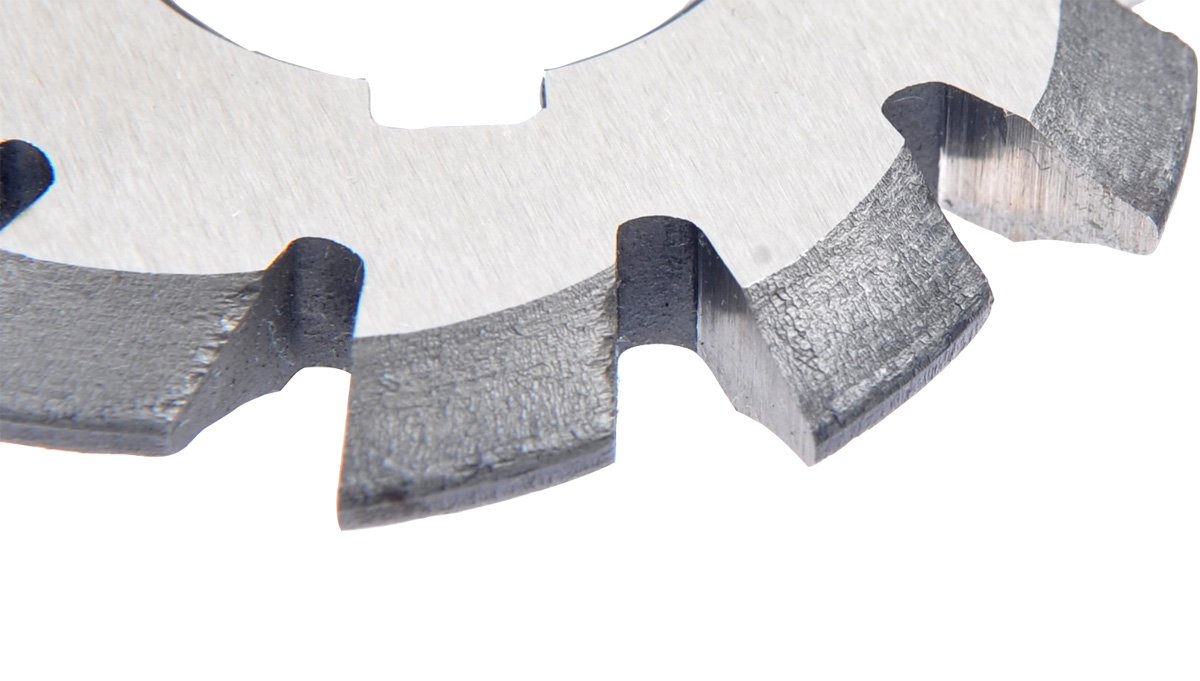

• Straight teeth on periphery of cutters.
• Involute gear cutters make it possible to machine gears on your CNC or manual mill. The gear cutter is made into the involute profile which transfers it’s shape to your gear blank allowing it to run with other gears. The gear cutter needs to be matched to your gear specifications including diametral pitch or module, pressure angle and the number of teeth it will cut.
• The profile of all involute spur gears changes slightly as the tooth count changes and so the profile of the gear cutter changes as well. ~ Cutters are numbered from #1-#8 depending on how many teeth it will cut.
• Weight: 0.4
• Dimensions: L 3, W 3, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
