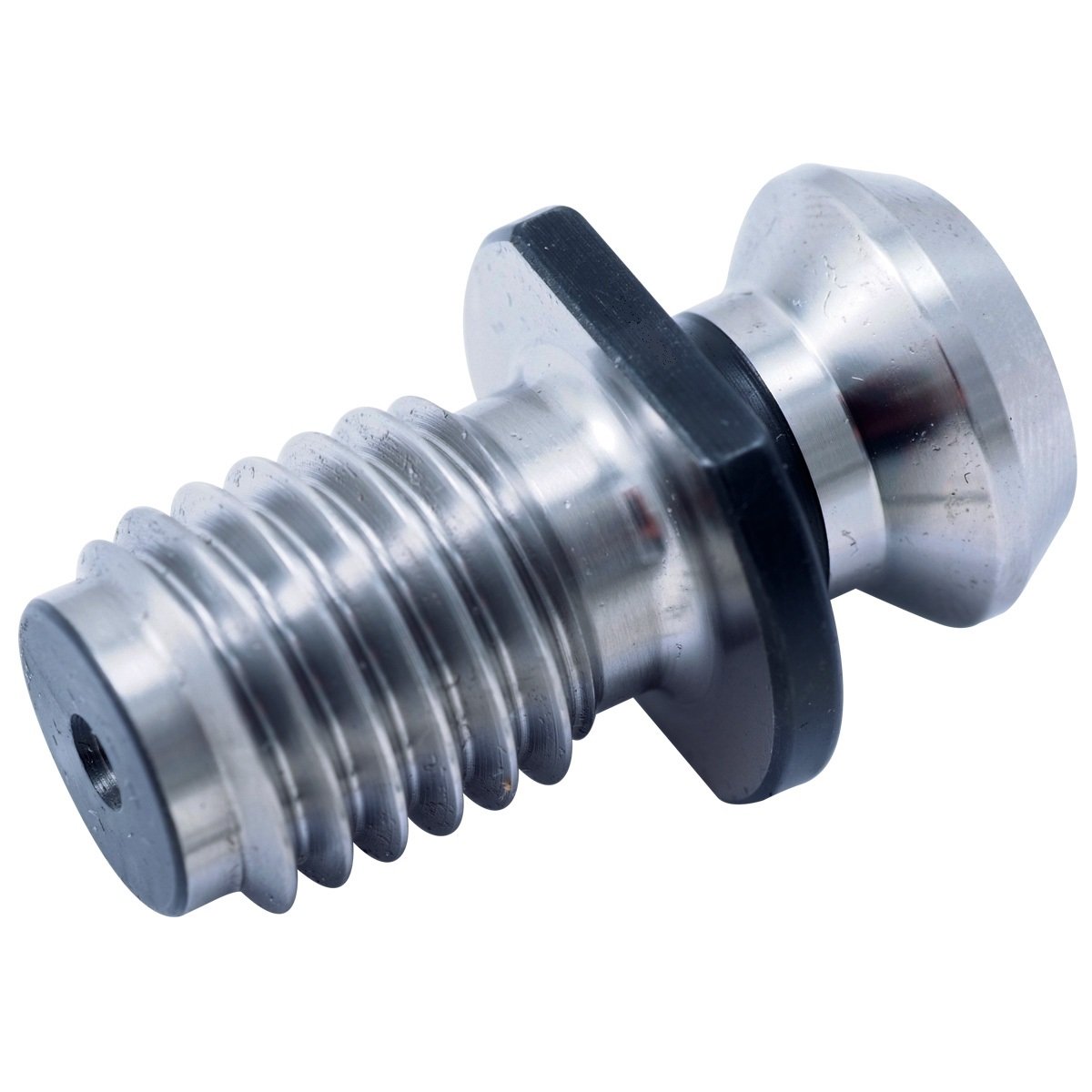

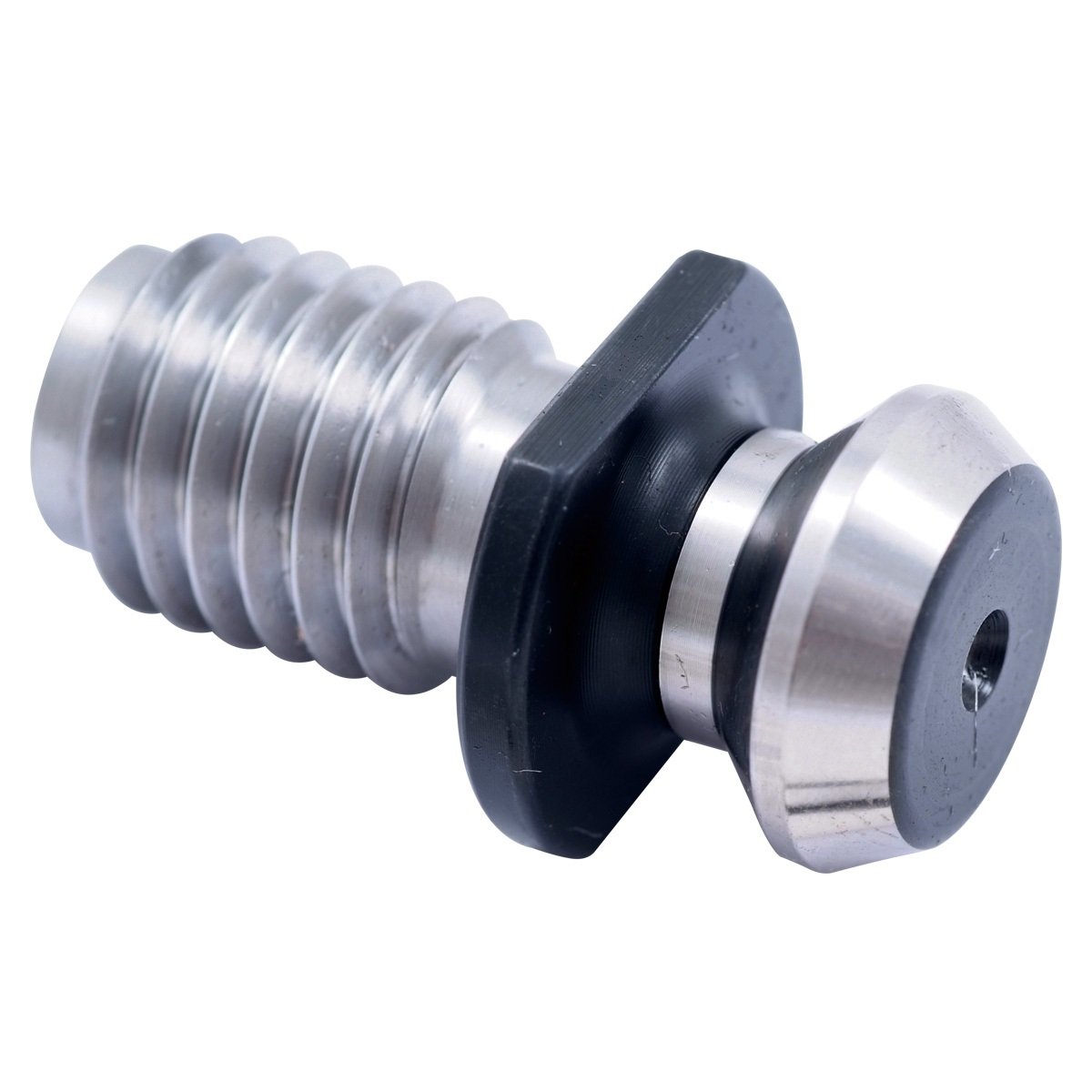

ANSI 1.5 X .74 45 DEGREE M16 X 2.0 COOLANT THRU RETENTION KNOB (3900-5521)

ANSI 1.5 X .74 45 DEGREE M16 X 2.0 COOLANT THRU RETENTION KNOB (3900-5521) (SKU: 3900-5521)

ANSI .74 X 1.5 CAT40 M16 X 2.0 Coolant Thru Retention Knob

• TPI is M16 X 2.0
• Heat treated alloy steel hardened to HRC 52
• 56°
• ANSI/AMSE B5.50-1994
• Coolant thru

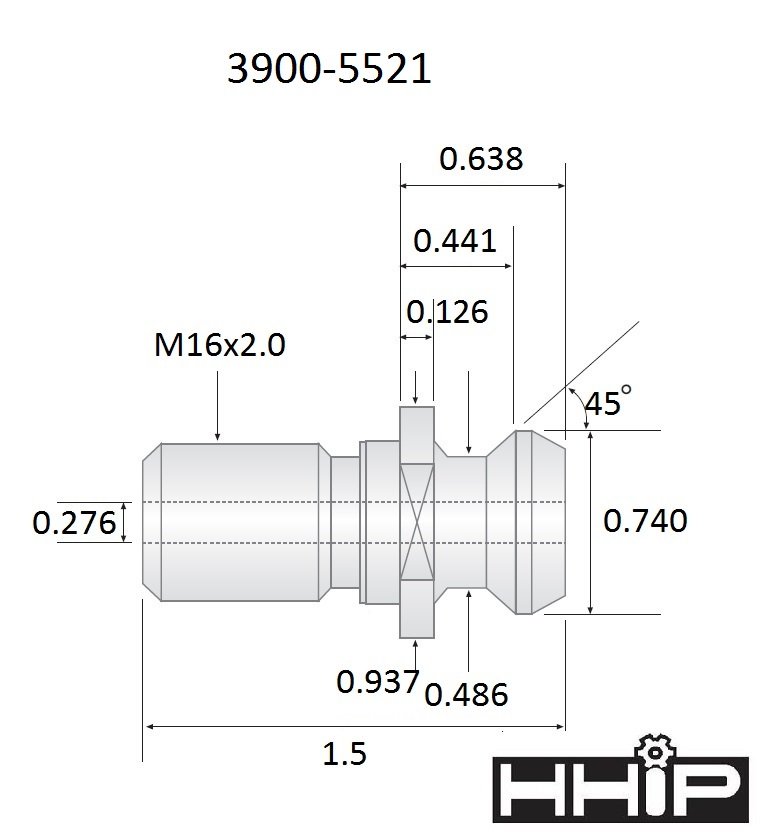

• L is 1.50
• L1 is .44
• L2 is .13
• D is .94
• d1 is .74
• d2 is .49
• d3 is .28
• A is 45°

Specifications

• ANSI .74 X 1.5 CAT40 M16 X 2.0 Coolant Thru Retention Knob
• TPI is M16 X 2.0.
• Heat treated alloy steel hardened to HRC 52~56°.
• ANSI/AMSE B5.50-1994.
• L is 1.50
• L1 is .44
• L2 is .13
• D is .94
• d1 is .74
• d2 is .49
• d3 is .28
• A is 45°.
• Weight: 0.1
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
