CCMT 21.51-EM COATED CARBIDE INSERT (6053-0111)

CCMT 21.51-EM COATED CARBIDE INSERT (6053-0111) (SKU: 6053-0111)

CCMT 21.51-EM 80 Degree Diamond Positive Rake Carbide Insert

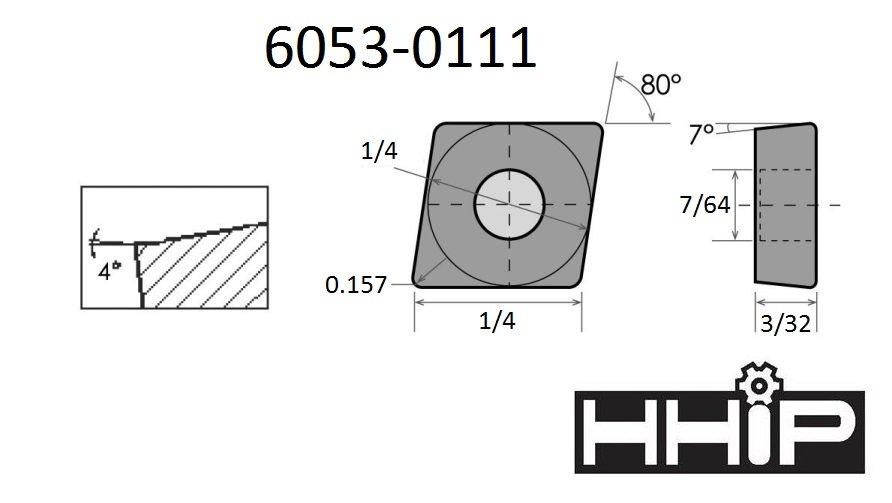

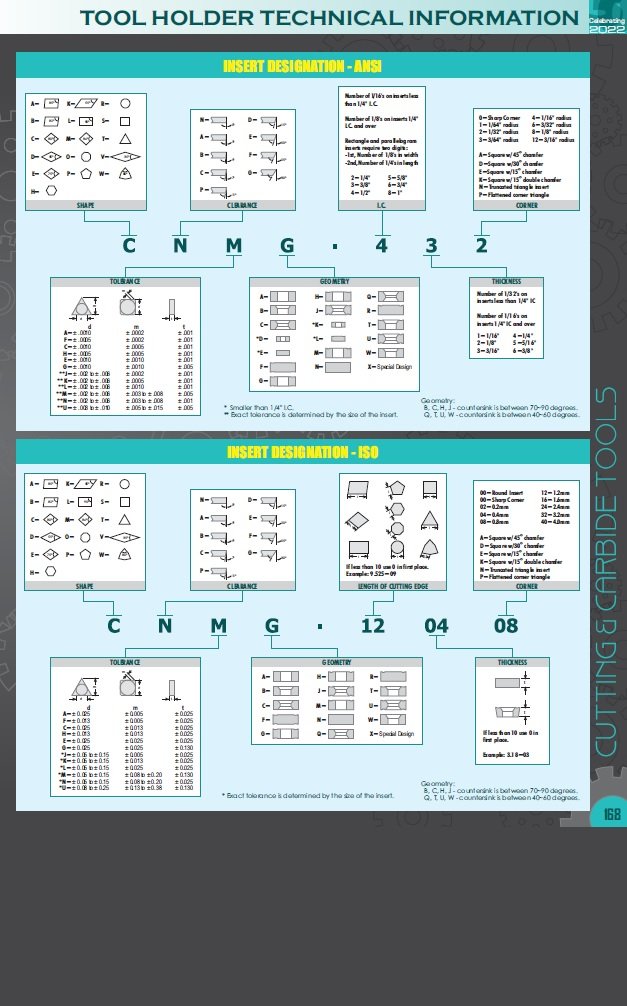

• ISO insert number is CCMT060204EM
• I.C. is 1/4
• L is 1/4
• S is 3/32
• d is 7/64
• r is .0157
• For turning and milling carbon and alloy steels, tool steel and stainless steel
• Provides a longer life than uncoated grades
• Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron
• Semi-finishing geometry recommended for use with 300 Series stainless steels
• Single-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel
• Possesses higher feed and depth of cut capability than EF chipbreaker

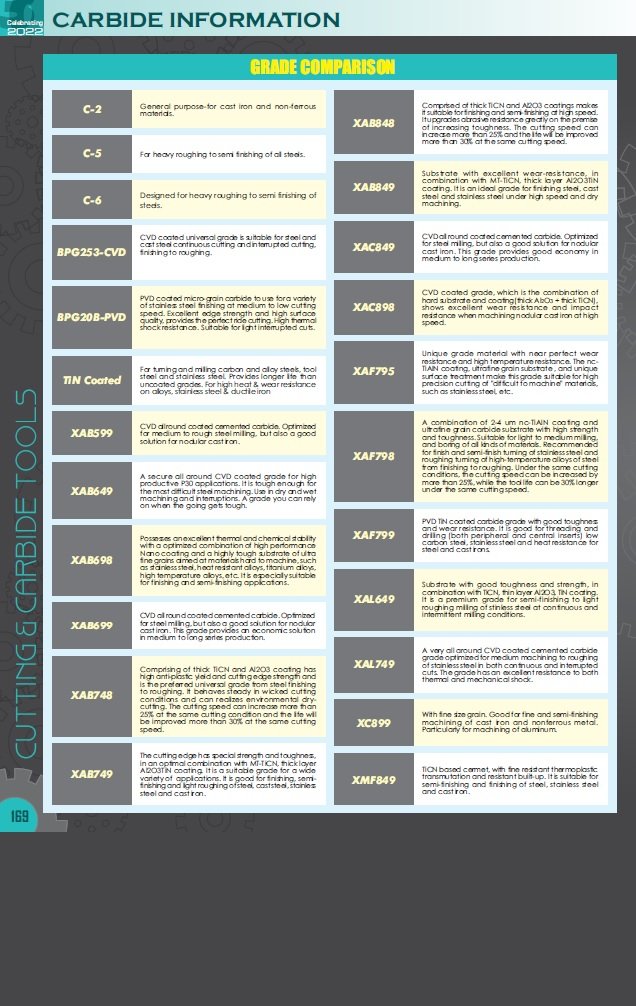

• Grade XAF798 provides a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness
• It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys

Specifications

• CCMT 21.51-EM 80 Degree Coated Carbide Insert
• I”.C”. is 1/4″.
• L is 1/4″.
• S is 3/32″.
• d is 7/64″.
• r is .0157″.
• ISO insert number is CCMT060204EM.
• Single-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel.
• Possesses higher feed and depth of cut capability than EF chipbreaker.
• Grade XAF798 provides a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness.
• It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
