CNMG-431 TiN C-5 CARBIDE INSERT (6000-6831)

CNMG-431 TiN C-5 CARBIDE INSERT (6000-6831) (SKU: 6000-6831)

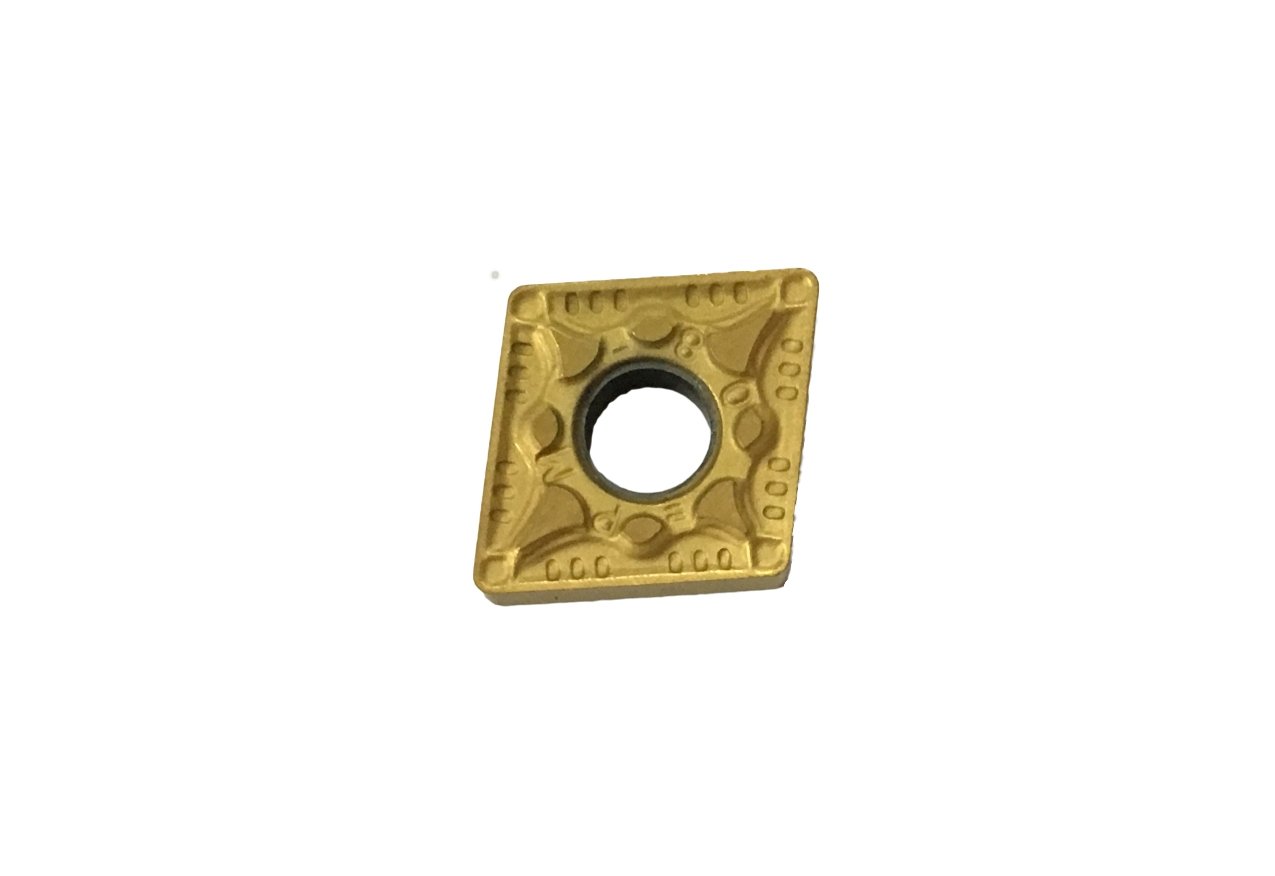

CNMG-431 TiN C-5 Diamond Negative Rake Insert

• Use for turning & boring
• 0° relief angle
• Chipbreaker on 2 sides
• 80° diamond negative rake

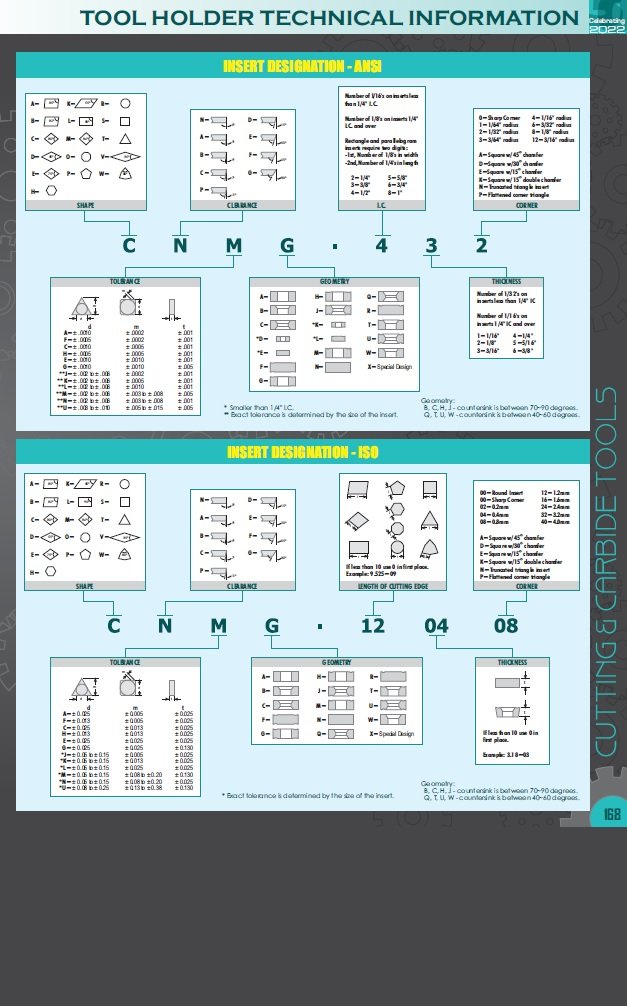

• ISO insert number is CNMG120404

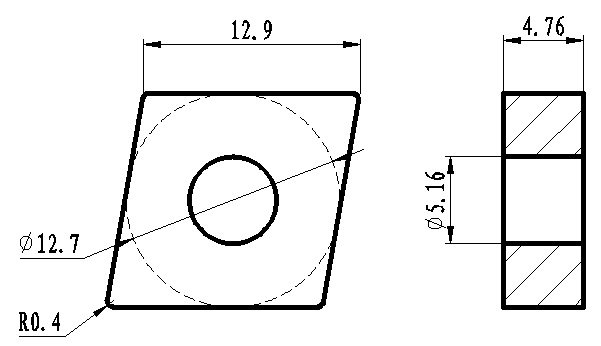

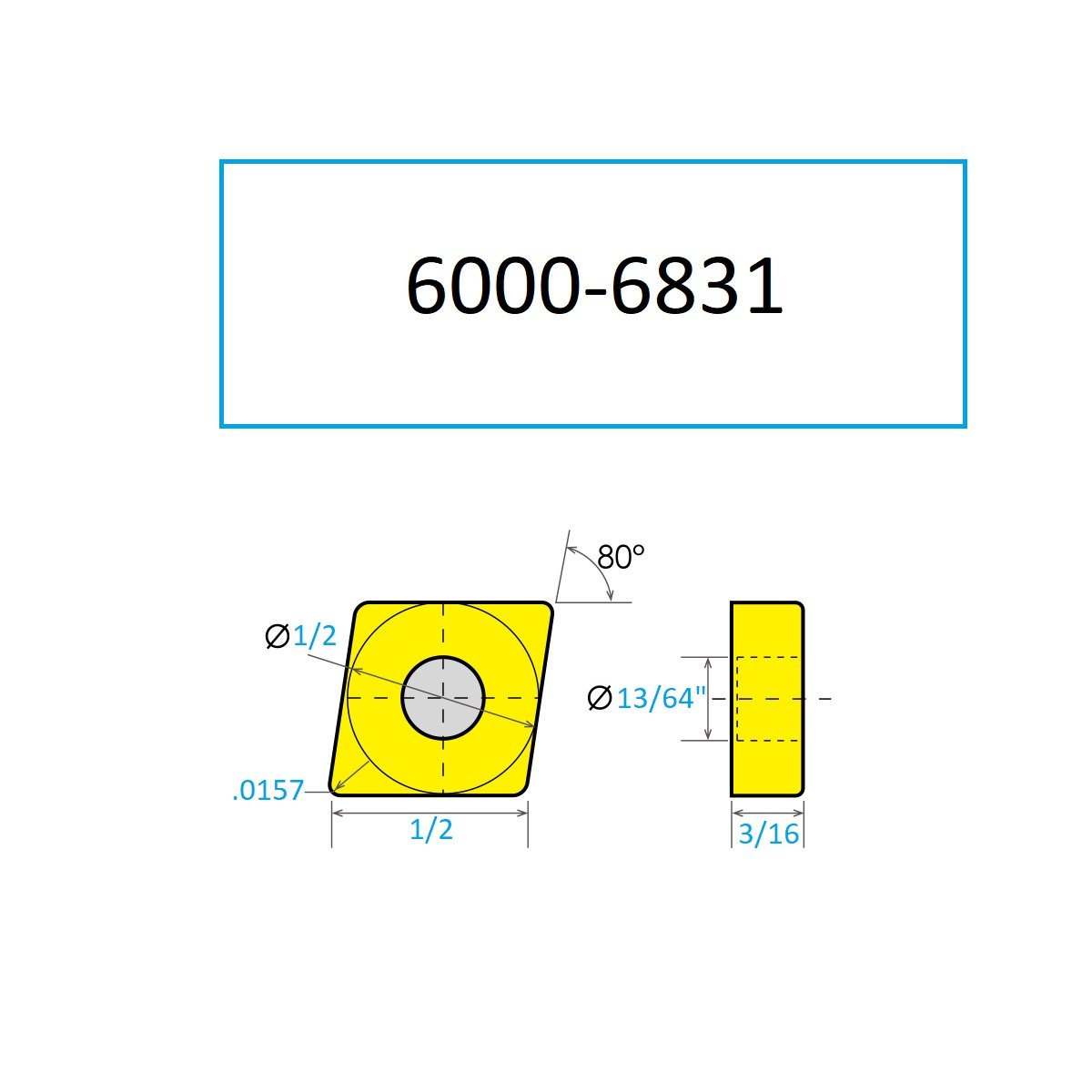

• I.C. is 1/2
• L is 1/2
• S is 3/16
• d is 13/64
• r is .0157
• For turning and milling carbon and alloy steels, tool steel and stainless steel
• Provides a longer life than uncoated grades
• Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron

Specifications

• CNMG-431 TiN C-5 Negative Rake Carbide Insert
• Use for turning & boring.
• 0° relief angle.
• Chipbreaker on 2 sides.
• 80° diamond negative rake.
• ISO insert number is CNMG120404.
• I.C. is 1/2.
• L is 1/2.
• S is 3/16.
• d is 13/64.
• r is .0157.
• For turning and milling carbon and alloy steels, tool steel and stainless steel.
• Provides a longer life than uncoated grades.
• Works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron.
• Weight: 0.01
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
