DASQUA 1-2″ POINT MICROMETER (4610-2310)

DASQUA 1-2″ POINT MICROMETER (4610-2310) (SKU: 4610-2310)

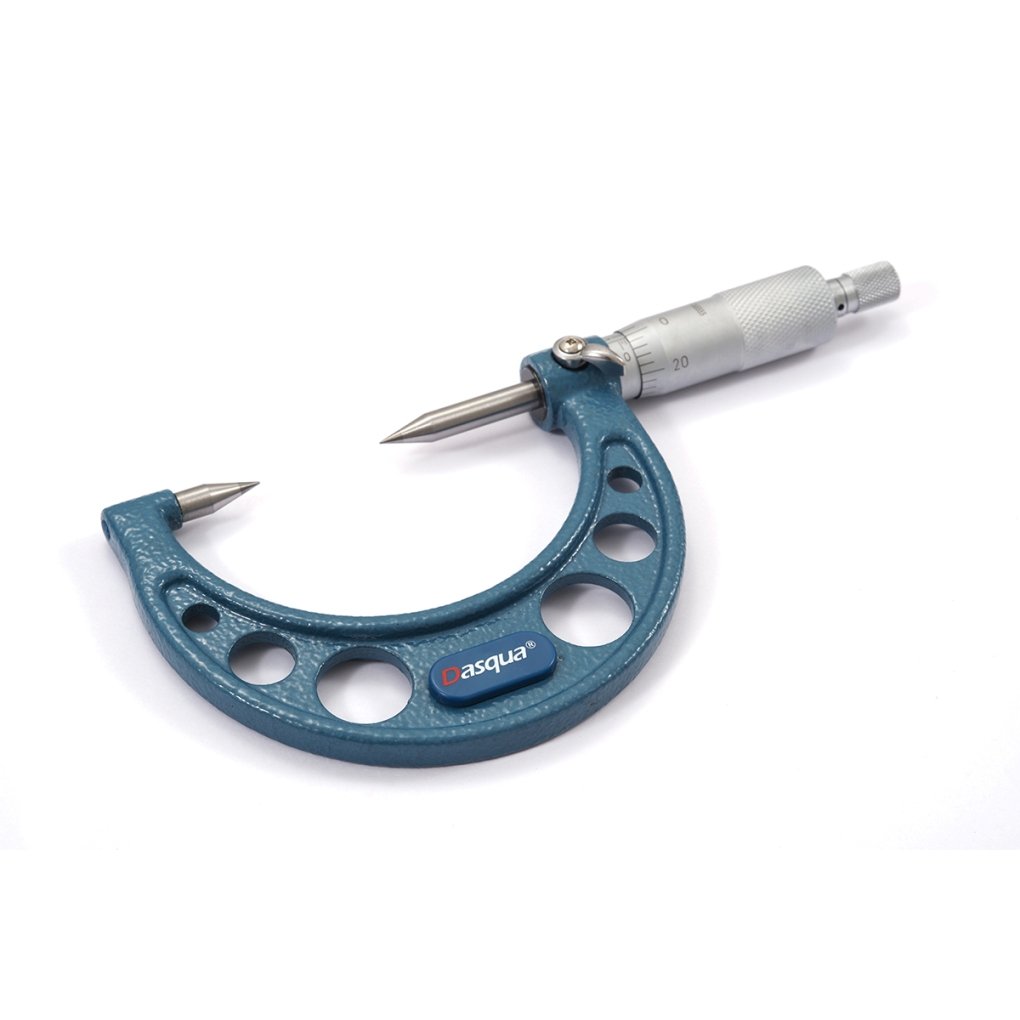

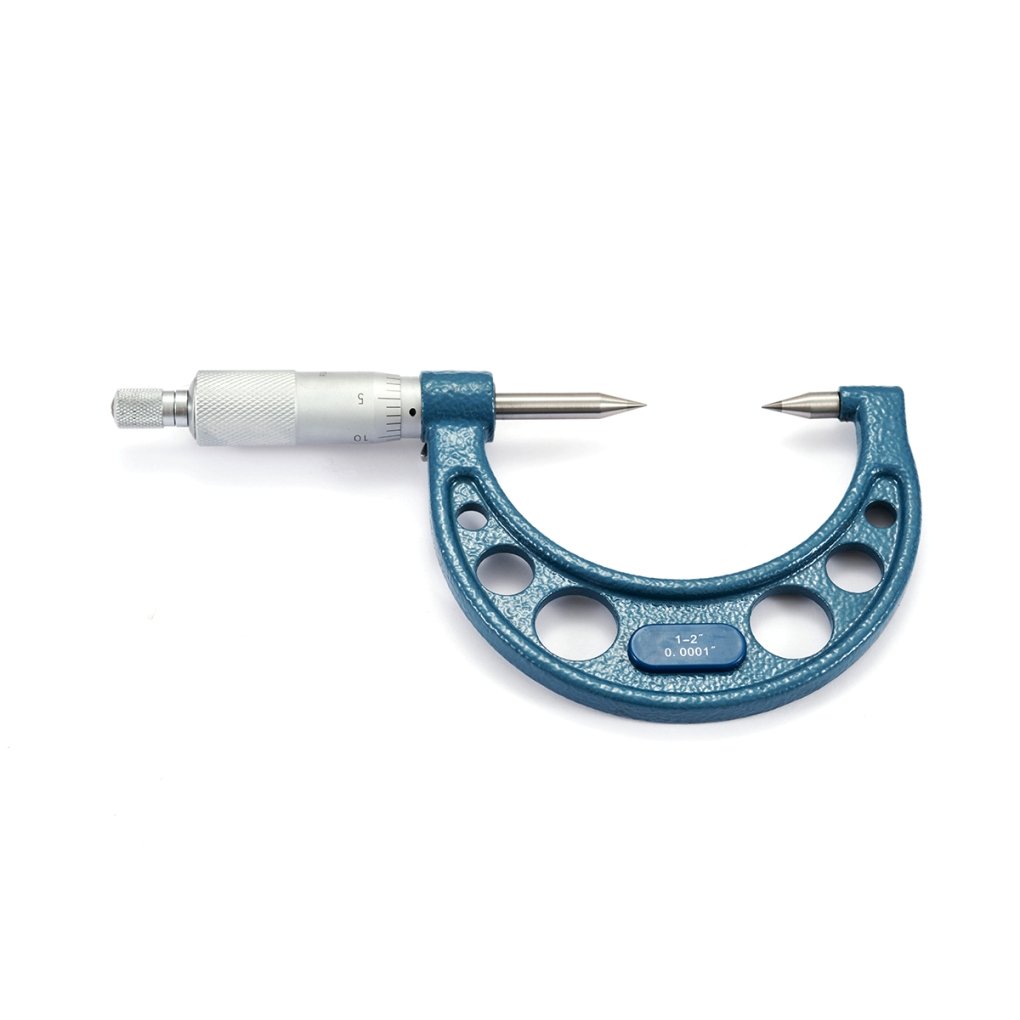

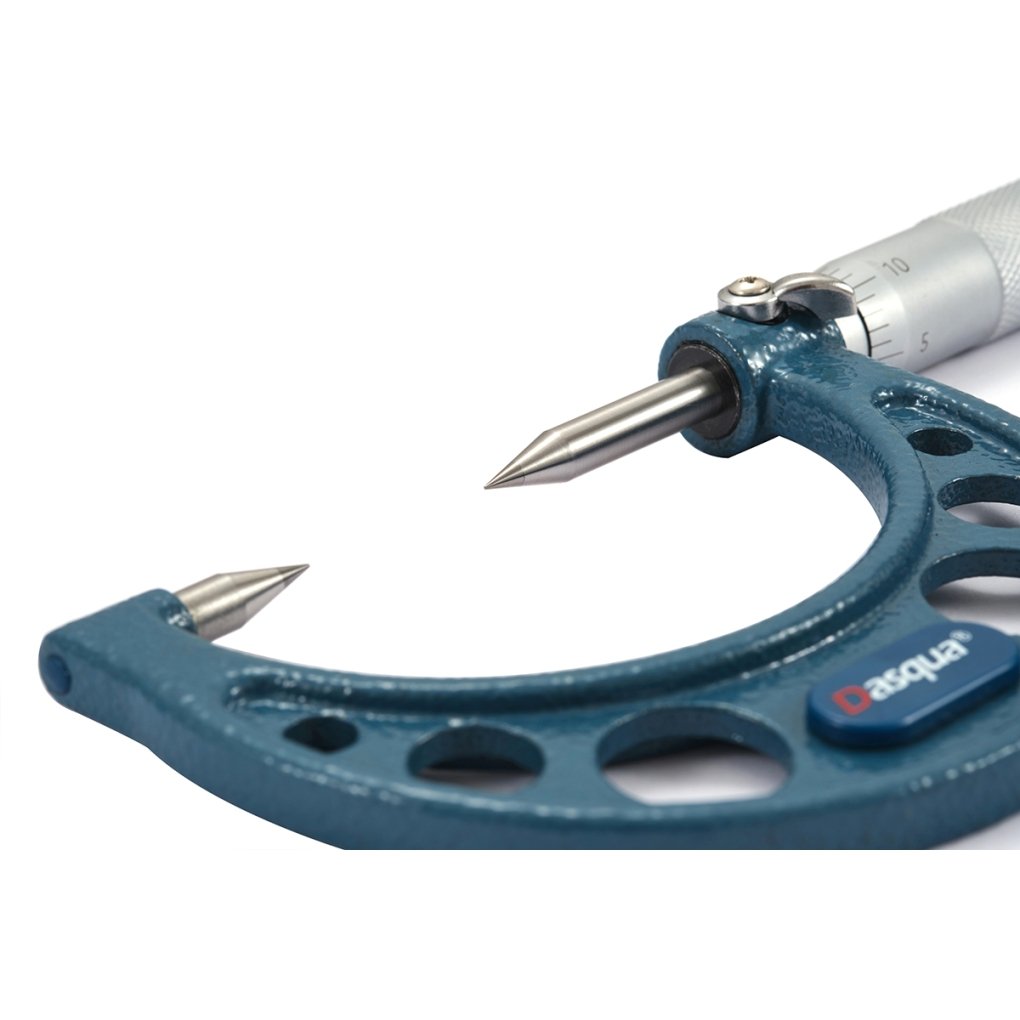

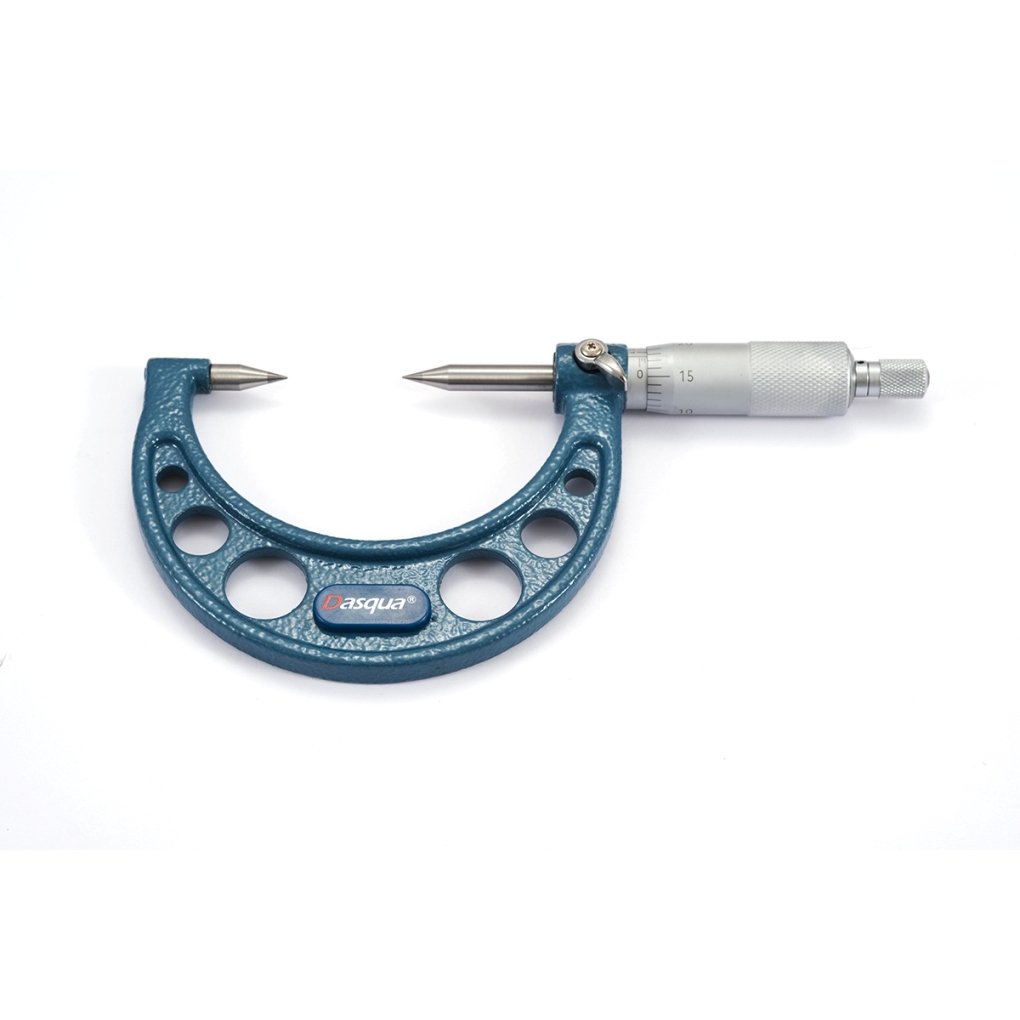

Dasqua 1-2″ Point Micrometer

• Resolution is 0.0001″
• For measuring the web thickness of drills, small grooves, and other hard to reach dimensions
• Strictly made in accordance with DIN863
• Spindle thread is hardened, ground and lapped for ultimate accuracy
• Barrel and thimble have a satin chrome finish
• Carbide measuring face
• Clear graduations on satin chrome finish for easy reading
• Quick and easy zero adjustment on sleeve
• Positive lever locking clamp and ratchet stop

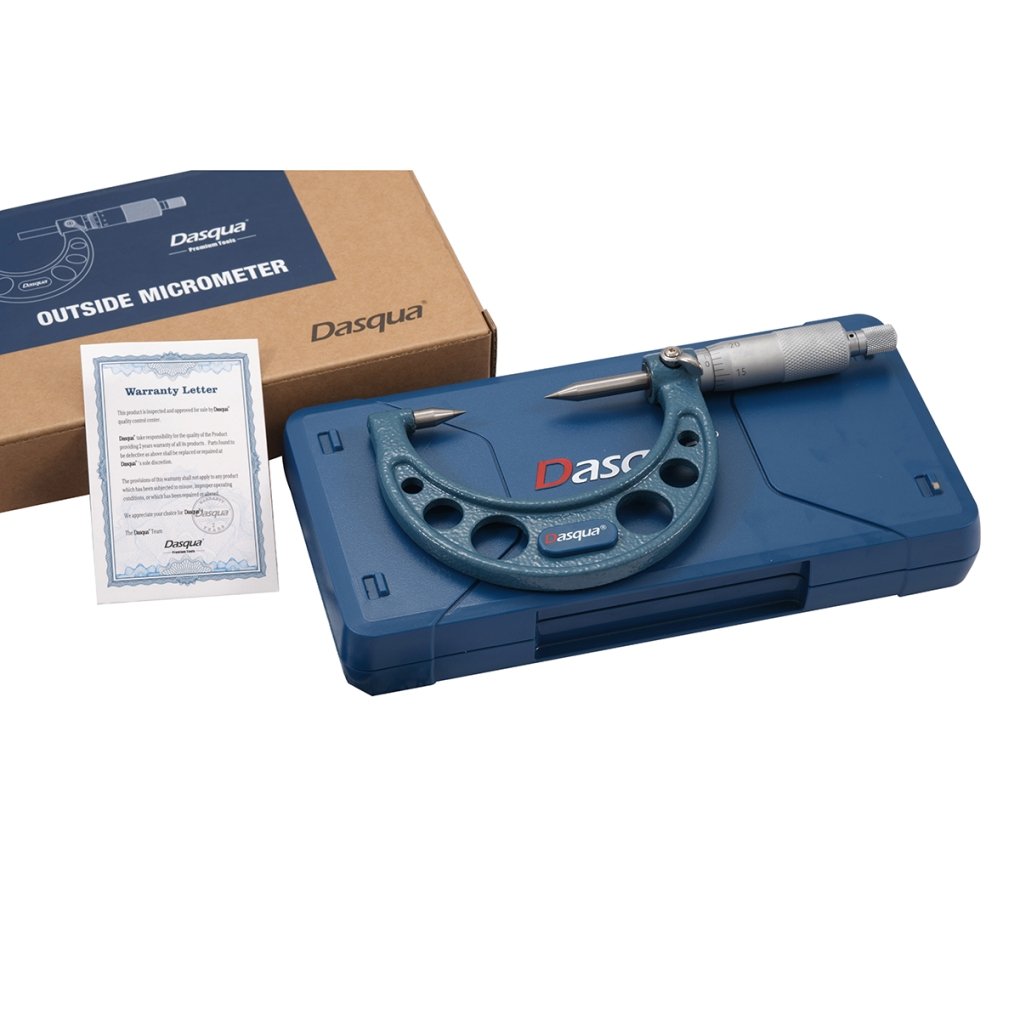

• Supplied with fitted case
• Furnished with standards for micrometer reading verification

Specifications

• Dasqua 0-1″ Point Micrometer
• Resolution is 0.0001″.
• For measuring the web thickness of drills, small grooves, and other hard to reach dimensions.
• Strictly made in accordance with DIN863.
• Spindle thread is hardened, ground and lapped for ultimate accuracy.
• Barrel and thimble have a satin chrome finish.
• Carbide measuring face.
• Clear graduations on satin chrome finish for easy reading.
• Quick and easy zero adjustment on sleeve.
• Positive lever locking clamp and ratchet stop.
• Supplied with fitted case.
• Furnished with standards for micrometer reading verification.
• Weight: 0.66

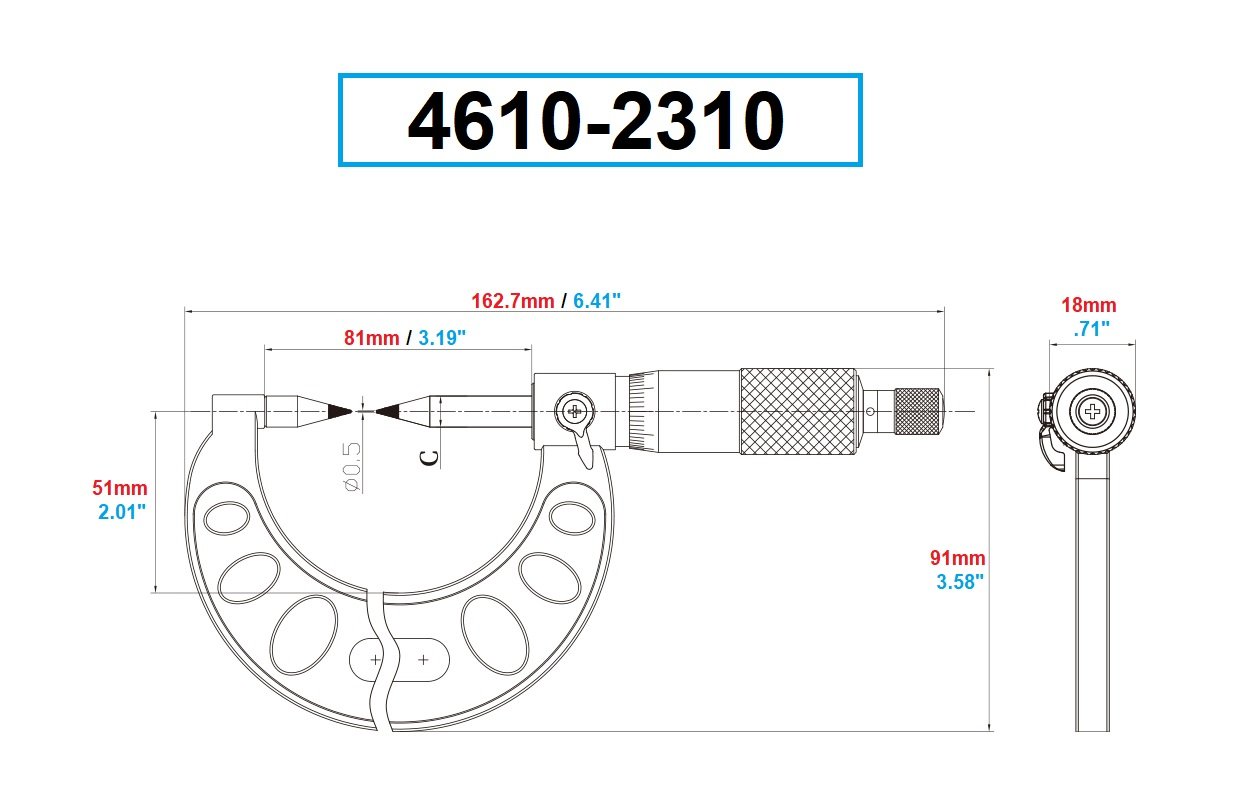

• Dimensions: L 9, W 5, H 2

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
