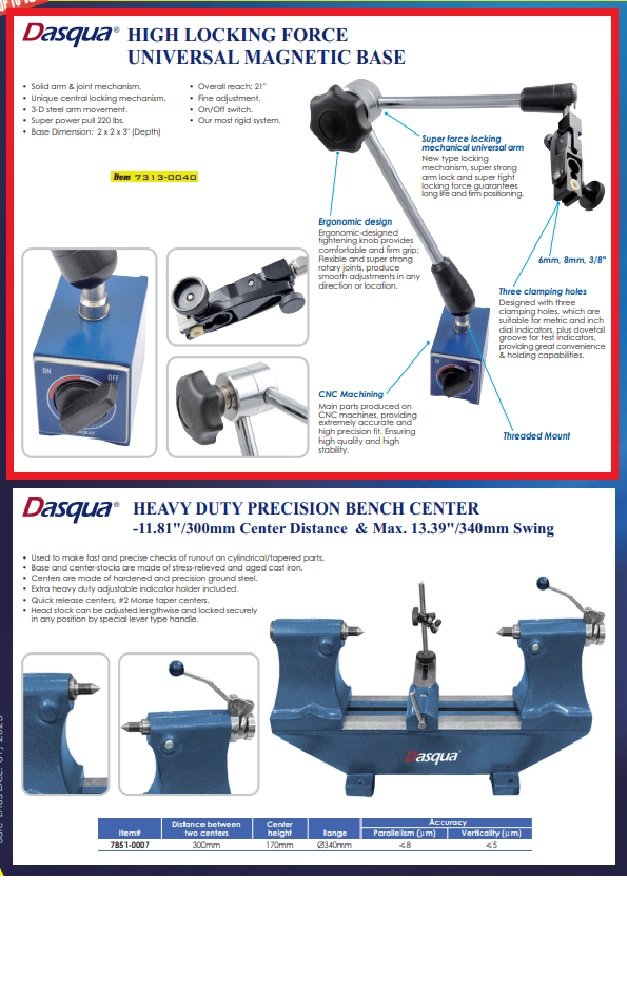

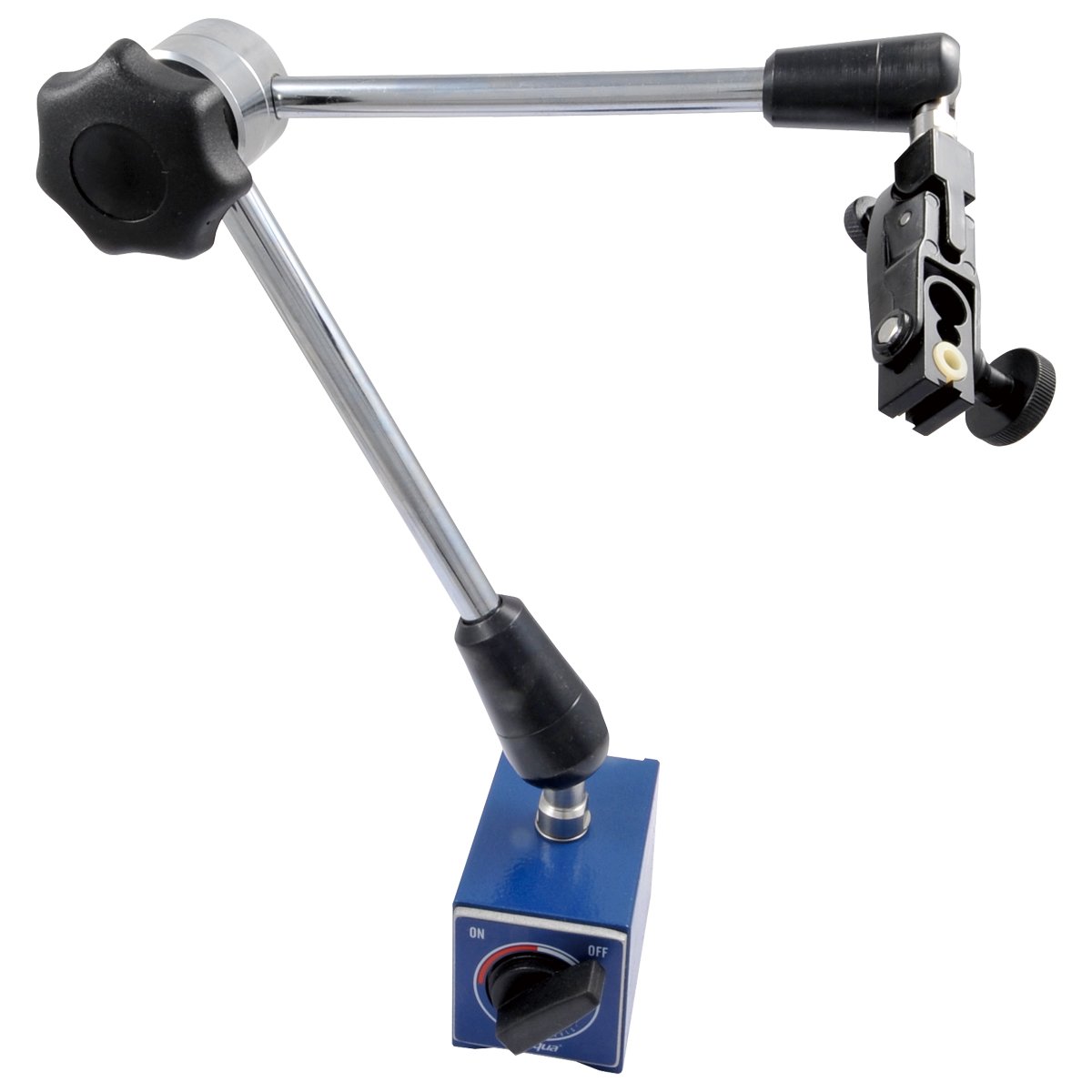

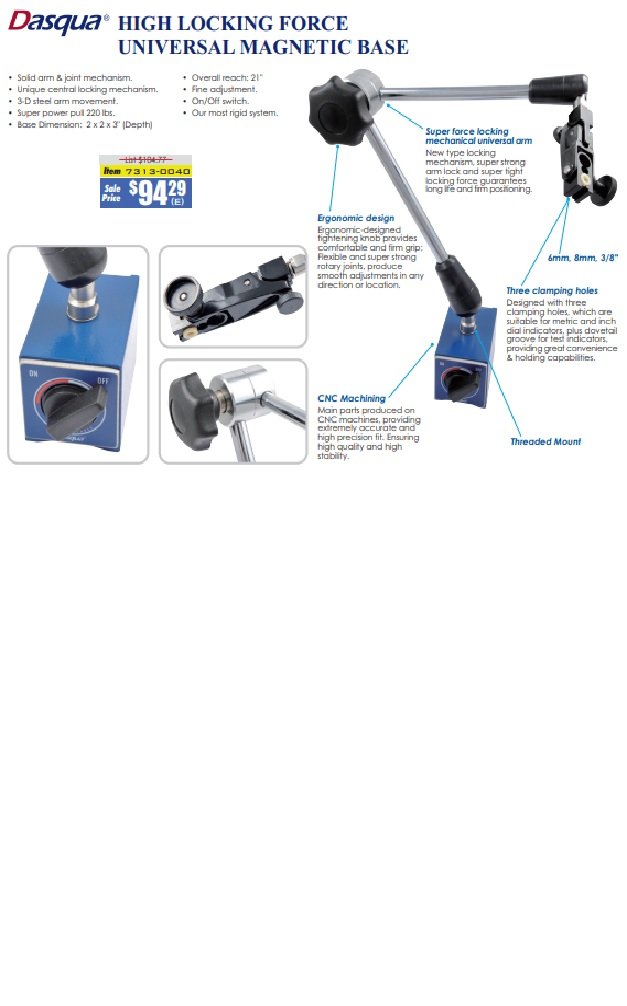

DASQUA HIGH LOCKING FORCE UNIVERSAL MAGNETIC BASE (7313-0040)

DASQUA HIGH LOCKING FORCE UNIVERSAL MAGNETIC BASE (7313-0040) (SKU: 7313-0040)

Dasqua High Locking Force Universal Magnetic Base New type of locking mechanism with a super strong lock and super tight locking force guarantees long life and firm positioning. Ergonomically designed tightening knob provides a comfortable and firm grip. Flexible and super strong rotary joints produce smooth adjustments in any direction or location. Designed with three clamping holes (6mm, 8mm, 3/8″), which are suitable for metric and inch dial indicators, plus a dovetail groove for test indicators, providing convenient holding capabilities. Main parts are produced on CNC machines, providing extremely accurate and high precision fit ensuring high quality and high stability. Solid arm & joint mechanism with a unique central locking mechanism. 3-D steel arm movement. Fine adjustment. Overall reach is 21″. On/Off switch. Super power pull of 220 lbs. Base dimension is 2 x 2 x 3″ (Depth). Our most rigid system. Arm is on a threaded mount.

Specifications

• Dasqua High Locking Force Universal Magnetic Base
• New type of locking mechanism with a super strong lock and super tight locking force guarantees long life and firm positioning.

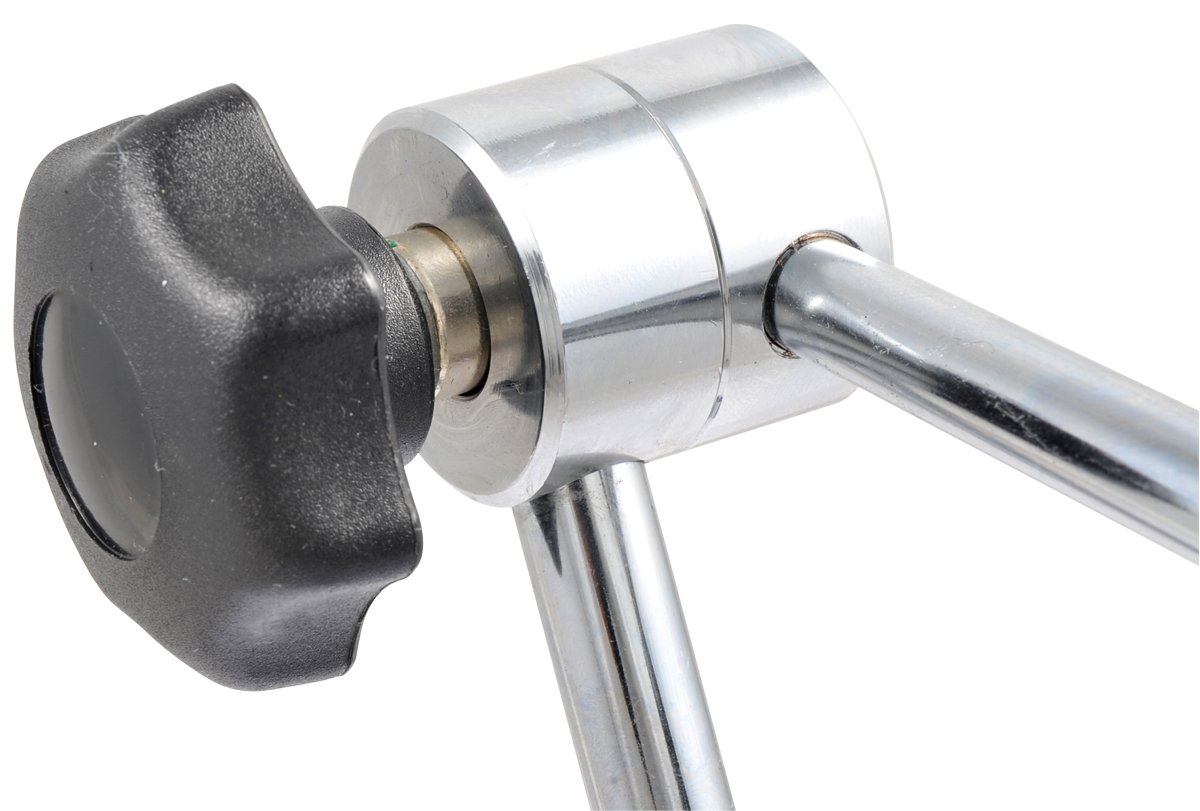

• Ergonomically designed tightening knob provides a comfortable and firm grip. Flexible and super strong rotary joints produce smooth adjustments in any direction or location.

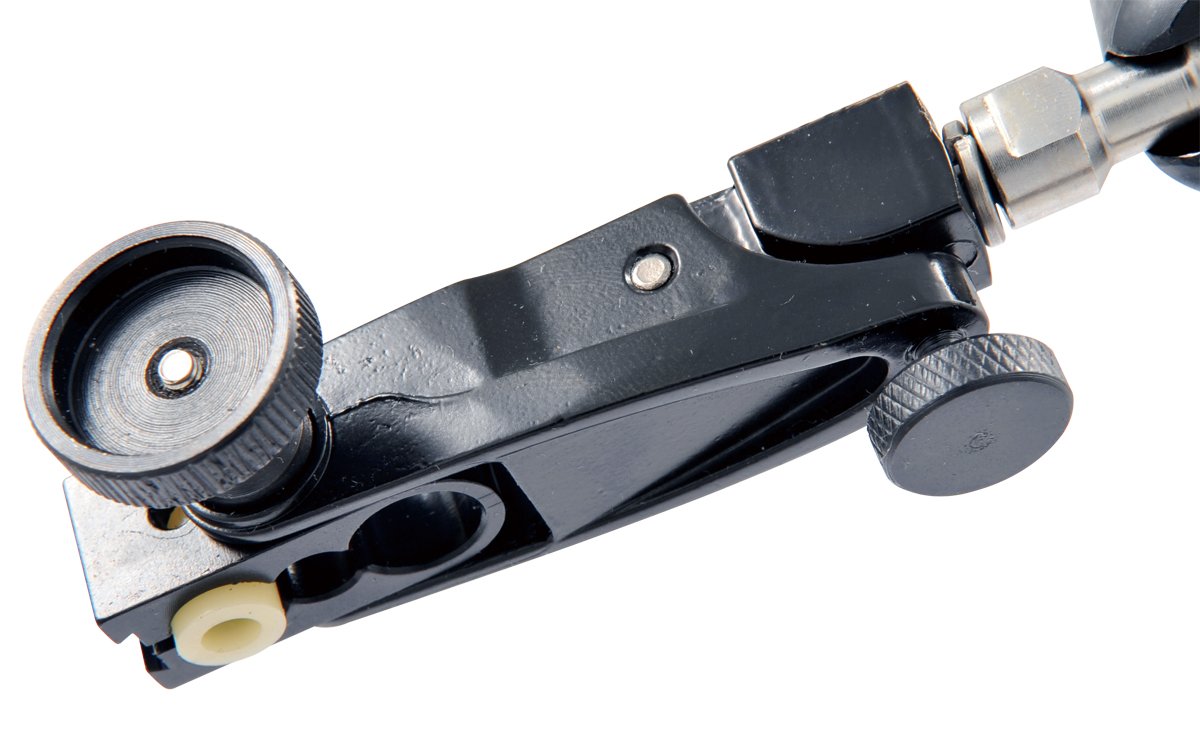

• Designed with three clamping holes (6mm, 8mm, 3/8″), which are suitable for metric and inch dial indicators, plus a dovetail groove for test indicators, providing convenient holding capabilities.
• Main parts are produced on CNC machines, providing extremely accurate and high precision fit ensuring high quality and high stability.
• Solid arm & joint mechanism with a unique central locking mechanism.
• 3-D steel arm movement.
• Fine adjustment.
• Overall reach is 21″.

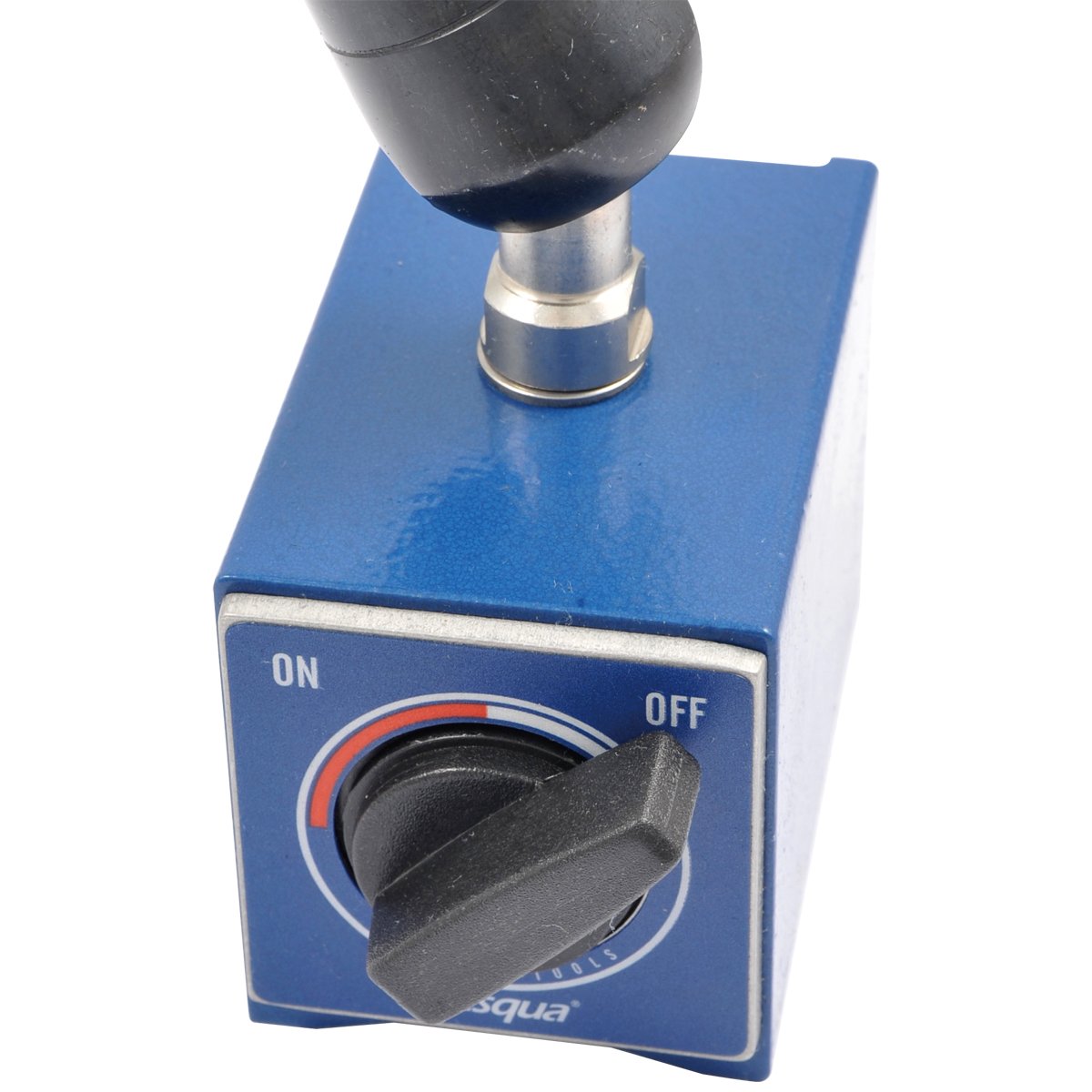

• On/Off switch.
• Super power pull of 220 lbs.

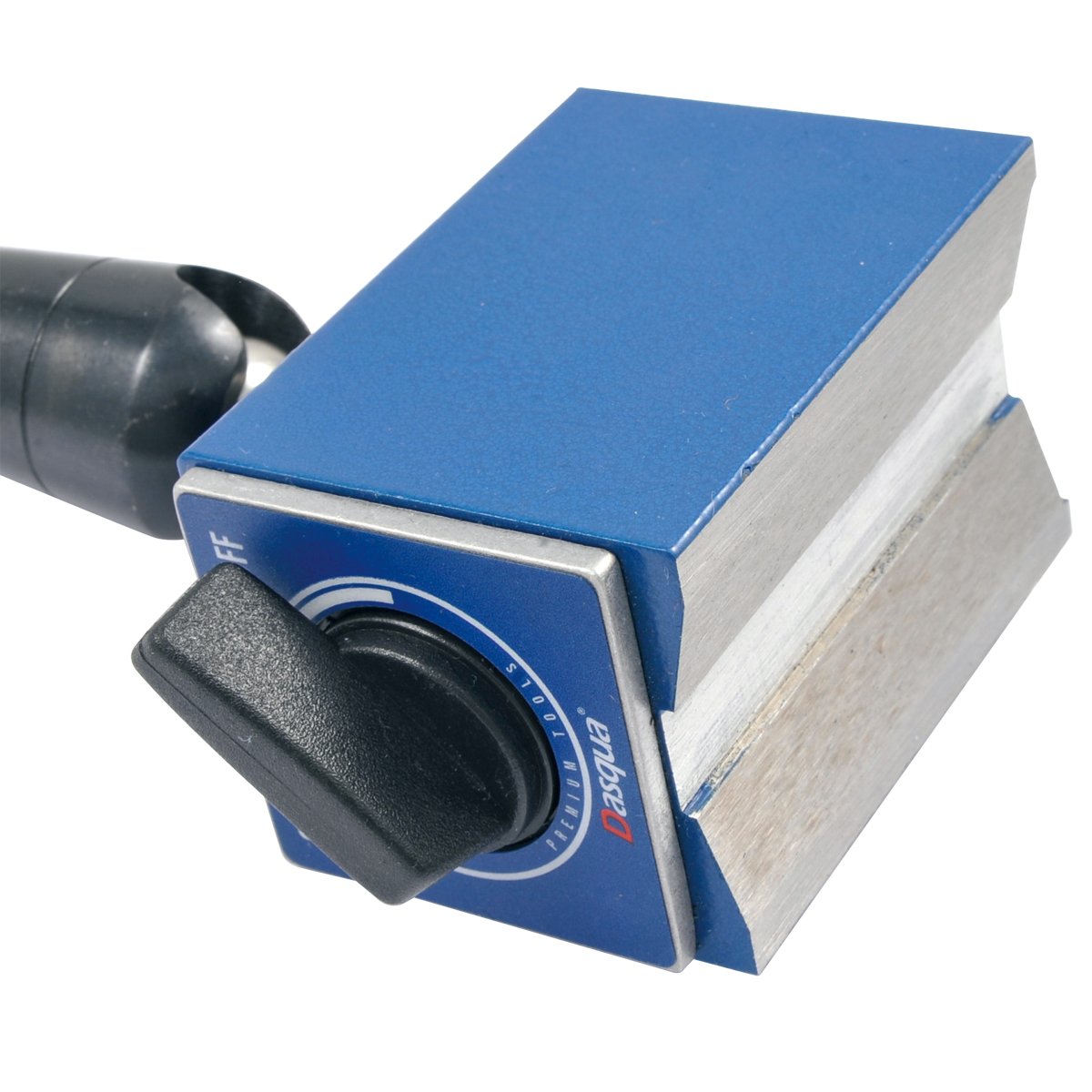

• Base dimension is 2 x 2 x 3″ (Depth).
• Our most rigid system.
• Arm is on a threaded mount.
• Weight: 4.8
• Dimensions: L 14, W 5, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
