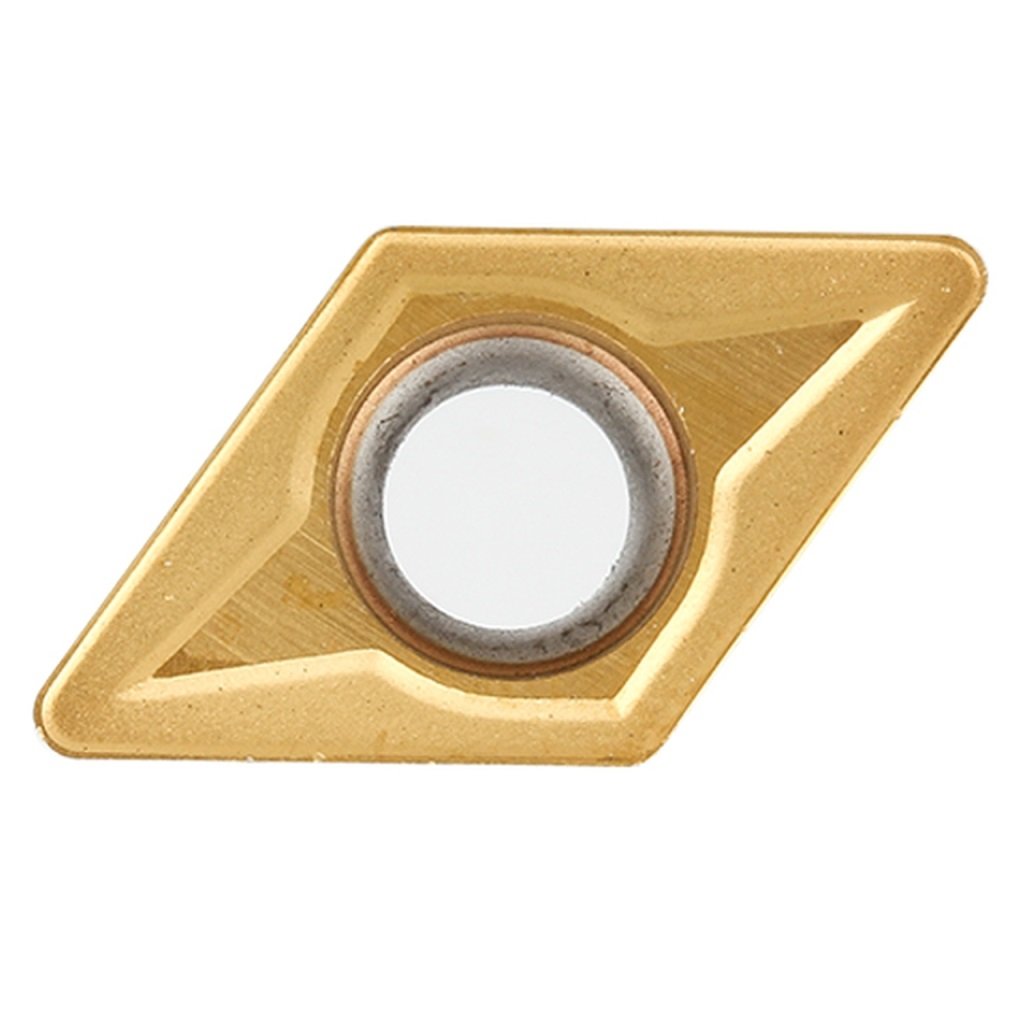

DCMT 21.51-EM COATED CARBIDE INSERT (6004-1021) (SKU: 6004-1021)

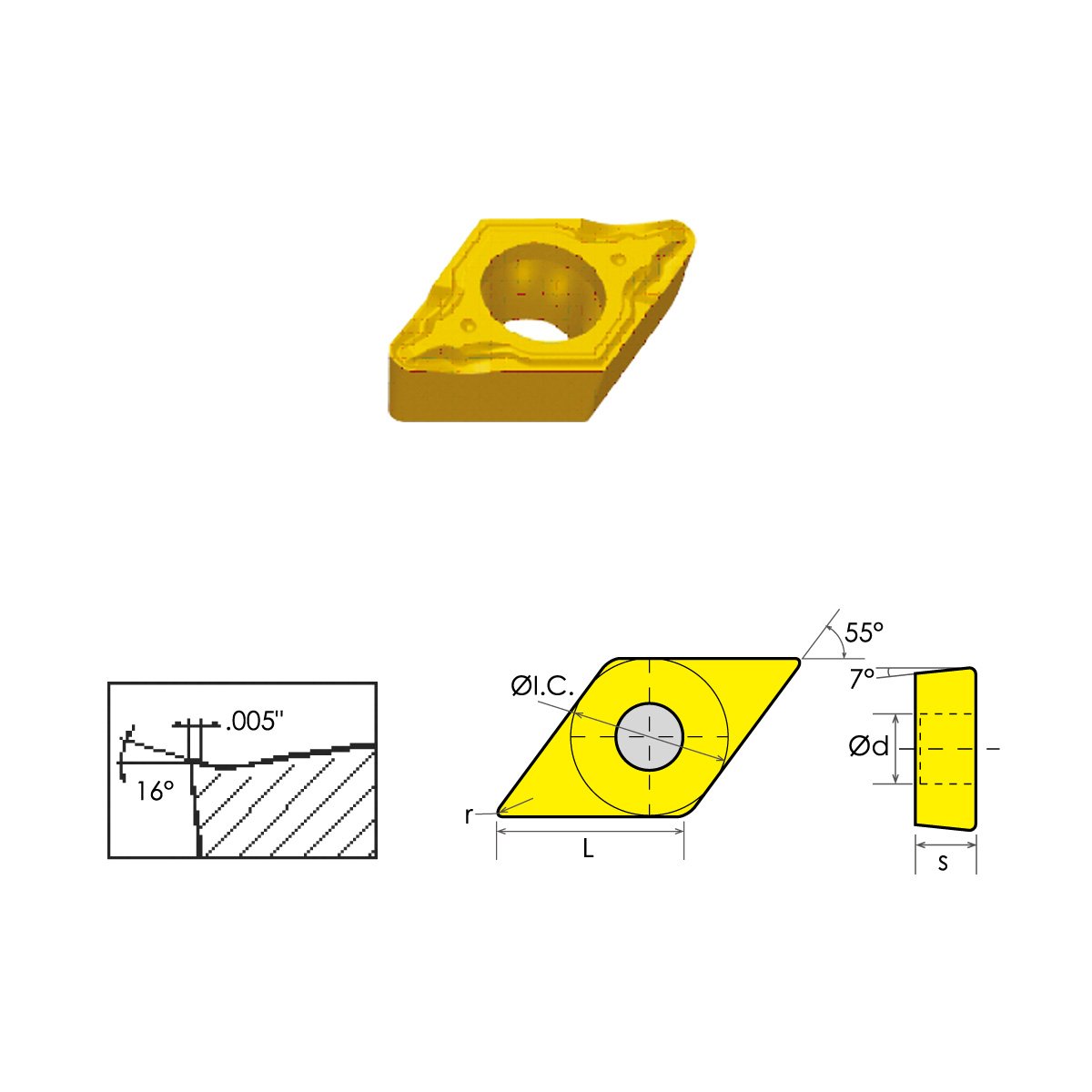

DCMT-21.51-EM 55 Degree Diamond Positive Rake Insert
- I.C. is 1/4″
- L is 0.307″
- S is 3/32″
- d is 7/64″
- r is .0157″
- ISO insert number is DCMT070204EM
- Single-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel
- Possesses higher feed and depth of cut capability than EF chipbreaker
- Grade XAF798 is a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness
- It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys
Specifications
- DCMT-21.51-EM 55 Degree Coated Carbide Insert
- I.C. is 1/4″.
- L is 0.307″.
- S is 3/32″.
- d is 7/64″.
- r is .0157″.
- ISO insert number is DCMT070204EM.
- Single-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel.
- Possesses higher feed and depth of cut capability than EF chipbreaker.
- Grade XAF798 is a combination of 2-4 um nc-TiAIN coating and ultra-fine carbide substrate of high strength and toughness.
- It is suitable for milling from light to medium load and bore machining of all kinds of materials, turning of stainless steel from finishing to semi-finishing and roughing turning of high-temperature alloys.
- Weight: 0.01
- Dimensions: L 3, W 1, H 6
Benefits
- Industrial-grade tooling designed for dependable shop performance.
- Supports consistent results when applied with correct setup practices.
- A practical choice for U.S. machine shops and maintenance work.
Recommended use
- Confirm compatibility (size, interface, machine capacity) before ordering.
- Follow safe operating practices and use appropriate PPE.
- Optimize setup rigidity and process parameters for best results.
