DNMA-443 COATED CARBIDE INSERT (6001-3443)

DNMA-443 COATED CARBIDE INSERT (6001-3443) (SKU: 6001-3443)

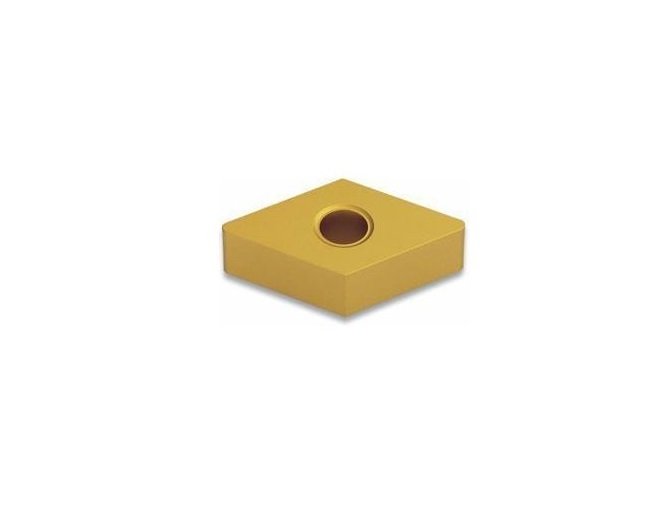

DNMA-443 55 Degree Diamond Carbide Insert

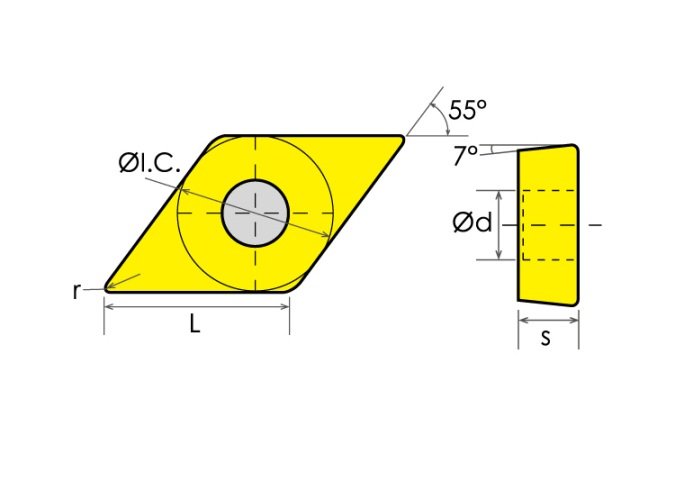

• I.C. is 1/2″
• L is 39/64″
• S is 1/4″
• d is 13/64″
• r is .0472″

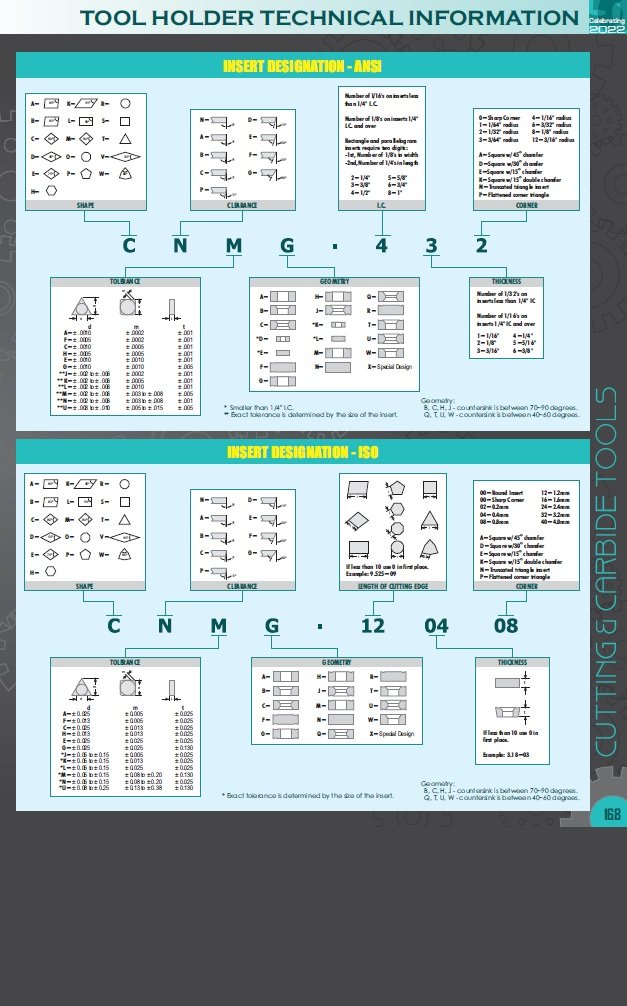

• ISO insert number is DNMA150612

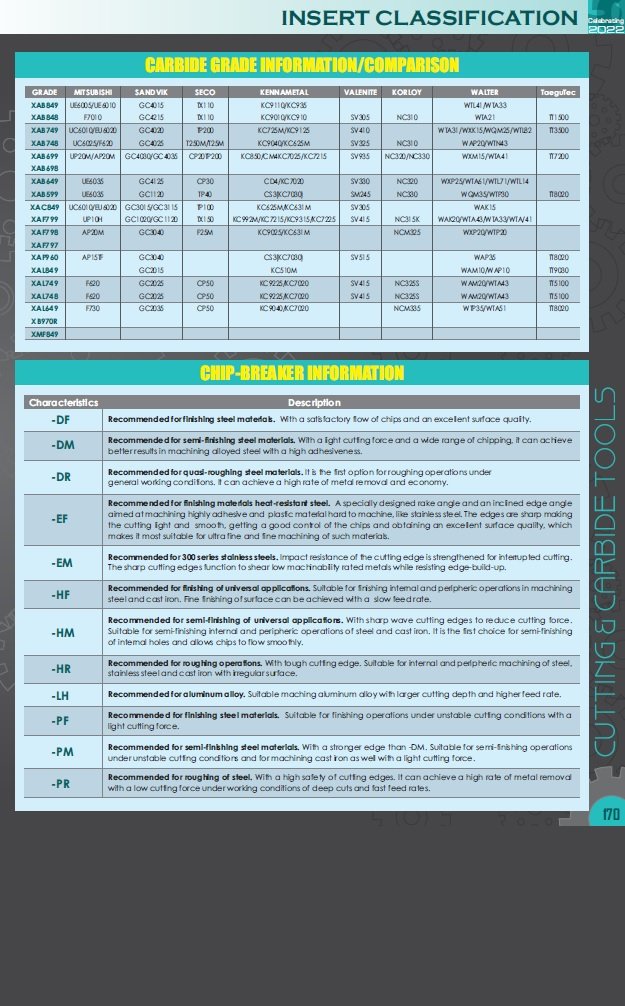

• Grade XAC849 CVD all around coated and cemented carbide
• Optimized for steel milling and also a good solution for nodular cast iron
• This grade provides an economical solution for medium to long series production
• 55 degree diamond is for profiling

Specifications

• DNMA-443 55 Degree Coated Carbide Insert
• I.C. is 1/2″.
• L is 39/64″.
• S is 1/4″.
• d is 13/64″.
• r is .0472″.
• ISO insert number is DNMA150612.
• Grade XAC849 CVD all around coated and cemented carbide.
• Optimized for steel milling and also a good solution for nodular cast iron.
• This grade provides an economical solution for medium to long series production.
• 56 degree diamond is for profiling.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
