ER-32 INDEXING SPIN JIG WITH WRENCH (3903-1600)

ER-32 INDEXING SPIN JIG WITH WRENCH (3903-1600) (SKU: 3903-1600)

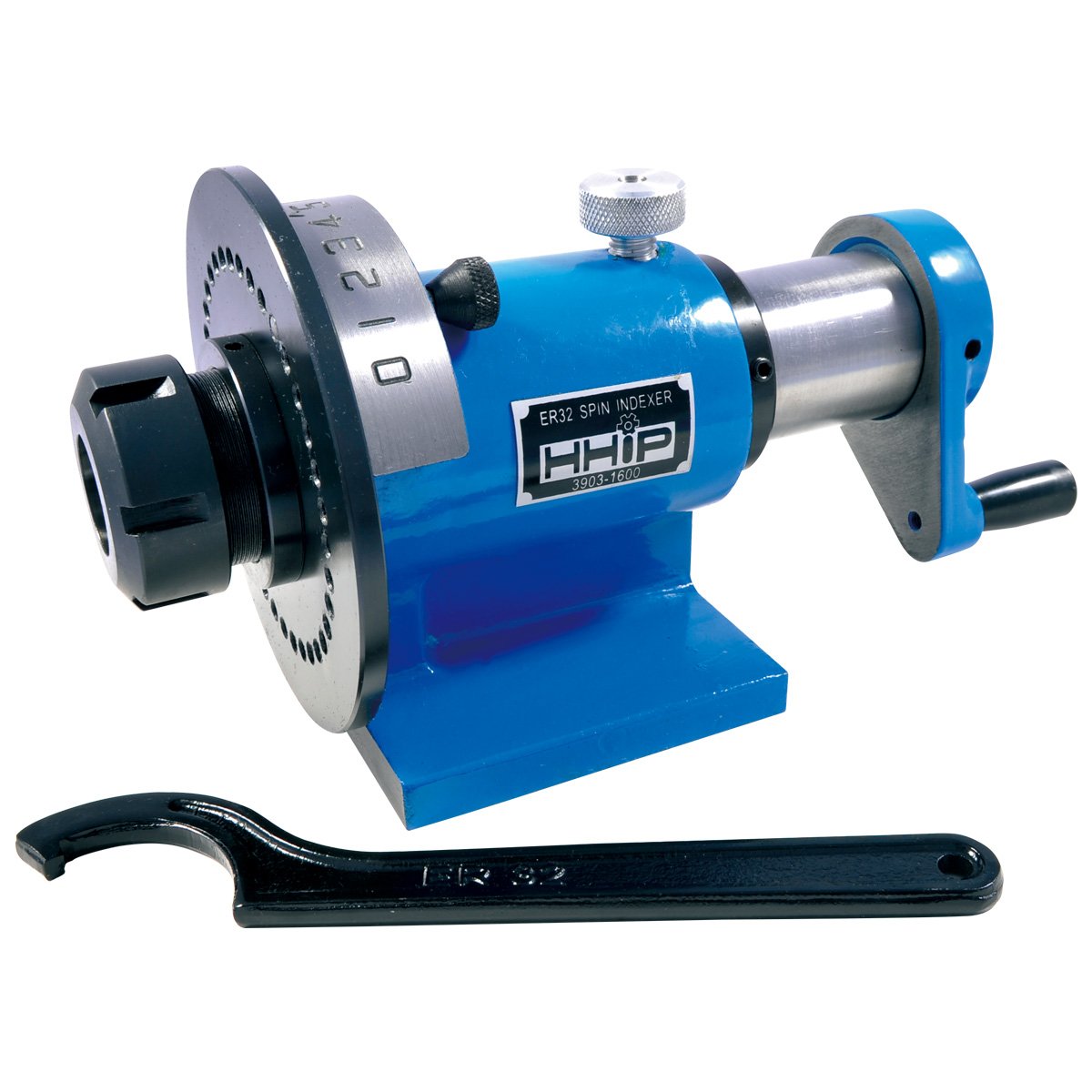

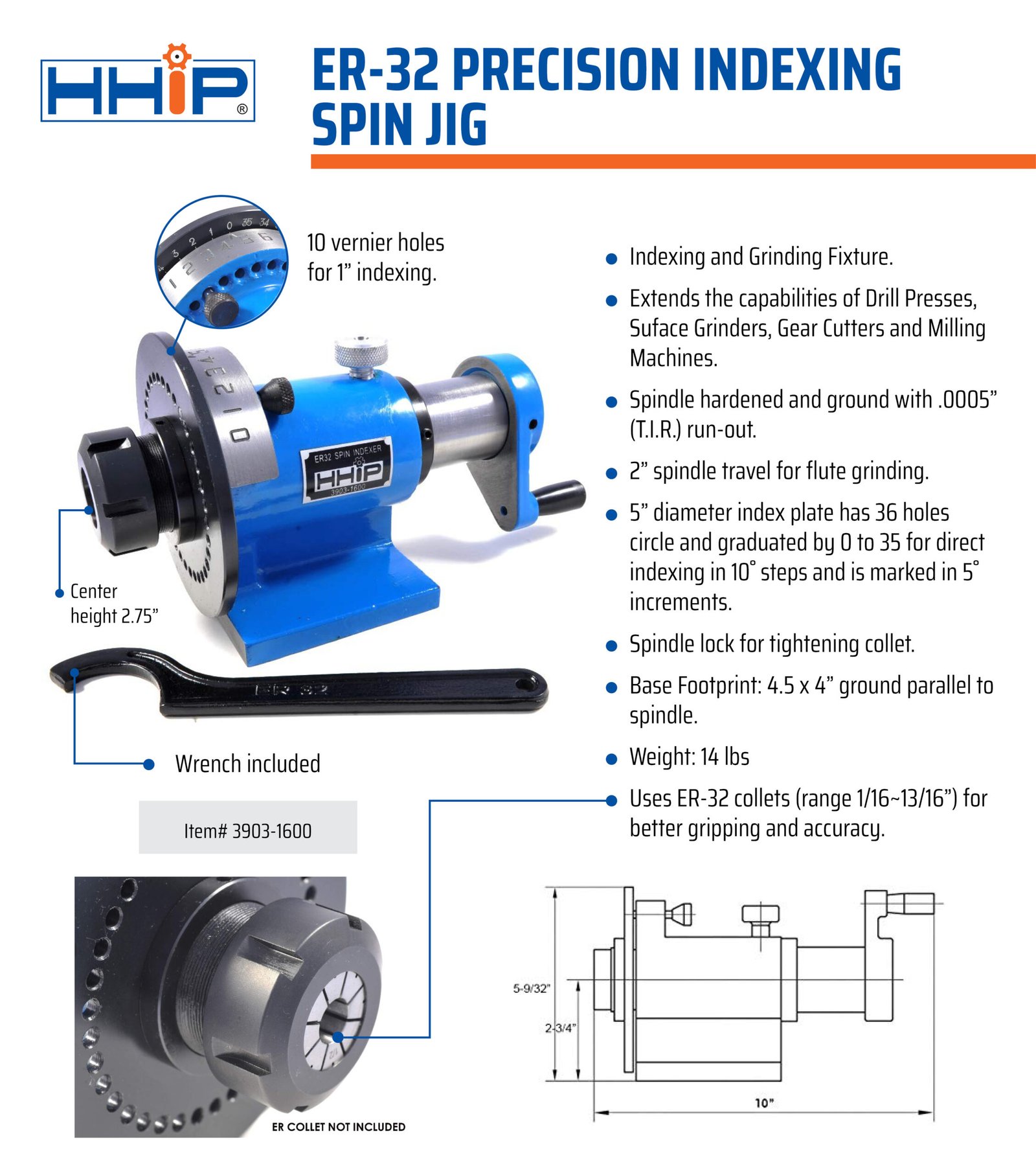

ER-32 Indexing Spin Jig With Wrench

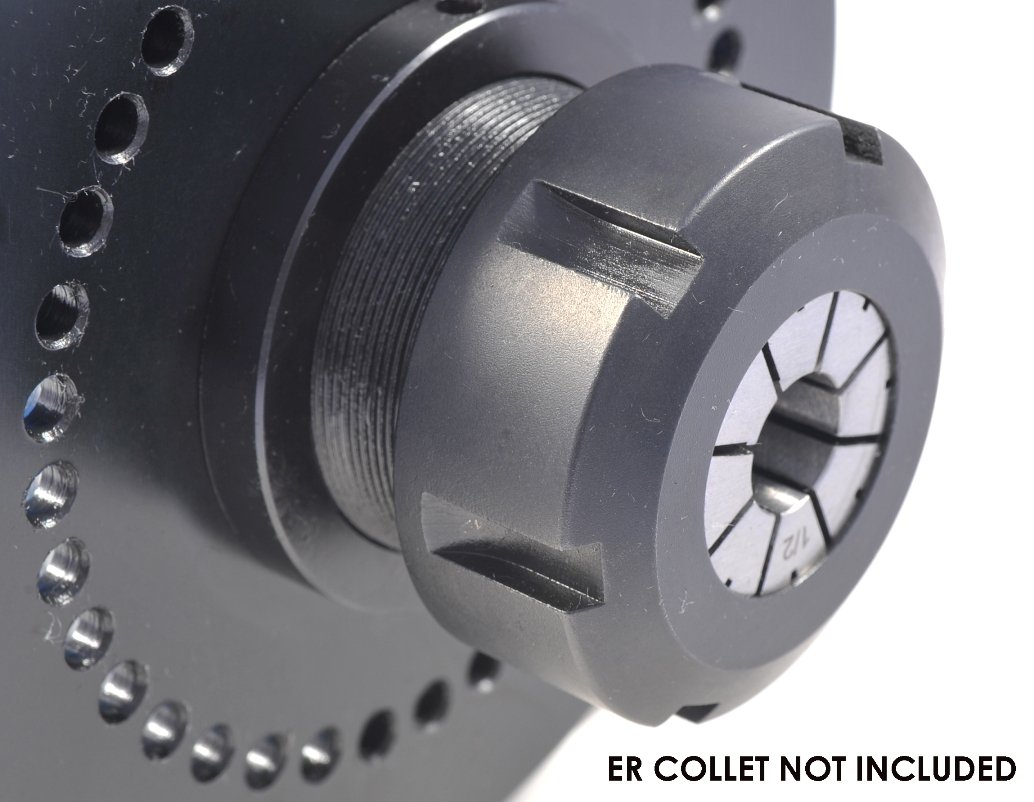

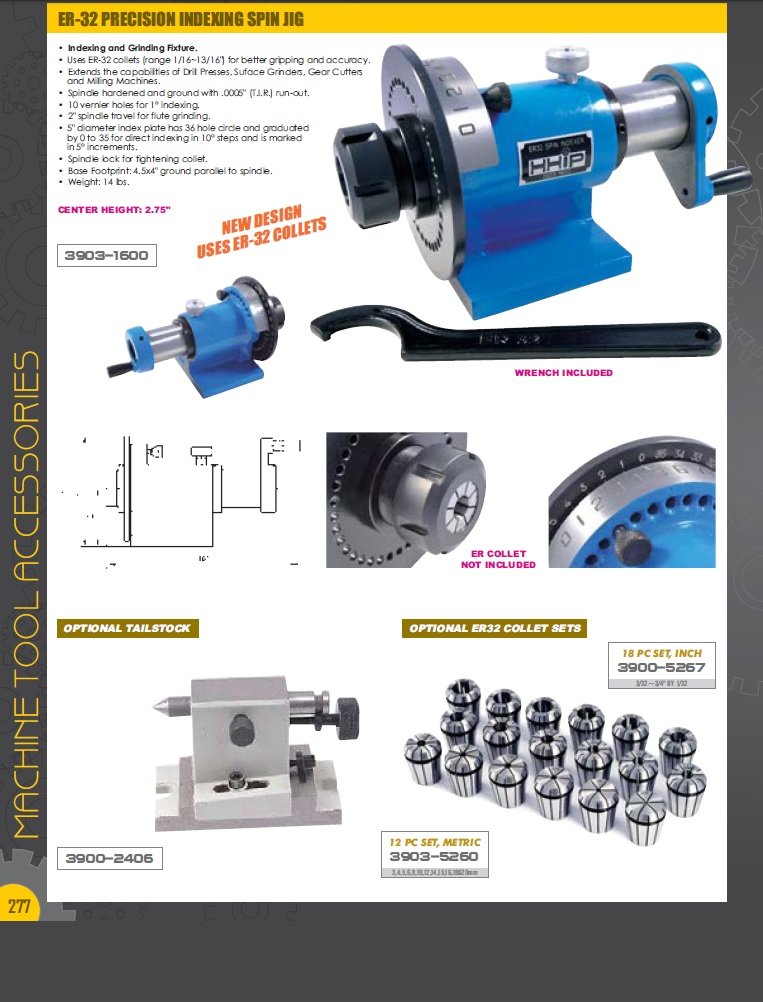

• This indexing & grinding fixture uses ER-32 collets (range 1/16
• 13/16″) for better griping and accuracy
• Extends the capabilities of drill presses, surface grinders, gear cutters and milling machines
• Spindle hardened and ground with a .0005″ T.I.R
• 10 vernier holes for 1° indexing
• 2″ spindle travel for flute grinding

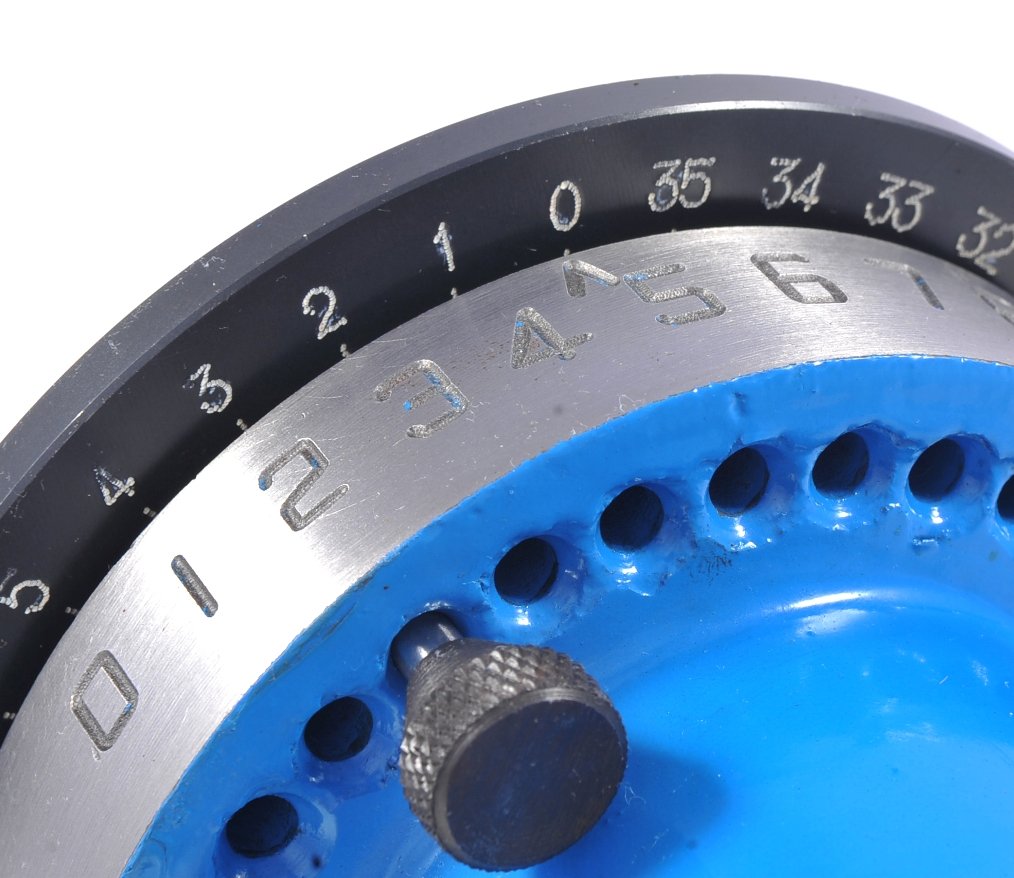

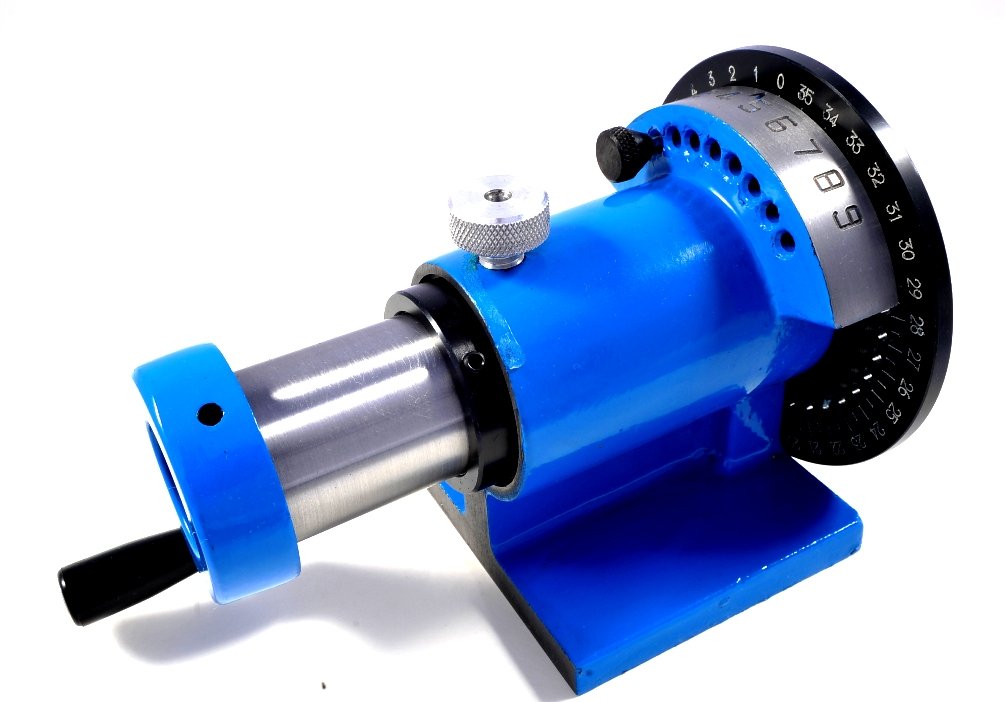

• 5″ diameter index plate has a 36 hole circle and is graduated by 0 to 35 for direct indexing in 10° steps and is marked in 5° increments

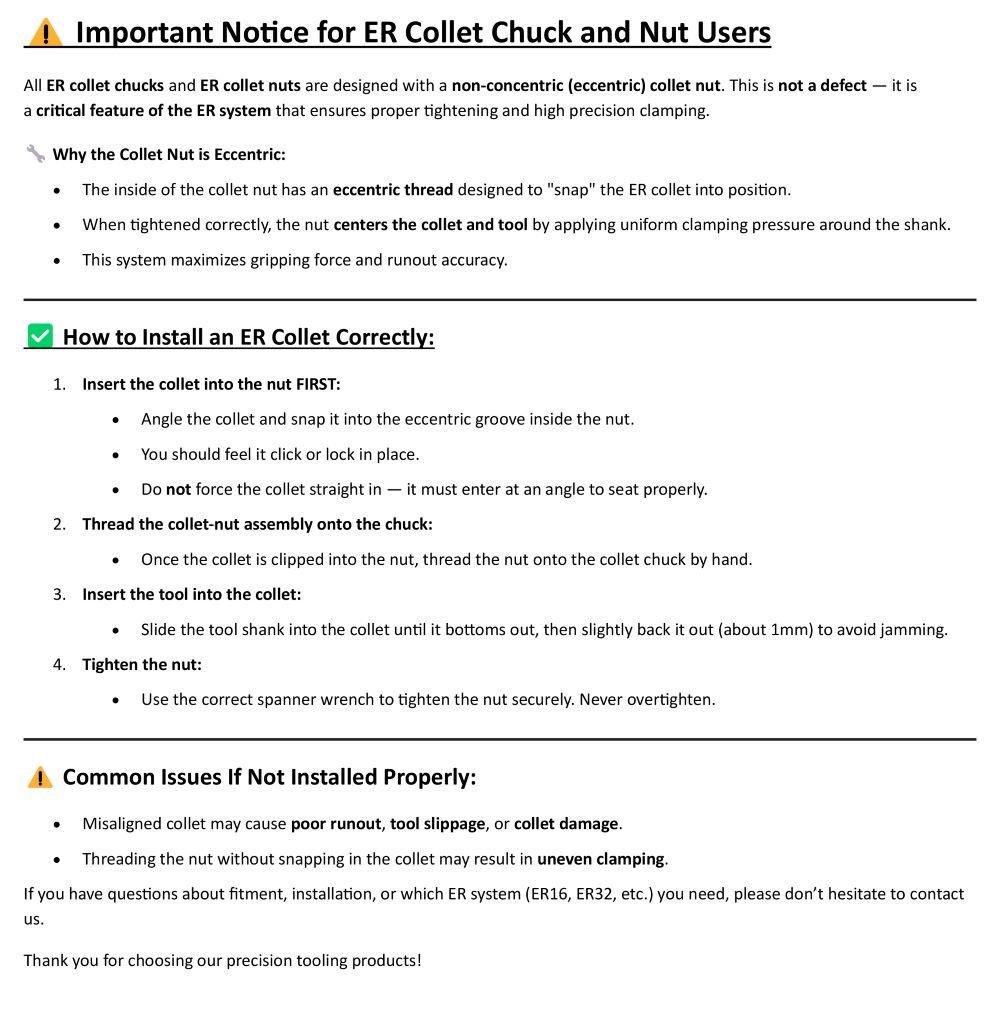

• Spindle lock for tightening collet

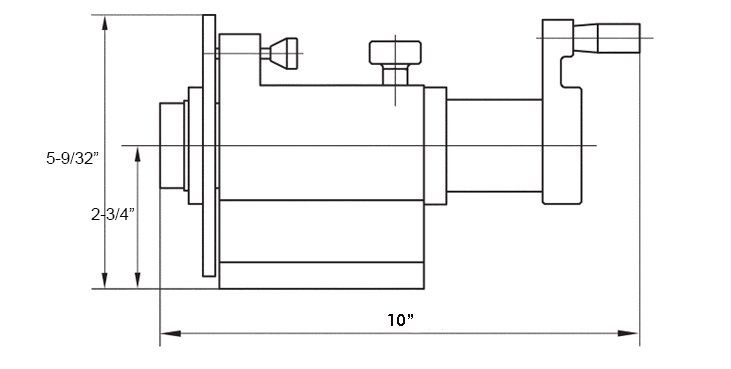

• Center height is 2.75″
• Base footprint is 4.5 X 4″
• Ground parallel to spindle

Specifications

• ER-32 Indexing Spin Jig With Wrench
• This indexing & grinding fixture uses ER-32 collets (range 1/16~13/16″) for better griping and accuracy.
• Extends the capabilities of drill presses, surface grinders, gear cutters and milling machines.
• Spindle hardened and ground with a .0005″ T.I.R.
• 10 vernier holes for 1° indexing.
• 2″ spindle travel for flute grinding.
• 5″ diameter index plate has a 36 hole circle and is graduated by 0 to 35 for direct indexing in 10° steps and is marked in 5° increments.
• Spindle lock for tightening collet.
• Center height is 2.75″.
• Base footprint is 4.5 X 4″.
• Ground parallel to spindle.
• Weight: 13.3
• Dimensions: L 9, W 6, H 5
