HHIP 1-1/4 O.D. X 3/8 I.D. HYDRAULIC CHUCK REDUCTION SLEEVE (3901-3959)

HHIP 1-1/4 O.D. X 3/8 I.D. HYDRAULIC CHUCK REDUCTION SLEEVE (3901-3959) (SKU: 3901-3959)

HHIP 1-1/4 O.D. X 3/8 I.D. Hydraulic Chuck Reduction Sleeve High-Precision Hydraulic Reduction Sleeve – Allows a single hydraulic chuck to accommodate multiple tool shank sizes, reducing toolholding costs. Ultra-Low Runout Accuracy – Precision manufactured with maximum T.I.R. </= 0.00012" (0.003 mm) for superior concentricity and cutting accuracy. Premium Tool Steel Construction – Made from high-quality tool steel for durability, stability, and long service life in demanding CNC environments. Strong Clamping & Vibration Control – Maximizes gripping force inside the hydraulic chuck, improving surface finish and extending tool life. Through-Coolant Capable Design – Sealed construction supports through-coolant applications, directing coolant efficiently to the cutting edge. SEE DIAGRAM PICTURE FOR MORE DETAILED DIMENSIONS.

Specifications

• HHIP 1-1/4 O.D. X 3/8 I.D. Hydraulic Chuck Reduction Sleeve
• High-Precision Hydraulic Reduction Sleeve – Allows a single hydraulic chuck to accommodate multiple tool shank sizes, reducing toolholding costs.
• Ultra-Low Runout Accuracy – Precision manufactured with maximum T.I.R. </= 0.00012" (0.003 mm) for superior concentricity and cutting accuracy.
• Premium Tool Steel Construction – Made from high-quality tool steel for durability, stability, and long service life in demanding CNC environments.
• Strong Clamping & Vibration Control – Maximizes gripping force inside the hydraulic chuck, improving surface finish and extending tool life.
• Through-Coolant Capable Design – Sealed construction supports through-coolant applications, directing coolant efficiently to the cutting edge.

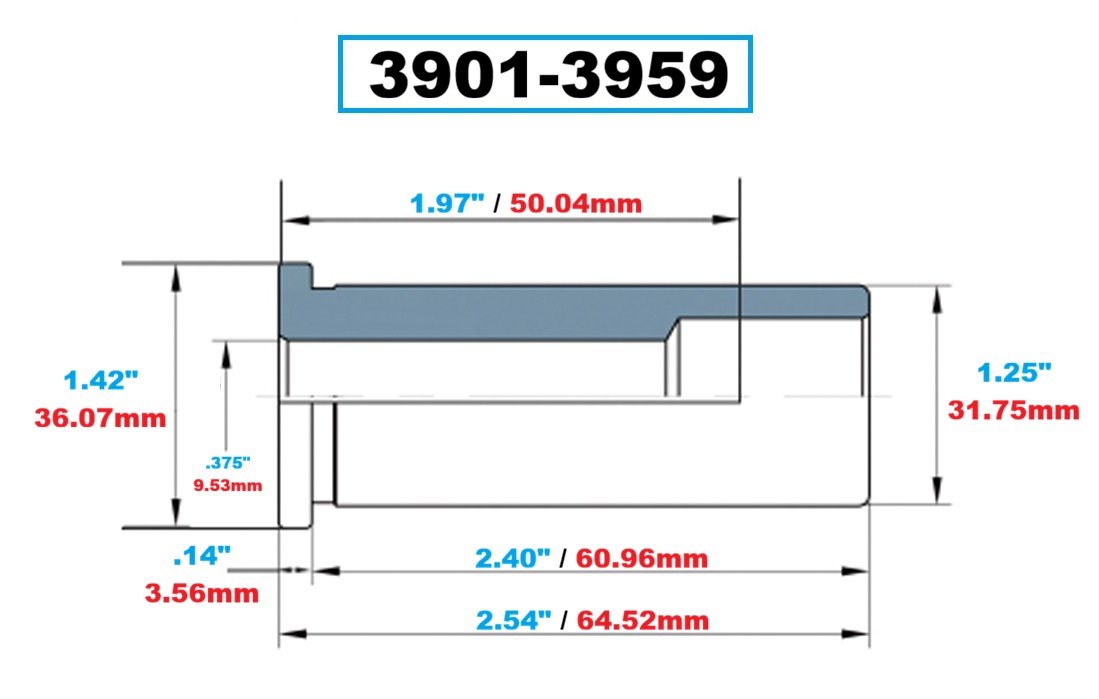

• SEE DIAGRAM PICTURE FOR MORE DETAILED DIMENSIONS.
• Weight: 0.7
• Dimensions: L 3, W 2, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
