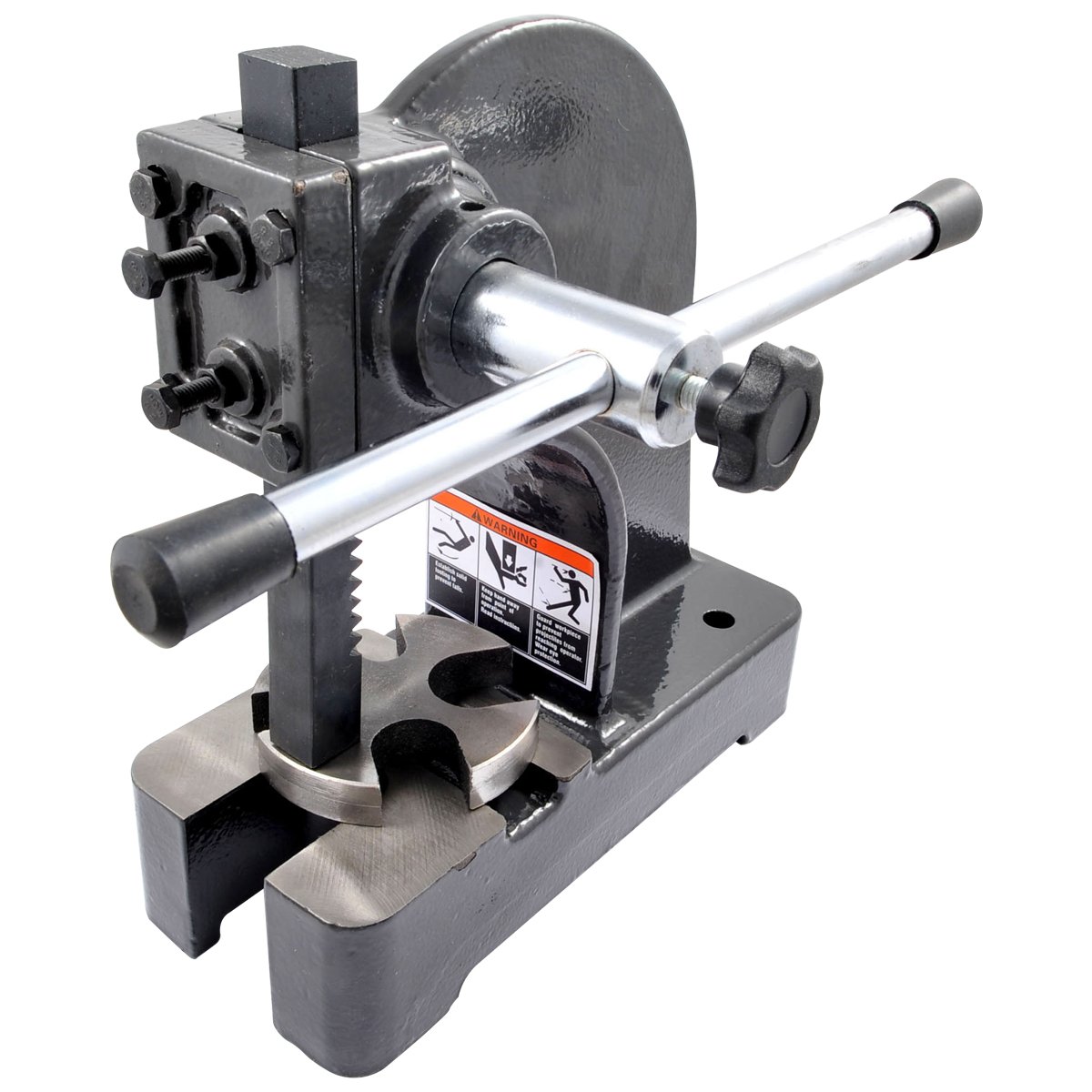

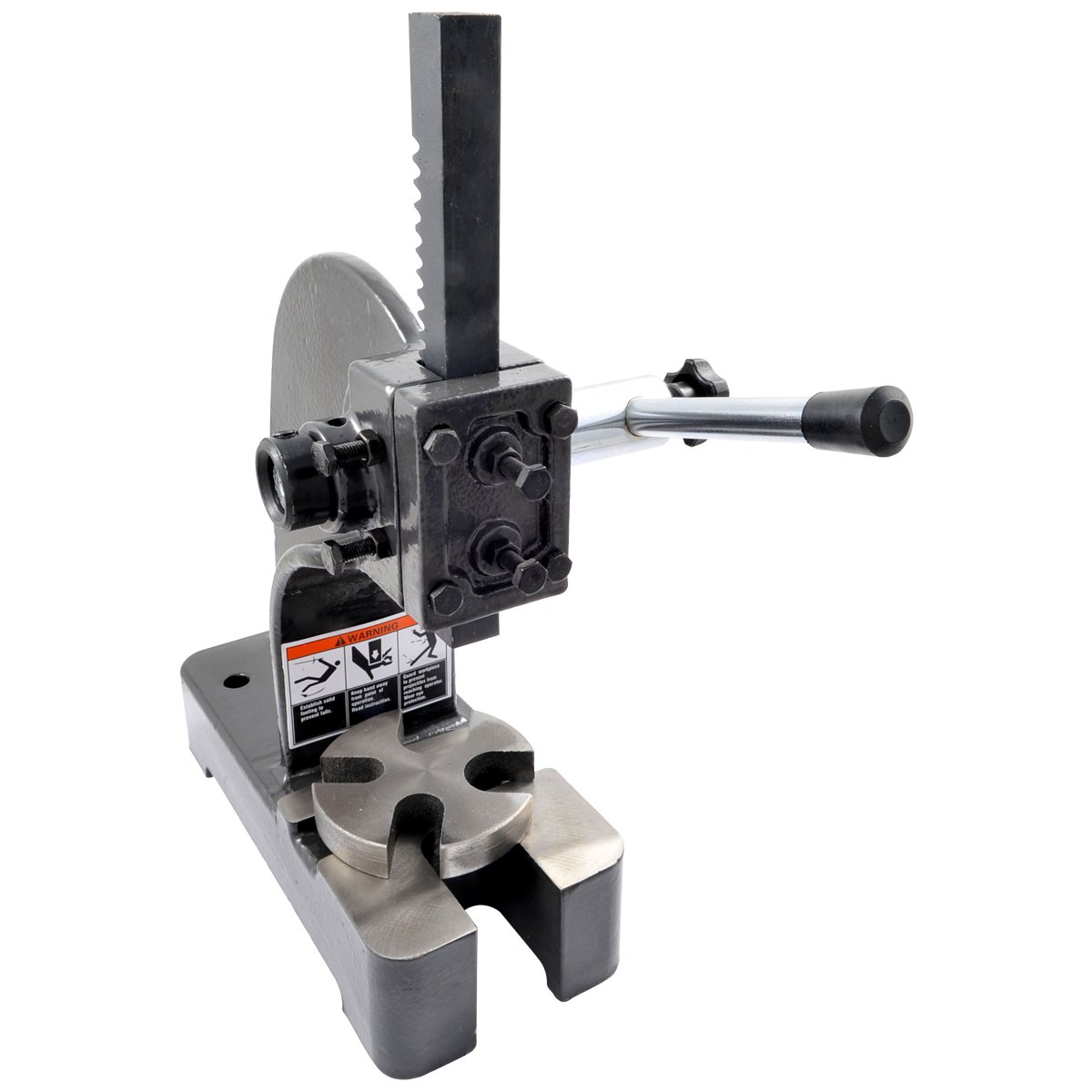

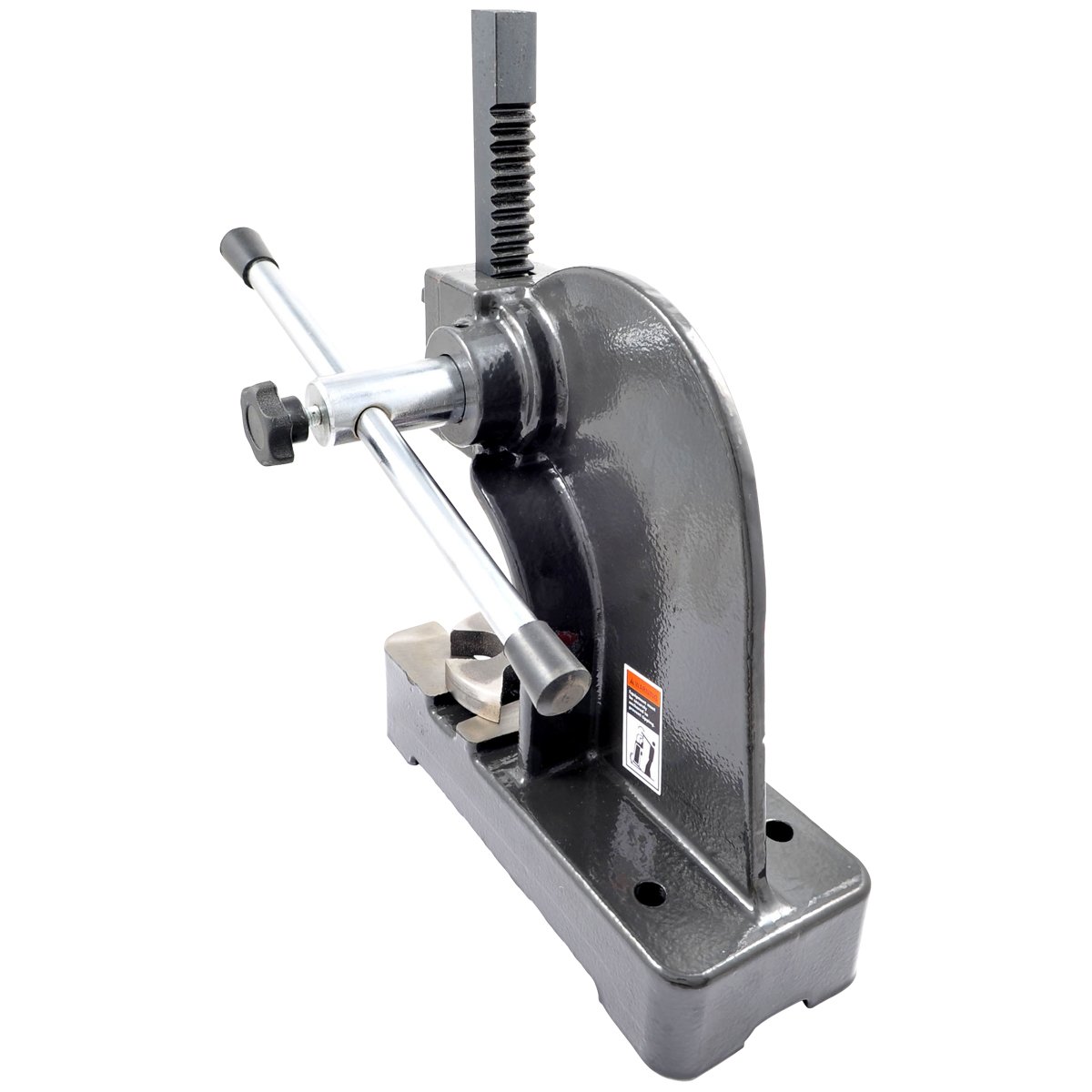

HHIP 1/2 TON HEAVY DUTY ARBOR PRESS MAX HEIGHT 4.33″ (8600-0031)

Controlled Pressing Power for Small Bearings, Bushings and Pins

The HHIP 1/2 Ton Heavy Duty Arbor Press delivers controlled manual force for small press-fit assembly, repair and fabrication work. Its compact benchtop footprint makes it a practical choice for machine shops, maintenance departments, gunsmithing benches, jewelry studios and home workshops where a large hydraulic press would occupy unnecessary space.

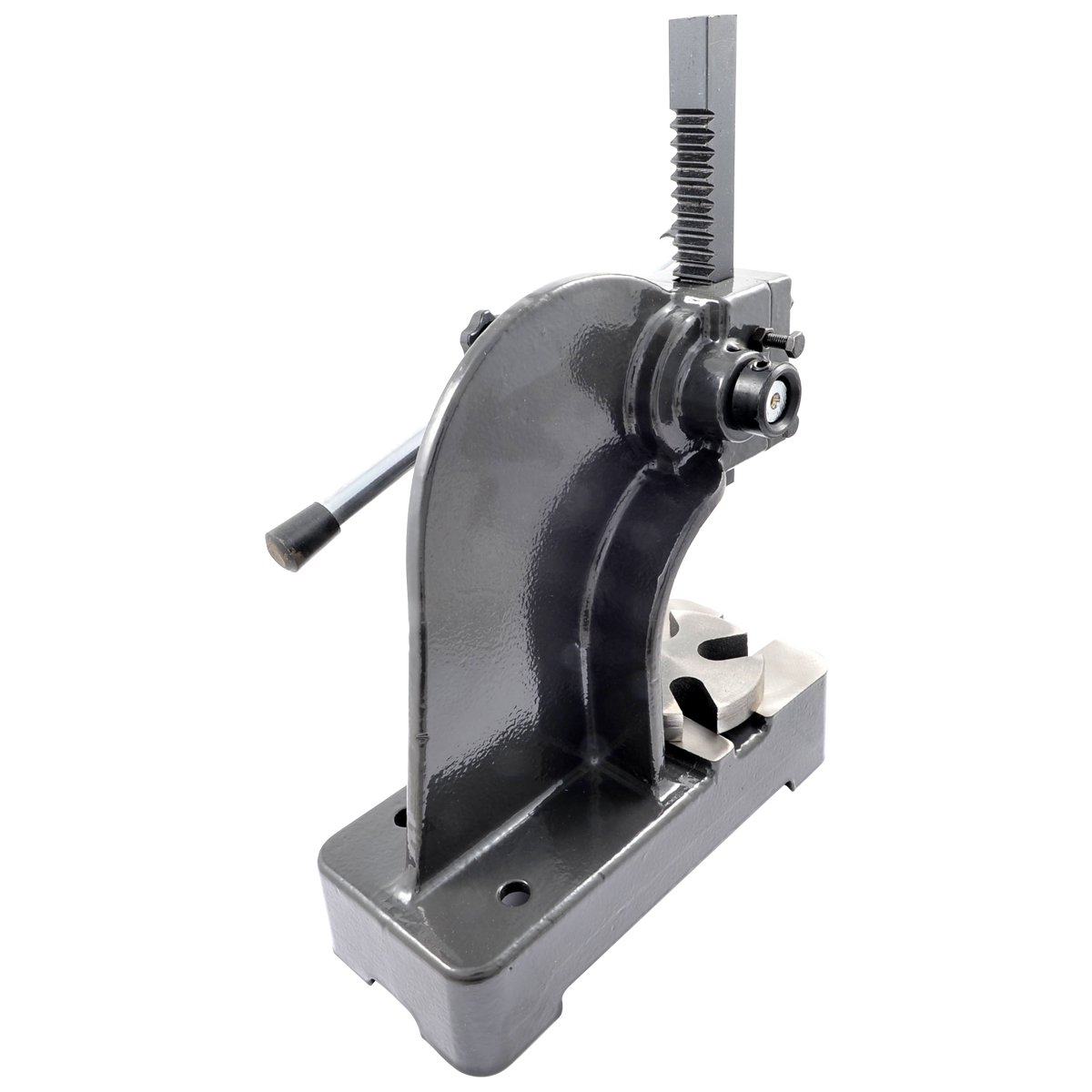

With a nominal capacity of 1/2 ton—approximately 1,000 lbf or 4.45 kN—this press gives the operator direct mechanical feedback while installing or removing compatible bearings, bushings, sleeves, pins and other small components. The rack-and-pinion mechanism applies force progressively, helping the operator control alignment more effectively than striking the part with a hammer.

Why Use a Manual Arbor Press?

• More control than hammer installation: applies steady downward force without repeated impact.

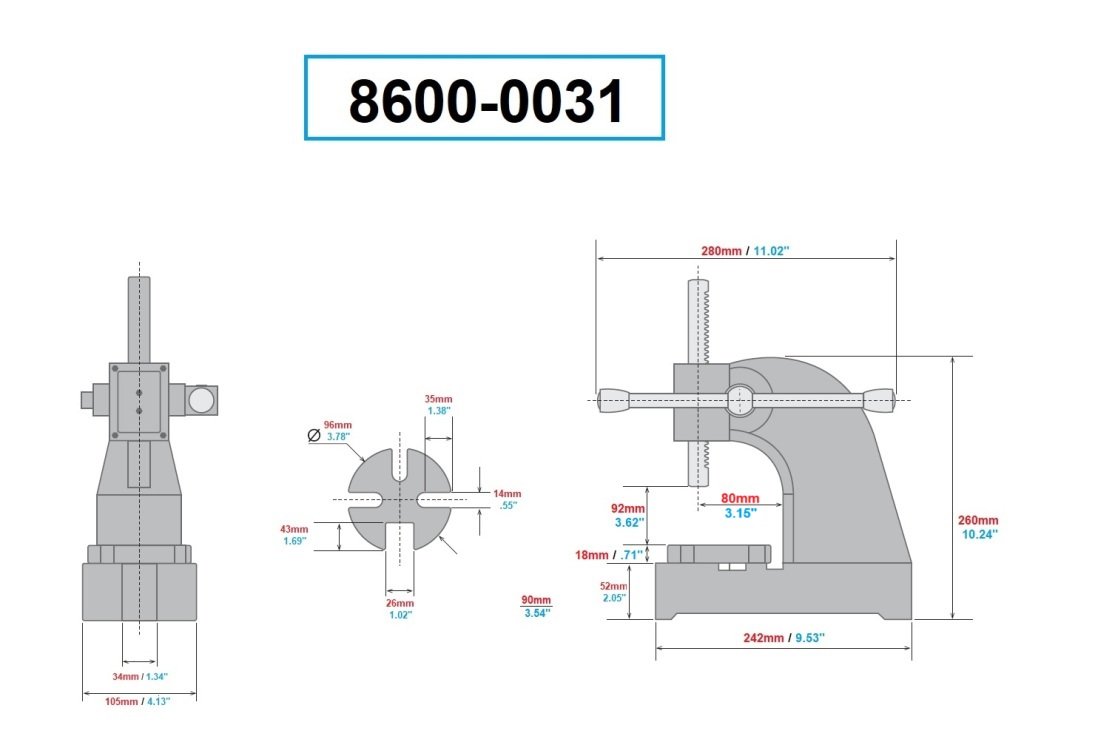

• Compact benchtop design: only 10.24″ high with a 9.53″ × 4.35″ base.
• 1/2-ton nominal capacity: suitable for compatible light-duty press fits and small assembly operations.

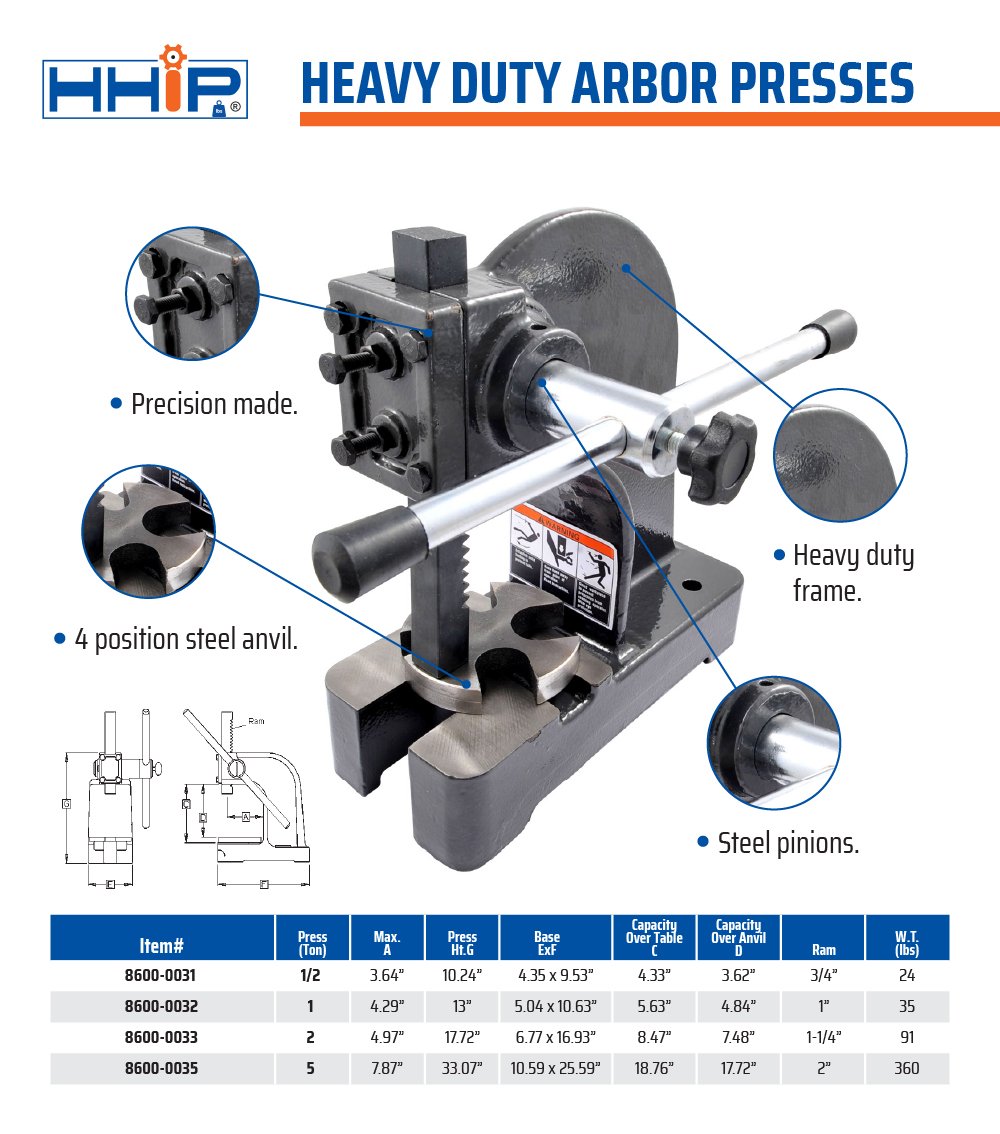

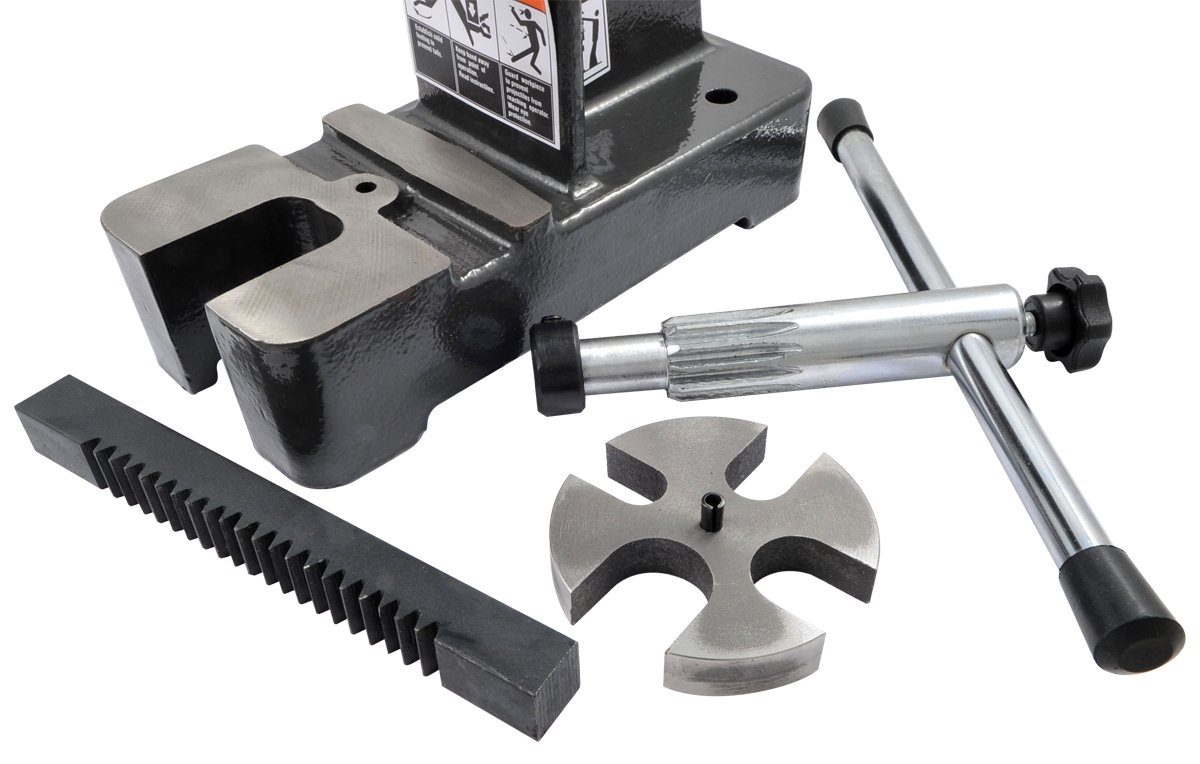

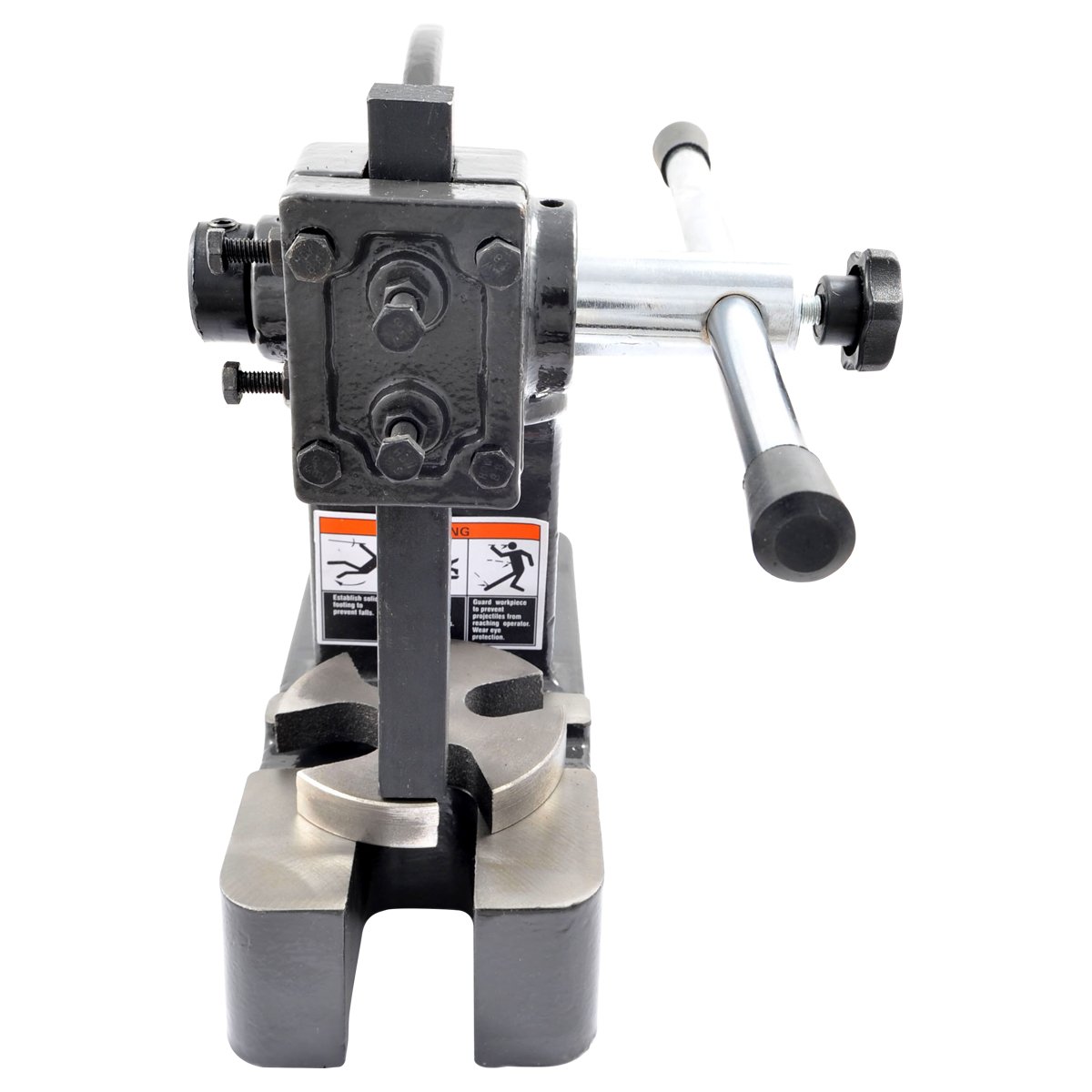

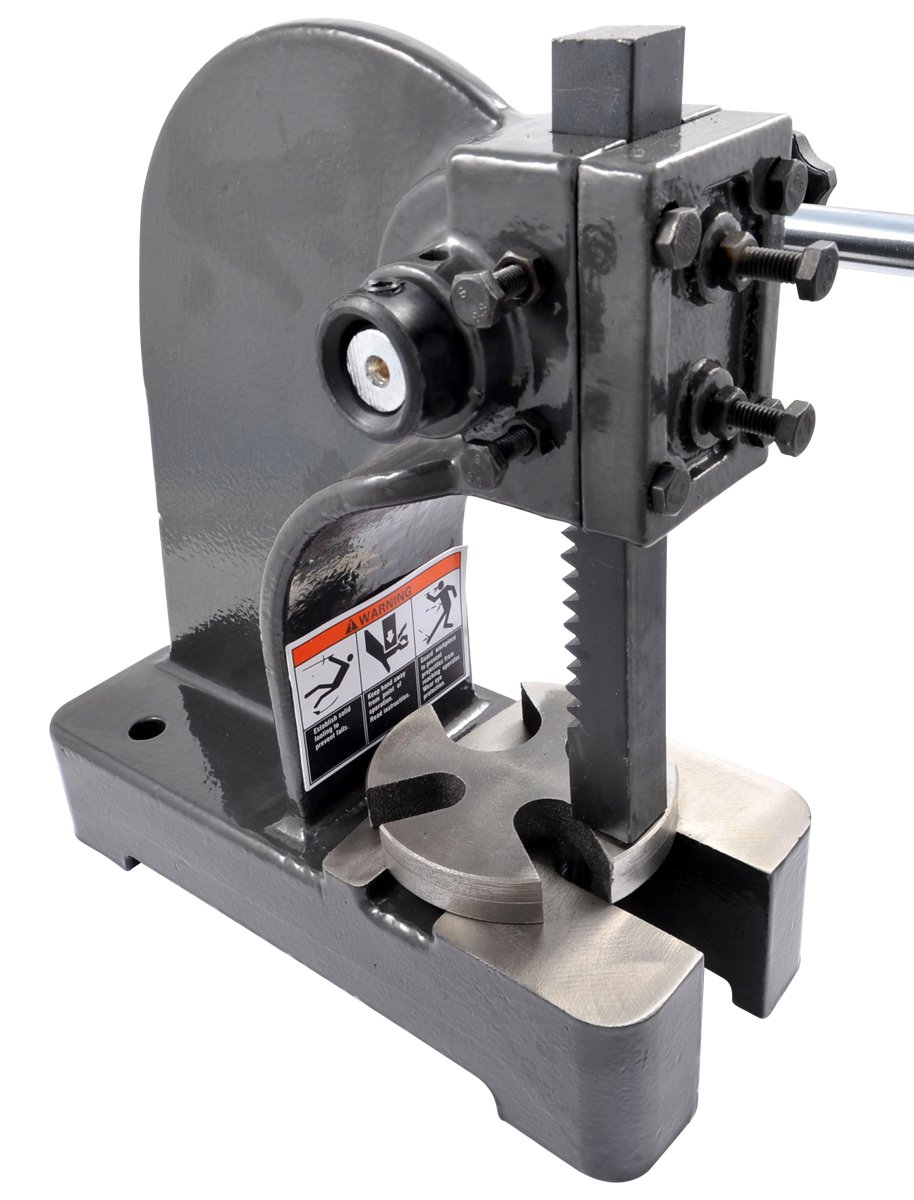

• 4-position steel anvil: provides multiple support positions for different part and shaft configurations.

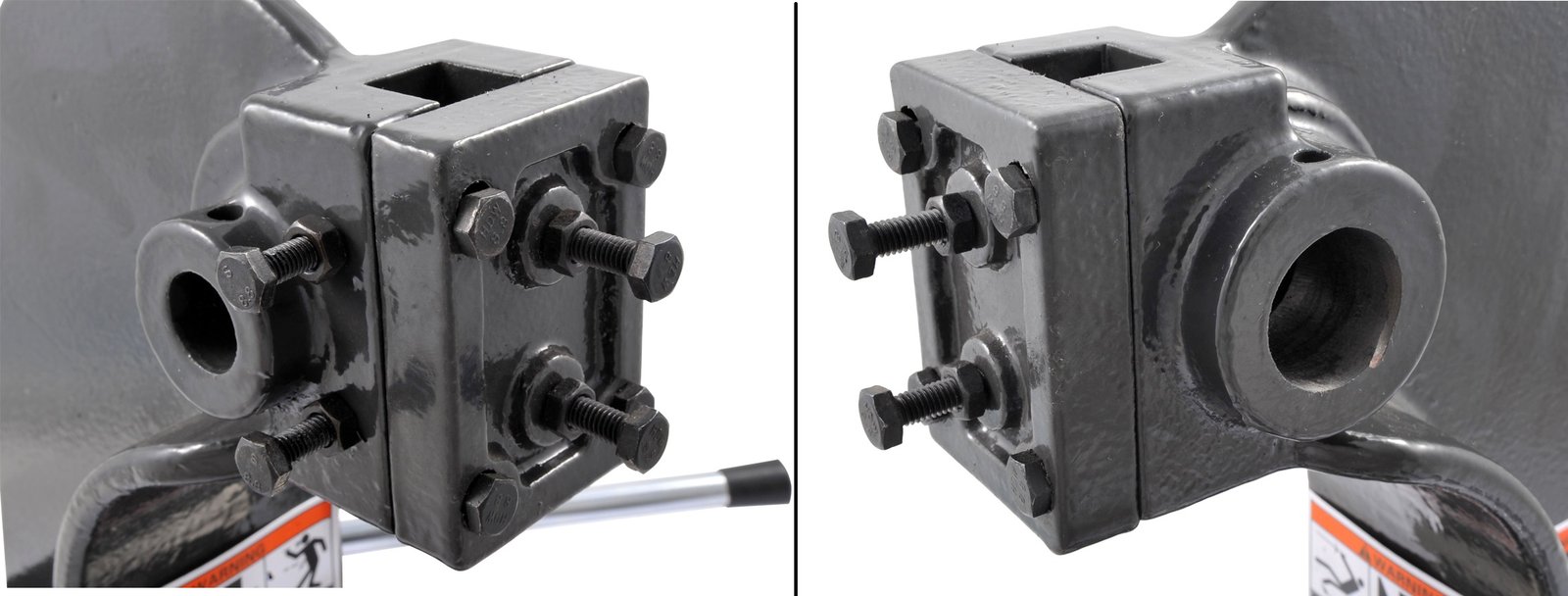

• Steel pinion mechanism: supports smooth manual ram movement during controlled pressing.
• 4.33″ maximum working height: accommodates compact components over the table.
• No hydraulic system required: operates without pumps, hoses, electricity or compressed air.

Designed Around Common Workshop Problems

Driving a bearing, dowel or bushing into place with a hammer can damage the component, mark the workpiece or start the part at an angle. This compact arbor press lets the operator apply force gradually while watching alignment throughout the operation.

The four-position steel anvil helps support round, flat or shaft-mounted components when used with suitable adapters. For delicate or finished parts, use correctly sized press tools that contact the proper bearing race, bushing face or component shoulder.

Recommended Applications

• Installing or removing compatible small bearings
• Pressing bushings and sleeves onto or out of shafts
• Installing dowel pins, roll pins and small press-fit components
• Light riveting and staking operations
• Crimping or flattening small sheet-metal components
• Controlled assembly and disassembly of mechanical parts
• Forming small jewelry and metal-art components
• Punching leather or thin material with a compatible punch-and-die set
• Repair work involving small motors, tools, fixtures and mechanisms

Technical Specifications

Is a 1/2-Ton Arbor Press Right for Your Job?

Choose this model when the component fits within the 4.33″ working height and the required installation or removal force remains below its nominal 1/2-ton capacity. Press-fit force depends on material, interference, surface finish, lubrication, contact area and component condition—not diameter alone.

This compact model is not intended for automotive wheel bearings, large suspension bushings, heavy broaching or press fits requiring hydraulic-force levels. If you are uncertain about the required force or need more working clearance, compare the HHIP 1 Ton Heavy Duty Arbor Press or browse our complete selection of manual and ratcheting arbor presses.

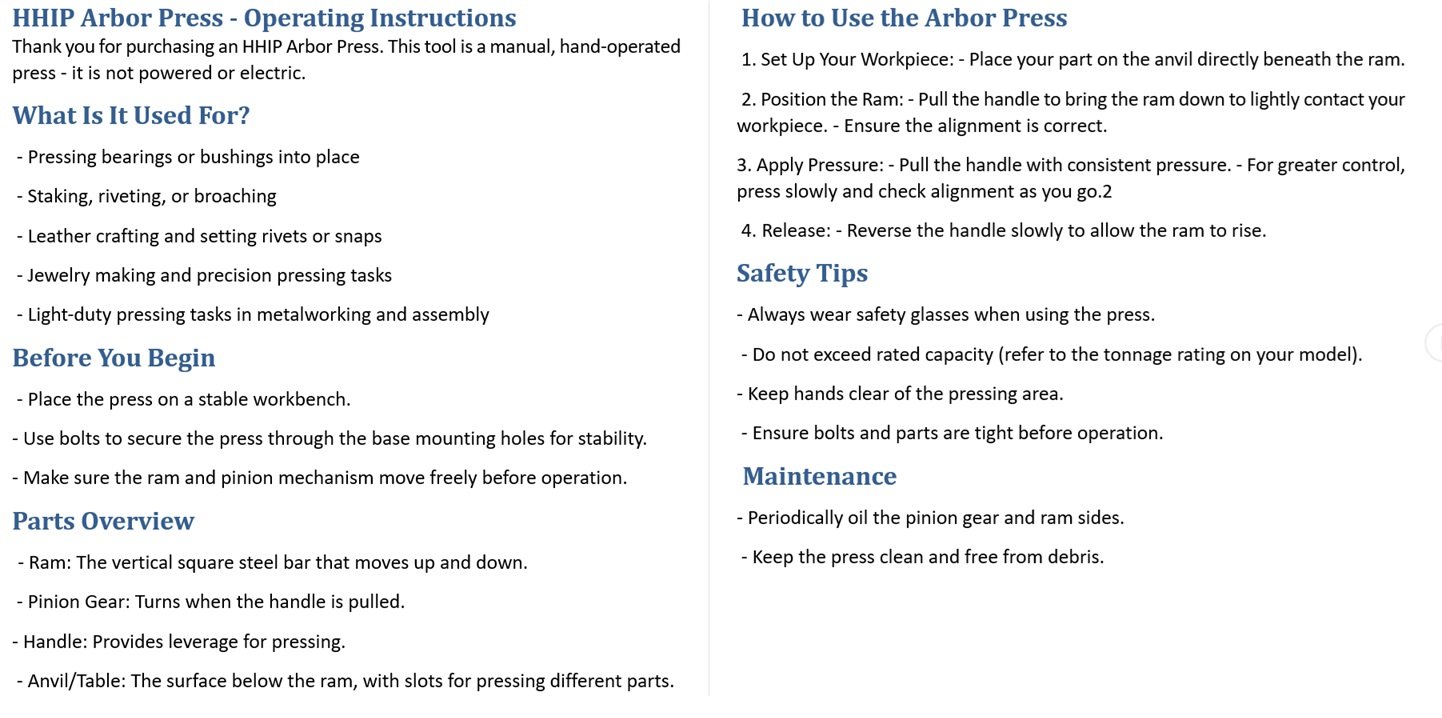

Tooling and Setup Requirements

Application-specific punches, dies, bearing drivers, support blocks and press adapters are not listed as included. Select tooling that supports the workpiece securely and directs force through the correct component surface.

• Keep the workpiece centered beneath the ram.
• Support the component as close as practical to the pressing area.
• Do not exceed the rated capacity or extend the operating handle for additional leverage.
• Stop if the part begins to tilt, deform or require unexpectedly high force.
• Secure the press on a stable work surface according to the applicable installation instructions.
• Wear eye protection and keep hands away from the ram and supported component.

Frequently Asked Questions

Can this 1/2-ton arbor press install bearings?

Yes, it can install compatible small bearings when the required force, component dimensions and working height remain within the press limits. Always apply force to the correct bearing race with a properly sized driver.

Can it remove bushings and press-fit pins?

Yes, provided the bushing or pin can be properly supported and requires less than the press’s nominal 1/2-ton capacity. Corroded or high-interference components may require a larger press.

Does the arbor press punch holes?

The press can power compatible punch-and-die tooling for suitable materials. A punch and die are required; the ram alone does not create holes.

Is this press suitable for automotive wheel bearings?

No. Automotive wheel bearings and large suspension components commonly require substantially more force and working clearance than this compact 1/2-ton press provides.

What is the maximum part height?

The published maximum working height over the table is 4.33″. The complete setup—including workpiece, support and press tooling—must fit within this available space.

Add Controlled Pressing to Your Workbench

Replace uncontrolled hammer blows with steady, repeatable manual pressure. The HHIP 8600-1031 is a compact solution for technicians, machinists, maintenance teams and makers who regularly assemble or repair small mechanical components.

Need help choosing between 1/2-ton, 1-ton and larger models? Send us the part dimensions and application requirements for a technical recommendation.

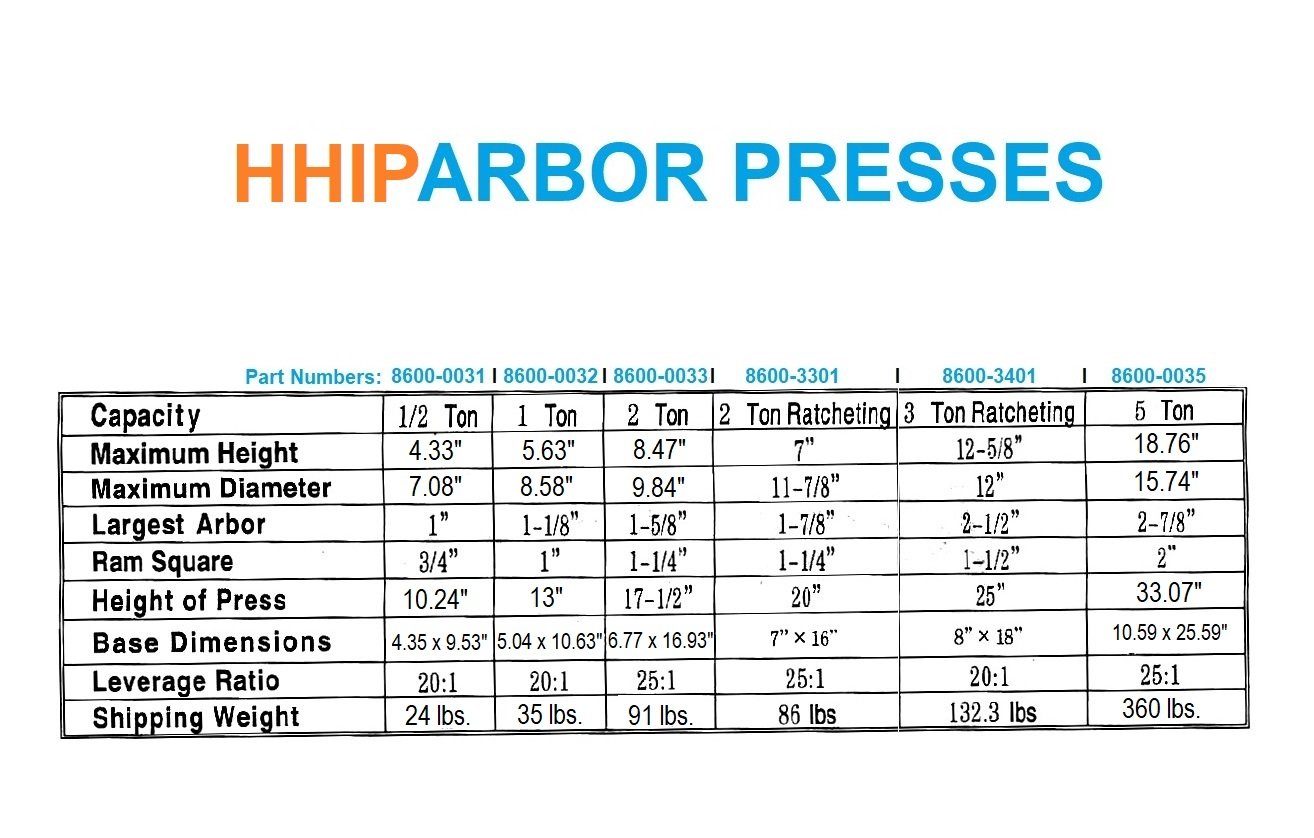

Compare HHIP 1/2-Ton Arbor Press Models

This model is identified as HHIP 8600-0031 and features a published 4.33″ maximum working height, 9.53″ × 4.35″ base and 21 lb shipping weight.

Shop Tool USA also offers the visually similar HHIP 8600-1031 1/2 Ton Heavy Duty Arbor Press. Because the specifications and manufacturer part numbers differ, verify the required SKU before ordering.

Need more force or working capacity? Compare the HHIP 8600-1032 1 Ton Arbor Press or browse all arbor presses.
