HHIP 2.5″ V-BLOCKS 3/8 EDGE & CENTER FINDER & 1-2-3 BLOCK SET (9999-0003)

HHIP 2.5″ V-BLOCKS 3/8 EDGE & CENTER FINDER & 1-2-3 BLOCK SET (9999-0003) (SKU: 9999-0003)

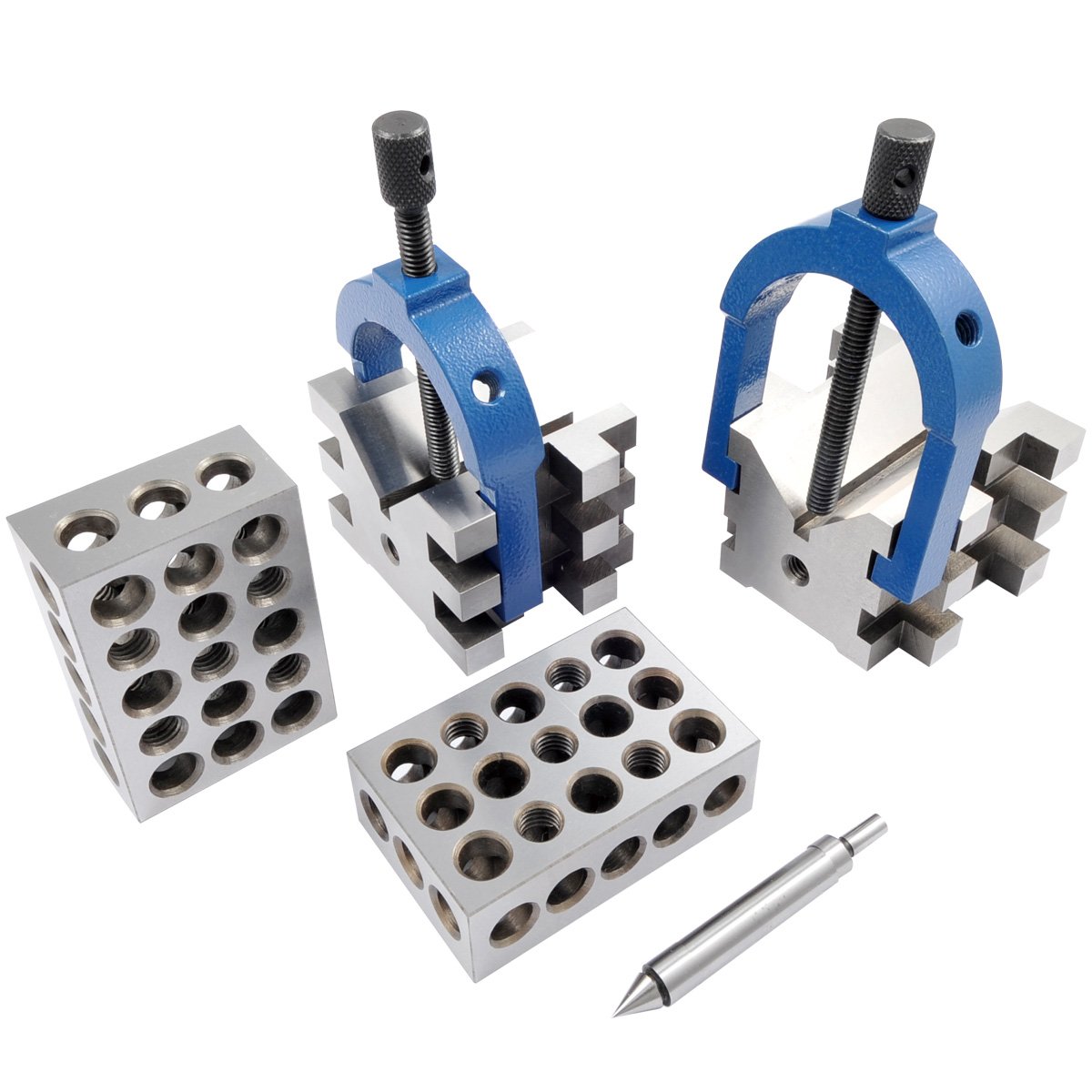

HHIP 2.5 X 2.75 X 2″ V-Blocks, 3/8″ Edge & Center Finder & 1-2-3 Block Set

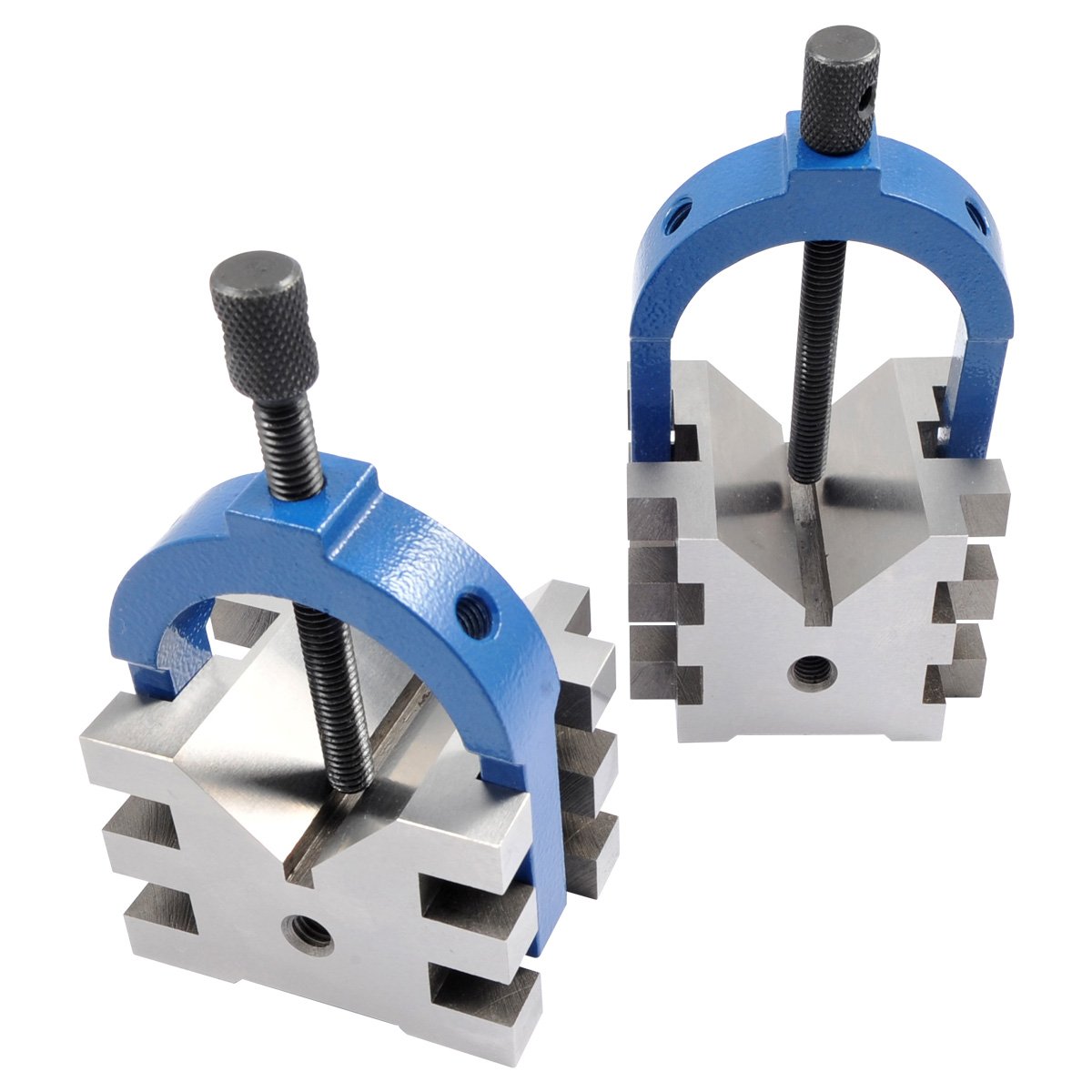

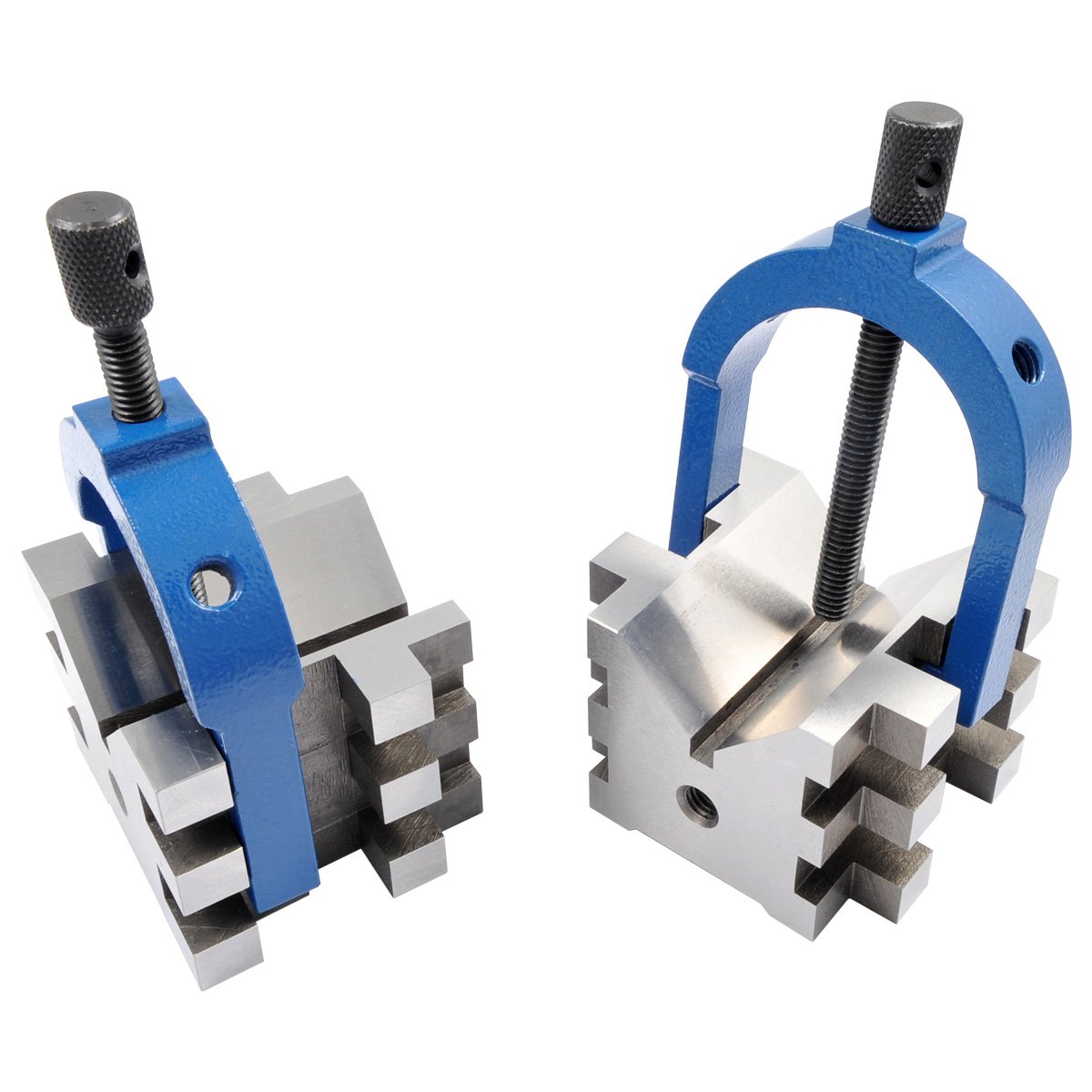

• The 2.5 X 2.75 X 2″ Multi-use v-blocks & clamps set has stepped groove construction with centered 90° V grooves
• They are parallel and square with all surfaces within 0.0003″ and the case is hardened and ground
• Clamps are included
• Round capacity is 2″ and square capacity is 1-7/16″

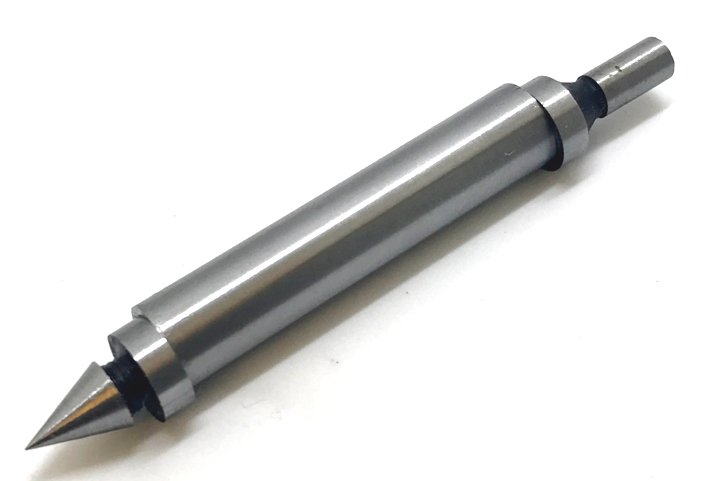

• The 3/8″ shank combination edge & center finder is hardened and ground all over
• It accurately locates the starting point for all types of machine work and jig boring
• The accuracy is .0002″. and the tip diameter is 0.200″

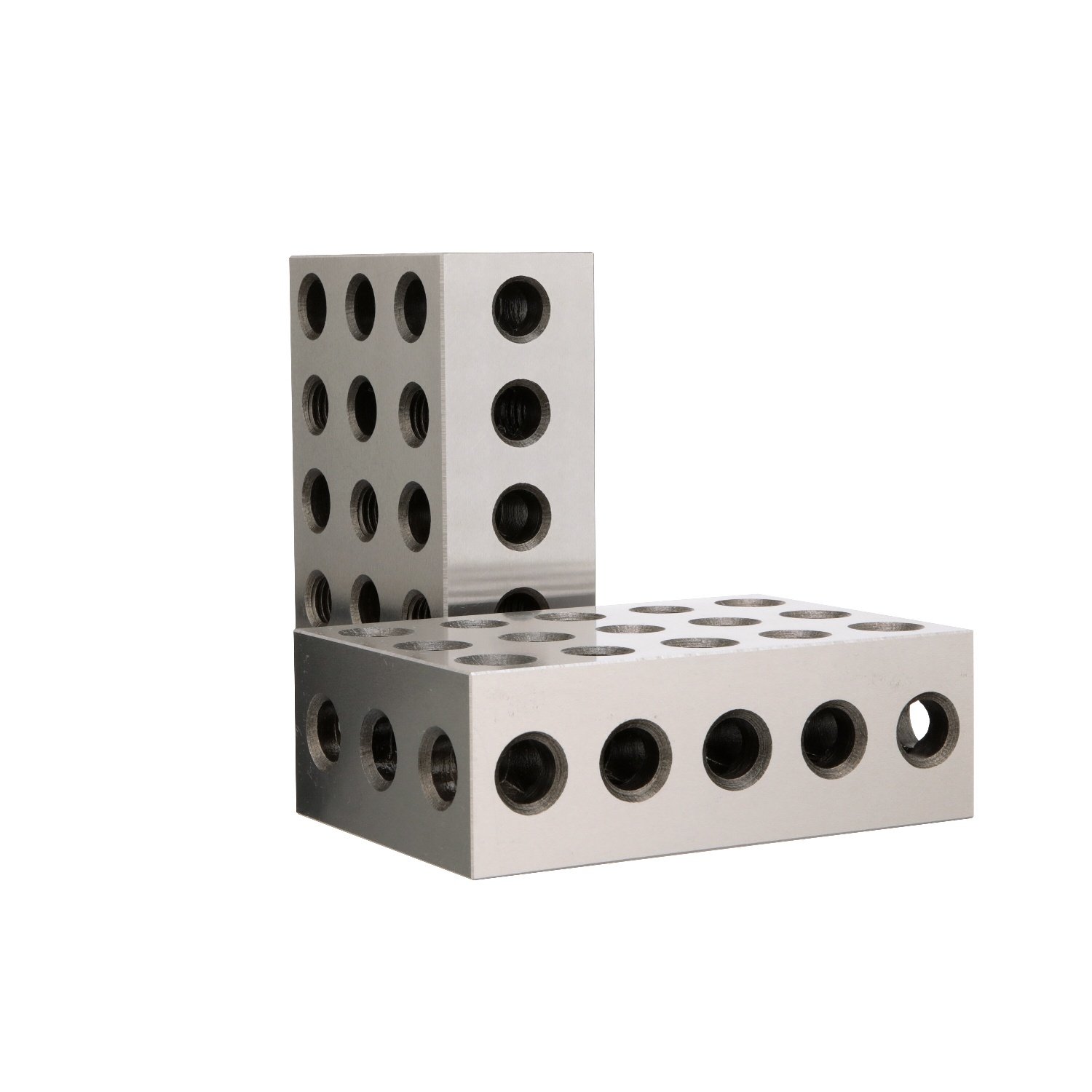

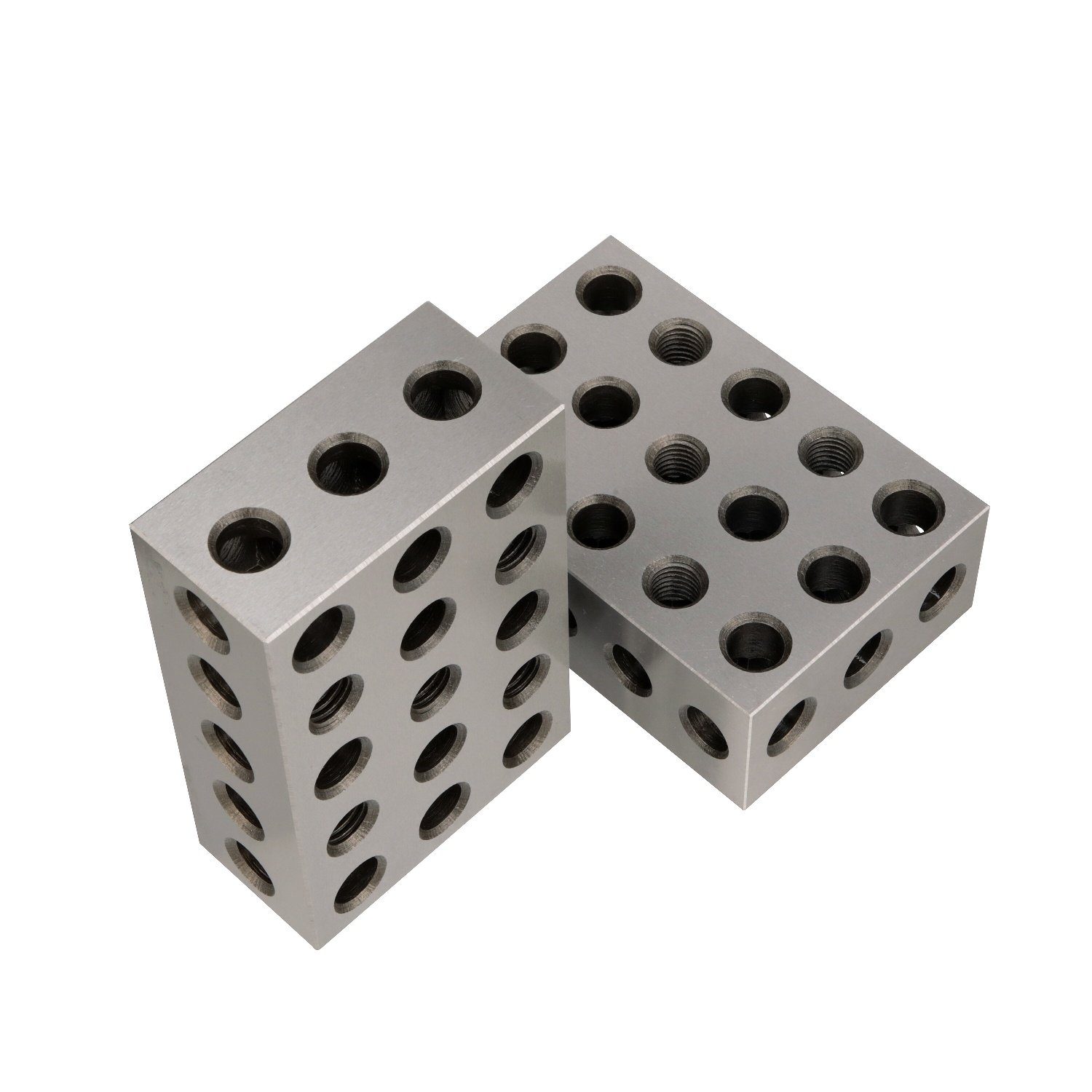

• The 1-2-3 precision matched pair block set is heat treated and case hardened to HRC 55 to 60
• The 1-2-3 blocks are hardened and precision ground on all 6 sides of each block
• Accuracy with squareness on all sides within .0002″ per inch
• 23 holes consists of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes
• Cross drilling design gives minimum weight and maximum strength

Specifications

• 2.5 X 2.75 X 2″ V-Blocks, 3/8″ Edge & Center Finder & 1-2-3 Block Set
• The 2.5 X 2.75 X 2″ Multi-use v-blocks & clamps set has stepped groove construction with centered 90° V grooves.
• They are parallel and square with all surfaces within 0.0003″ and the case is hardened and ground.
• Clamps are included.
• Round capacity is 2″ and square capacity is 1-7/16″.
• The 3/8″ shank combination edge & center finder is hardened and ground all over.
• It accurately locates the starting point for all types of machine work and jig boring.
• The accuracy is .0002″. and the tip diameter is 0.200″.
• The 1-2-3 precision matched pair block set is heat treated and case hardened to HRC 55 to 60.
• The 1-2-3 blocks are hardened and precision ground on all 6 sides of each block.
• Accuracy with squareness on all sides within .0002″ per inch.
• 23 holes consists of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes.
• Cross drilling design gives minimum weight and maximum strength.
• Weight: 7.8
• Dimensions: L 4, W 5, H 7

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
