HHIP 4/0 SPIRAL FLUTE HIGH SPEED STEEL TAPER PIN REAMER (2006-2125)

HHIP 4/0 SPIRAL FLUTE HIGH SPEED STEEL TAPER PIN REAMER (2006-2125) (SKU: 2006-2125)

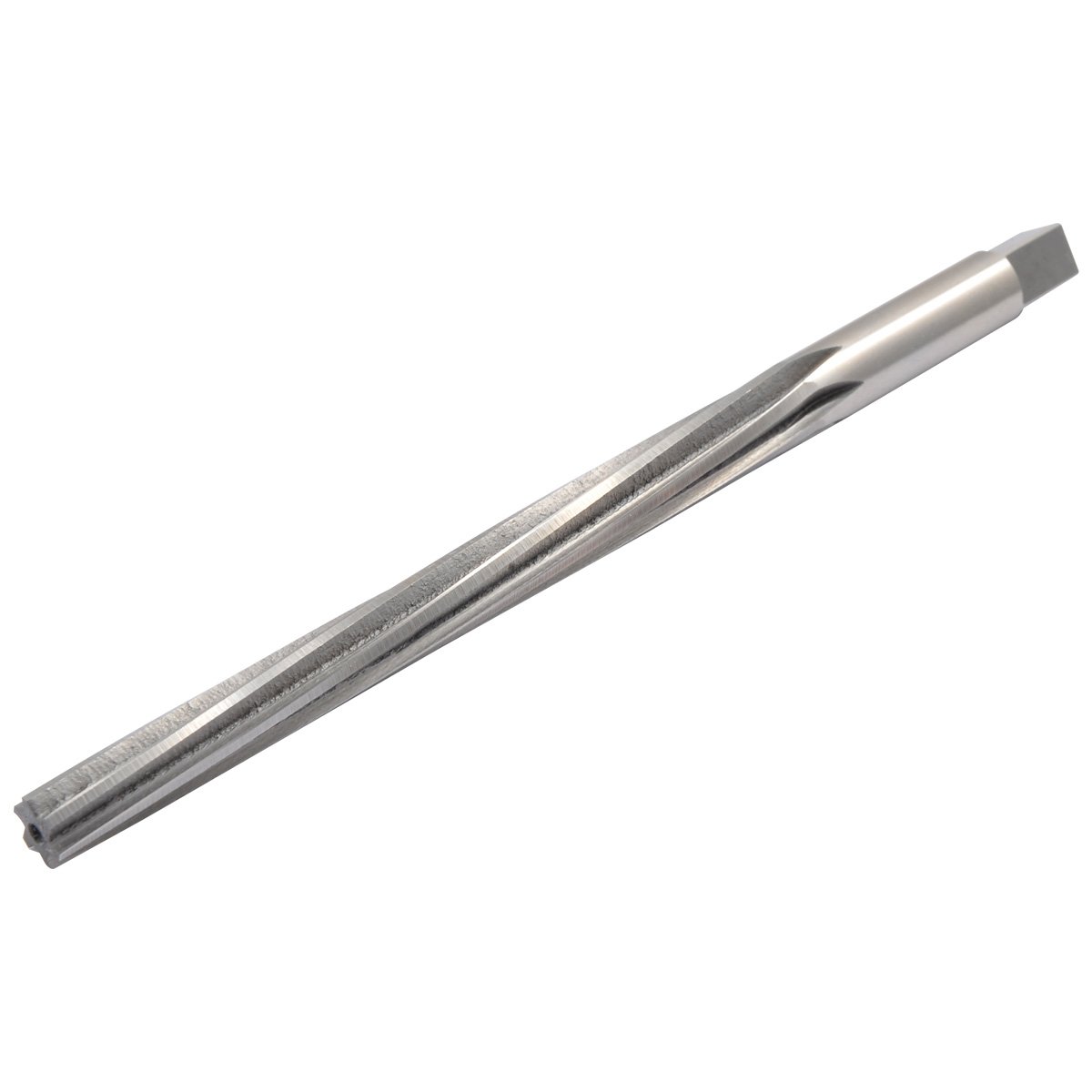

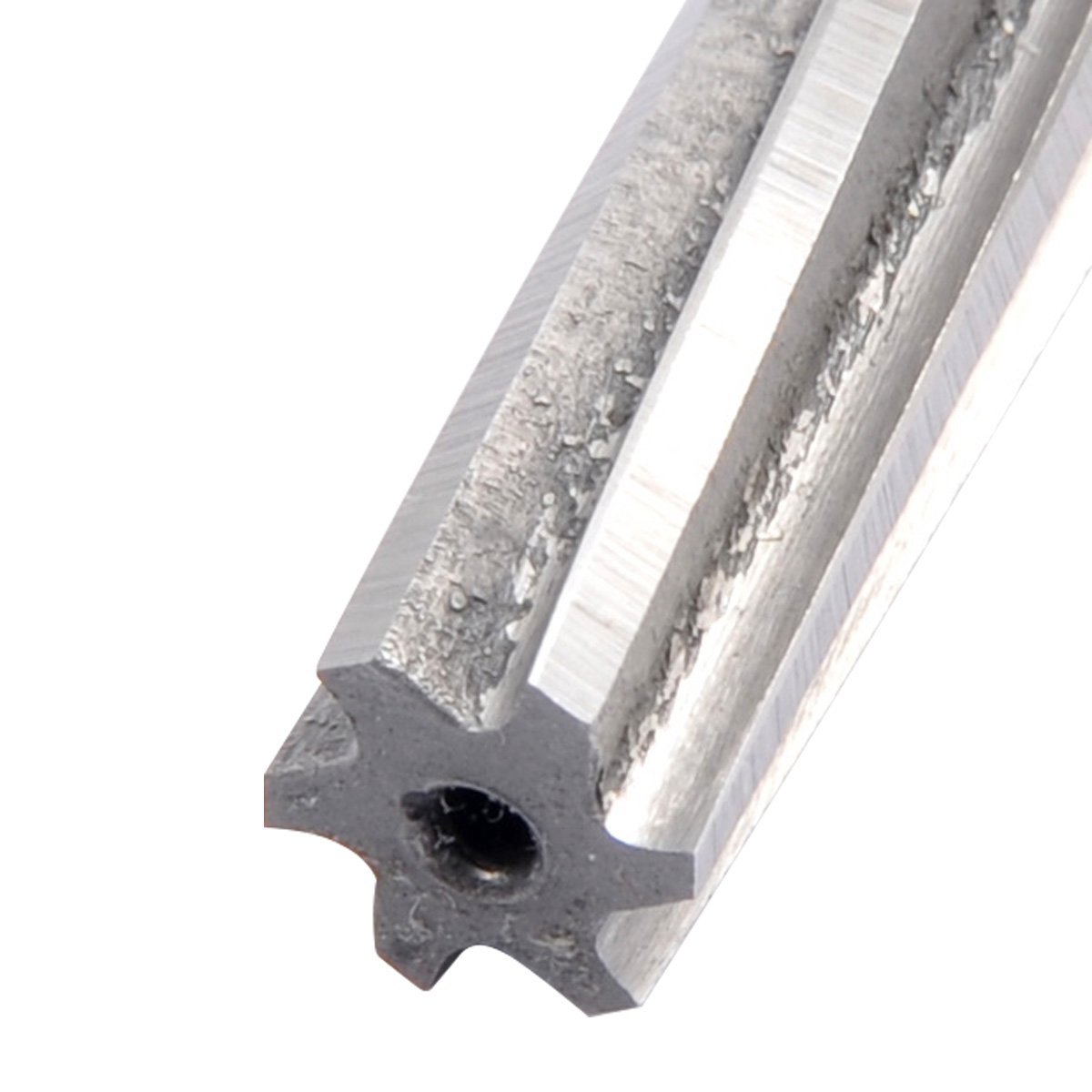

HHIP 4/0 Spiral Flute High Speed Steel Taper Pin Reamer Spiral flute taper pin reamers are used to turn a straight hole into a tapered hole for standard taper pins. They are generally used by hand but can also be used with a machine. Recommended for applications where the reamer tends to wedge itself. The square on the end of the shank of the reamer is suitable for holding it in a tap wrench or vise. The free cutting action at high speeds produces a good finish and minimizes chip packing in the flutes. Shank diameter is 1/8, small end diameter is .0869″ & large end diameter is .1142″. Flute length is 1-5/16 and overall length is 2-5/16.

Specifications

• HHIP 5/0 Spiral Flute High Speed Steel Taper Pin Reamer (2006-2124)
• Spiral flute taper pin reamers are used to turn a straight hole into a tapered hole for standard taper pins.
• They are generally used by hand but can also be used with a machine.
• Recommended for applications where the reamer tends to wedge itself.
• The square on the end of the shank of the reamer is suitable for holding it in a tap wrench or vise.
• The free cutting action at high speeds produces a good finish and minimizes chip packing in the flutes.
• Shank diameter is 1/8, small end diameter is .0869″ & large end diameter is .1142″.
• Flute length is 1-5/16 and overall length is 2-5/16.
• Weight: 0.05
• Dimensions: L 4, W 1, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
