HHIP 4 PIECE LAYOUT & CENTERING TOOL SET (9999-0074)

HHIP 4 PIECE LAYOUT & CENTERING TOOL SET (9999-0074) (SKU: 9999-0074)

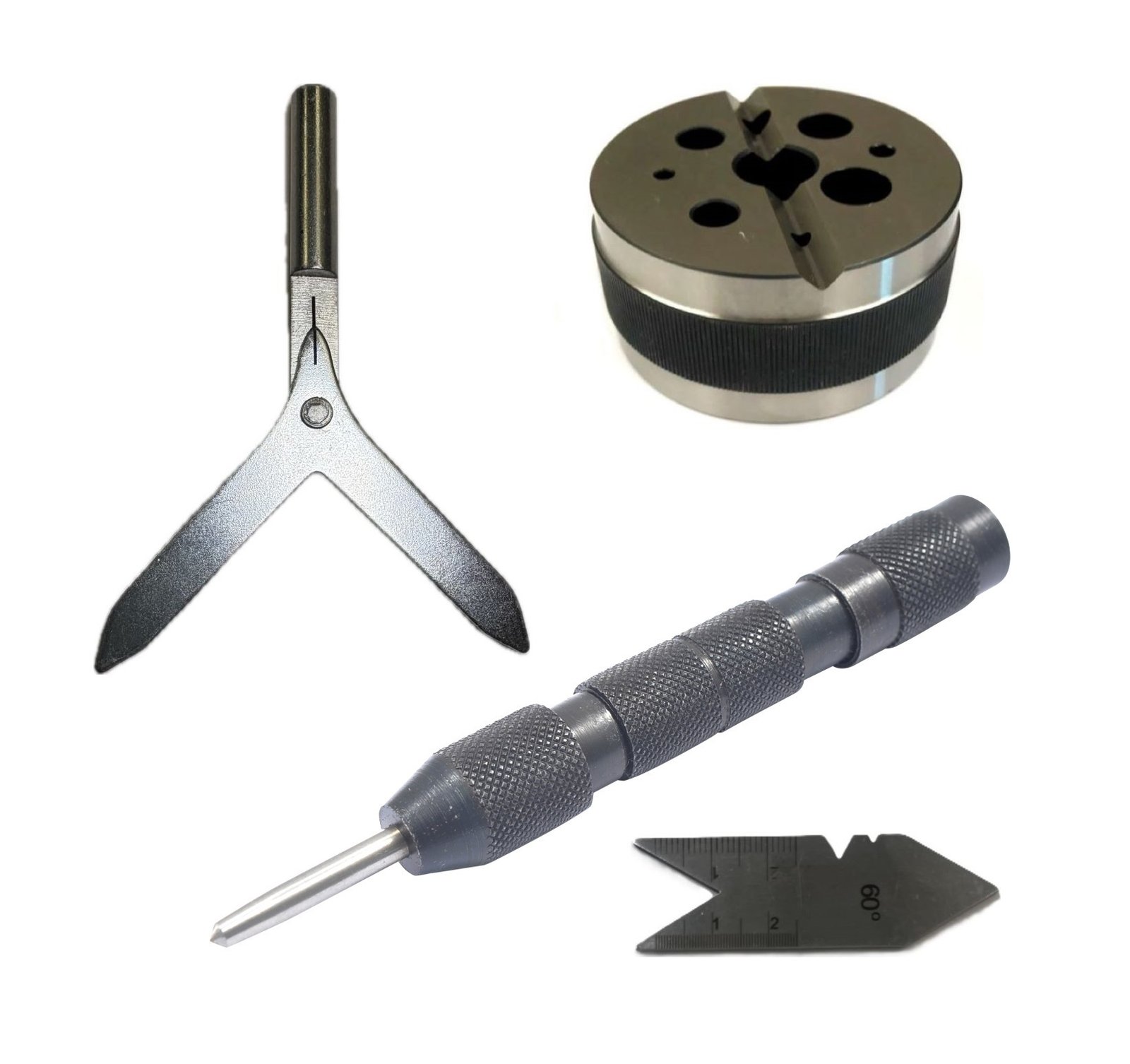

This 4-Piece Layout & Centering Tool Set provides the essential tools needed for accurate drilling, alignment, and layout work in the shop or on the jobsite. The Drill Press Center Finder (4406-0027) allows quick and accurate alignment of workpieces for precise drilling operations. The 60 Degree Standard Center Gage (4901-0060) is ideal for checking lathe tool angles, verifying center alignment, and inspecting threading tools. The Machinist Bench Block (3600-0042) is perfect for pin drifting, spring removal, bushing work, or component installation. Completing this set is a 5″ Auto Center Punch (8070-0482), which produces consistent center marks with a simple press—no hammer required. Designed for machinists, metalworkers, fabricators, maintenance professionals, and serious DIY users, this set improves accuracy, efficiency, and repeatability across a wide range of layout and drilling tasks. Included is
1 × Drill Press Center Finder (4406-0027)
1 × 60° Center Gage – Standard (4901-0060)
1 x Machinist Bench Block (3600-0042)
1 × 5″ x 1/2″ Diameter Auto Center Punch (8070-0482)

Specifications

• HHIP 3 Piece Layout & Centering Tool Set
• ESSENTIAL CENTERING TOOL SET – Includes Drill Press Center Finder (4406-0027), 60 Degree Center Gage Standard (4901-0060), Machinist Bench Block (3600-0042) and 5″ x 1/2″ Diameter Auto Center Punch (8070-0482) for accurate layout and hole positioning.

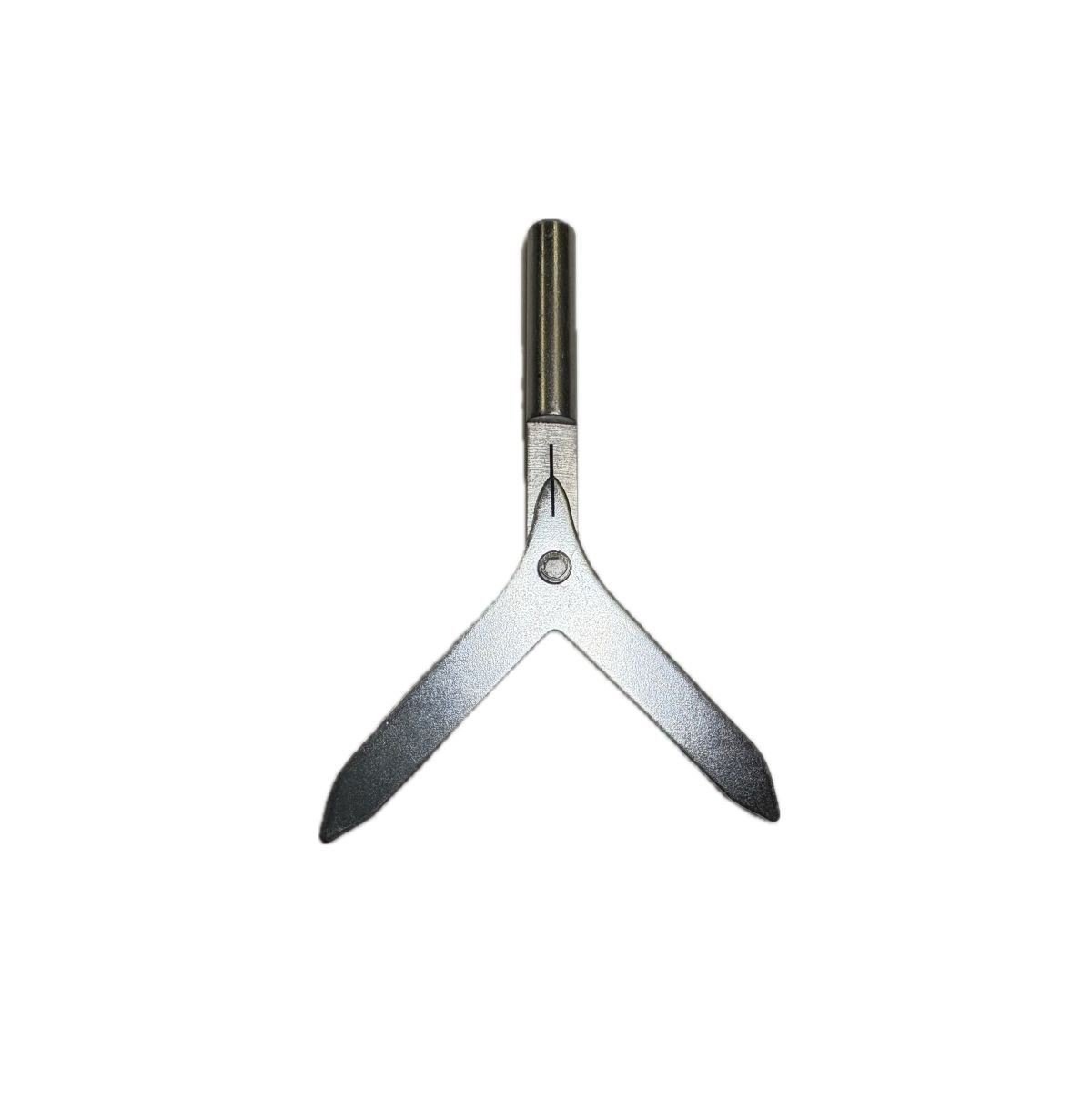

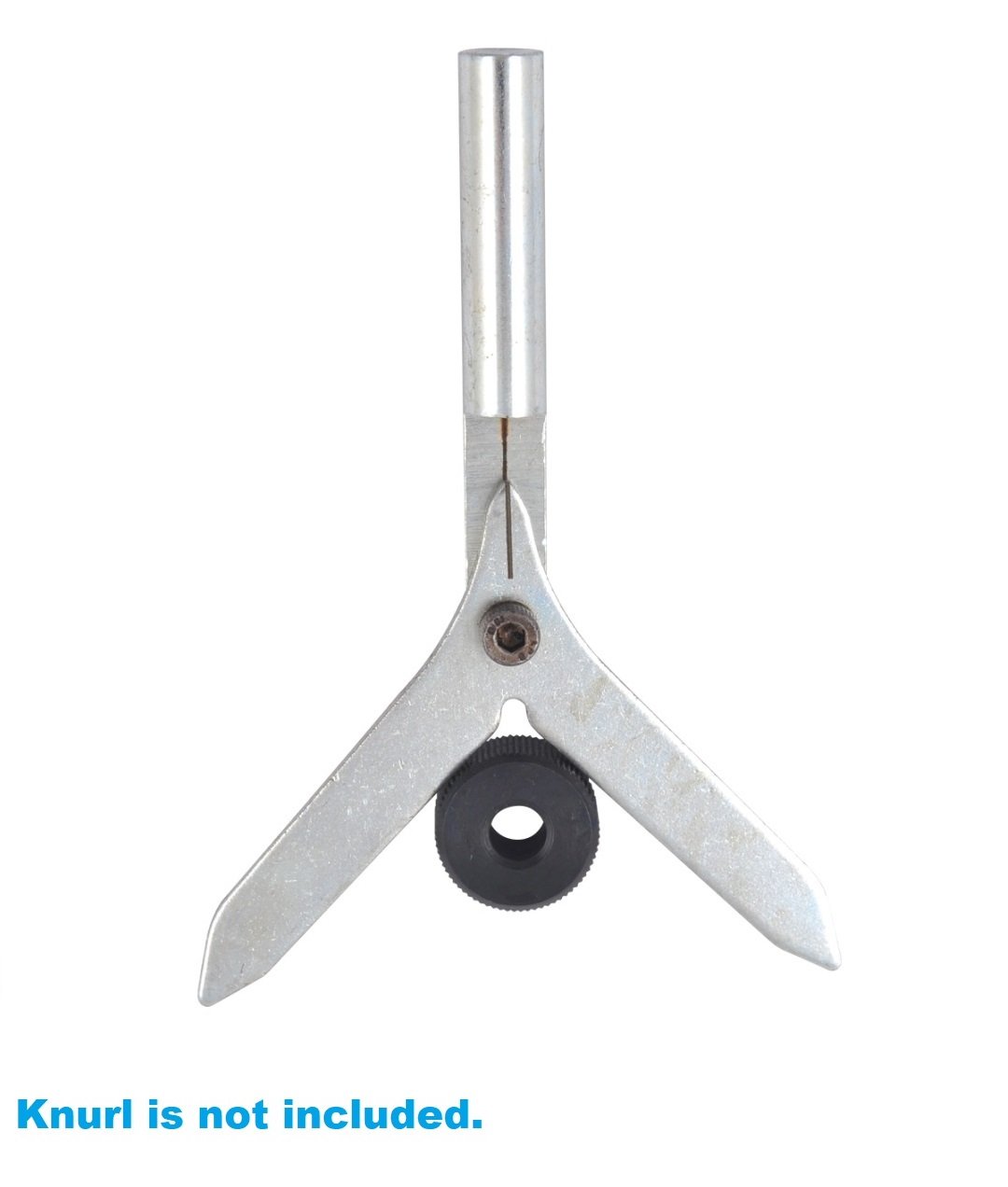

• ACCURATE DRILL ALIGNMENT – Drill press center finder helps quickly locate true center for precise drilling, reducing setup time and improving accuracy.
• PRECISION 60° CENTER GAGE – Standard 60-degree angle gage is ideal for checking tool angles, aligning lathe centers, and inspecting threads and cutting tools.

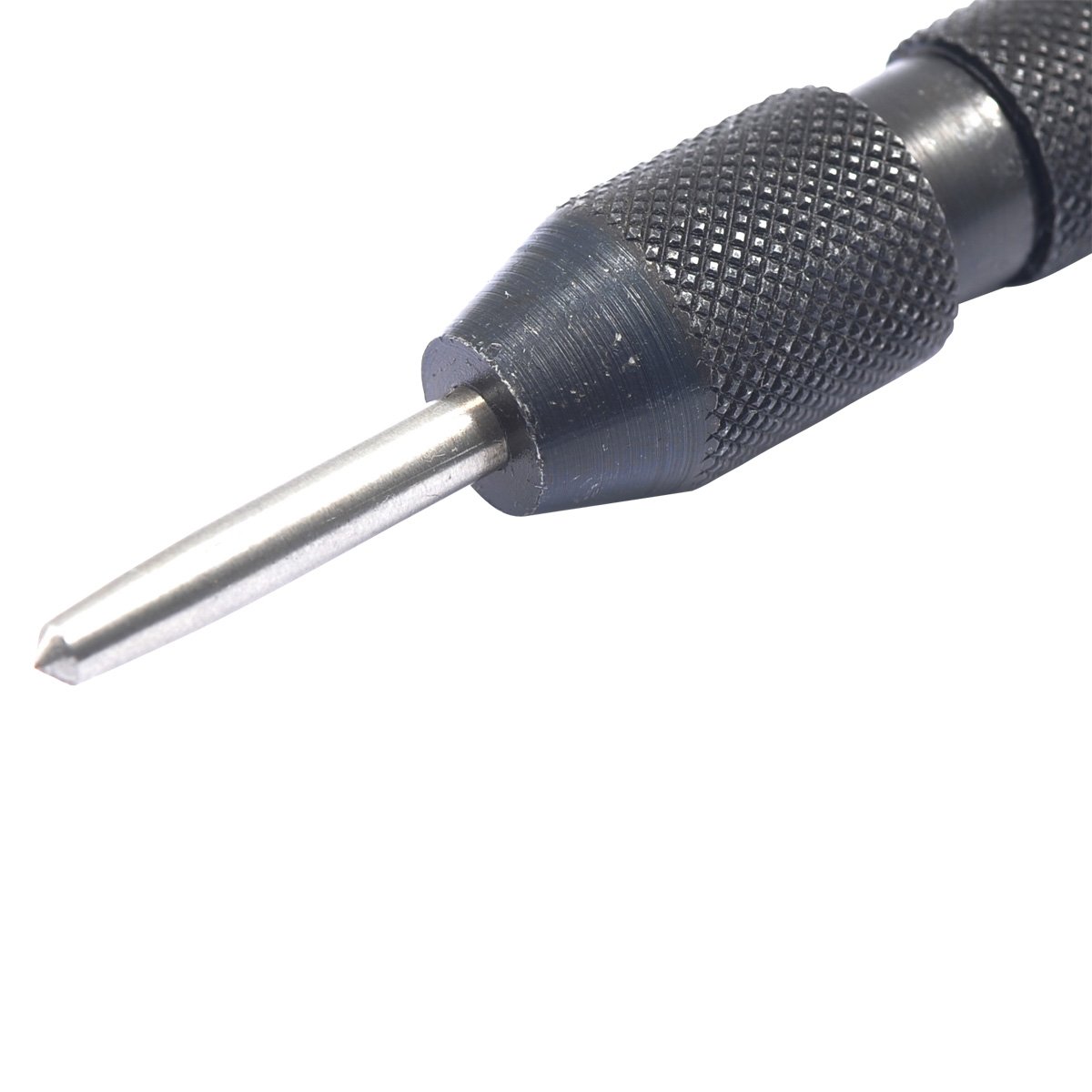

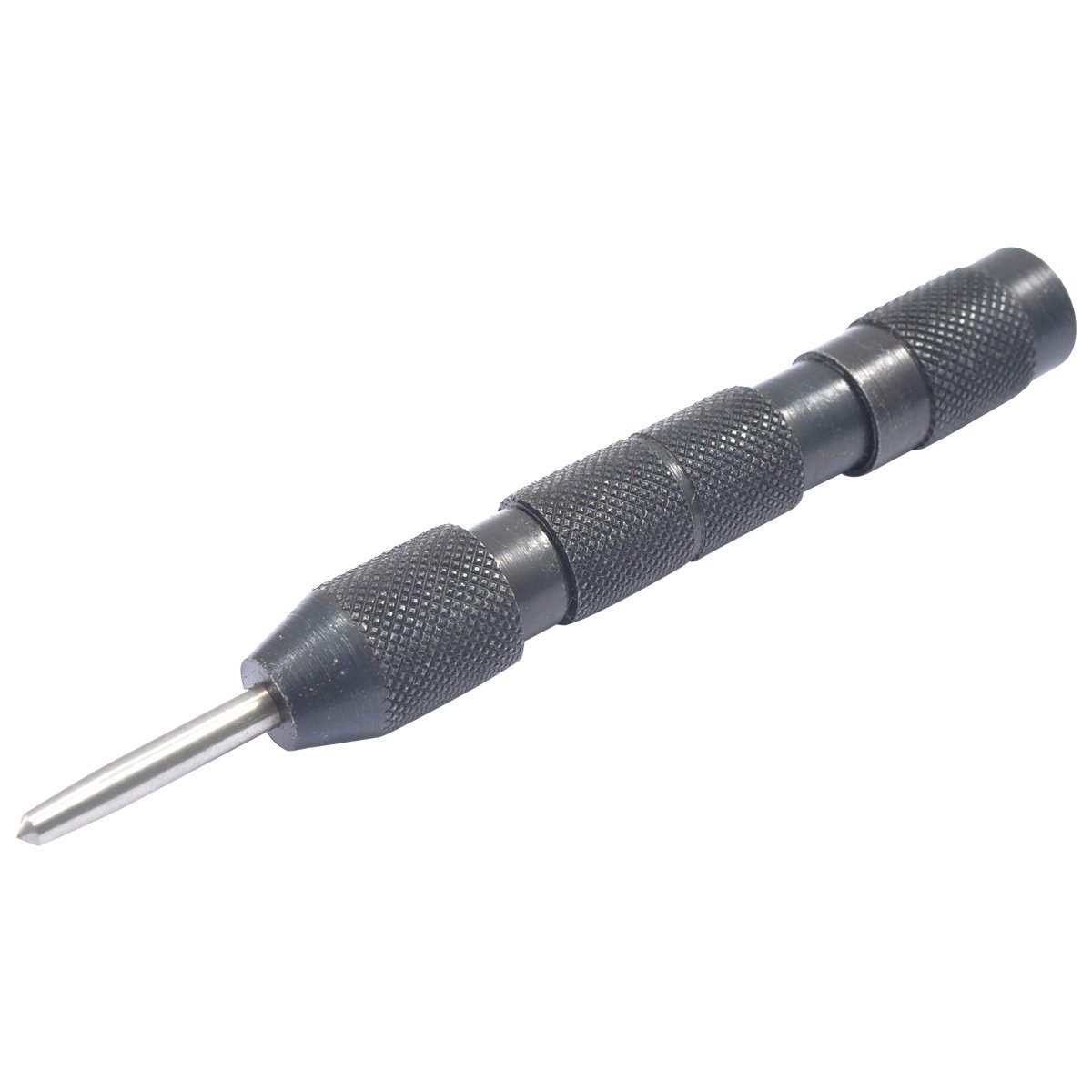

• SPRING-LOADED AUTO CENTER PUNCH – Automatically creates consistent center marks without a hammer, helping prevent drill bit walking on metal, wood, or plastic.
• PROFESSIONAL-GRADE DURABILITY – Manufactured from hardened materials for long-lasting performance in machine shops, fabrication, maintenance, and DIY environments.
• This 3-Piece Layout & Centering Tool Set provides the essential tools needed for accurate drilling, alignment, and layout work in the shop or on the jobsite.
• The Drill Press Center Finder (4406-0027) allows quick and accurate alignment of workpieces for precise drilling operations.
• The 60 Degree Standard Center Gage (4901-0060) is ideal for checking lathe tool angles, verifying center alignment, and inspecting threading tools.

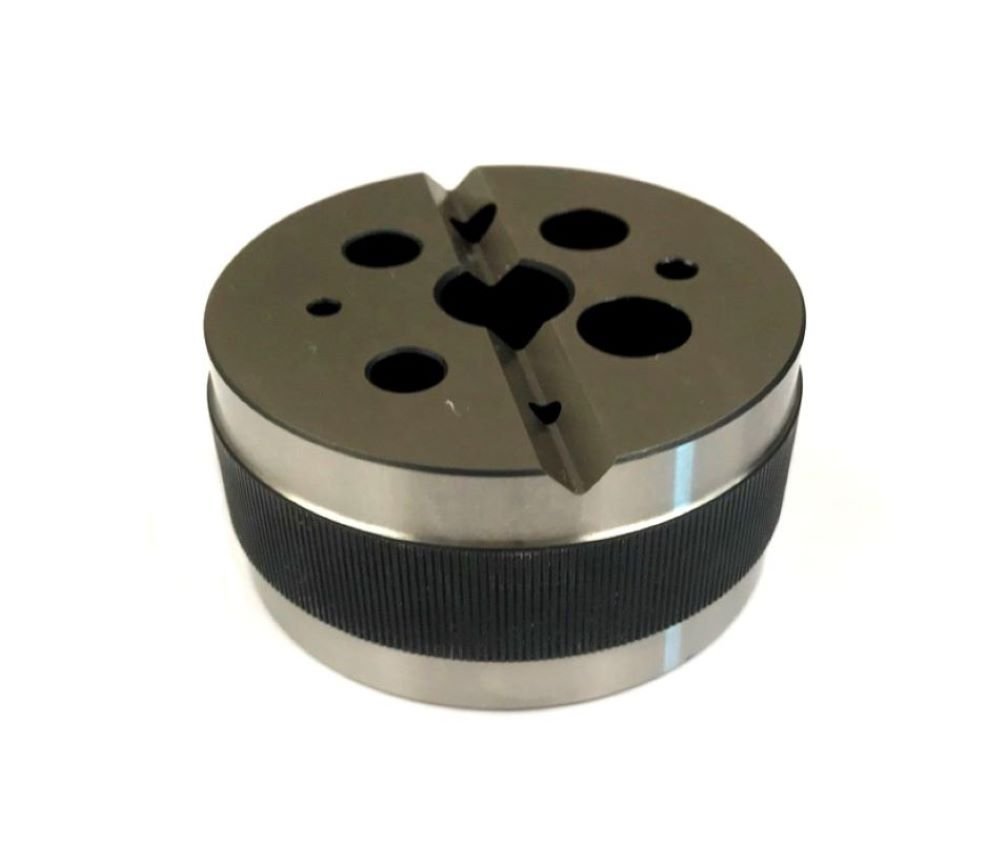

• The Machinist Bench Block, with a knurled side that provides a good gripping surface and a v-groove across the face that accommodates round and odd shaped stock, is a handy tool for holding work when driving pins, drilling, etc.
• Completing the set is a 5″ Auto Center Punch (8070-0482), which produces consistent center marks with a simple press—no hammer required.
• Designed for machinists, metalworkers, fabricators, maintenance professionals, and serious DIY users, this set improves accuracy, efficiency, and repeatability across a wide range of layout and drilling tasks.
• Included is: 1 × Drill Press Center Finder (4406-0027) 1 × 60° Center Gage – Standard (4901-0060) 1 × 5″ x 1/2″ Diameter Auto Center Punch (8070-0482) 1 x Machinist Bench Block (3600-0042)
• Weight: 2.3
• Dimensions: L 12, W 9, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
