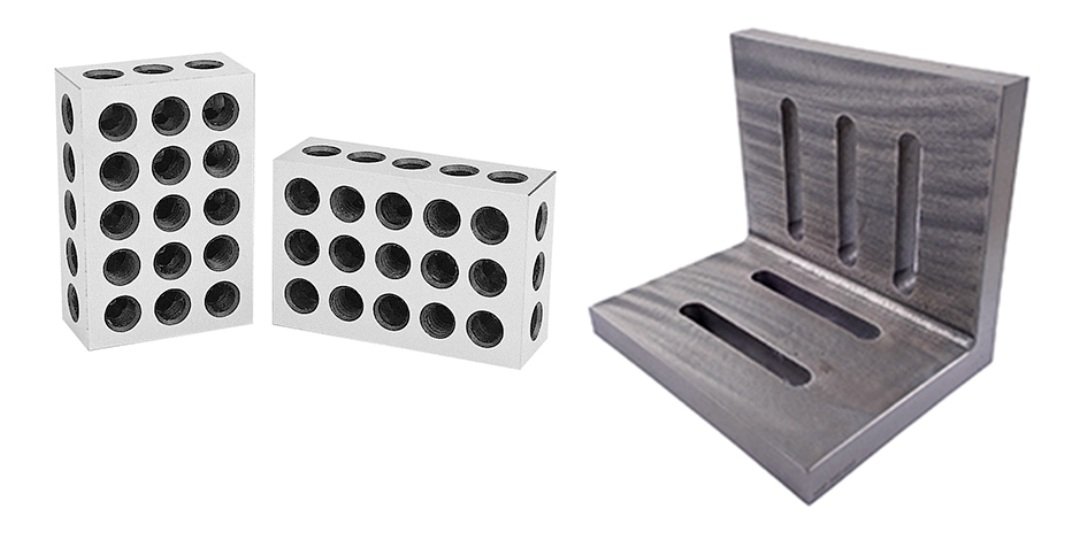

HHIP 8 X 6 X 5″ SLOTTED ANGLE PLATE & 1-2-3 PRECISION BLOCK SET (9999-0004)

HHIP 8 X 6 X 5″ SLOTTED ANGLE PLATE & 1-2-3 PRECISION BLOCK SET (9999-0004) (SKU: 9999-0004)

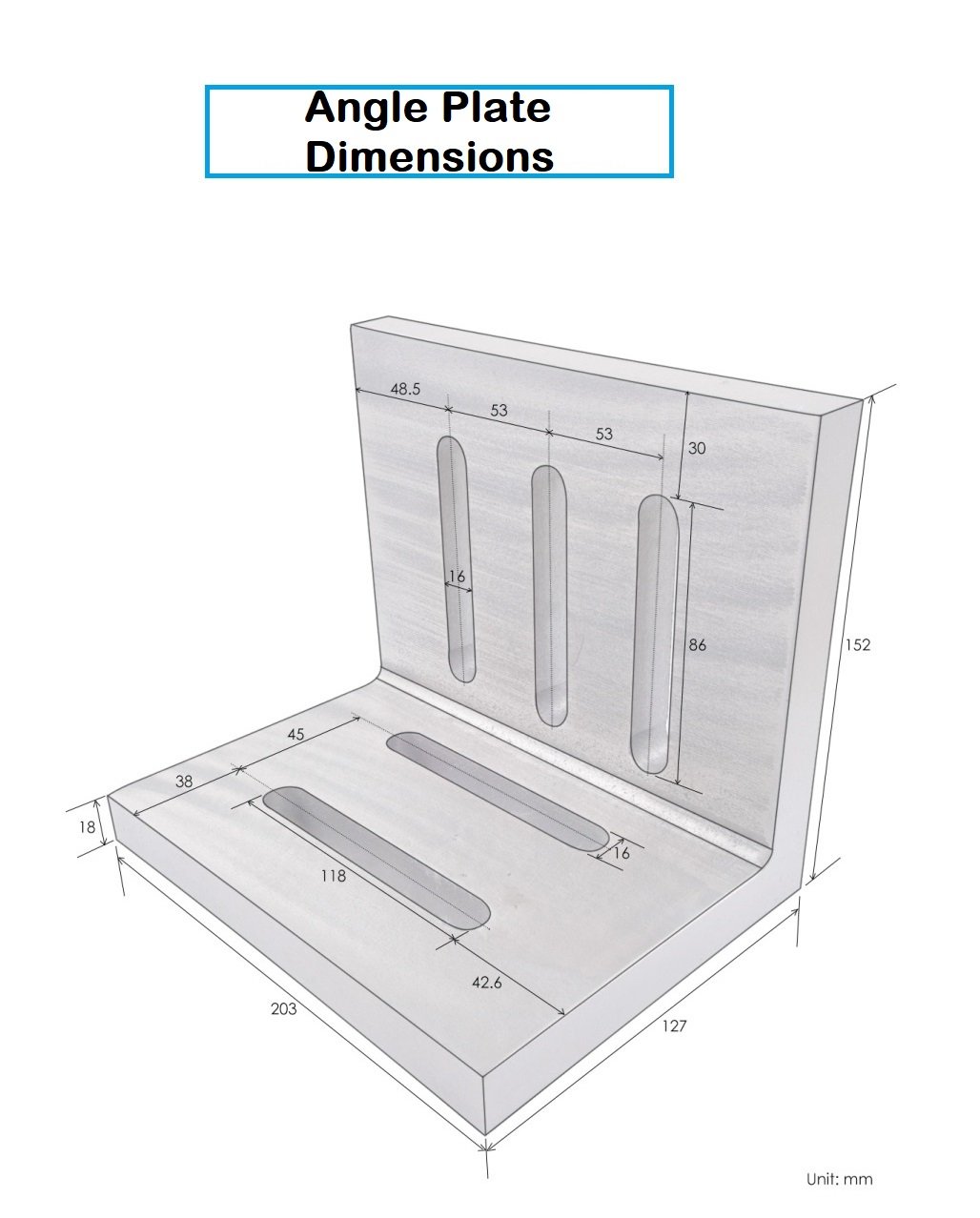

8 X 6 X 5 open end slotted angle plate has convenient clamping slots for mounting

• The plate is widely used for machining, layout and inspection
• It is made of high tensile cast iron properly seasoned against distortion and accurately machined to .002 per 6″
• The plate is square and parallel on all faces and Slot A is 90° to slot C

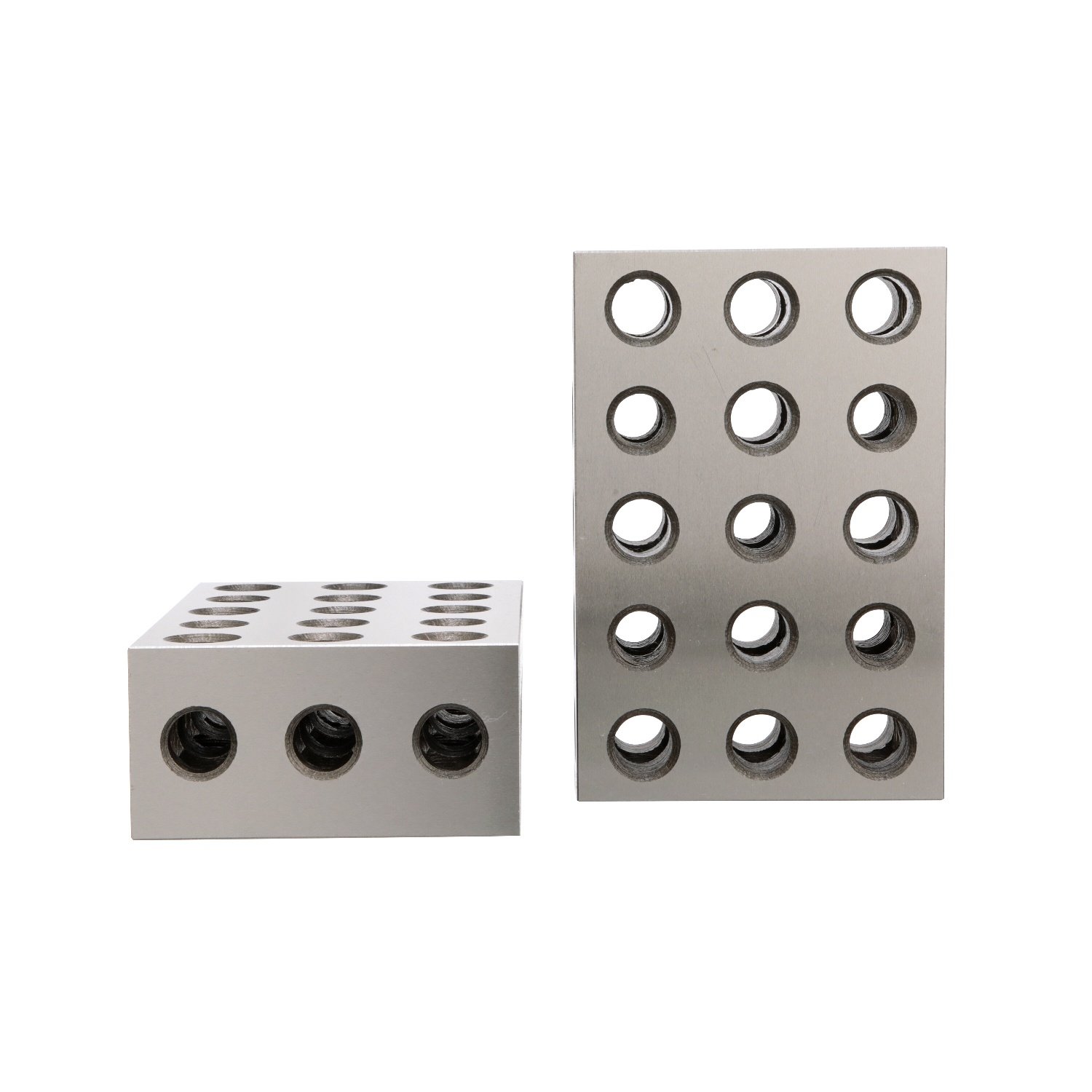

• 1-2-3 precision matched pair block set is heat treated and case hardened to HRC 55 to 60
• They are also hardened and precision ground on all 6 sides of each block
• The 1-2-3 blocks accuracy with squareness on all sides within .0002″ per inch
• There are 23 holes consisting of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes
• These blocks have a cross drilling design gives minimum weight and maximum strength

Specifications

• 8 X 6 X 5″ Angle Plate & 1-2-3 Precision Block Set
• 8 X 6 X 5 open end slotted angle plate has convenient clamping slots for mounting.
• The plate is widely used for machining, layout and inspection.
• It is made of high tensile cast iron properly seasoned against distortion and accurately machined to .002 per 6″.
• The plate is square and parallel on all faces and Slot A is 90° to slot C.
• 1-2-3 precision matched pair block set is heat treated and case hardened to HRC 55 to 60.
• They are also hardened and precision ground on all 6 sides of each block.
• The 1-2-3 blocks accuracy with squareness on all sides within .0002″ per inch.
• There are 23 holes consisting of 5 tapped holes that are 3/8″-16 for clamping and 18 untapped holes.
• These blocks have a cross drilling design gives minimum weight and maximum strength.
• Weight: 14.2
• Dimensions: L 6, W 9, H 7

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
