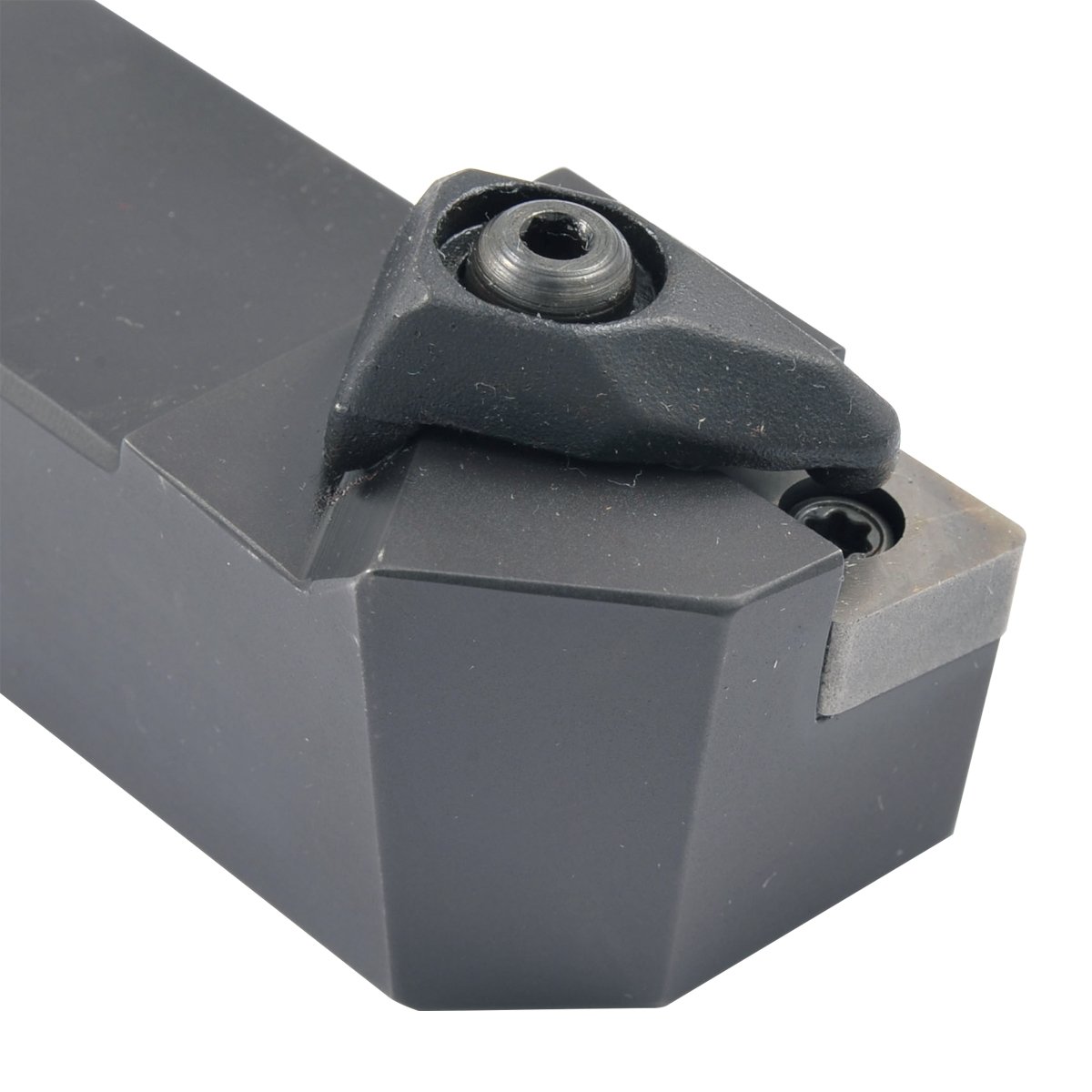

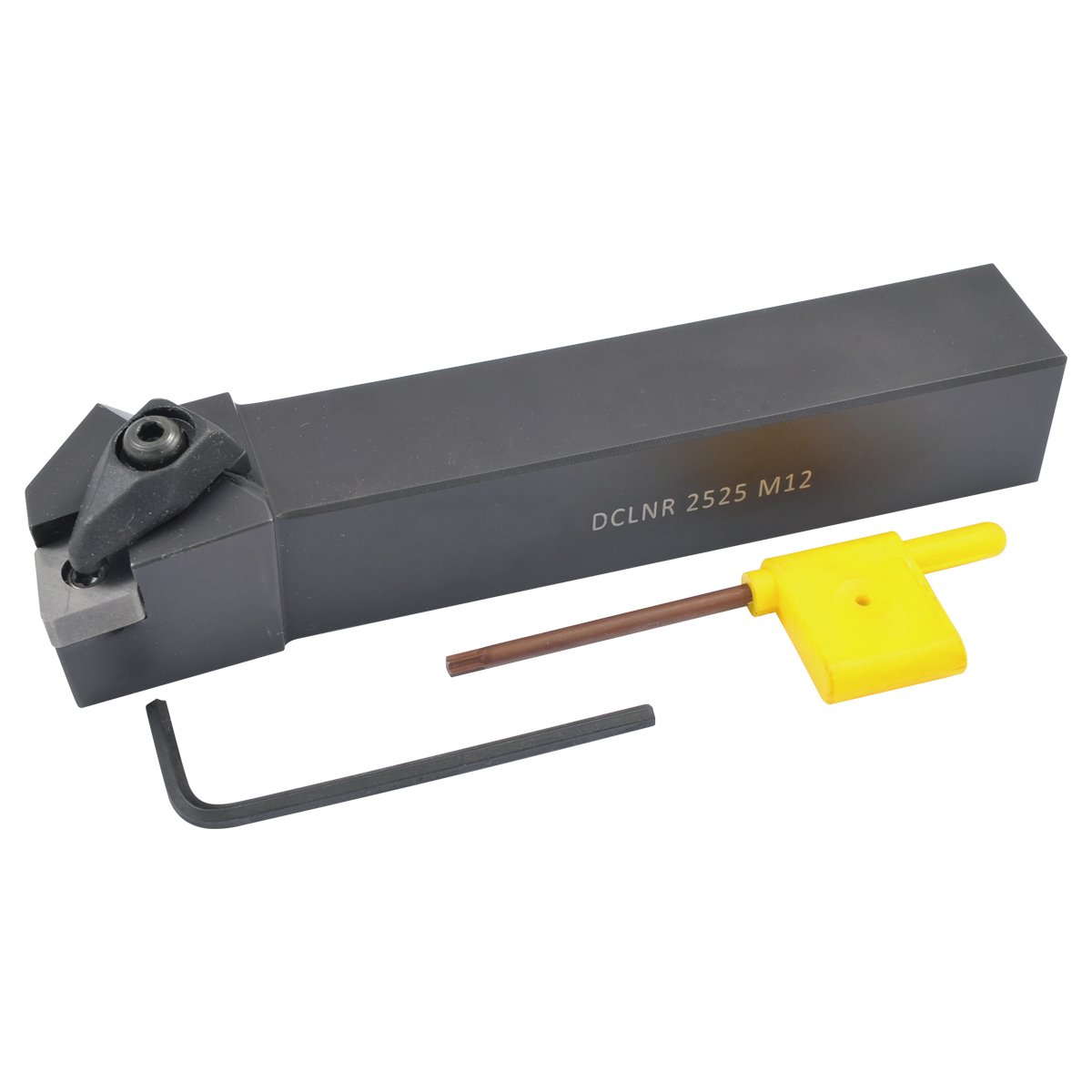

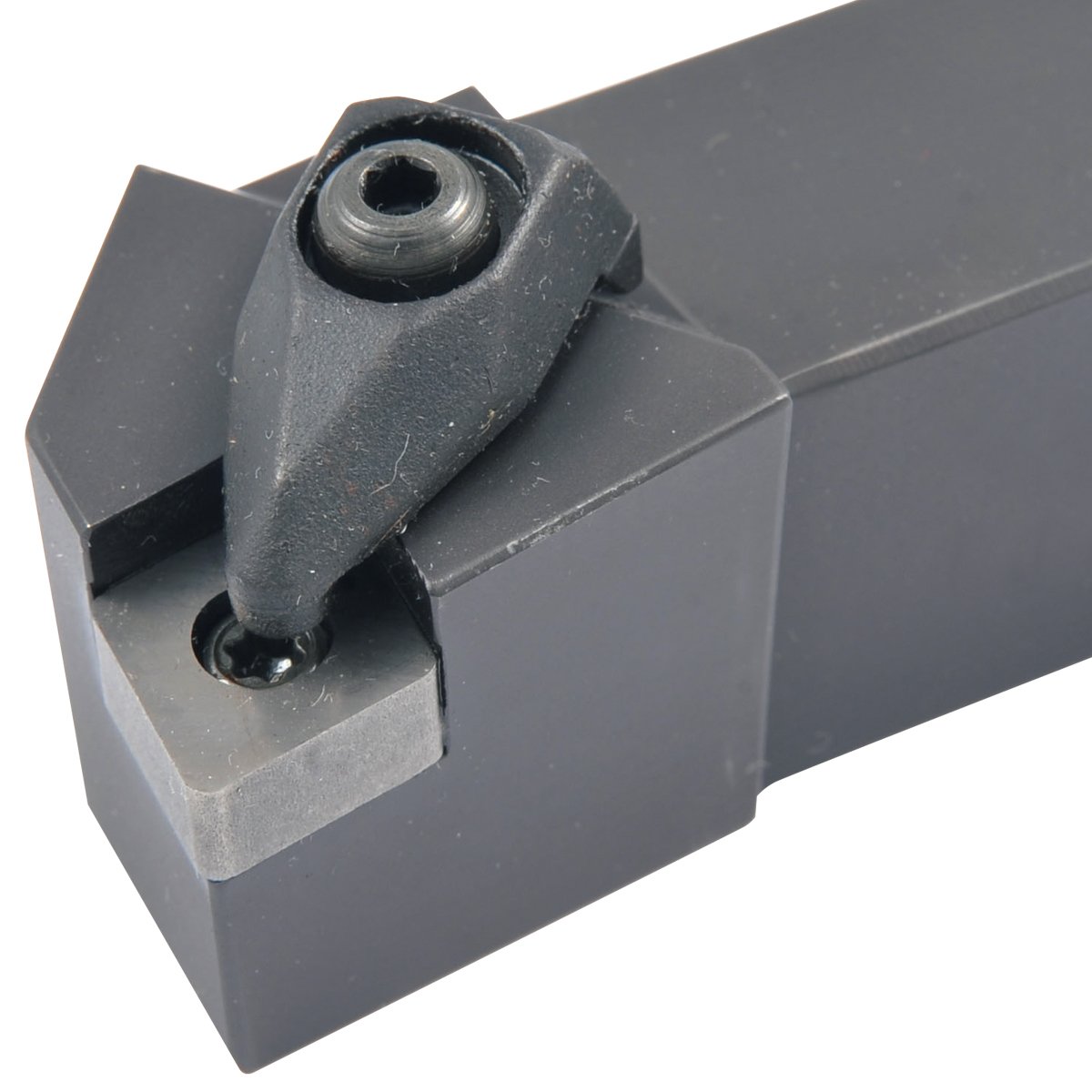

HHIP DCLNR2525 M12 TURNING & FACING TOOL HOLDER WITH INSERT (2016-1162)

HHIP DCLNR2525 M12 TURNING & FACING TOOL HOLDER WITH INSERT (2016-1162) (SKU: 2016-1162)

HHIP DCLNR2525 M12 Turning & Facing Tool Holder with Insert Superior Rigidity: The robust clamping design provides high rigidity and minimizes vibration and deflection, which leads to better surface finishes and extended tool life. Efficiency: Indexable inserts and the easy-to-use clamping system (often requiring just one wrench for insert/shim replacement) allow for quick insert changes, reducing machine downtime. Cost-Effective: In high-volume production, using indexable inserts can be more economical than using and resharpening solid tools. Versatility: While specific to CNMG inserts, the inserts themselves come in various grades and chip breakers, allowing the holder to be adapted for different materials and cutting conditions, including cast iron and stainless steel. Top clamp style indexable turning tool holder for external turning and facing. Secure top clamp design ensures excellent insert retention. Right-hand cutting direction with -5 degree lead angle for stable cutting performance. Accepts standard CNMG 80° diamond indexable inserts – supplied with 1, additional inserts are available for purchase. Insert indexing allows multiple cutting edges without regrinding. Designed for easy insert changes and reduced machine downtime. Ideal for CNC and manual lathe applications. Replacement parts are available and are as follows: Clamp #2106-4005, Clamp Screw #2106-2010, Shim #2106-3015, Shim Screw #2106-1005, Spring #2106-1202, Torx Key #2100-0095 and Hex Key #2100-1084.

Specifications

• HHIP DCLNR2525 M12 Turning & Facing Tool Holder with Insert
• Superior Rigidity: The robust clamping design provides high rigidity and minimizes vibration and deflection, which leads to better surface finishes and extended tool life.
• Efficiency: Indexable inserts and the easy-to-use clamping system (often requiring just one wrench for insert/shim replacement) allow for quick insert changes, reducing machine downtime.
• Cost-Effective: In high-volume production, using indexable inserts can be more economical than using and resharpening solid tools.
• Versatility: While specific to CNMG inserts, the inserts themselves come in various grades and chip breakers, allowing the holder to be adapted for different materials and cutting conditions, including cast iron and stainless steel.
• Top clamp style indexable turning tool holder for external turning and facing.
• Right-hand cutting direction with -5 degree lead angle for stable cutting performance.
• Accepts standard CNMG 80° diamond indexable inserts – supplied with 1, additional inserts are available for purchase.
• Insert indexing allows multiple cutting edges without regrinding.
• Secure top clamp design ensures excellent insert retention.
• Ideal for CNC and manual lathe applications.
• Replacement parts are available and are as follows: Clamp #2106-4005, Clamp Screw #2106-2010, Shim #2106-3015, Shim Screw #2106-1005, Spring #2106-1202, Torx Key #2100-0095 and Hex Key #2100-1084.
• Weight: 1
• Dimensions: L 7, W 2, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
