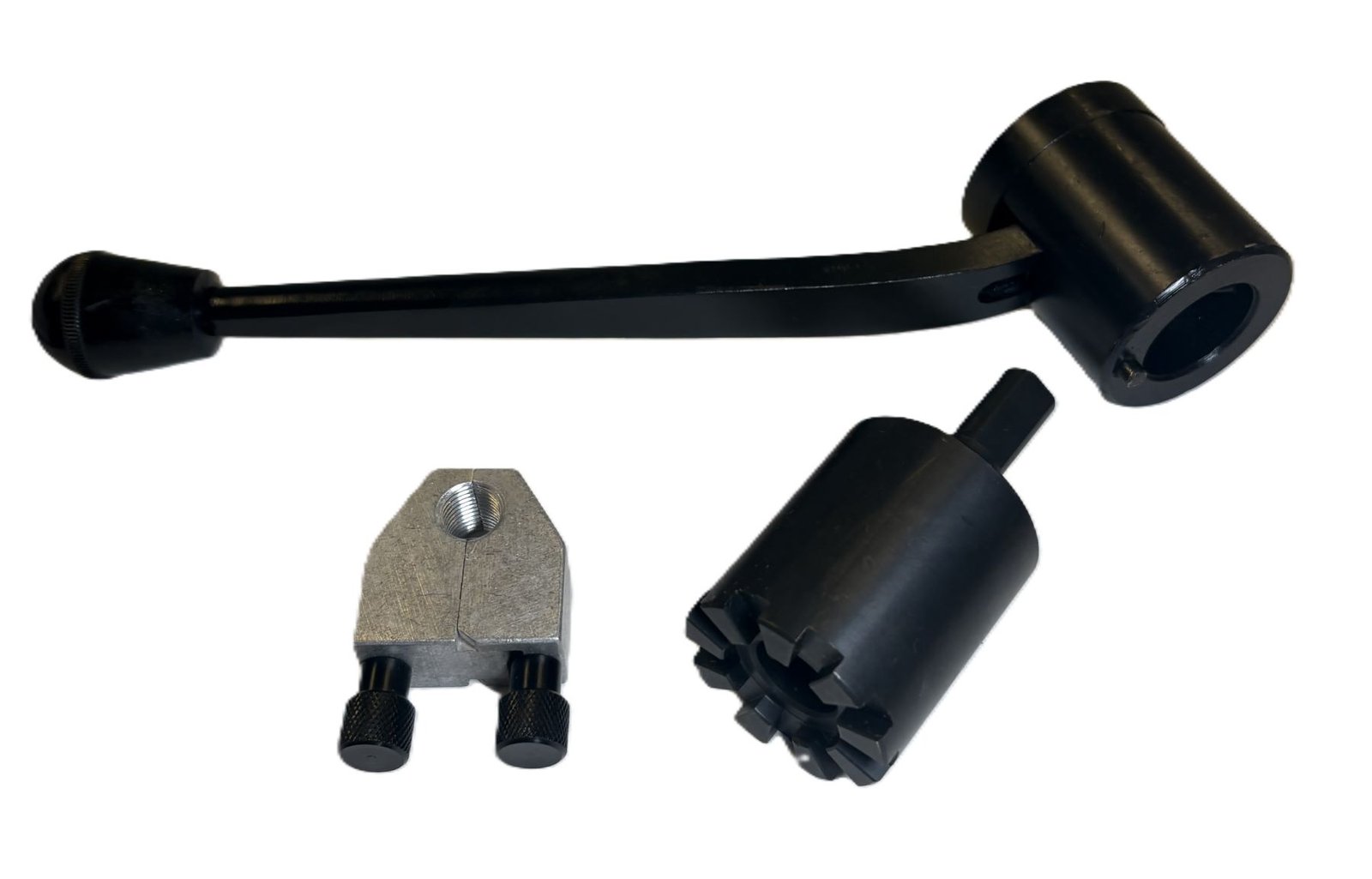

HHIP MILLING MACHINE KNEE FEED HANDLE QUILL STOP & KNEE ADAPTER SET (9999-0069)

HHIP MILLING MACHINE KNEE FEED HANDLE QUILL STOP & KNEE ADAPTER SET (9999-0069) (SKU: 9999-0069)

HHIP Milling Machine Knee Feed Handle, Quill Stop & Adapter Set The included quick indexing quill feed handle speeds up all operations and allows you to move the handle into any position. A quick flick of the wrist retracts the index plate pin of the quill, and the spring-loaded pin activates the quill speed. This fits mills with a 1″ diameter hub. You can also increase productivity and reduce cost with our quill stop for Bridgeport or any other mill with 1/2″

• 20 stop rod. The quill stop is used for rapid depth setting on quill using a fast on-off clipping action. Also included is a 1/2″ shank knee feed adapter with a .630 ID that is suitable for shafts with 9 splines. Works with 1/2″ power drill and speeds up quill (knee) function as a power feed. The heavy-duty adapter fits most mills with 5/8″ diameter hubs is made of hardened steel and has a flat cut on shaft for stronger power drill grip

Specifications

• HHIP Milling Machine Knee Feed Handle, Quill Stop & Adapter Set

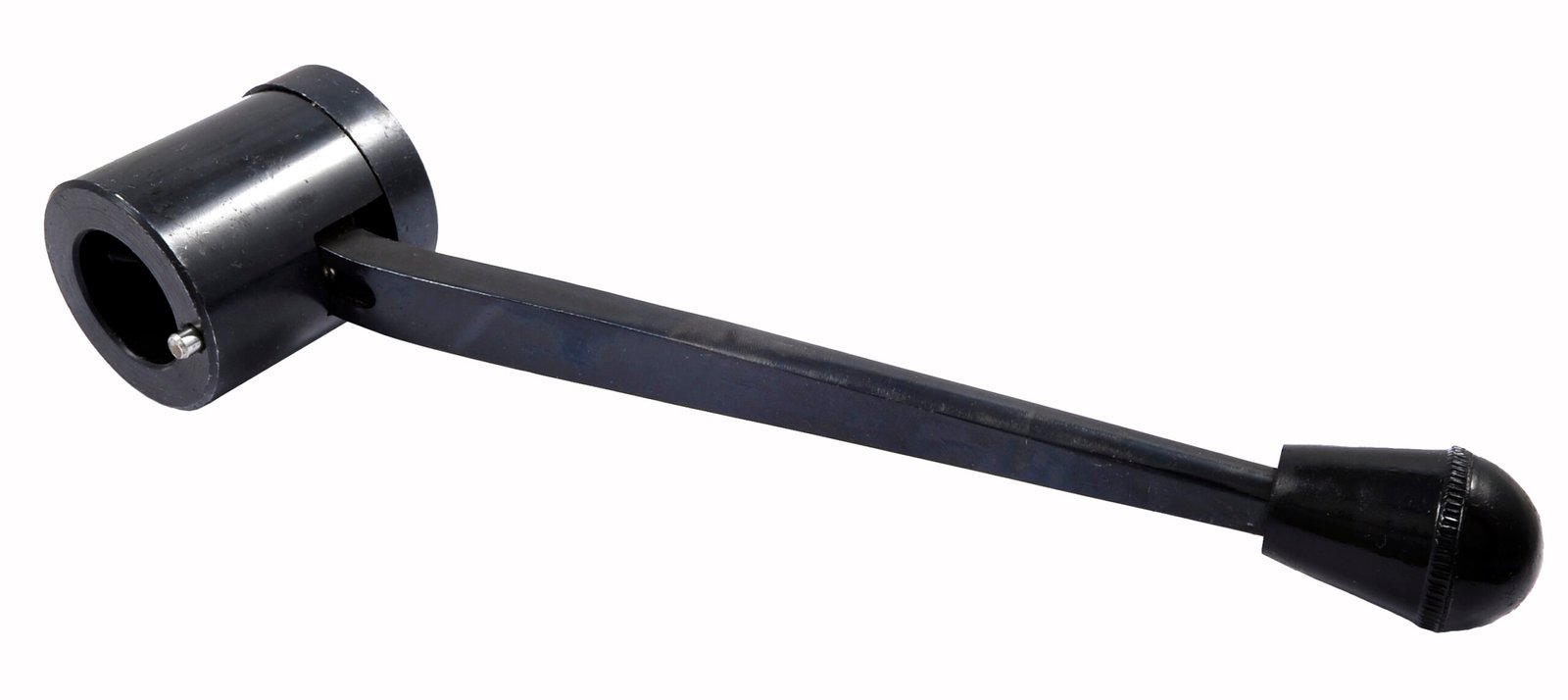

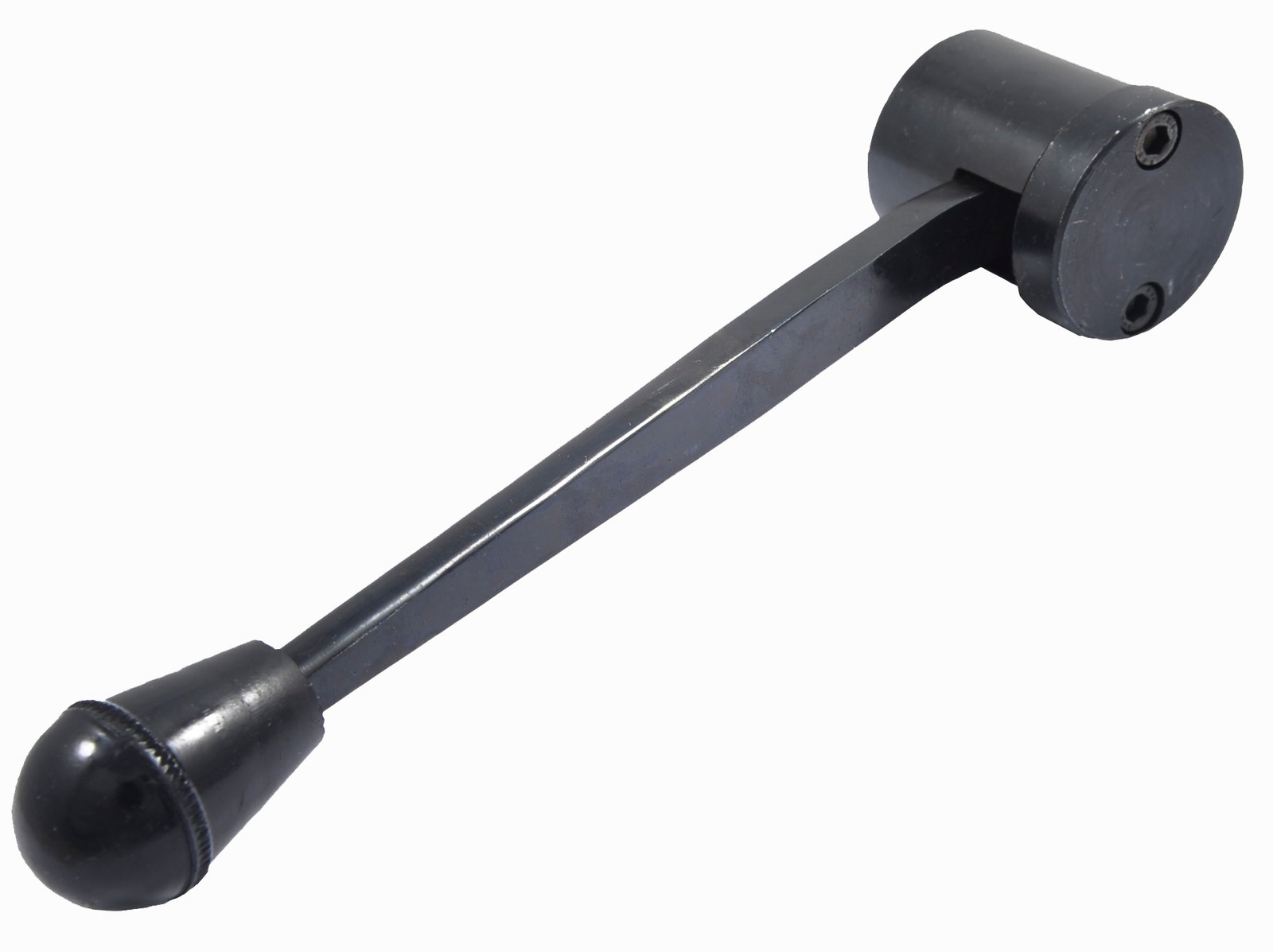

• The included quick indexing quill feed handle speeds up all operations and allows you to move the handle into any position.
• A quick flick of the wrist retracts the index plate pin of the quill, and the spring-loaded pin activates the quill speed.
• This fits mills with a 1″ diameter hub.

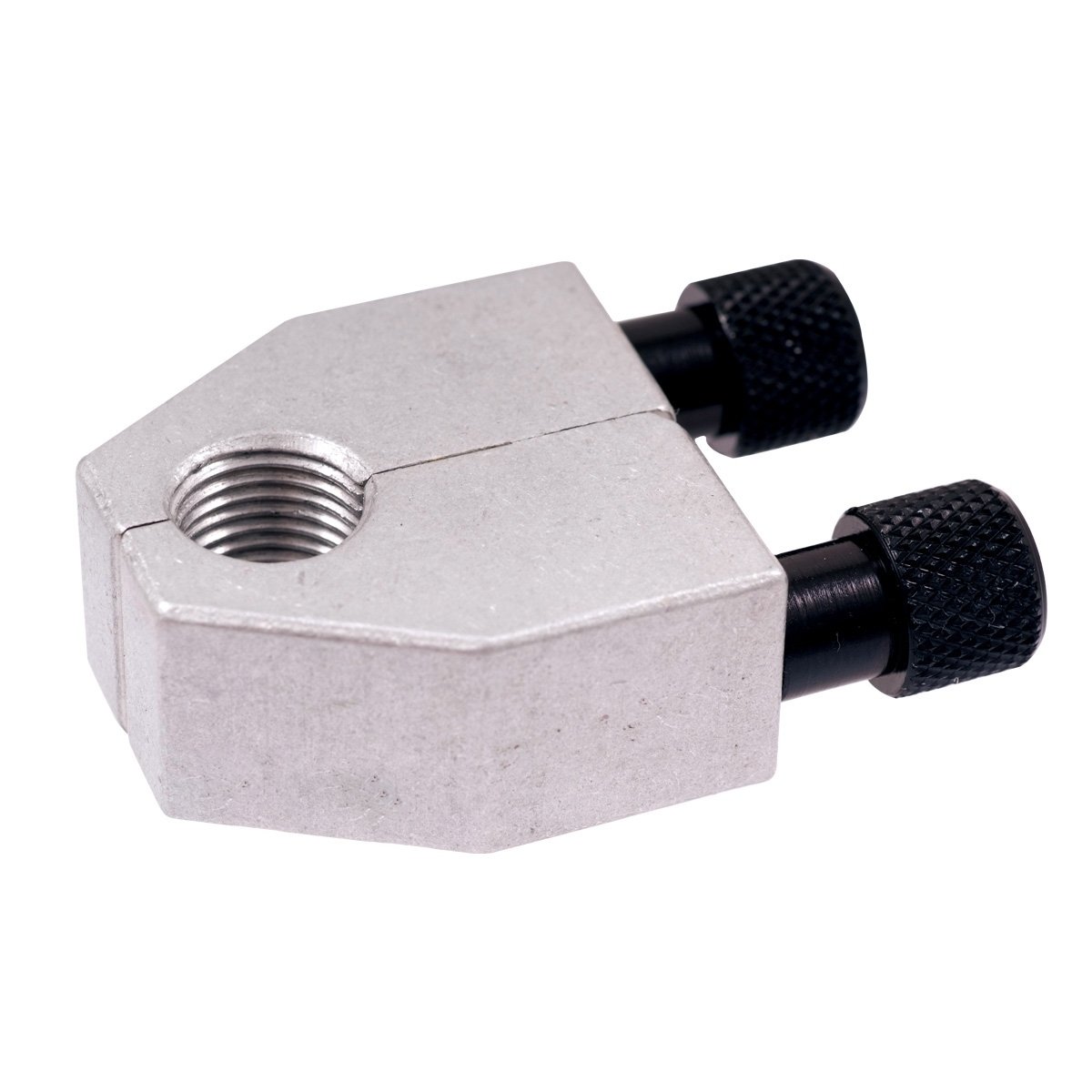

• You can also increase productivity and reduce cost with our quill stop for Bridgeport or any other mill with 1/2″~20 stop rod.
• The quill stop is used for rapid depth setting on quill using a fast on-off clipping action.

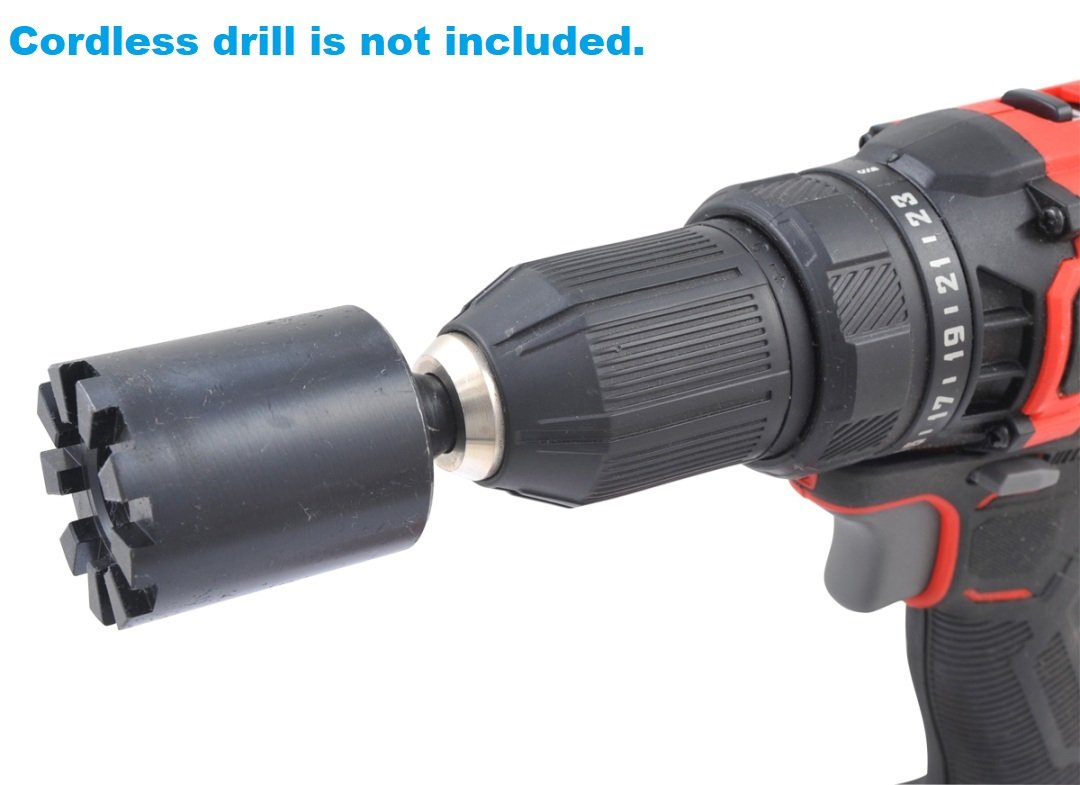

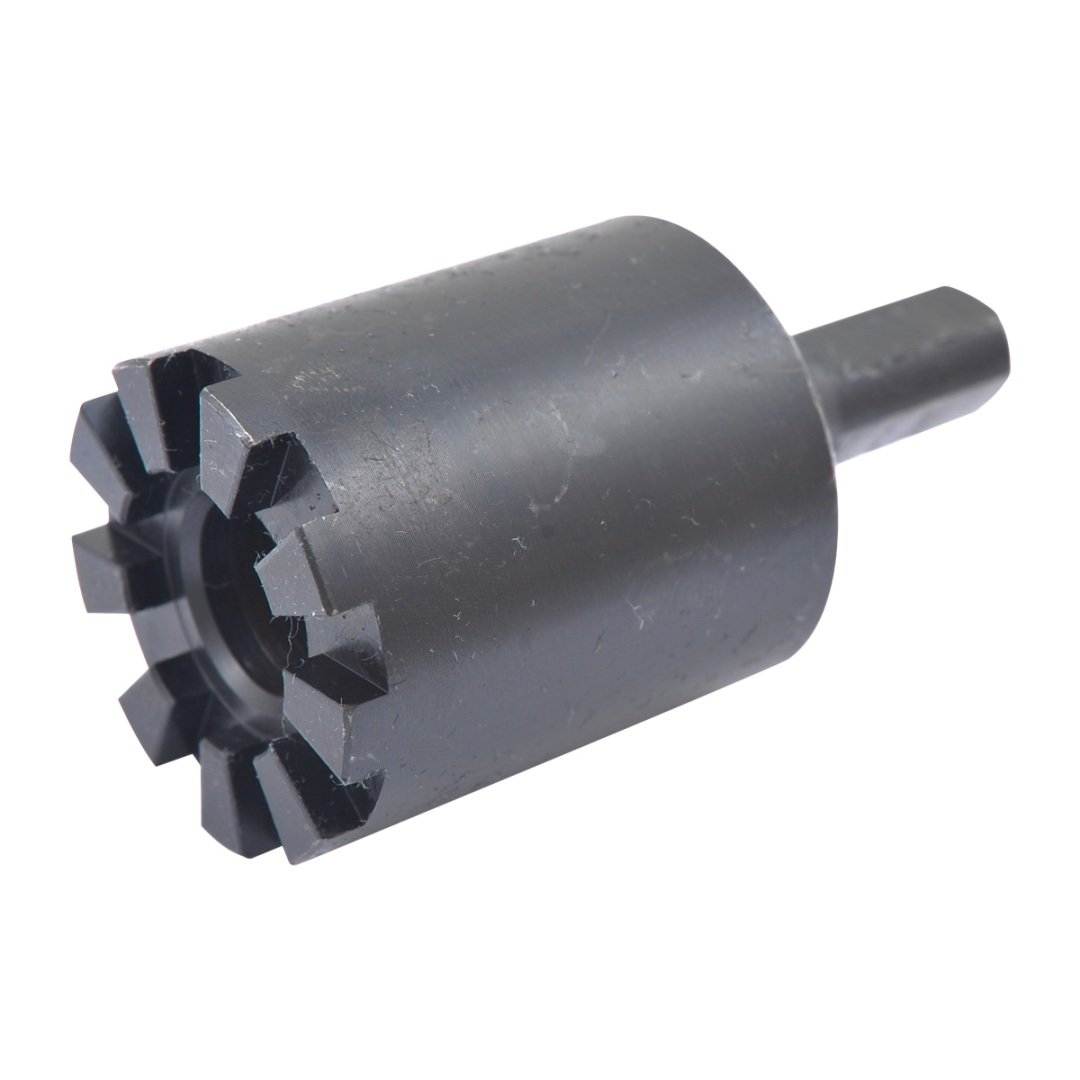

• Also included is a 1/2″ shank knee feed adapter with a .630 ID that is suitable for shafts with 9 splines.
• Works with 1/2″ power drill and speeds up quill (knee) function as a power feed.

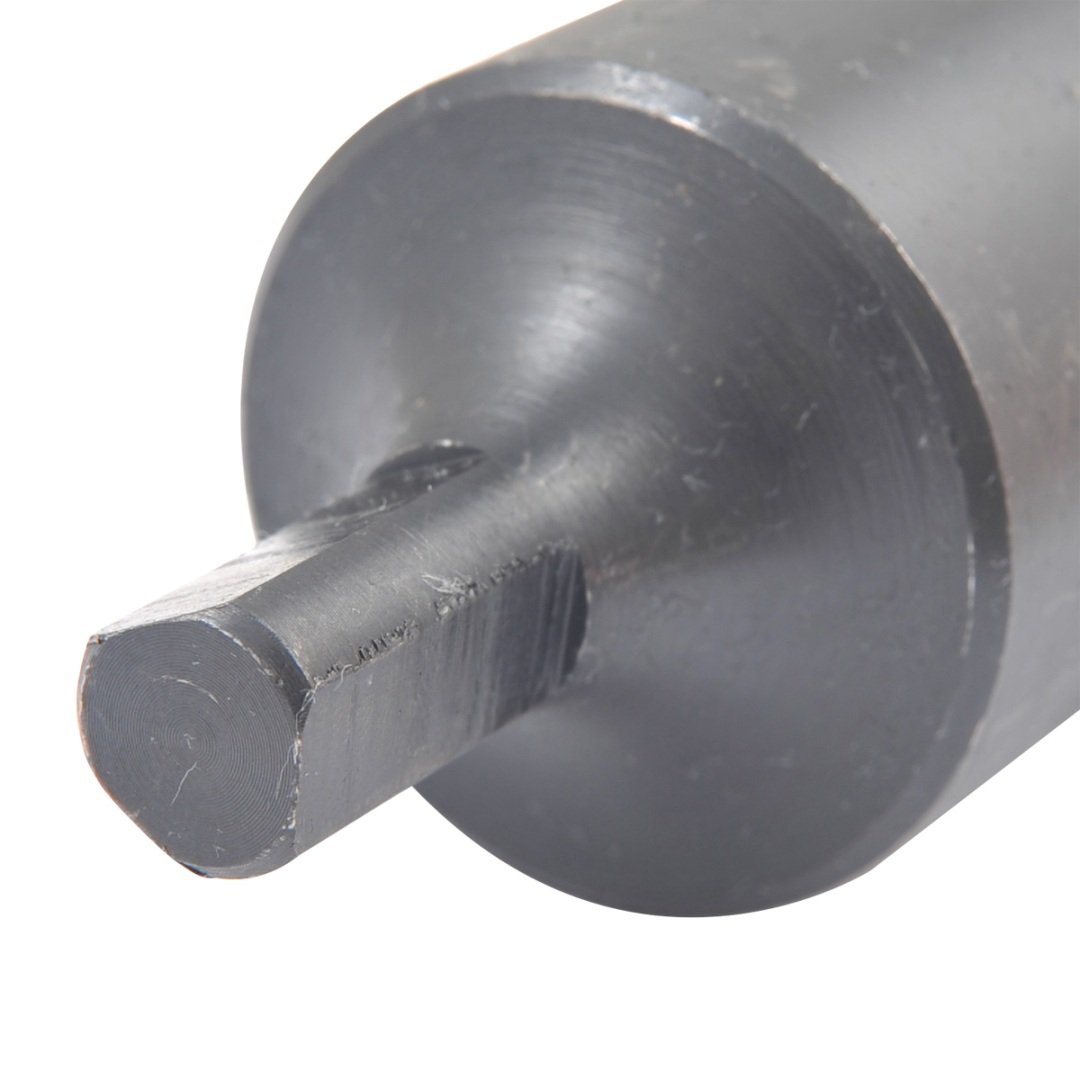

• The heavy-duty adapter fits most mills with 5/8″ diameter hubs is made of hardened steel and has a flat cut on shaft for stronger power drill grip.
• Weight: 3.65
• Dimensions: L 12, W 9, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
