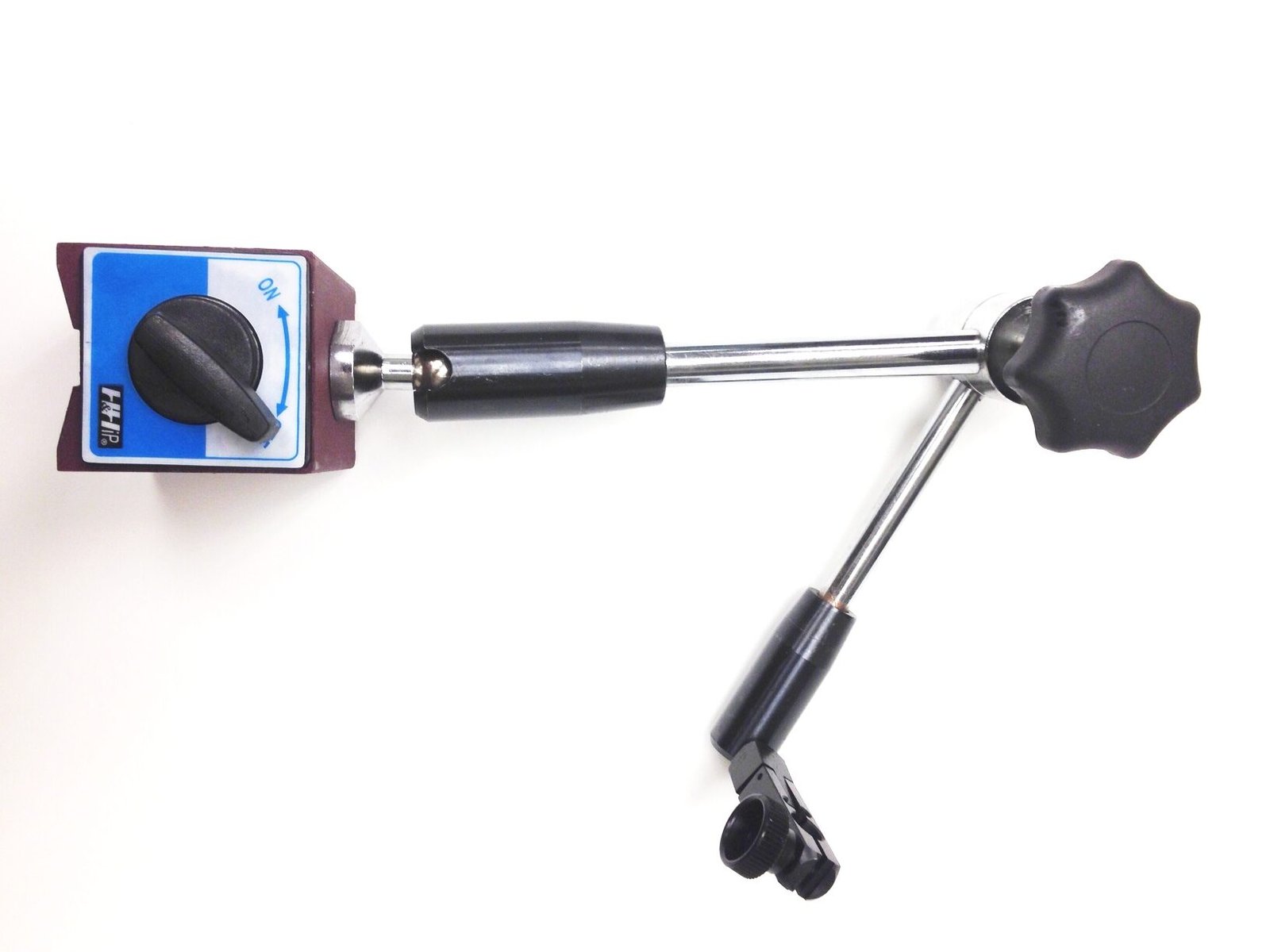

HYDRAULIC FINE ADJUSTMENT MAGNETIC BASE WITH 15″ ARM (4401-0003)

HYDRAULIC FINE ADJUSTMENT MAGNETIC BASE WITH 15″ ARM (4401-0003) (SKU: 4401-0003)

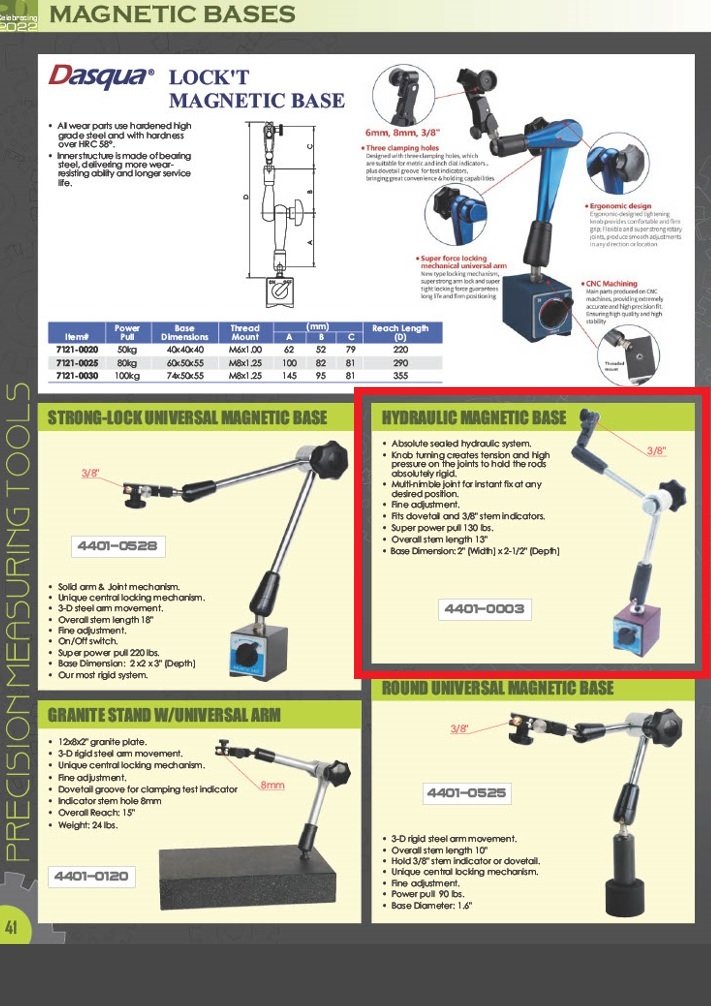

Hydraulic Magnetic Base With 15 Arm & Fine Adustment

• Absolute sealed hydraulic system
• Knob turning creates tension and high pressure on the joints to hold the rods absolutely rigid
• Multi-nimble joint for instant fix at any desired position
• Fine adjustment
• Fits dovetail and 3/8 stem indicators
• Super power pull 130 lbs
• Overall stem length 13
• Base Dimension: 2 (Width) x 2-1/2 (Depth)

Specifications

• Hydraulic Magnetic Base With 15 Arm & Fine Adustment
• Knob turning creates tension and high pressure on the joints to hold the rods absolutely rigid.
• Multi-nimble joint for instant fix at any desired position.
• Fine adjustment.
• Holds 3/8″ stem indicators or dovetails.
• Absolute sealed hydraulic system.
• Super power pull 130 lbs.
• Overall stem length 13″.
• Base Dimension is 2″ Width x 2-1/2″ Depth
• Weight: 4.4
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
