MT2 X 80MM REVOLVING TAILSTOCK FOR 3″ PLAIN BACK CHUCKS (3900-6022)

MT2 X 80MM REVOLVING TAILSTOCK FOR 3″ PLAIN BACK CHUCKS (3900-6022) (SKU: 3900-6022)

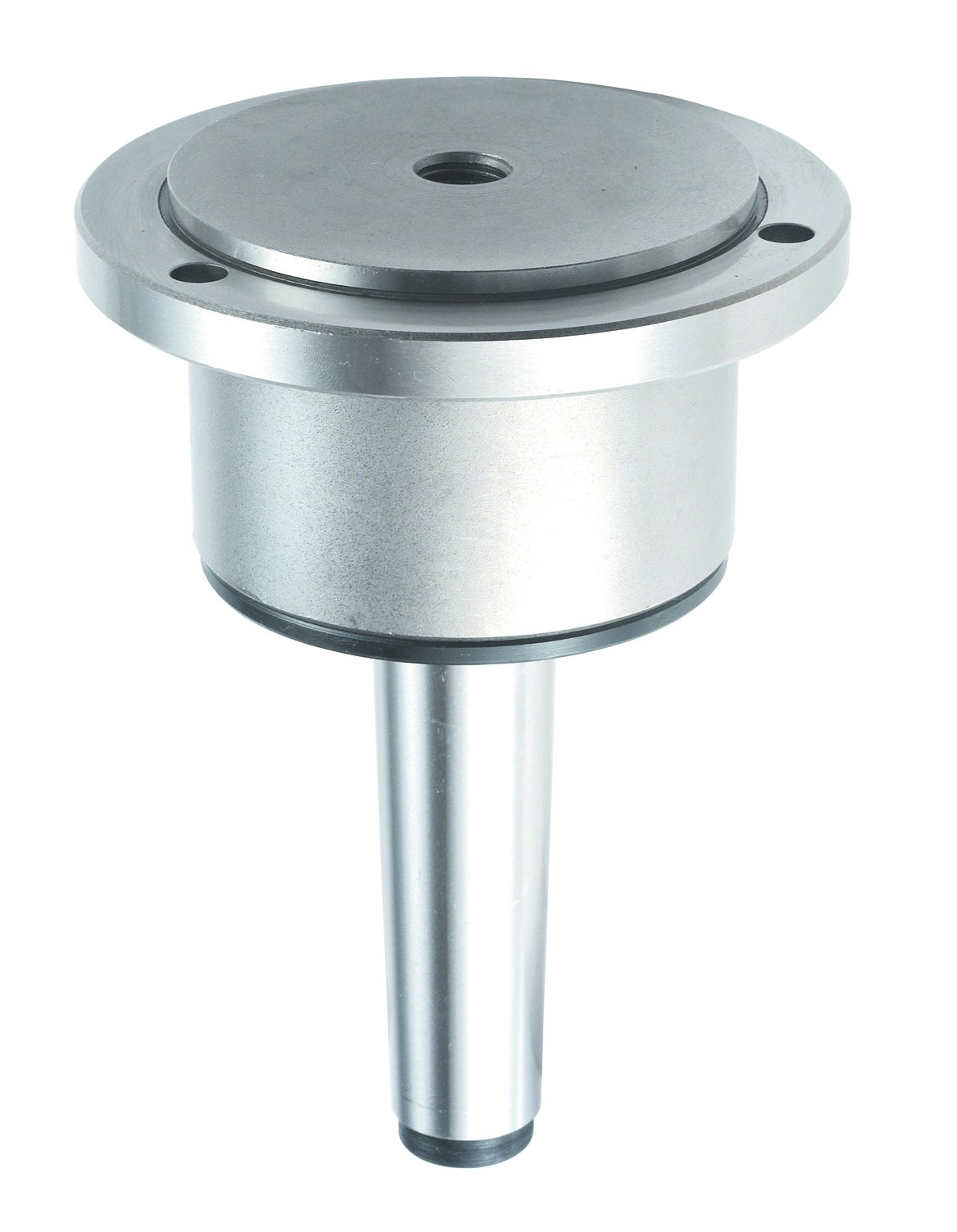

MT2 X 80MM Revolving Tailstock for 3″ Plain Back Chucks

• Used for calibrating or supporting work pieces during processing
• Three ball bearings for heavy duty loads and relatively high speed
• Maximum Load is 1,100 lbs
• Maximum RPM is 3,500

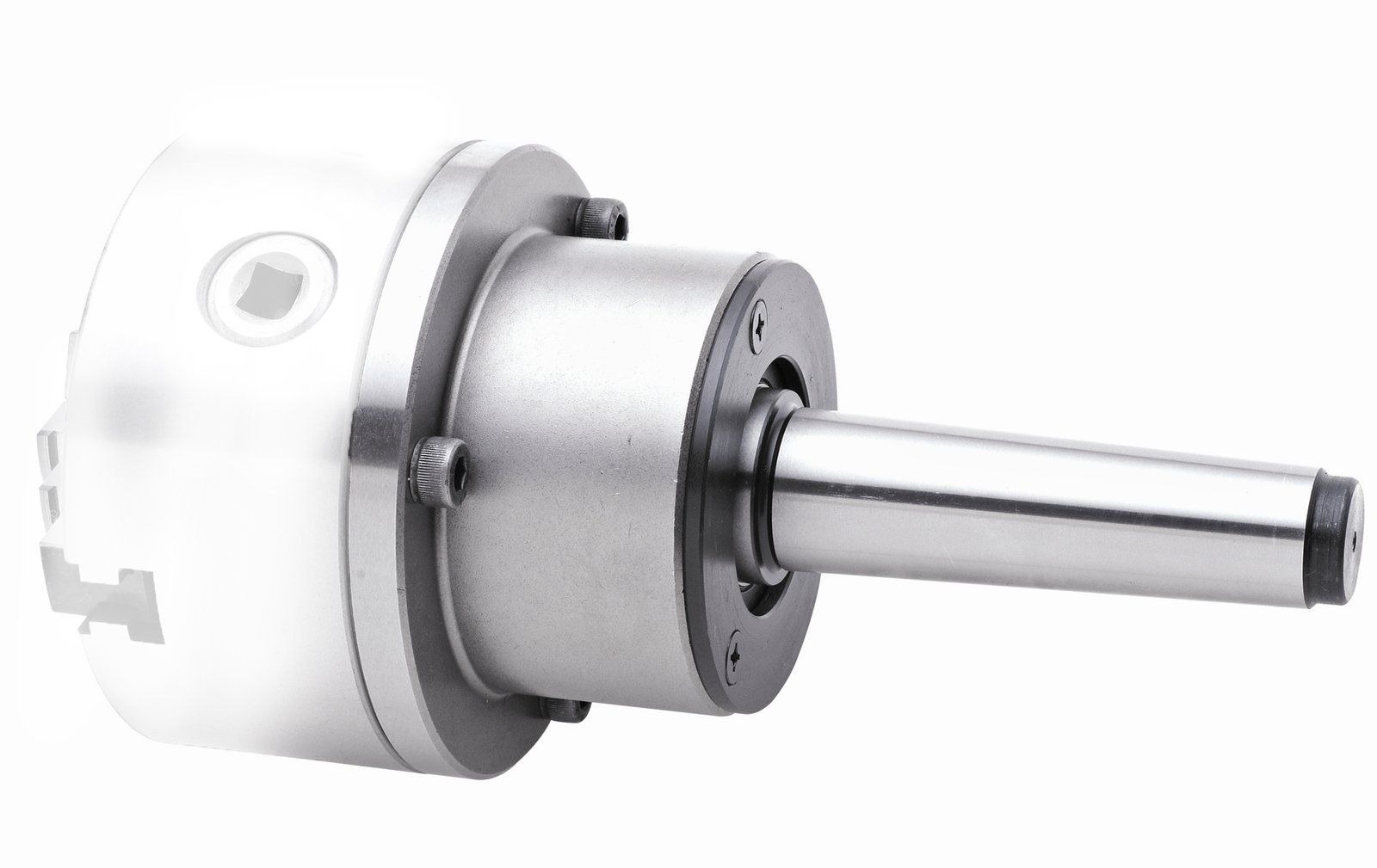

• Lathe chucks are an option and don’t come with the rotating body
• T.I.R. is < .0002"

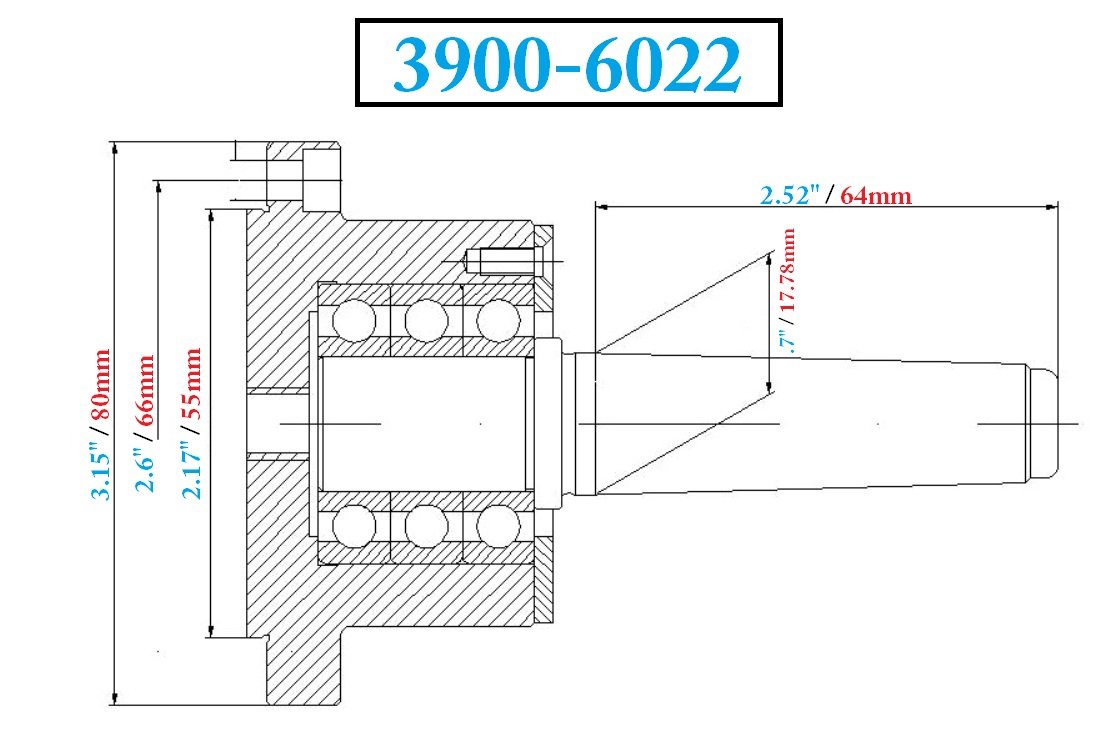

• Please see diagram for dimensions

Specifications

• MT2 X 80MM Revolving Tailstock for 3″ Plain Back Chucks
• Used for calibrating or supporting work pieces during processing.
• Three ball bearings for heavy duty loads and relatively high speed.
• Maximum Load is 1,100 lbs.
• Maximum RPM is 3,500.
• T.I.R. is < .0002".
• Please see diagram for dimensions.
• Lathe chucks are an option and don’t come with the rotating body.
• Weight: 2.4
• Dimensions: L 3, W 6, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
