MT3 7 PIECE INTERCHANGEABLE BULL NOSE LIVE CENTER SET (3900-5053)

MT3 7 PIECE INTERCHANGEABLE BULL NOSE LIVE CENTER SET (3900-5053) (SKU: 3900-5053)

MT3 7 Piece Interchangeable Bull Nose Live Center Set

• Used for CNC machines
• Fine adjustment for better grip
• Made of hardened tool steel and ground to high accuracy
• Two special designed high-quality bearings
• Can be lubricated through a hole on head for smooth operation and longer bearing life
• Heat treated to HRC 60

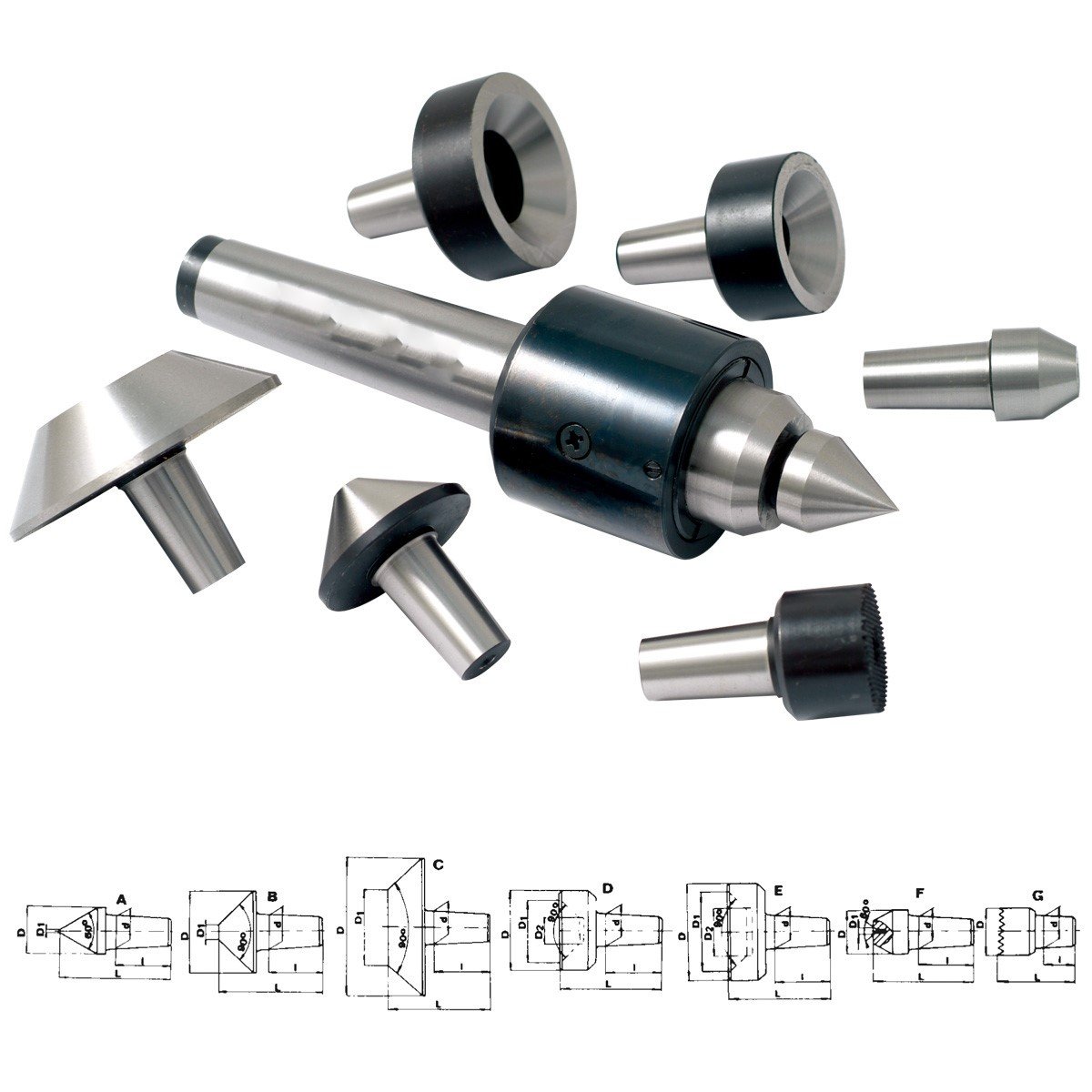

• Kit includes the live center body, 3 bull nose points, 2 cone shaped points, 1 serrated point and 1 wrench
• Maximum RPM is 4,500
• Load rate is 880 lbs

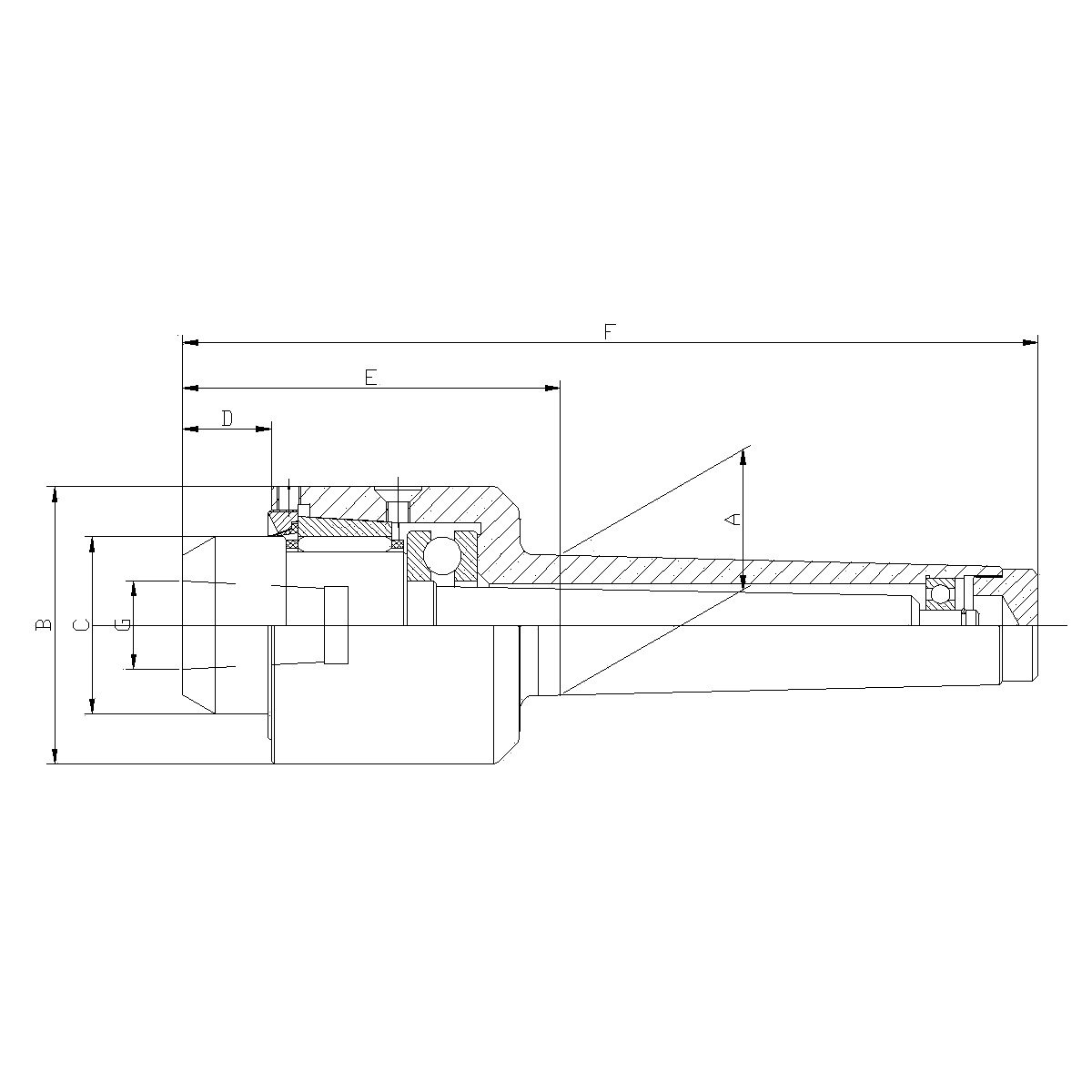

• A is 23.825mm
• B is 47mm
• C is 30mm
• D is 15mm
• E is 93mm
• F is 145mm
• G is 15mm

Specifications

• MT3 7 Piece Interchangeable Bull Nose Live Center Set
• Used for CNC machines.
• Fine adjustment for better grip.
• Made of hardened tool steel and ground to high accuracy.
• Heat treated to HRC 60.
• Two special designed high-quality bearings.
• Can be lubricated through a hole on head for smooth operation and longer bearing life.
• Kit includes the live center body, 3 bull nose points, 2 cone shaped points, 1 serrated point and 1 wrench.
• Maximum RPM is 4,500.
• Load rate is 880 lbs.
• A is 23.825mm. ~ B is 47mm.
• C is 30mm. ~ D is 15mm.
• E is 93mm. ~ F is 145mm.
• G is 15mm.
• Weight: 6
• Dimensions: L 8, W 3, H 9

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
