MVVNN2020K16 Indexable External Tool Turning Lathe Holder for Carbide Insert VNMG
The MVVNN2020K16 is a versatile and robust tool holder designed for indexable turning applications, particularly suited for use with VNMG-style inserts. It features a neutral hand orientation and a 72.5° lead angle, making it ideal for various turning operations. The toolholder utilizes a multi-clamp system to secure the insert firmly, enhancing stability and precision during machining. It is constructed from high-grade tool steel, ensuring durability and optimal performance.
This toolholder is compatible with ISO standards and is suitable for both roughing and finishing tasks, delivering consistent results across various materials.

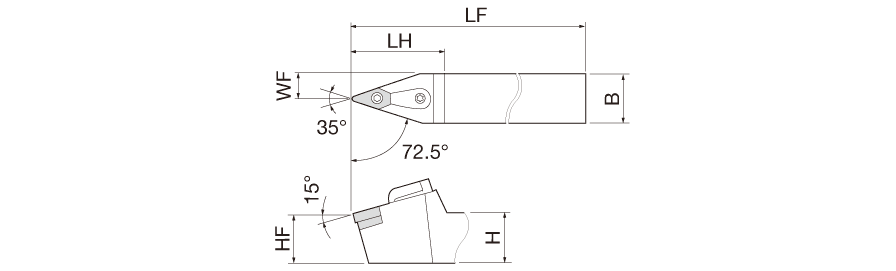

| HAND | H | B | LF | LH | HF | WF | RE | MIID | |
|---|---|---|---|---|---|---|---|---|---|
| N | 20.0 | 20.0 | 125.00 | 48.0 | 20.0 | 10.00 | 0.80 | VNMG160408 |
