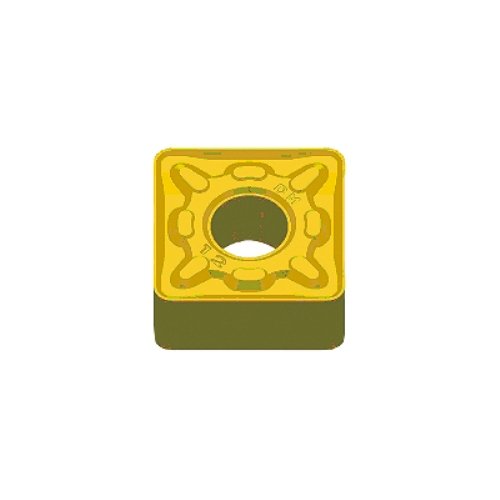

SNMG-543-DM COATED CARBIDE INSERT (6001-5543)

SNMG-543-DM COATED CARBIDE INSERT (6001-5543) (SKU: 6001-5543)

SNMG-543-DM -Rake Square Insert

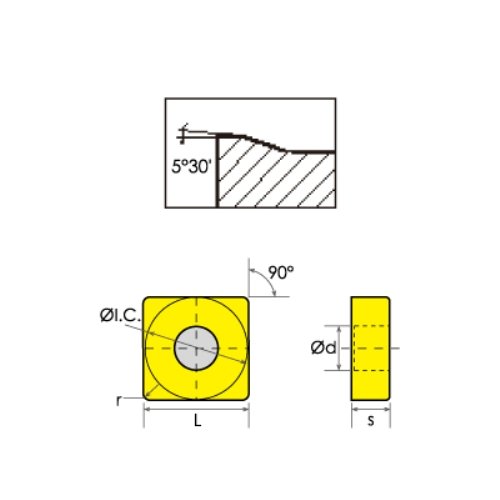

• ISO Insert No. is SNMG150612DM
• I.C. is 5/8″
• L is 5/8″
• S is 1/4″
• d is 1/4″
• r is .0472
• Widely used chipbreaker is used for semi-finishing and finishing of steel and stainless steel
• Grade XAB749 provides a cutting edge with special strength and toughness in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide number of applications
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel

Specifications

• SNMG-543-DM Negative Rake Coated Carbide Insert
• I.C. is 5/8″.
• L is 5/8″.
• S is 1/4″.
• d is 1/4″.
• r is .0472.
• ISO Insert No. is SNMG150612DM
• Widely used chipbreaker is used for semi-finishing and finishing of steel and stainless steel.
• Grade XAB749 provides a cutting edge with special strength and toughness in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide number of applications.
• It is good for finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
