STYLE MTGNR 20-4E TURNING TOOL HOLDER (2013-1204)

STYLE MTGNR 20-4E TURNING TOOL HOLDER (2013-1204) (SKU: 2013-1204)

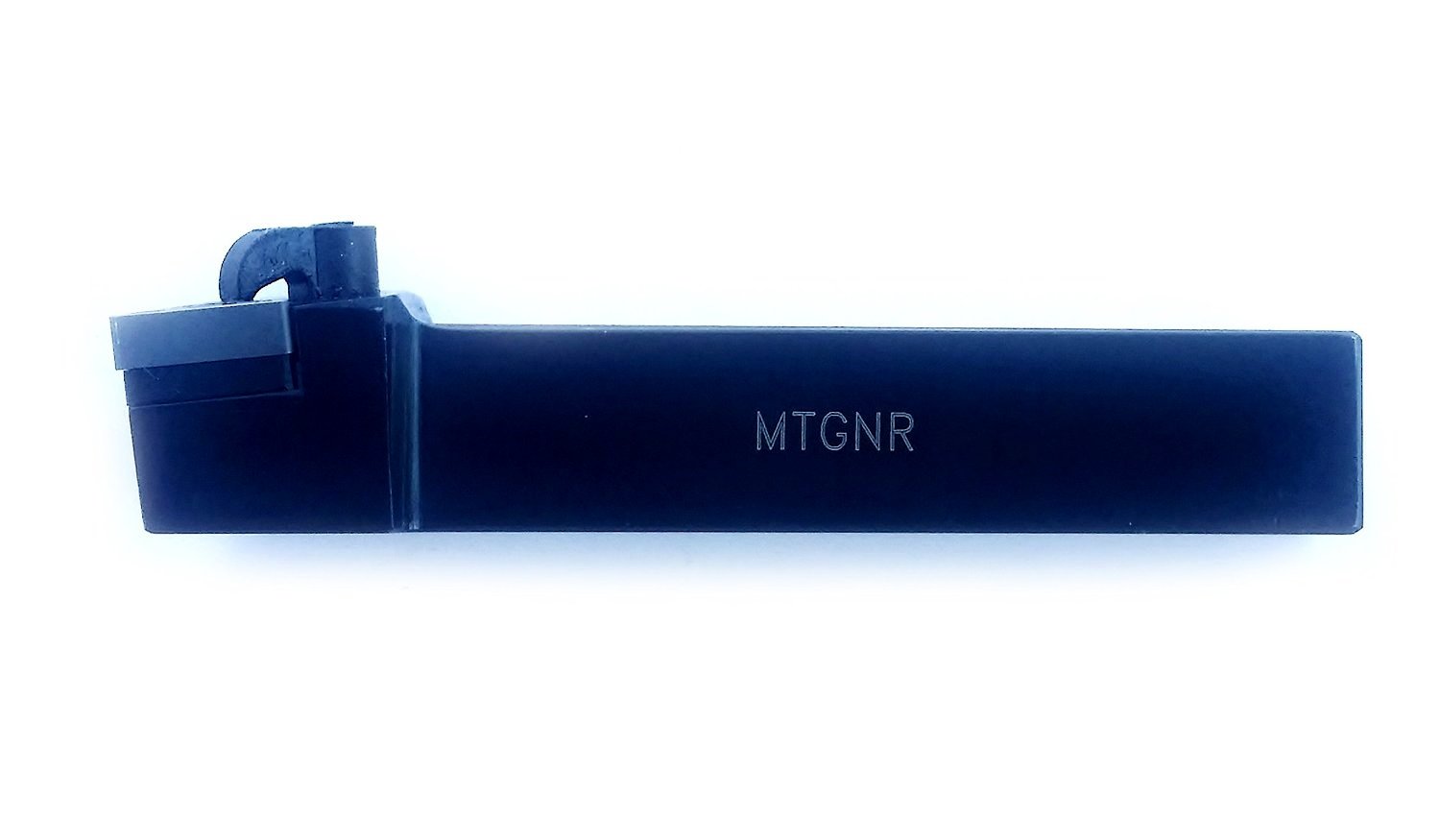

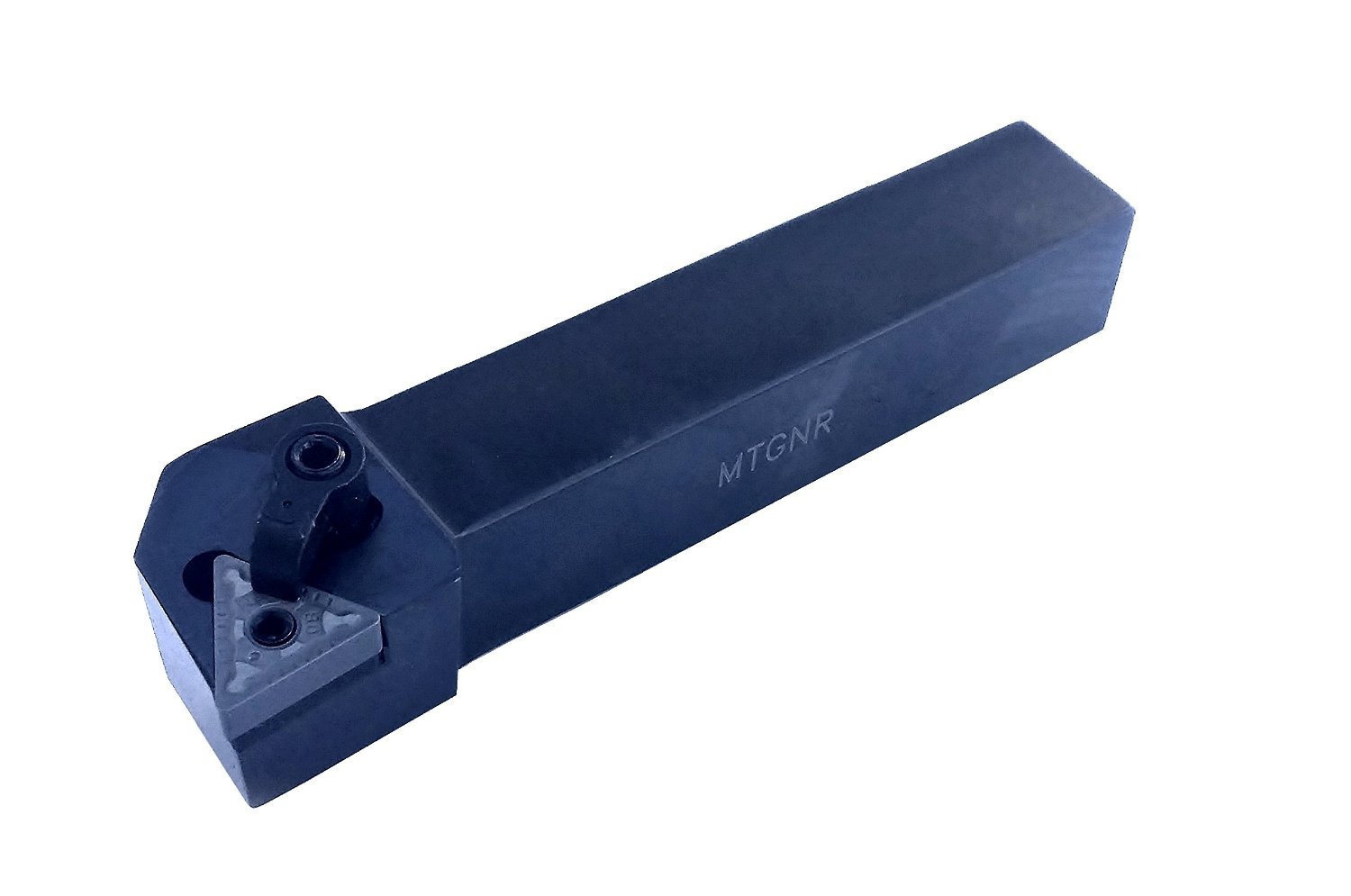

Style MTGNR 20-4E Turning Tool Holder (2013-1204)

• 0 degree lead angle for turning to square shoulders
• 0 degree relief
• Shank is 1-1/4″
• Overall length is 7″
• Offset is 1-1/4″
• Use with TNMG-43 style inserts
• Lock pin is the NL-0617 (#2100-0617)
• Clamp is the CL-12 (#2100-002)
• Clamp screw is the XNS-0829 (#2100-0002)
• Shim is T2203B (#2100-2203)

Specifications

• 0 degree lead angle for turning to square shoulders.
• 0 degree relief.
• Shank is 1-1/4″.
• Overall length is 7″.
• Offset is 1-1/4″.
• Use with TNMG-43 style inserts.
• Lock pin is the NL-0617 (#2100-0617).
• Clamp is the CL-12 (#2100-002).
• Clamp screw is the XNS-0829 (#2100-0002).
• Shim is T2203B (#2100-2203).
• Weight: 3.9
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
