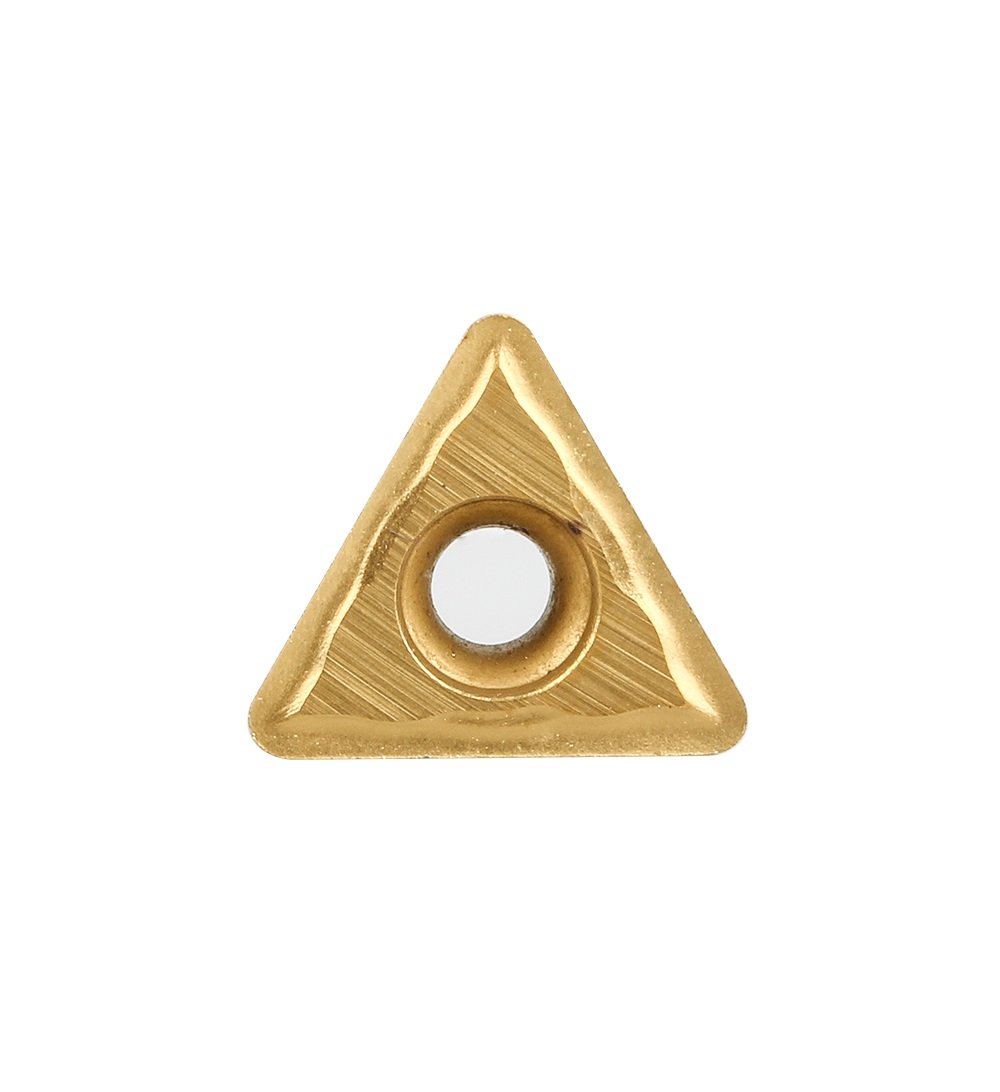

TCMT-32.53-HM COATED CARBIDE INSERT (6004-7033)

TCMT-32.53-HM COATED CARBIDE INSERT (6004-7033) (SKU: 6004-7033)

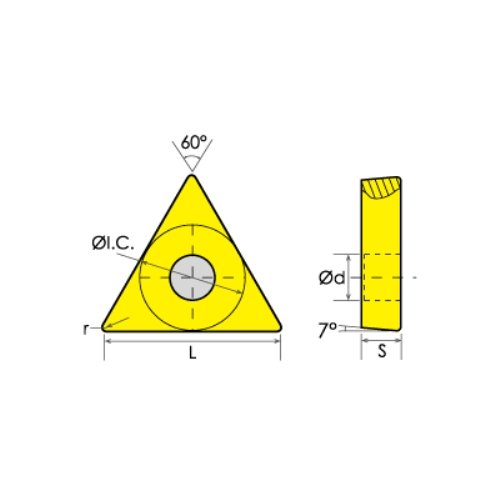

TCMT 32.53-HM Triangle Positive Rake Insert

• I.C. is 3/8″
• L is 5/8″
• S is 5/32″
• d is 0.17″
• r is .0472
• ISO insert number is TCMT16T312HM
• With a sharp wave cutting edge to reduce cutting force, it is the first choice for semi-finishing of internal holes and allows chips to flow smoothly
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide range of applications
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel

Specifications

• TCMT 32.53-HM Coated Carbide Insert
• I.C. is 3/8″.
• L is 5/8″.
• S is 5/32″.
• d is 0.17″.
• r is .0472.
• ISO insert number is TCMT16T312HM.
• With a sharp wave cutting edge to reduce cutting force, it is the first choice for semi-finishing of internal holes and allows chips to flow smoothly.
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide range of applications.
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
