TNMG-331-EM nc-TiAIN COATED CARBIDE INSERT-XAF795 (6050-0331)

TNMG-331-EM nc-TiAIN COATED CARBIDE INSERT-XAF795 (6050-0331) (SKU: 6050-0331)

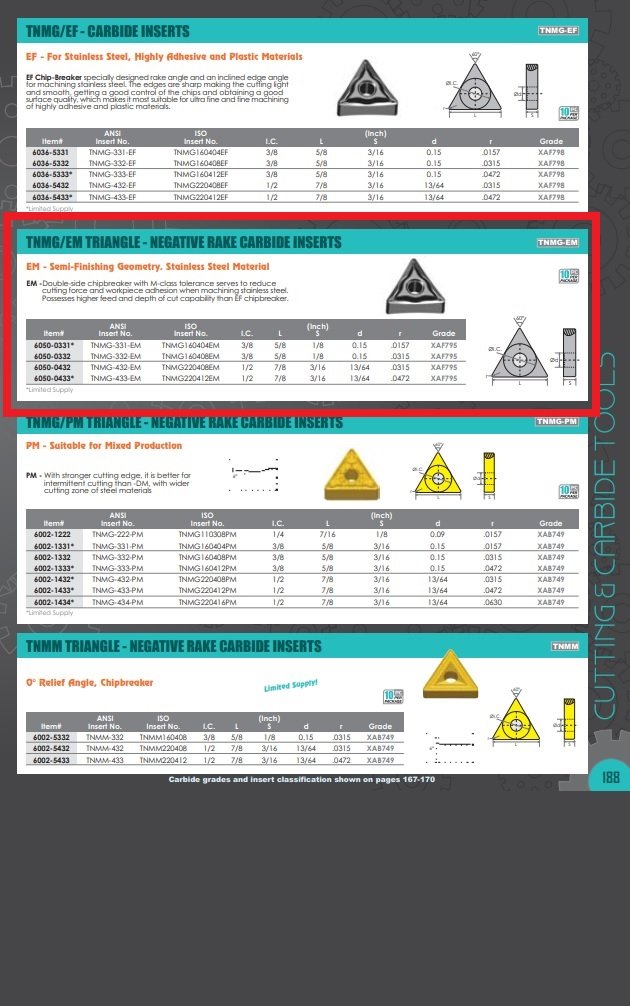

TNMG-331-EM nc-TiAIN Coated Carbide Insert

• EM – Semi-Finishing Geometry. Stainless Steel Material
• EM -Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel
• Possesses higher feed and depth of cut capability than EF chipbreaker
• XAF795: Unique grade material with near perfect wear resistance and high temperature resistance
• The nc-TiAIN coating, ultrafine grain substrate, and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc

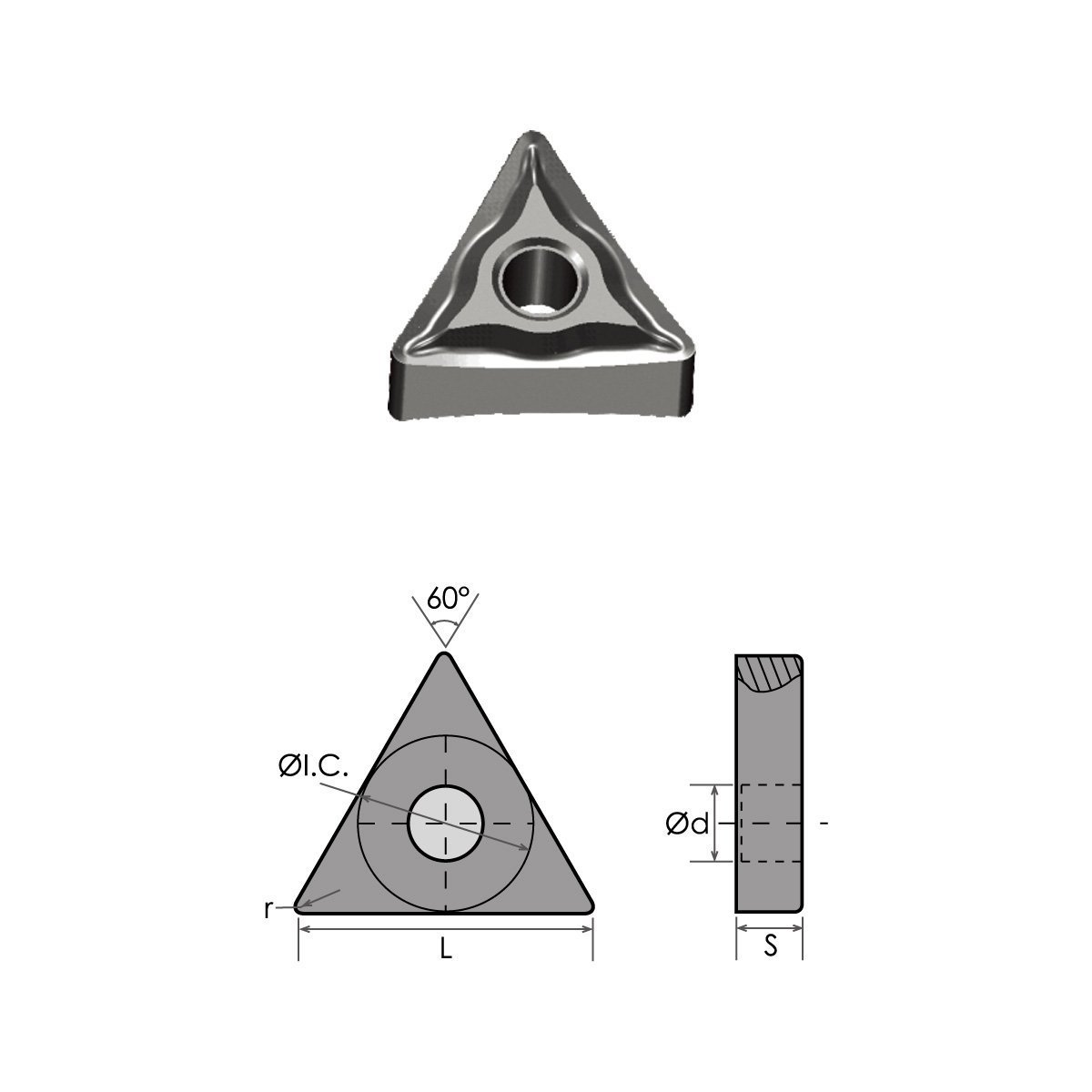

• ISO Insert No. TNMG160404EM
• I.C. is 3/8″
• L is 5/8″
• S is 3/16″
• d is 0.15″
• r is .0157″

Specifications

• TNMG-331-EM nc-TiAIN Coated Carbide Insert
• I.C. is 3/8″.
• L is 5/8″.
• S is 3/16″.
• d is 0.15″.
• r is .0157″.
• ISO Insert No. TNMG160404EM
• These inserts have a double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel.
• Possesses higher feed and depth of cut capability than EF chipbreaker.
• The XAF795 grade offers unique grade material with near perfect wear resistance and high temperature resistance. The nc-TiAIN coating, ultrafine grain substrate, and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc.
• The nc-TiAIN coating, ultrafine grain substrate, and unique surface treatment make this grade suitable for high precision cutting of “difficult to machine” materials, such as stainless steel, etc.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
