TPUN-321 COATED CARBIDE INSERT (6005-2321)

TPUN-321 COATED CARBIDE INSERT (6005-2321) (SKU: 6005-2321)

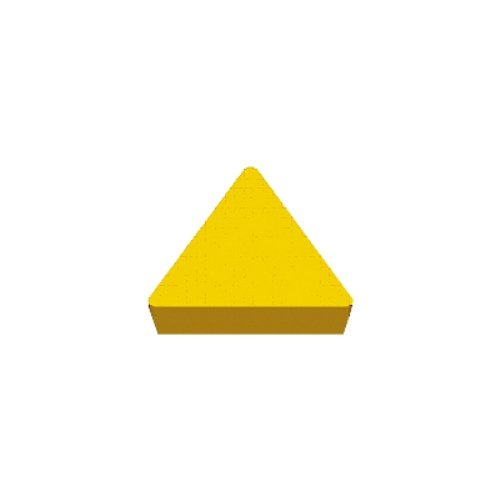

TPUN-321 Positive Rake Triangle Insert with No Hole

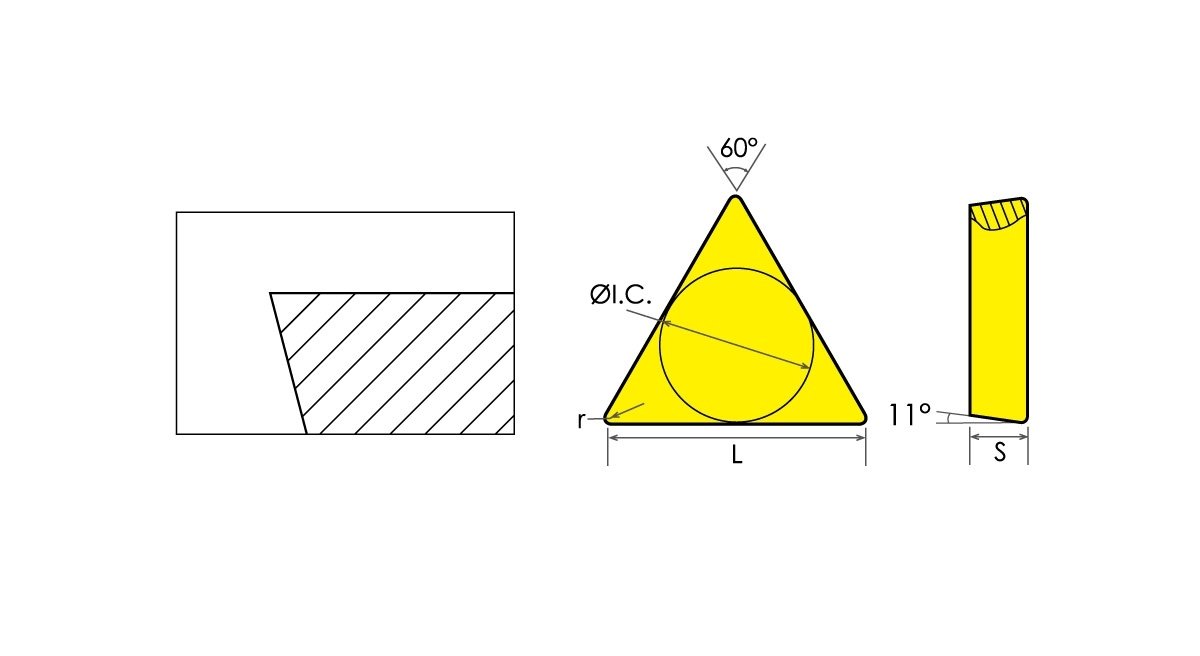

• I.C. is 3/8″
• L is 5/8″
• S is 1/8″
• r is .0157″
• ISO insert number is TPUN160304
• Grade XAC849 is made of substrate with very good wear resistance, made of MT-TiCN with a thick layer of Al2O3TiN coating
• It is the first choice for medium to rough machining of cast iron and nodular cast iron high cutting speed

Specifications

• TPUN-321 Coated Carbide Insert with No Hole
• I.C. is 3/8″.
• L is 5/8″.
• S is 1/8″.
• r is .0157″.
• ISO insert number is TPUN160304.
• Grade XAC849 is made of substrate with very good wear resistance, made of MT-TiCN with a thick layer of Al2O3TiN coating.
• It is the first choice for medium to rough machining of cast iron and nodular cast iron high cutting speed.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
