The Vertex 16 Liter 110V Coolant Pump Kit 3012-8115 provides a practical way to equip compatible drilling machines, milling machines and small lathes with a separate coolant supply.

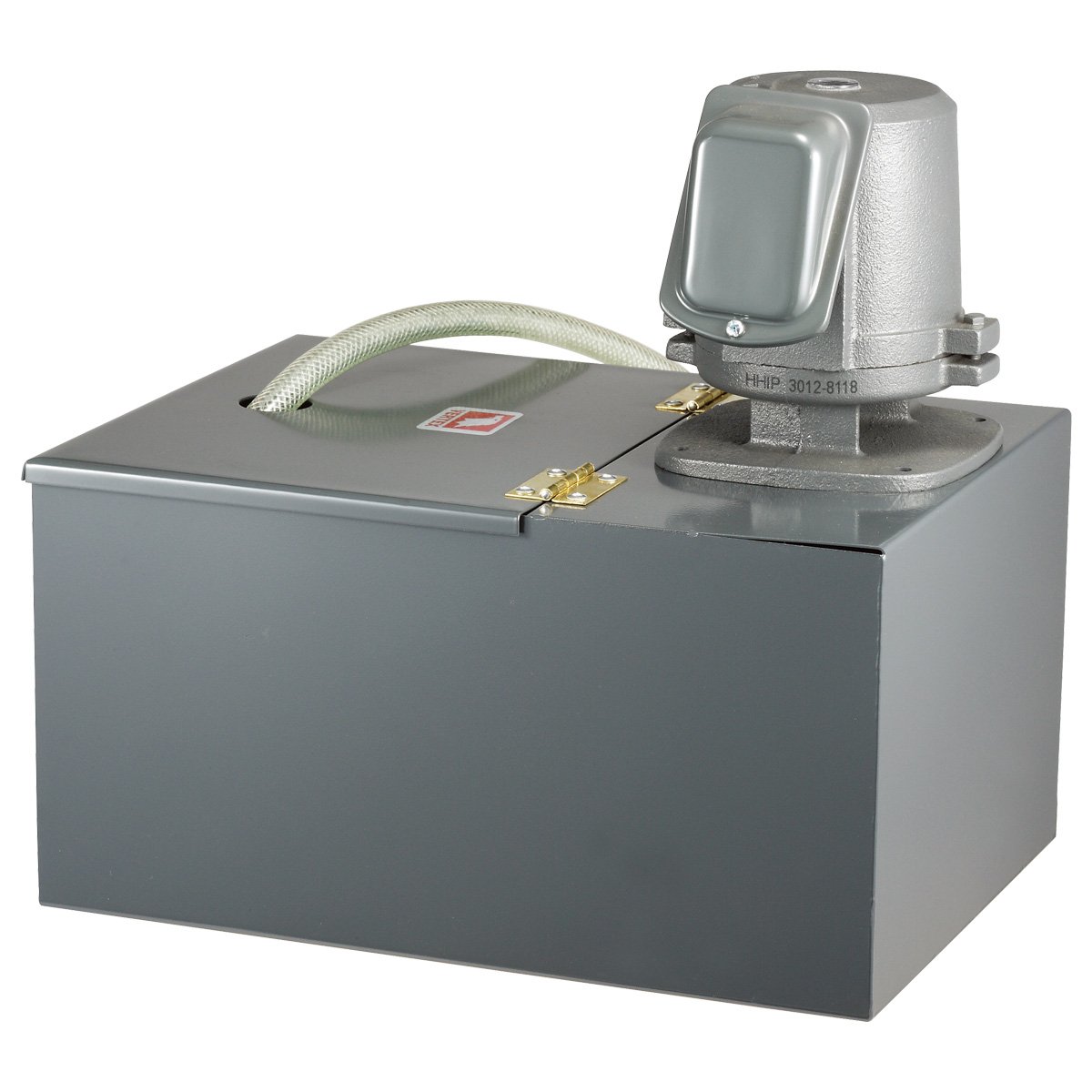

Its self-contained design combines the coolant reservoir, pump and delivery components in one portable assembly. This makes it particularly useful when upgrading a machine that does not have an integrated coolant system or when a separate coolant unit is preferred.
The compact 16-liter tank measures only 15.8 inches long, 9.9 inches wide and 7.3 inches high, allowing the system to be positioned near compatible bench and floor-mounted equipment without requiring a large reservoir installation.
Complete Pump, Tank and Hose Package
This is more than an individual replacement pump. The kit includes the main components needed to create a basic machine-tool coolant circulation setup:

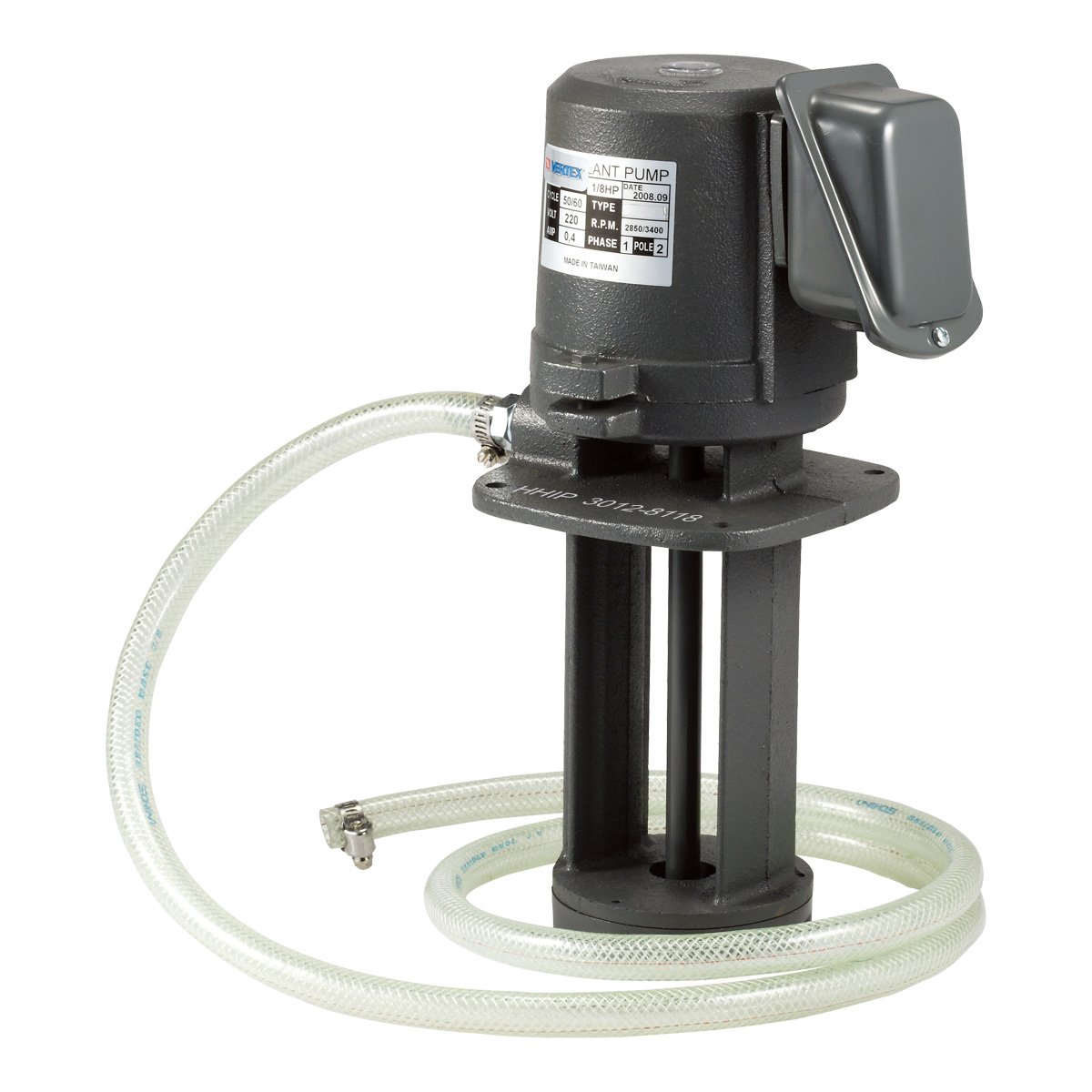

- Coolant pump
- 16-liter coolant tank
- Connecting cable
- Coolant delivery hose with magnetic base
- Flexible conveying hose
- Drain hose

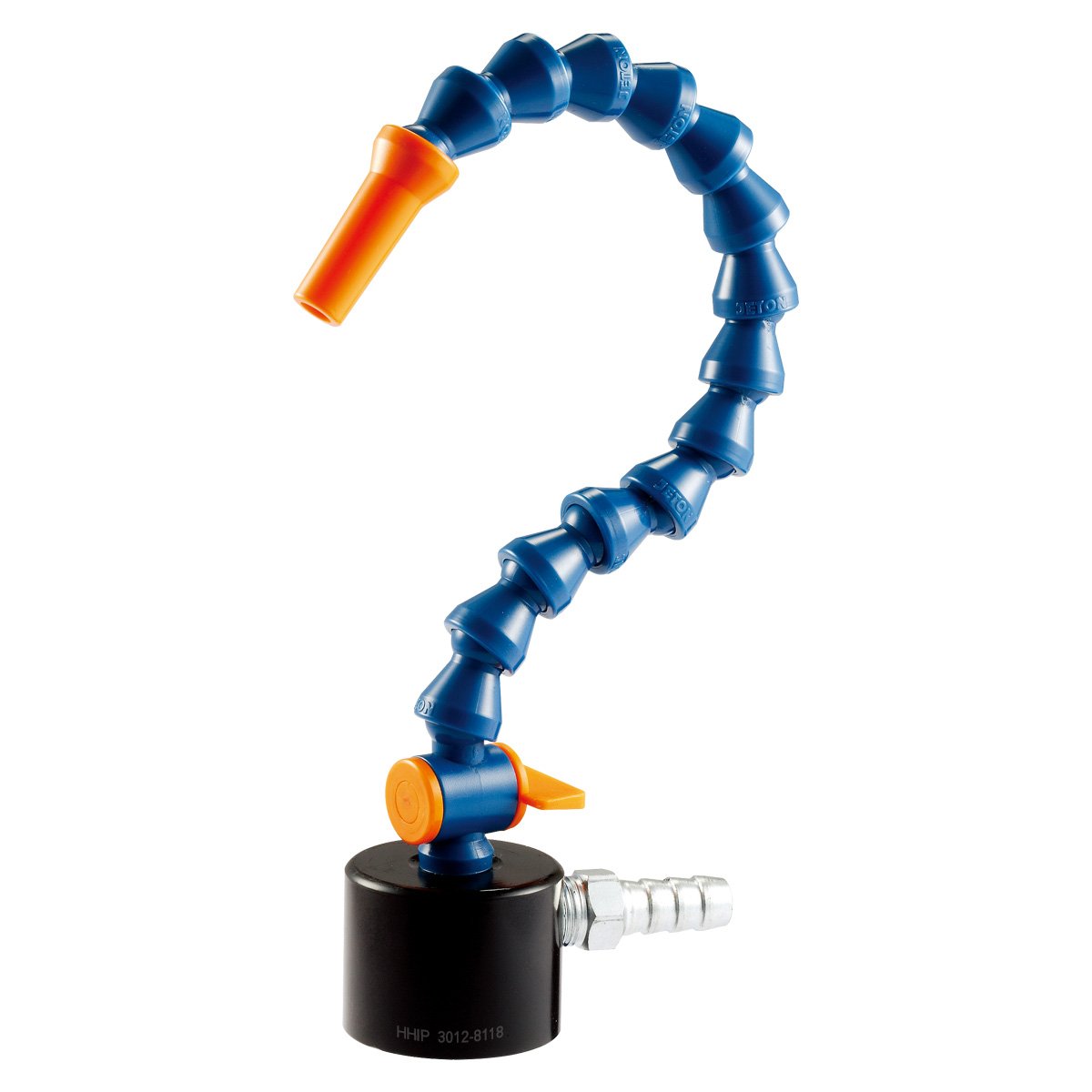

The magnetic base allows the coolant outlet to be positioned near the cutting area on a compatible machine surface. This provides more flexibility than a permanently mounted nozzle when the same coolant unit must accommodate different setups or machines.
110V Single-Phase Shop Compatibility
The pump operates on 110V single-phase power, making it suitable for shops with a compatible electrical supply. A dedicated three-phase electrical connection is not required.
Its portable configuration can be useful for:
- Drill presses without factory coolant equipment
- Compact vertical milling machines
- Small engine lathes
- Toolroom and maintenance machines
- Training and vocational machine shops
- Retrofitting compatible equipment with an external coolant reservoir
Compact Alternative to an Integrated Coolant System
Choose this Vertex kit when you need a complete external tank-and-pump assembly instead of only a replacement immersion pump.
Its key advantage is the combination of a compact reservoir, separate coolant delivery line and magnetic-base nozzle in one package. Before installation, confirm that the machine provides an appropriate coolant collection and return path.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Vertex |
| Product type | Machine tool coolant pump kit |
| Manufacturer model | VWP-81-150K-111 |
| Product number | 3012-8115 |
| Tank capacity | 16 liters |
| Power supply | 110V |
| Phase | Single phase |
| Motor rating* | 1/4 HP |
| Overall length | 15.8 in. |
| Overall width | 9.9 in. |
| Overall height | 7.3 in. |
| Approximate kit weight* | 24 lb |
| Country of origin | Taiwan |
Hose and Cable Dimensions
| Component | Size |
|---|---|
| Magnetic-base coolant hose | 1/4 in. diameter × 13 in. long |
| Flexible conveying hose | 3/8 in. diameter × 6 in. long |
| Drain hose | 1 in. diameter × 11.81 in. long |
| Connecting cable* | 7.9 in. |
Package Includes
- Vertex coolant pump
- 16-liter coolant tank
- Connecting cable
- Coolant hose kit with magnetic base
- Flexible conveying hose
- Drain hose
Recommended Applications
This coolant kit is designed for use with compatible:
- Drill presses and drilling machines
- Bench and compact milling machines
- Small manual lathes
- Toolroom equipment
- General metalworking machines requiring an external coolant supply
Selection and Installation Notes
Before ordering, verify:
- The machine and shop circuit are compatible with 110V single-phase power.
- The tank capacity is appropriate for the intended operation.
- The machine has a suitable method for collecting and returning coolant.
- The magnetic hose base can be positioned securely on the intended surface.
- The supplied hose lengths and diameters fit the planned installation.
- The coolant selected is compatible with the pump, machine and workpiece material.
Coolant is not listed as included. Do not operate the system until it has been installed and filled according to the equipment instructions.
Frequently Asked Questions
Is this only a replacement coolant pump?
No. It is a complete external kit containing the coolant pump, 16-liter reservoir, magnetic-base coolant hose, conveying hose and drain hose.
Which machines can use this coolant pump kit?
It is intended for compatible drilling machines, milling machines, small lathes and other equipment requiring an external coolant supply. Machine layout and coolant return provisions should be checked before installation.
Does it require three-phase power?
No. This version is specified for 110V single-phase power.
Can the coolant nozzle be repositioned?
Yes. The supplied coolant hose has a magnetic base, allowing it to be repositioned on a suitable ferrous machine surface.
Is coolant included?
Coolant is not identified as part of the supplied kit and should be purchased separately according to the application and machine requirements.
Is this the same as the Vertex 3-gallon kit?
No. This is the 16-liter model 3012-8115, Vertex VWP-81-150K-111. Its capacity, dimensions and included components should be evaluated independently from the 3-gallon model.
