VERTEX 4″ SELF-CENTERING CNC VISE (3900-2216)

VERTEX 4″ SELF-CENTERING CNC VISE (3900-2216) (SKU: 3900-2216)

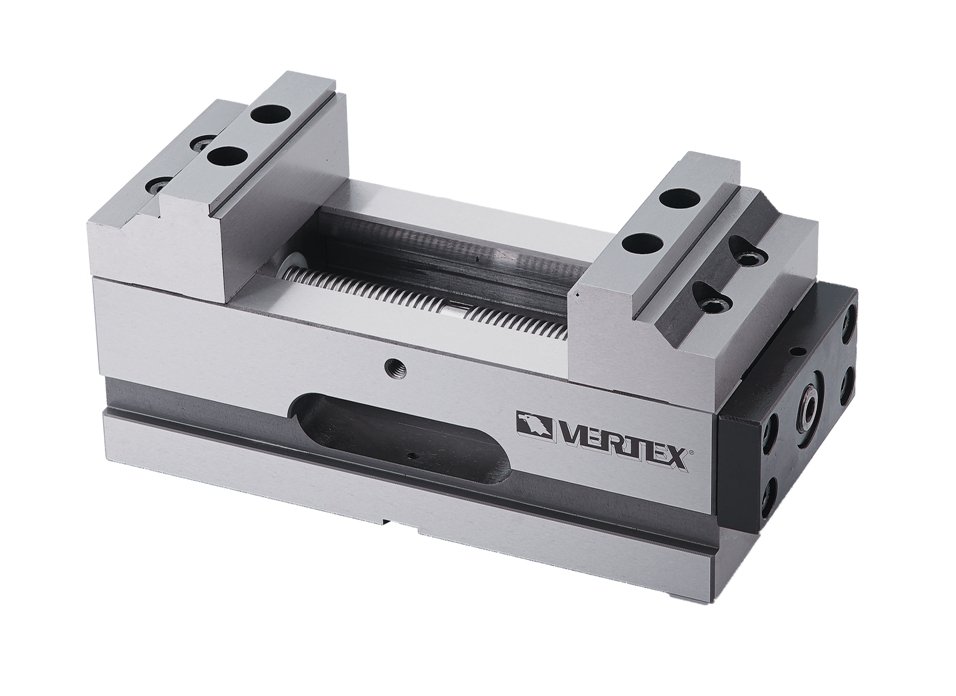

Vertex 4″ Self-Centering CNC Vise

• Reversable jaw
• Suitable for 4 or 5 axis CNC machines
• Repeat clamping tolerance is +/-0.0004″/0.01mm
• FCD 60 high tension cast iron slide way has a hardness of HRC 45
• Interchangeable jaw heat treated to HRC 50
• Lock down design to keep work piece from lifting
• Jaw depth is 1.57″
• Jaw width is 3.98″
• Jaw opening is 5.2″
• Clamping capacity is 2.44-7.56″
• Maximum clamping force is 400 kgf
• Torque for clamping is 2.6m/kgf

Specifications

• Vertex 4″ Self-Centering CNC Vise
• Reversable jaw.
• Suitable for 4 or 5 axis CNC machines.
• Repeat clamping tolerance is +/-0.0004″/0.01mm.
• FCD 60 high tension cast iron slide way has a hardness of HRC 45.
• Interchangeable jaw heat treated to HRC 50.
• Lock down design to keep work piece from lifting.
• Jaw depth is 1.57″.
• Jaw width is 3.98″.
• Jaw opening is 5.2″.
• Clamping capacity is 2.44-7.56″.
• Maximum clamping force is 400 kgf.
• Torque for clamping is 2.6m/kgf.
• Vertex # VCV-10130
• Weight: 41.2
• Dimensions: L 9, W 8, H 12

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
