VERTEX FLANGE FOR 5″ 3-JAW CHUCK ON 6 & 8″ ROTARY TABLES (3900-2352)

VERTEX FLANGE FOR 5″ 3-JAW CHUCK ON 6 & 8″ ROTARY TABLES (3900-2352) (SKU: 3900-2352)

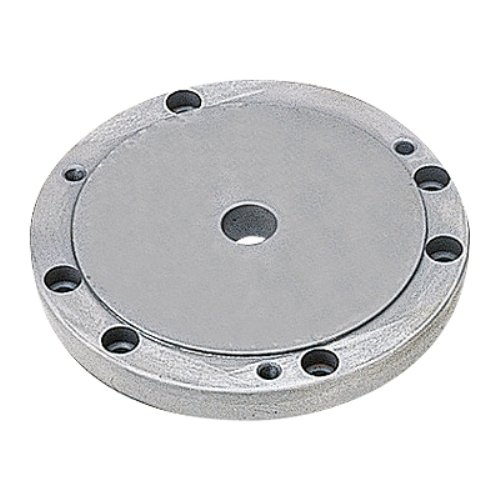

Flange for a 5″ 3-Jaw Chuck on a 6 or 8″ Rotary Table

• Made in Taiwan
• For adapting a chuck to a rotary table
• Compatible with our Pro-Series rotary tables
• Hole pattern may need to be modified for all other brands of rotary tables

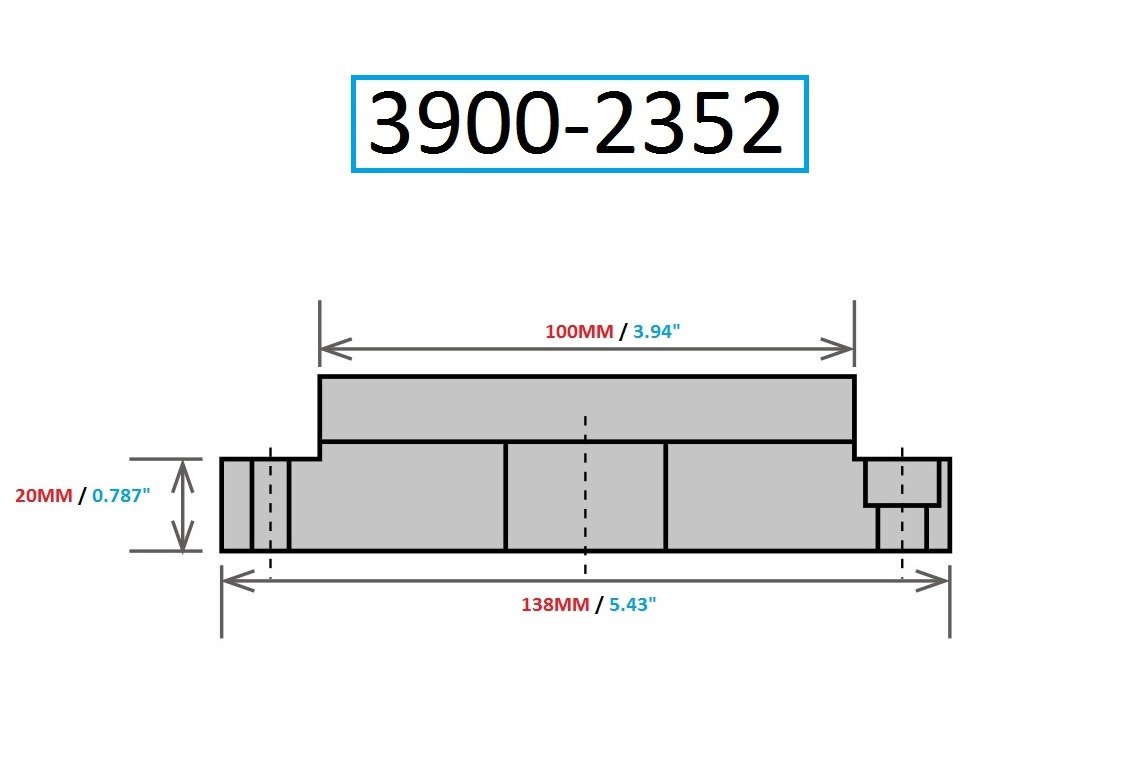

• Diameter is 5.43
• Recess diameter is 3.94
• Thickness is 0.787

Specifications

• Flange for a 5″ 3-Jaw Chuck on a 6 or 8″ Rotary Table
• Made in Taiwan.
• For adapting a chuck to a rotary table.
• Compatible with our Pro-Series rotary tables.
• Hole pattern may need to be modified for all other brands of rotary tables.
• Diameter is 5.43.
• Recess diameter is 3.94.
• Thickness is 0.787.
• Vertex # FLT-0
• Weight: 4.5
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
