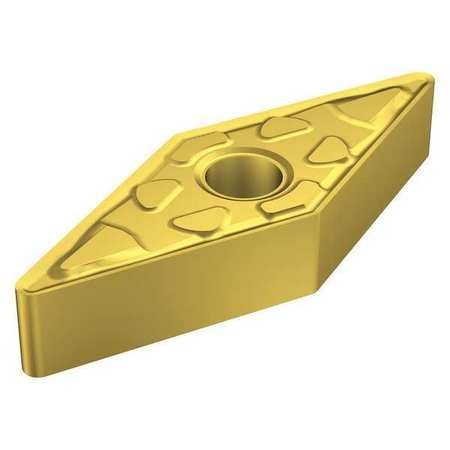

VNMG-332-PM COATED CARBIDE INSERT (6002-9332)

VNMG-332-PM COATED CARBIDE INSERT (6002-9332) (SKU: 6002-9332)

VNMG-332-PM 35 Degree Diamond Negative Rake Insert

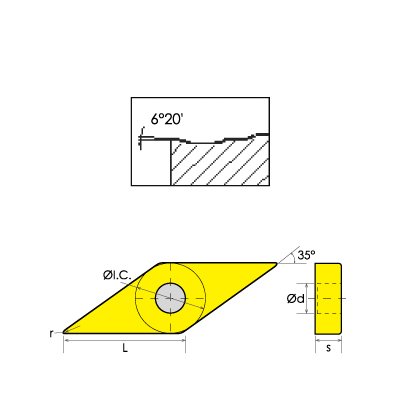

• I.C. is 3/8″
• L is 5/8″
• S is 3/16″
• d is 0.15″
• r is .0315.”
• ISO Insert No. is VNMG160408PM
• With a stronger cutting edge, this insert is better for intermittent cutting and has a wider cutting zone for steel materials
• Suitable for mixed production
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating
• It is a suitable grade for a wide range of applications
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel

Specifications

• VNMG-332-PM 35 Degree Diamond Negative Rake Coated Carbide Insert
• I.C. is 3/8″.
• L is 5/8″.
• S is 3/16″.
• d is 0.15″.
• r is .0315.”
• ISO Insert No. is VNMG160408PM.
• With a stronger cutting edge, this insert is better for intermittent cutting and has a wider cutting zone for steel materials.
• Suitable for mixed production.
• Grade XAB749 offers a cutting edge with special strength and toughness, in an optimal combination with MT-TiCN, thick layer Al2O3TiN coating.
• It is a suitable grade for a wide range of applications.
• It is good for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
