WNMG-431-EF TiCNAL COATED CARBIDE INSERT (6039-5431)

WNMG-431-EF TiCNAL COATED CARBIDE INSERT (6039-5431) (SKU: 6039-5431)

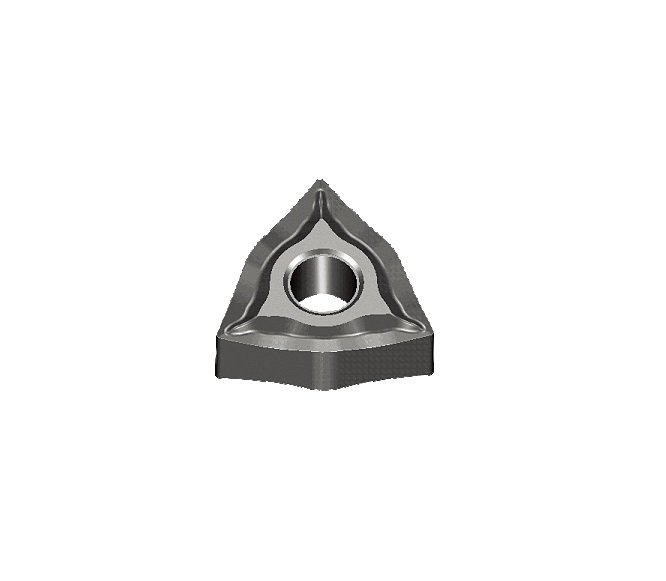

WNMG-431-EF TiCNAL Coated Carbide Insert

• I.C. is 1/2″
• L is 0.343″
• S is 3/16″
• d is 13/64″
• r is .0157″
• ISO insert number is WNMG080404EF
• Chip-breaker has a specially designed rake angle and an inclined edge angle for machining stainless steel
• The edges are sharp so cutting is light and smooth
• Allows for good control of the chips
• Helps you obtain good surface quality, which makes it most suitable for ultra fine and fine machining of highly adhesive and plastic materials
• Grade XAF798 inserts are a combination of 2-4um nc-TiAIN coating and ultrafine grain carbide substrate with high strength and toughness
• Suitable for light to medium milling, and boring of all kinds of materials
• Recommended for finish and semi-finish turning of stainless steel and roughing turning of high-temperature alloys

Specifications

• WNMG-431-EF TiCNAL Coated Carbide Insert
• I.C. is 1/2″.
• L is 0.343″.
• S is 3/16″.
• d is 13/64″.
• r is .0157″.
• ISO insert number is WNMG080404EF.
• Chip-breaker has a specially designed rake angle and an inclined edge angle for machining stainless steel.
• The edges are sharp so cutting is light and smooth.
• Allows for good control of the chips.
• Helps you obtain good surface quality, which makes it most suitable for ultra fine and fine machining of highly adhesive and plastic materials.
• Grade XAF798 inserts are a combination of 2-4um nc-TiAIN coating and ultrafine grain carbide substrate with high strength and toughness.
• Suitable for light to medium milling, and boring of all kinds of materials.
• Recommended for finish and semi-finish turning of stainless steel and roughing turning of high-temperature alloys.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
