0.03″ DIAL TEST & 1″ DIAL INDICATORS WITH UNI MAGNETIC BASE (4400-0018)

$151.88

0.03″ DIAL TEST & 1″ DIAL INDICATORS WITH UNI MAGNETIC BASE (4400-0018). Key features: 3 Piece Set with 0.03″ Dial Test Indicator, 1″ Dial Indicator & Uni Magnetic Base.

Request Quote

Availability: In stock

SKU: 4400-0018 Categories: ,
Guaranteed Safe Checkout

0.03″ DIAL TEST & 1″ DIAL INDICATORS WITH UNI MAGNETIC BASE (4400-0018) (SKU: 4400-0018)

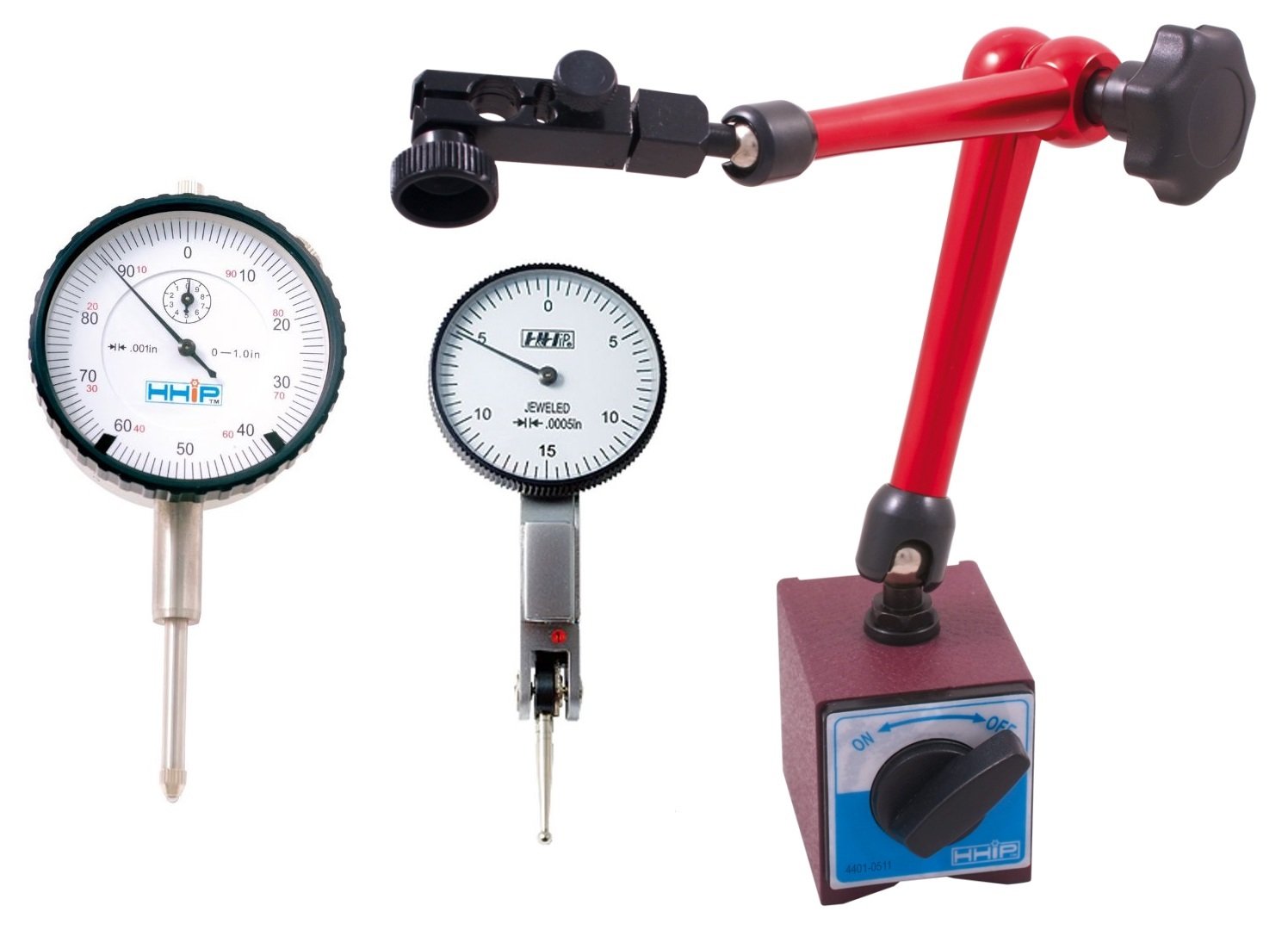

3 Piece Set with 0.03″ Dial Test Indicator, 1″ Dial Indicator & Uni Magnetic Base

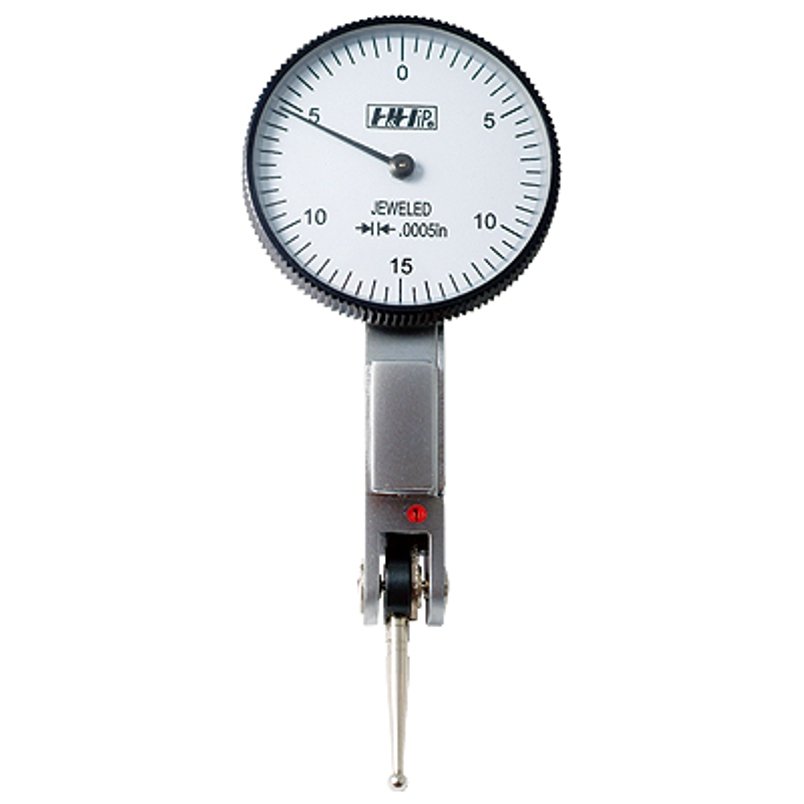

  • 0-0.03″ Indicator Specifications: dovetail mount top, back, & front; fitted case & 2 stems (7/32″ & 1/4″); reading is 0-15-0; graduation is .0005″; precision pivot bearing; 0.098″ contact point; satin chrome finish; jeweled movements; automatic reversing

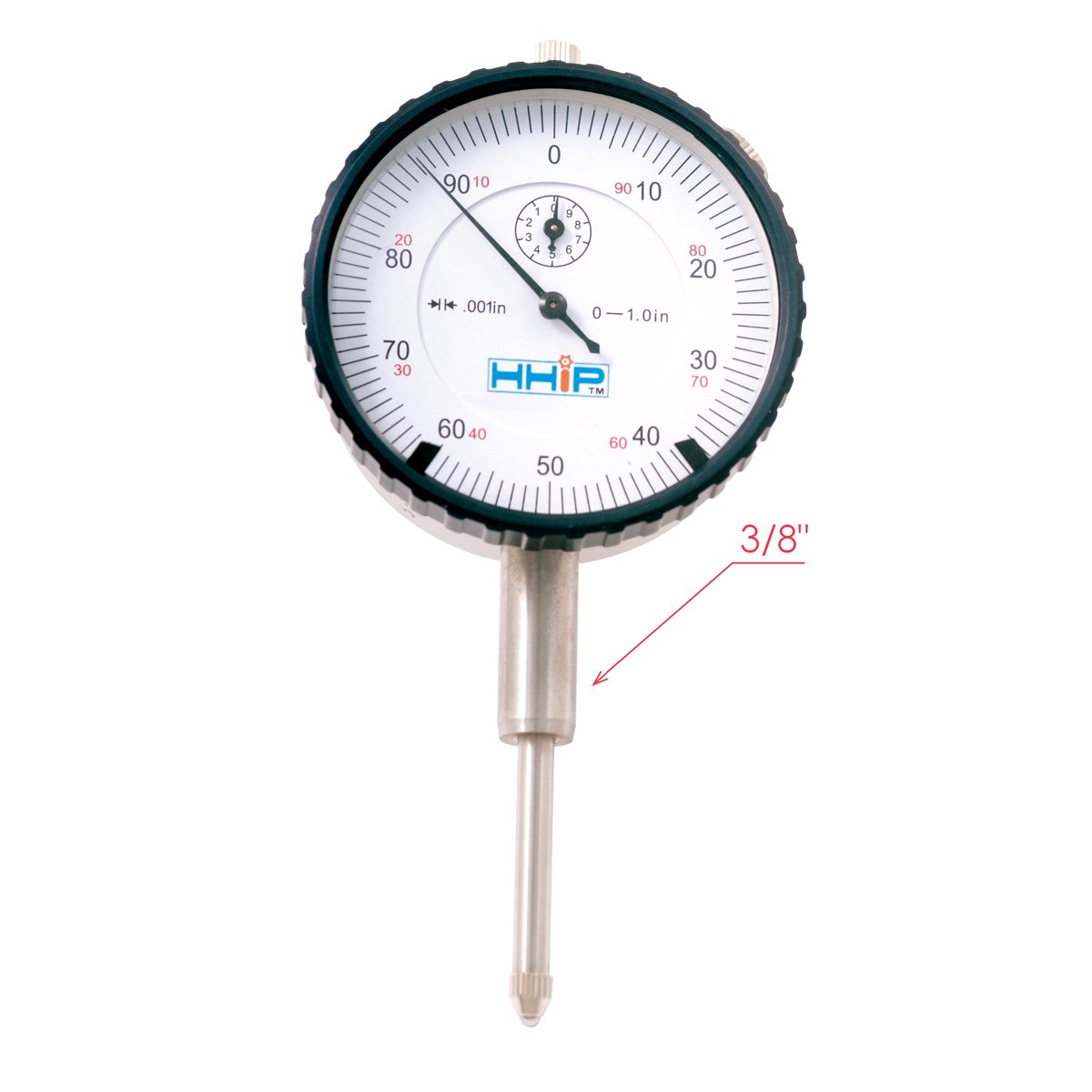

  • 0-1″ Dial Indicator Specifications: graduation is .001″; contact point has 4-48 thread; stem is 3/8″ diameter; rack & contact point are made of hardened stainless steel; jeweled movement; 2″ diameter dial face; lug back

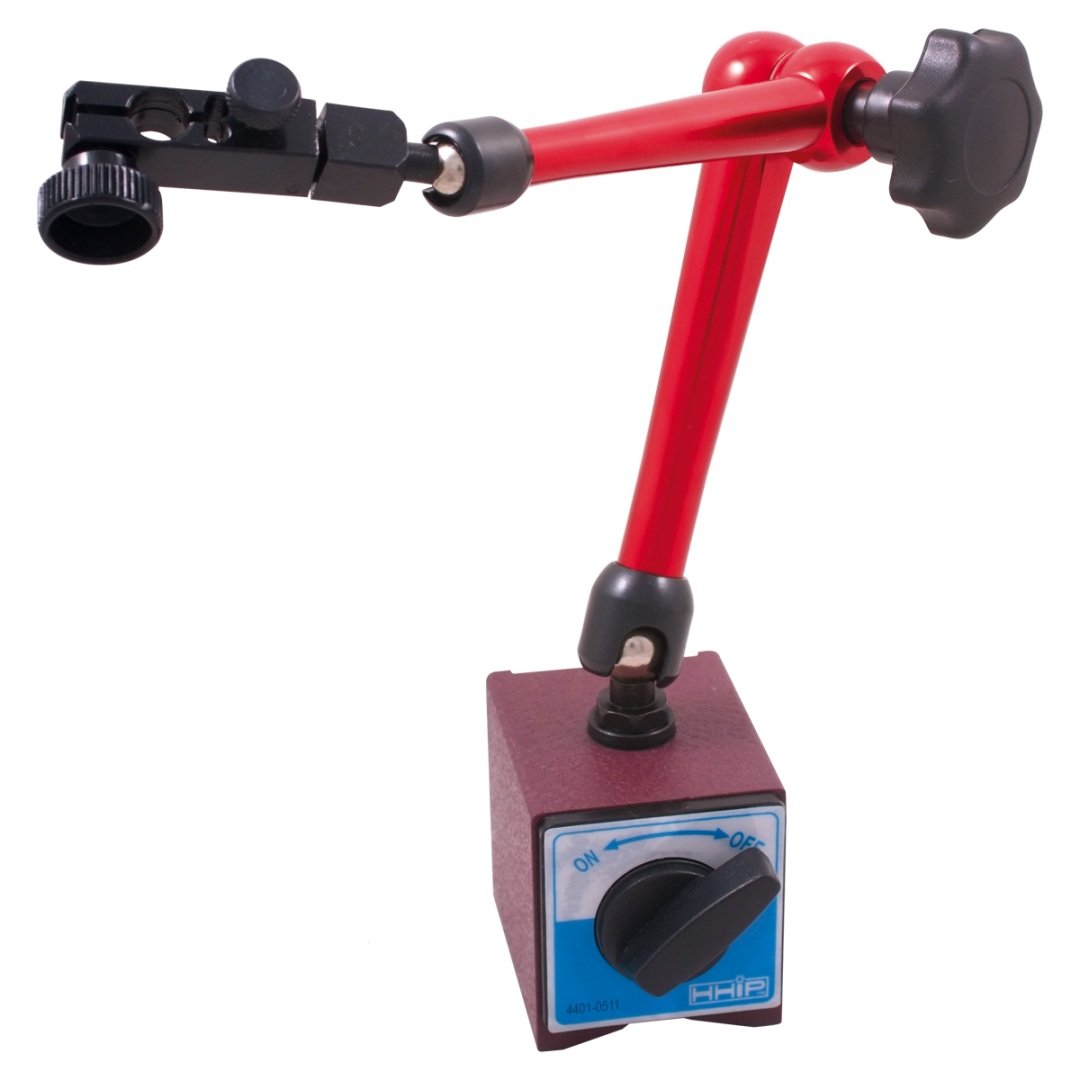

  • Uni Magnetic Base Specifications: 3-D rigid steel arm movement; unique central locking mechanism; fine adjustable; on/off switch; super power pull of 130 lbs.; base dimension is 2″ (Width) X 2-1/2″ (Depth)

Specifications

  • 3 Piece Set with 0.03″ Dial Test Indicator, 1″ Dial Indicator & Uni Magnetic Base
  • 0-0.03″ Indicator Specifications: dovetail mount top, back, & front; fitted case & 2 stems (7/32″ & 1/4″); reading is 0-15-0; graduation is .0005″; precision pivot bearing; 0.098″ contact point; satin chrome finish; jeweled movements; automatic reversing.
  • 0-1″ Dial Indicator Specifications: graduation is .001″; contact point has 4-48 thread; stem is 3/8″ diameter; rack & contact point are made of hardened stainless steel; jeweled movement; 2″ diameter dial face; lug back.
  • Uni Magnetic Base Specifications: 3-D rigid steel arm movement; unique central locking mechanism; fine adjustable; on/off switch; super power pull of 130 lbs.; base dimension is 2″ (Width) X 2-1/2″ (Depth).
  • Weight: 4
  • Dimensions: L 4, W 8, H 4

Benefits

  • Supports faster setup verification and in-process inspection.
  • Helps reduce measurement errors and rework in the shop.
  • Appropriate for quality-control routines and repeatability.

Recommended use

  • Verify power and connection compatibility before installation.
  • Mount securely and protect cables from moving parts.
  • Zero and verify readings before critical measurements.

USA Warehouse Stock — Fast U.S. fulfillment.

Weight4.0 lbs
Dimensions4.0 × 8.0 × 4.0 in
