DASQUA 2 PIECE FINE ADJUST MAGNETIC BASE & 1″ INDICATOR SET (7611-2010)

DASQUA 2 PIECE FINE ADJUST MAGNETIC BASE & 1″ INDICATOR SET (7611-2010) (SKU: 7611-2010)

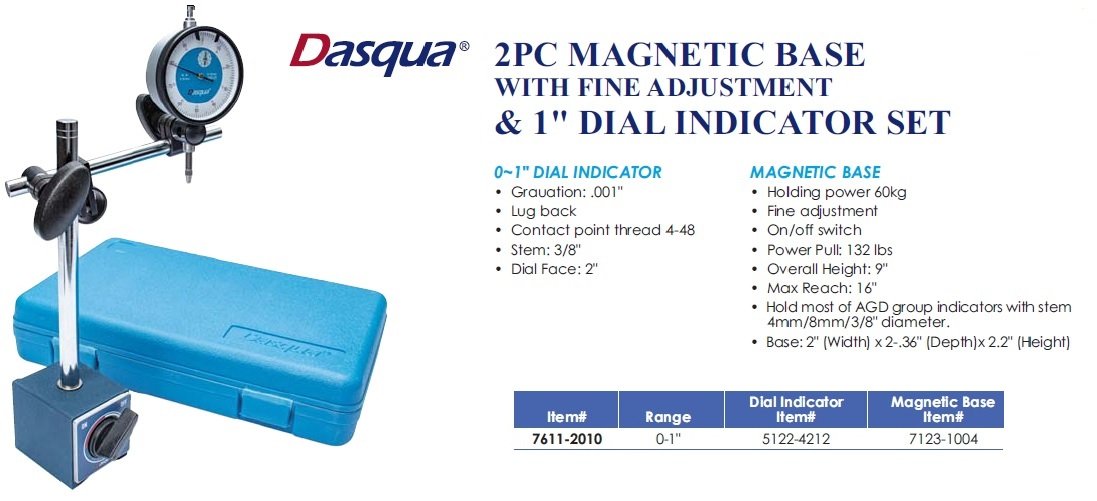

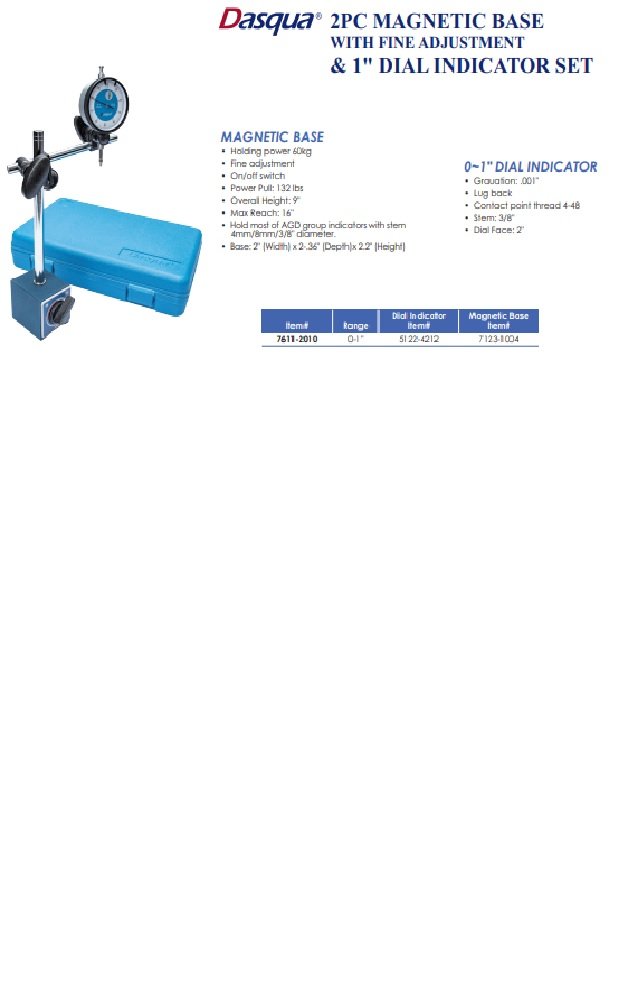

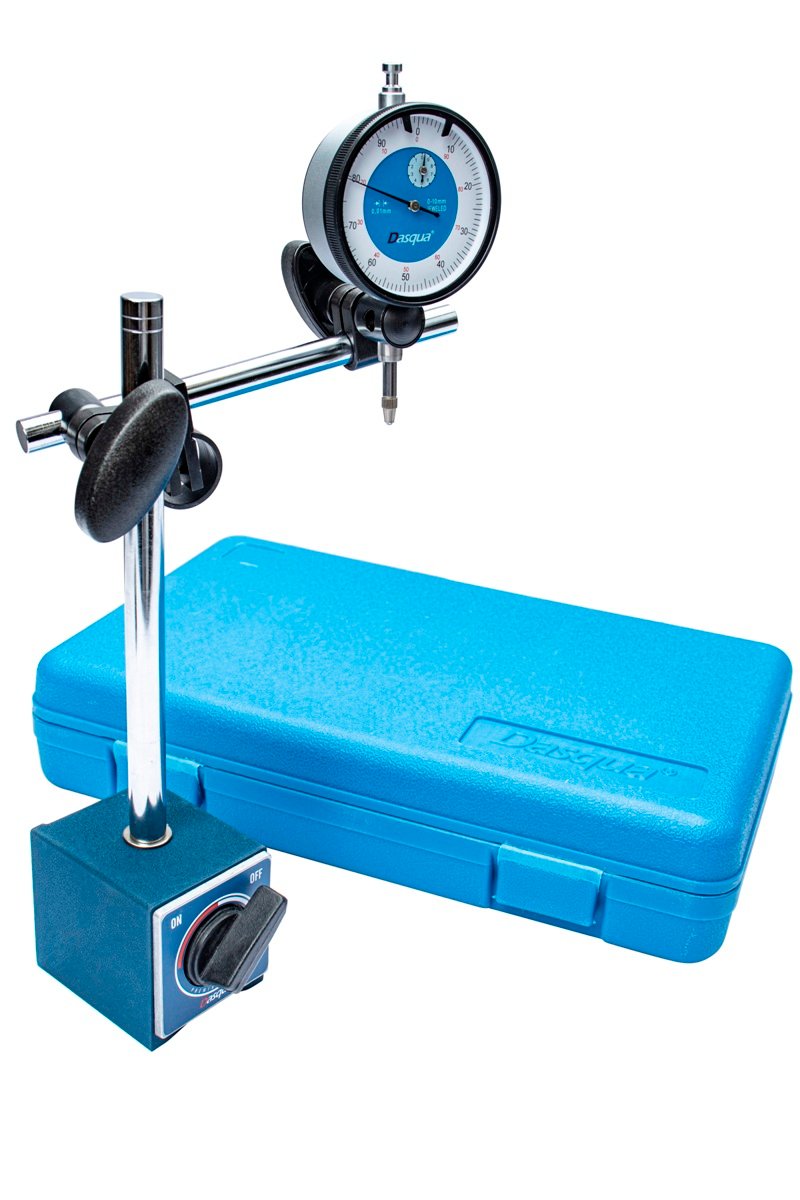

Dasqua 2 Piece Magnetic Base and 1″ Indicator Set

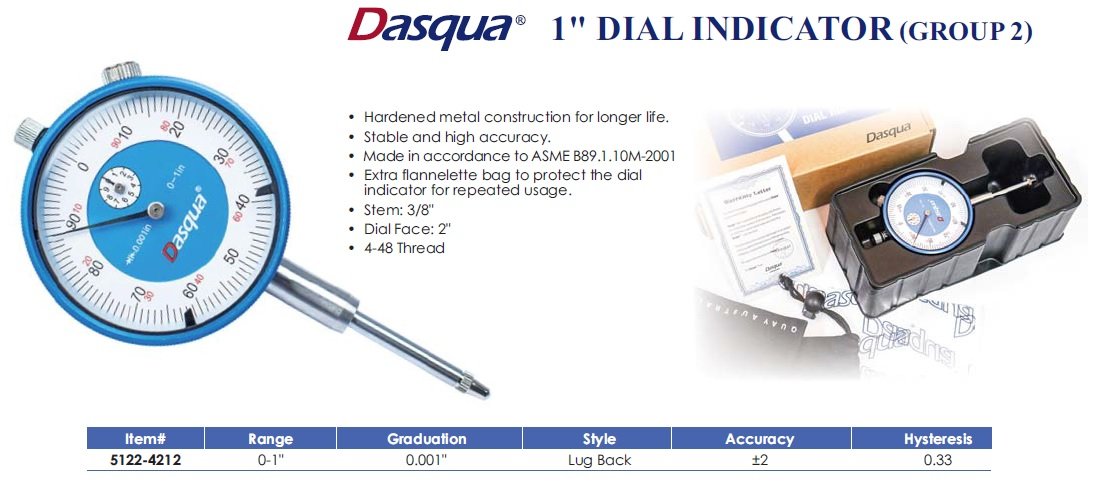

• The indicator is a 0-1″ lug back large measuring range dial indicator
• The indicator accuracy is 0.002″, the hysteresis is 0.00033″ and the scale divisions are 0.001″
• This indicator is strictly made in accordance with DIN878
• It has a satin chrome-plated steel case with a diameter of 58mm and a shank diameter of 8mm
• The magnetic base has 132 lbs of magnetic force with fine adjustment
• It is a v-grooved base for ease of mount on cylindrical parts and has chrome plated rods
• The mag base has both horizontal or vertical positioning capabilities
• Smooth and easy on/off switch
• Base is 60mm (2.36″) x 50mm (1.97″) x 55mm ( 2.17″)
• Main rod is 12mm (.47″) diameter x 176mm (6.93″)
• 2nd rod is 10mm diameter (.39″)x 150mm (5.91″)
• Clamp hole diameters are 6mm (.24″), 8mm (.31″) & 3/8″

Specifications

• Dasqua 2 Piece Magnetic Base and 1″ Indicator Set
• The indicator is a 0-1″ lug back large measuring range dial indicator.
• The indicator accuracy is 0.002″, the hysteresis is 0.00033″ and the scale divisions are 0.001″.
• This indicator is strictly made in accordance with DIN878.
• It has a satin chrome-plated steel case with a diameter of 58mm and a shank diameter of 8mm.
• The magnetic base has 132 lbs of magnetic force with fine adjustment.
• It is a v-grooved base for ease of mount on cylindrical parts and has chrome plated rods.
• The mag base has both horizontal or vertical positioning capabilities.
• Smooth and easy on/off switch.
• Base is 60mm (2.36″) x 50mm (1.97″) x 55mm ( 2.17″).
• Main rod is 12mm (.47″) diameter x 176mm (6.93″).
• 2nd rod is 10mm diameter (.39″)x 150mm (5.91″).
• Clamp hole diameters are 6mm (.24″), 8mm (.31″) & 3/8″.
• Weight: 4.35
• Dimensions: L 12, W 7, H 3

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
